- Page 1 INSTRUCTIONS FOR USE CRYO.S 6-CHANNEL HANDHELD DECAPPER Item No.: 852076 -NA/ -UK/ -EU/ -AU/ -JP/ -CN...
- Page 2 IMPORTANT NOTICE: This manual may not be used or reproduced in any way whatsoever without the express written consent of Greiner Bio-One GmbH. The Greiner Bio-One GmbH address can be found on the last page. Greiner Bio-One GmbH is responsible for this operator’s manual.
- Page 3 INSTRUCTION MANUAL INTRODUCTION: This manual helps users operate the Cryo.s 6-Channel Handheld Decapper correctly and safely, herein referred to as the Decapper. To achieve this goal, the manual describes the different components of the Decapper and their functionality. After introducing you to the various parts of the Decapper, the manual will describe step by step how to operate the Decapper.
-
Page 4: Table Of Contents
TABLE OF CONTENT: 1. Information about Intended Use, Safety and Security ........6 1.1. Disclaimer Statement ....................6 1.2. Intended Use ......................6 1.3. Legal Regulations ..................... 7 1.4. Malfunction / Troubleshooting .................. 8 1.5. Precautions and Safety ..................... 8 1.5.1. - Page 5 7. Cleaning Maintenance .................. 22 7.1. Materials Required ....................22 7.1.1. Cleaning Agents ....................22 7.2. Cleaning Parts of the Instrument ................23 8. Technical Speficiations ................23 9. Declaration of Conformity ................24 10. Compliance with the European Union’s Waste Electrical &...
-
Page 6: Information About Intended Use, Safety And Security
Decapper. It covers the most encountered procedures, handling techniques, and safety considerations for daily use. Please note that the content of this manual is subject to change without notice, as Greiner Bio-One GmbH continues to develop new products, accessories, and software. It is important to recognize that this manual may not be comprehensive in its explanations, instructions, or statements, and may not reflect the most current information available. Some illu-... -
Page 7: Legal Regulations
Item No. Description 123263 Cryo.s non-coded tubes, 1 ml, starfoot base, internal tube thread 122263 Cryo.s non-coded tubes, 2 ml, starfoot base, internal tube thread 126263 Cryo.s non-coded tubes, 2 ml, starfoot base, external tube thread 127263 Cryo.s non-coded tubes, 4 ml, starfoot base, external tube thread Cryo.s non-coded tubes, 1 ml, starfoot base, internal tube thread, 123263-2DG linear barcode, human readable identifier and datamatrix code... -
Page 8: Malfunction / Troubleshooting
NOTICE Read the following safety notices carefully before using the Decapper 1.5.1/ MAINTENANCE, SERVICE AND REPAIR Only trained contractual partners of Greiner Bio-One are authorized to perform mechanical repair on the Decapper. 1.5.2/ OPERATING THE INSTRUMENT When using the Decapper, Good Laboratory Practices (GLP) must be observed. -
Page 9: Electrical Safety Precautions
There are no electrical components that are accessible to the user in the Decapper. WARNING Any removal of the housing to access internal components must only be performed by contractual partners of Greiner Bio-One. 1.5.4/ HAZARDS The following section describes the main safety considerations, electrical and bio- logical, in operating this product and the main hazards involved. -
Page 10: Safety Measures
Any serious incident or near incident that has occurred in relation to the Decapper shall be reported to Greiner Bio-One and to the competent authority of the member state in which the operator is established. Contacting Greiner Bio-One either by contac- ting a local Greiner Bio-One representative or by utilizing the Greiner Bio-One webpage, which can be found on the last page of this operating manual. -
Page 11: Decapper Introduction

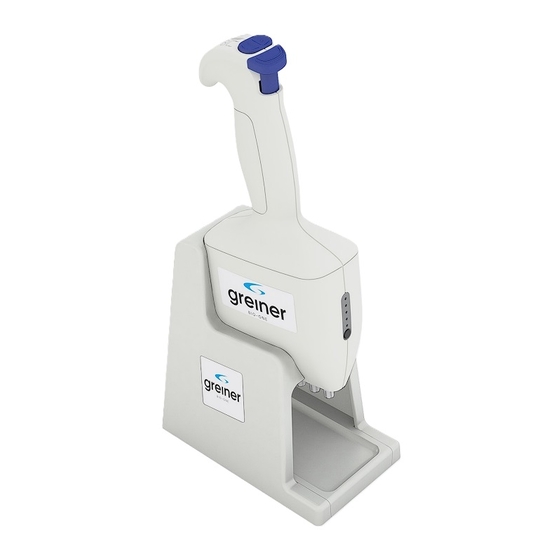

2/ DECAPPER INTRODUCTION 2.1/ DECAPPER DESIGN OVERVIEW The following picture depicts the main components of the Decapper. Battery Indicator Handheld Decapper Device Torque Indicator Panel Torque Button Adaptors Docking Station Cap Button Battery Indicator Eject Button Decap Button CRYO.S 6-CHANNEL HANDHELD DECAPPER 11 / 26... -
Page 12: Concept Overview
For details on torque set- ting please refer to 4.7 Adjusting Capping Torque/ page 18. NOTICE For Greiner Bio-One's cryogenic tubes with internal and external threads, torque pre-setting levels 4 and 5 (4/5 green LEDs lit up) were found to be optimal, respectively. -
Page 13: Installation And Set-Up
3/ INSTALLATION AND SET-UP These instructions allow operators to independently install the Decapper device into their workspace. 3.1/ SHIPMENT Your delivery consists of the following items: Decapper device Docking station Power cord & power adaptor Adaptors (pre-installed) Adaptors case Manual Quick start guide 3.2/ HARDWARE INSTALLATION 3.2.1/ POWER CABLE CONNECTION... -
Page 14: Docking The Decapper
3.2.2/ DOCKING THE DECAPPER Before initial use the Decapper should be fully charged. After removal from pack- aging, the Decapper should be placed in the Docking Station until a full charge is indicated. 3.2.3/ DISPOSAL OF SHIPMENT MATERIALS It is the customer’s responsibility for the care and disposal of all packaging materials. 4/ WORKING WITH THE DECAPPER 4.1/ DECAPPING TUBES Fully insert the adaptors into the inner cavities of the six corresponding caps by firmly... -
Page 15: Storing Caps
LED should display a charging or battery full status. NOTICE The Greiner Bio-One Cap Carrier in 48-format REF 803507 can be used as a cap holder for Cryo.s non-coded Tubes and Cryo.s with Barcode and Datamatrix Code. These Cap Carriers are not included with the tubes and must be purchased separately. -
Page 16: Wireless Operation
4.5/ WIRELESS OPERATION The Decapper only operates wireless. The battery indicator will display the battery status when in use. This will remain on for ~15 seconds after either the cap or decap buttons have been pressed. The below table shows the power status levels displayed by the Decapper. The power indicator will also flash every ~8 seconds while the device is not in use. -
Page 17: Charging
4.6/ CHARGING When not in use, place the device in the docking station to automatically charge. The power indicator will indicate the charging state of the device when properly installed. The motors are disabled, and the device cannot be used while in the docking station. The below table shows the charging status indicators. -
Page 18: Adjusting Capping Torque
NOTICE Torque pre-setting level 4 (four green LEDs of the torque indicator lit up) was found optimum for capping Greiner Bio-One’s Cryo.s non-coded Tubes and Cryo.s with Barcode and Datamatrix Code with internal thread. Torque pre-setting level 5 (five green LEDs of the torque indicator lit up) was found optimum for capping Greiner Bio-One’s Cryo.s non-coded Tubes... - Page 19 Capping Torque Display Torque Level Indicator 200 mNm ± 10 mNm 250 mNm ± 10 mNm NOTICE Do not apply too high torque levels as this may destroy the thread on the tube and tubes may not be closed properly any longer. Leakage may occur. CRYO.S 6-CHANNEL HANDHELD DECAPPER 19 / 26...
-
Page 20: Ordering Information
5/ ORDERING INFORMATION The following article numbers are for 6-channel decappers, each with an included charging cable featuring a region-specific plug for countries and their associated re- gions with the same plug standard: European Union (EU), United Kingdom (UK), North America (US), Japan (JP), China (CN), Australia (AU). Item No. Description CRYO.S DECAPPER, 6 CHANNEL, EU VERSION, 852076-EU FOR CRYO.S TUBES, 1 UNIT PER CASE... -
Page 21: Troubleshooting
Description Solution No/low battery power Charge device Adaptors do not spin Installed in dock/charging Remove from dock before use Faulty battery Contact Greiner Bio-One Incorrect torque setting Adjust torque level Overtighten/ Contact labware damaged vials Incorrect torque setting manufacturer Incorrect torque setting... -
Page 22: Cleaning Maintenance
7/ CLEANING MAINTENANCE When necessary, the Decapper can be cleaned. 7.1/ MATERIALS REQUIRED Disposable nitrile or latex gloves Protective glasses Lab coat 7.1.1/ CLEANING AGENTS According to the degree of contamination, the following cleaning agents are suitable for cleaning parts of the Decapper. It is recommended to clean only the described part. Cleaning Agent Concentration Risk to Decapper... -
Page 23: Cleaning Parts Of The Instrument
60 mm (2.36 in) 255 mm (10.04 in) Weight of Decapper 1.3 lb w/o Docking Station: Greiner Bio-One Cryo.s non-coded Tubes and Cryo.s Supported Labware: with Barcode and Datamatrix Code in 48-format racks Input: 100 VAC to 240 VAC Auto switching... -
Page 24: Declaration Of Conformity
9/ DECLARATION OF CONFORMITY CE conformity is issued and maintained for the Decapper. See the Declaration of Conformity provided with the instrument as well as the information in the following sections. The Decapper is designed and built-in compliance with safety and health requirements of applicable EC Directives. -
Page 25: Compliance With The European Union's Waste Electrical & Electronic Equipment Directive
To adhere to the European Union's WEEE Directive 2002/96/EC, this product is la- belled with a specific symbol. If you are in Europe, you can return the product free of charge by contacting your local Greiner Bio-One representative for information on the disposal process. However, items classified as biohazardous or medically contami- nated cannot be recycled through this program and must be disposed of as biohazard- ous waste in compliance with the proper protocols. - Page 26 GmbH has all copyrights and/or other (user-)rights in this documents, in particular to signs such as the mentioned (word-picture-)brands and logos. Any use, duplication or any other use of the rights of Greiner Bio-One GmbH is expressly prohibited. Media owner: Greiner Bio-One GmbH / Represented by Managing Directors Jakob Breuer and Heinz Schmid.
