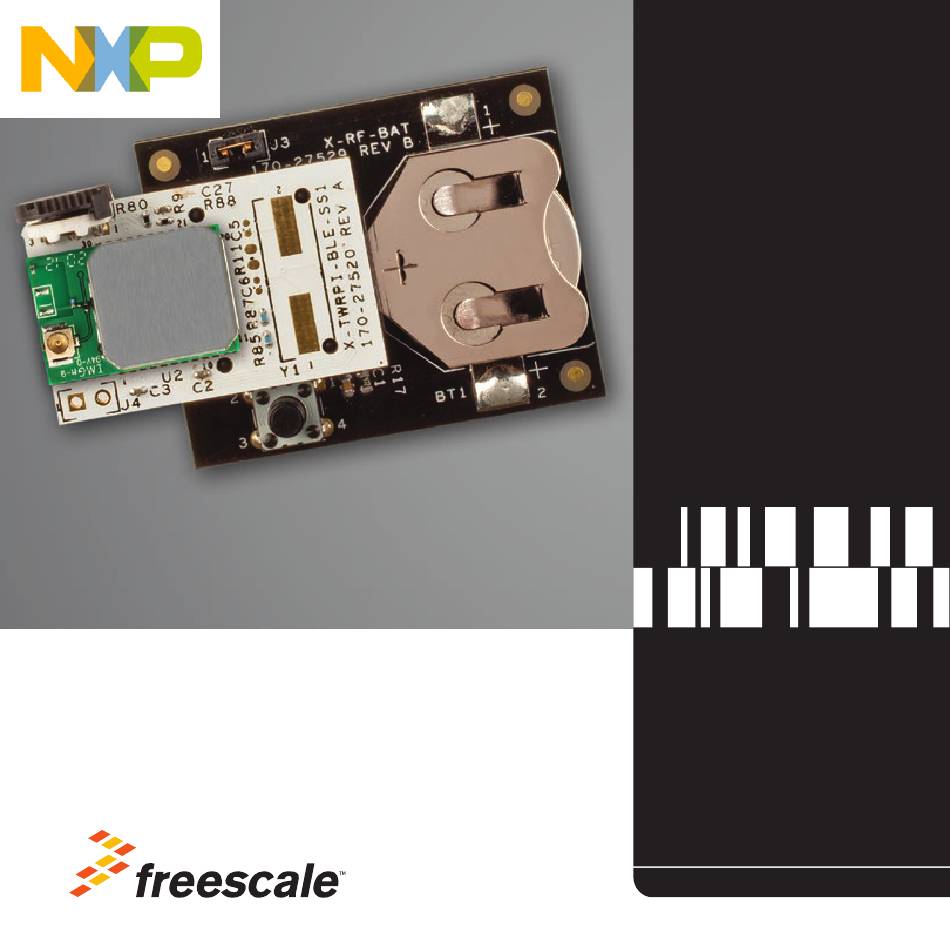

- Page 1 Quick Start Guide TWRPI-BLE-DEMO Tower Plug-In Bluetooth ® Low Energy Demo TOWER SYSTEM...
- Page 2 Quick Start Guide Get to Know the TWRPI-BLE-DEMO KWIKSTIK-K40 LCD Screen on Back Circuit Board Start (Touch Button) on Back Kinetis K40 MCU TWRPI-BLE-SS1 (Collector) Jumper Battery Board for Current with CR2032 Consumption Coin Cell Measurement TWRPI-BLE-SS1 (Sender) Kinetis K10 MCU Reset Button and EM Micro BLE Transceiver Inside...
- Page 3 TOWER SYSTEM Headline of Features in Initial Caps Can Go TWRPI-BLE-DEMO Features to Two Lines If Necessary • Contains two Bluetooth Low Energy (BLE) radio modules to evaluate performance and power consumption • Radio modules are self contained and FCC/CE certified with integrated chip antenna •...
- Page 4 Quick Start Guide Step-by-Step Installation Instructions Check the TWRPI- Power the BLE-SS1 Modules Board The demo consists of two TWRPI-BLE- To power up the collector board, plug the SS1 modules. Both modules are pre- Kinetis KWIKSTIK board into a PC using assembled.
- Page 5 TOWER SYSTEM Change the Reading Turn the potentiometer knob on the sender to change the value of the heart rate and then observe the changes displayed on the LCD screen of the KWIKSTIK. Note: If no device is found, press the start (touch button) to the left of the LCD to search for the device again.
- Page 6 Quick Start Guide...
- Page 7 TOWER SYSTEM...
-
Page 8: Warranty
Quick Start Guide TOWER SYSTEM Visit freescale.com/BLE for information on the TWRPI-BLE-DEMO module, including: • Stonestreet One module user guide • TWRPI-BLE-DEMO schematics • Tower System fact sheet • AT Modem commands for Stonestreet One BLE module • Stonestreet One web link Support Visit freescale.com/support for a list of phone numbers within your region.
