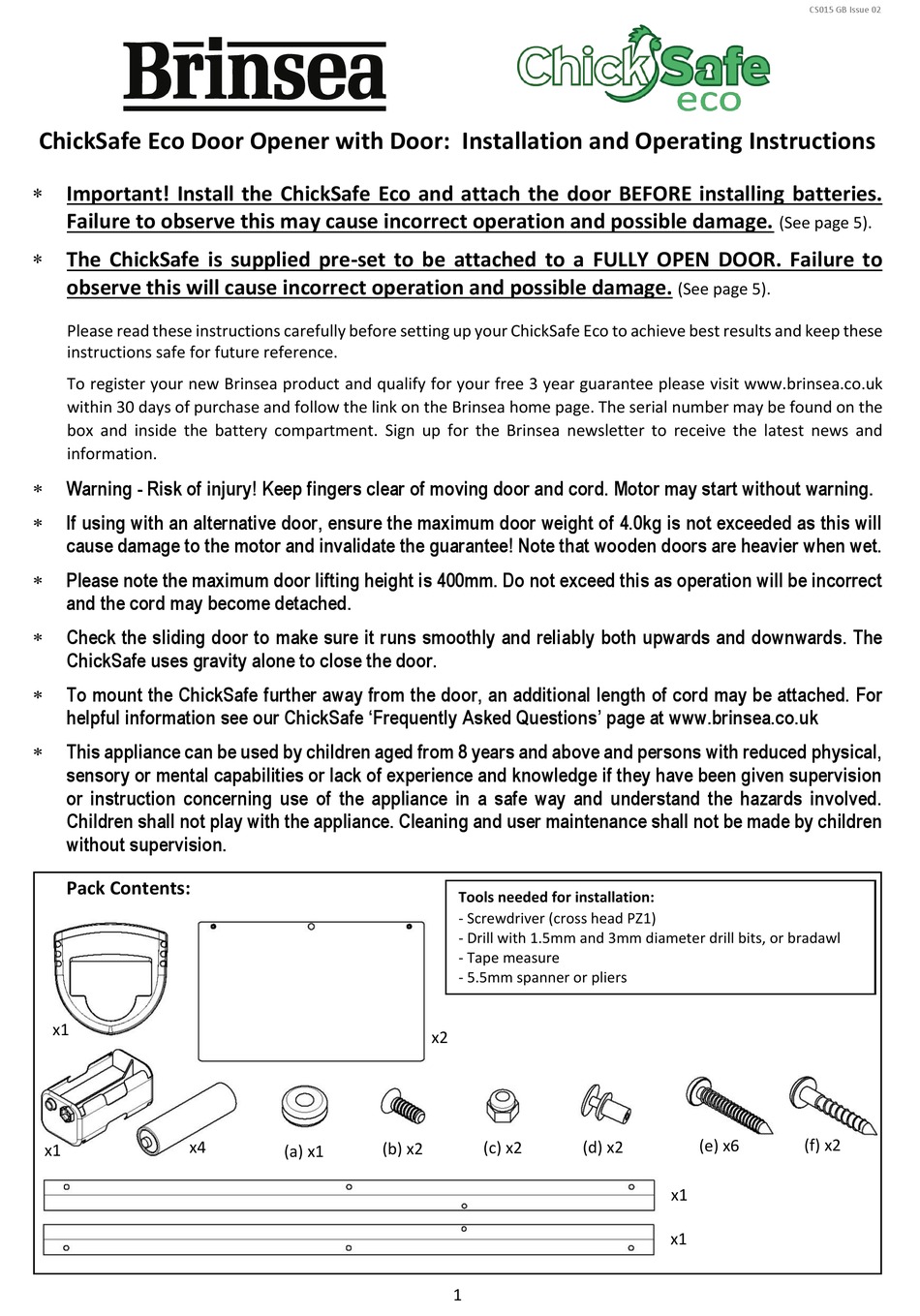

ChickSafe Eco Door Opener with Door: Installation and Operating Instructions
Important! Install the ChickSafe Eco and attach the door BEFORE installing batteries.
Failure to observe this may cause incorrect operation and possible damage.
The ChickSafe is supplied pre-set to be attached to a FULLY OPEN DOOR. Failure to
observe this will cause incorrect operation and possible damage.
Please read these instructions carefully before setting up your ChickSafe Eco to achieve best results and keep these
instructions safe for future reference.
To register your new Brinsea product and qualify for your free 3 year guarantee please visit www.brinsea.co.uk
within 30 days of purchase and follow the link on the Brinsea home page. The serial number may be found on the
box and inside the battery compartment. Sign up for the Brinsea newsletter to receive the latest news and
information.
Warning - Risk of injury! Keep fingers clear of moving door and cord. Motor may start without warning.
If using with an alternative door, ensure the maximum door weight of 4.0kg is not exceeded as this will
cause damage to the motor and invalidate the guarantee! Note that wooden doors are heavier when wet.
Please note the maximum door lifting height is 400mm. Do not exceed this as operation will be incorrect
and the cord may become detached.
Check the sliding door to make sure it runs smoothly and reliably both upwards and downwards. The
ChickSafe uses gravity alone to close the door.
To mount the ChickSafe further away from the door, an additional length of cord may be attached. For
helpful information see our ChickSafe 'Frequently Asked Questions' page at www.brinsea.co.uk
This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
Pack Contents:
x1
x4
x1
x2
(b) x2
(a) x1
1
Tools needed for installation:
- Screwdriver (cross head PZ1)
- Drill with 1.5mm and 3mm diameter drill bits, or bradawl
- Tape measure
- 5.5mm spanner or pliers
(d) x2
(c) x2
CS015 GB Issue 02
(See page 5).
(See page 5).
(f) x2
(e) x6
x1
x1
Advertisement
Related Manuals for Brinsea ChickSafe Eco CS015
Summary of Contents for Brinsea ChickSafe Eco CS015
- Page 1 To register your new Brinsea product and qualify for your free 3 year guarantee please visit www.brinsea.co.uk within 30 days of purchase and follow the link on the Brinsea home page. The serial number may be found on the box and inside the battery compartment. Sign up for the Brinsea newsletter to receive the latest news and information.
-
Page 2: Door Installation Instructions
Door Installation Instructions: Peel the protective film from the front of each door panel. Please note there may be superficial marking on the back of each panel due to the laser cutting process used to ensure the panels are very precisely made. - Page 3 It must be in the slot nearest to you Fit the channels with the six black Slide the door panel with grommet in each channel. wood screws (e). down the channels. Check that the door panels slide up and down easily. They must slide down under their own weight.
- Page 4 Tie the ChickSafe cord to the Hang the ChickSafe on the two Start to fit the two silver hole fitted with the grommet in screws. woodscrews (f) into the holes the top of the door. you have made. Gently tighten each screw to Make sure the cord is taut once make the ChickSafe secure.
- Page 5 7. Disconnect the battery holder. The system is now reset to the factory position. Follow the installation instructions from the start to ensure the door opens to the correct position. For helpful information see our ChickSafe ‘Frequently Asked Questions’ page at www.brinsea.co.uk...
-
Page 6: Declaration Of Conformity
Automatic openers and accessories are intended to help keep chickens safe but the overall responsibility for the welfare and safety of livestock remains with the owner/keeper. Brinsea, its retailers or distributors will not be responsible for the loss of livestock or consequential loss in the event of failure however caused.
