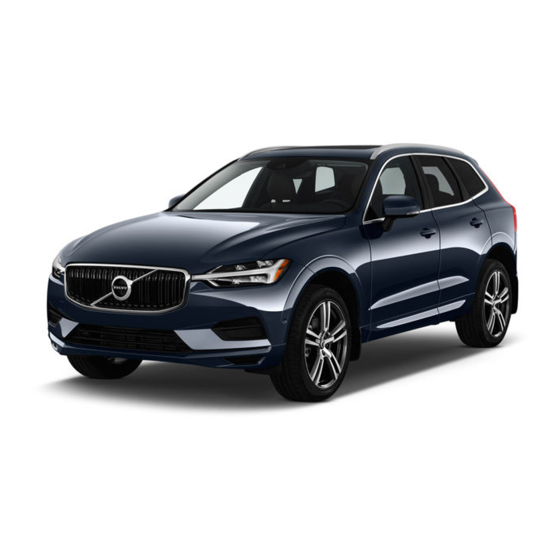

Volvo XC60 2017 Quick Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
XC60
Q UICK G UIDE

Advertisement

loading

Related Manuals for Volvo XC60 2017

Summary of Contents for Volvo XC60 2017

  • Page 1 XC60 Q UICK G UIDE...
  • Page 2 VÄLKOMMEN! This Quick Guide describes a selection of features and functions in your Volvo. Additional owner's information is available in your vehicle, in an app and on the Internet. THE CENTER DISPLAY The Owner's Manual is available in the center display in Top view.
  • Page 3 CONTENT 01. GETTING TO KNOW YOUR VOLVO This chapter gives you information on some of Volvo's systems and services, and an overview of the inside and out- side, and the center display. 02. INTERIOR AND CONNECTIONS This chapter provides information about features and functions in the passenger compartment e.g. seat settings and Internet connection.
  • Page 5 The following concepts, functions, and tips are intended to help you familiarize yourself with your Volvo as quickly as possible. Volvo ID Volvo ID is a personal ID that gives you access to a number of online services . Some examples are Volvo On Call, navigation and the oppor- tunity to schedule service and repairs.
  • Page 7 EXTERIOR OVERVIEW Checking and calibration of tire pressure (TPMS)* is performed and lock the tailgate by pressing the button on the lower in the app in the center display's app view. If edge of the tailgate. You can also close the tailgate by moving your TPMS Car status foot slowly under the rear bumper.
  • Page 9 LOCKING/UNLOCKING Remote key Press briefly to lock doors, tailgate and fuel filler door and arm the alarm. A long press closes all side windows simultaneously. One short press unlocks doors, tailgate and fuel filler flap and dis- arms the alarm. Press and hold to open all door windows at the same time.
  • Page 11 INTERIOR OVERVIEW Center display is used to control many of the vehicle's main func- done in the center display's top view by tapping Settings tions, e.g. media, navigation*, climate control, driver support systems Parking Brake and Suspension. and in-vehicle apps. Passenger airbag: a sensor system determines what is occupying The instrument panel displays most of the information related to the front passenger seat and activates/deactivates the front pas-...
  • Page 13 CENTER DISPLAY The center display is used to adjust settings and control most of the vehicle's functions. The center display has three main views: home view, function view and app view. You can reach the function view and app view from the home view by swiping right or left. There is also a top view that you can access by swiping down the top section of the dis- play.
  • Page 14 1. Turn the multifunction control to open the seat settings window in the center display. 2. Select the desired function in the center display by turning the con- trol. 3. Adjust the setting by pressing the upper/lower/front/rear sections of the control. Storing settings 1.
  • Page 15 FOLDING DOWN THE REAR SEAT BACKRESTS Make sure that the backrest and head restraint do not come into con- tact with the back of the seat in front when folding down. The front seats may need to be adjusted in order to fold down the backrests. The backrest can be folded down manually using the handles in the upper sides of the outboard seats.
  • Page 16 STEERING WHEEL Adjusting the steering wheel Speed limiter helps to avoid exceeding a selected maximum speed. You can adjust the position of the steering wheel for both height and depth. Cruise Control helps the driver maintain a set speed. 1. Push the lever under the steering wheel forward and adjust the Adaptive Cruise Control* helps the driver maintain a constant steering wheel to the desired position.
  • Page 17 decreases/increases the distance to the vehicle ahead when using Adaptive Cruise Control and Pilot Assist. Pressing also resumes the stored speed for the selected function. Right-side steering wheel keypad The right-side steering wheel keypad controls the instrument panel. Open/close the app menu. From here, you can control the trip computer, media player, a connected cell phone and the naviga- tion system.
  • Page 18 Approach lighting is activated when you unlock the vehicle using the key and provides illumination to help you approach the vehicle safely in the dark. Home Safe Lighting illuminates some of the exterior lights after the vehicle is locked to provide illumination around the vehicle in dark con- ditions.
  • Page 19 RIGHT-SIDE STEERING WHEEL LEVER The right-side steering wheel lever controls the wipers and the rain sensor. – Move the lever downward for a single sweep of the windshield. – Move the lever upward in steps for intermittent, normal speed and high speed.
  • Page 21 PASSENGER COMPARTMENT CLIMATE Climate system settings Climate system functions for the front and rear sections of the passen- ger compartment are controlled from the center display and from the buttons on the center console and the rear side of the tunnel console*. Some functions can also be controlled using voice commands.
  • Page 22 CONNECTIONS The vehicle's various types of connections can be used to play or voice- 2. Tap Settings Communication Vehicle Modem Internet control media, send or receive text messages, make or receive phone top view. calls, connect to the Internet, etc., from an external device such as a 3.
  • Page 23 Auto*. Your external device will also be recharged while it is connected to the vehicle. Only vehicles with Volvo On Call. When the vehicle's modem is used to make the connection, the Volvo On Call services will use the connection.
  • Page 24 USING CONNECTED DEVICES External devices can be connected to e.g. handle phone calls and play media in the vehicle's audio and media systems. Handling phone calls You can make and receive calls from a Bluetooth-connected phone. Making calls using the center display 1.
  • Page 25 MP3 player or iPod 1. Start playback in the device. 2. Open the app, depending on connection iPod method. For playback from iPod, select the iPod regardless of connection method. Playback will begin. ® ® Apple CarPlay and Android Auto* CarPlay and Android Auto make it possible to use certain apps in your smartphone via the vehicle to e.g.
  • Page 27 HOME VIEW When the center display starts it shows the home view, from where you can access the tiles for Navigation, Media and Phone, as well as the last used app or vehicle function. Navigation - Tap to access Sensus Navigation*. Entering a destination with a free text search - Expand the tool- bar using the down arrow on the left side and tap .
  • Page 29 FUNCTION VIEW AND APP VIEW Function view 1. Press and hold an icon. 2. Drag the icon to the desired location in the view and release it. In home view, swipe the screen from left to right to access function view.
  • Page 31 TOP VIEW There is a tab in the upper part of the display that you can pull down to access top view. This view provides access to Settings Owner's and the vehicle's stored messages. manual Profile Personal settings Many personal settings can be changed under Settings, e.g. displays, mirrors, front seat, navigation*, audio and media systems, language and voice control.
  • Page 33 DRIVER SUPPORT Your vehicle is equipped with a number of functions to help you drive Steering assistance during collision risks safely and help prevent accidents. These functions are activated in the Steering assistance during collision risks can help the driver reduce the center display's function view.
  • Page 35 PARKING ASSISTANCE SYSTEMS Park Assist Pilot* display. The Park Assist Camera starts automatically when reverse gear is engaged. It can also be started manually from the center display. Park Assist Pilot can help detect if the vehicle will fit into a parking space and then helps guide the vehicle into the space.
  • Page 37 PURER DRIVING PLEASURE Planning your trip and driving economically helps reduce fuel consump- tion, carbon emissions and other air pollutants. You can reduce your impact on the environment and reduce your fuel costs. Some factors you can influence and others you cannot. Here are some tips. Plan your trips by always Plan your trip - a lot of unnecessary stops and uneven speeds •...
  • Page 38 • tions in the media player, Bluetooth-connected phones, climate system iPod • and the Volvo navigation system* using voice commands. To activate • Bluetooth voice control, press the voice control button in the right-side steering wheel keypad. Similar music •...
  • Page 39 Set fan to max Turn off fan Clear itinerary • • • Raise fan speed Lower fan speed • Repeat voice guidance Turn on auto Turn off voice guidance • • • Air condition on Air condition off • Turn on voice guidance Recirculation on Recirculation off •...
  • Page 40 The driver bears full responsibility for park- Never use abrasive cloths, paper towels or tissue Volvo On Call - For vehicles with Volvo On Call, the passenger than normal. This could increase the ing the vehicle safely and braking when necessary.
  • Page 41 OFF ROAD drive mode is not designed to be used for normal street driving. USING CONNECTED DEVICES Apple CarPlay and Android Auto - Volvo is not With a cold start, idling speed may be considerably responsible for the content of the CarPlay or higher than normal for certain engine types.
  • Page 42 TP 24716 (English – USA & Canada), AT 1746, MY18, Copyright © 2000-2017 Volvo Car Corporation...
