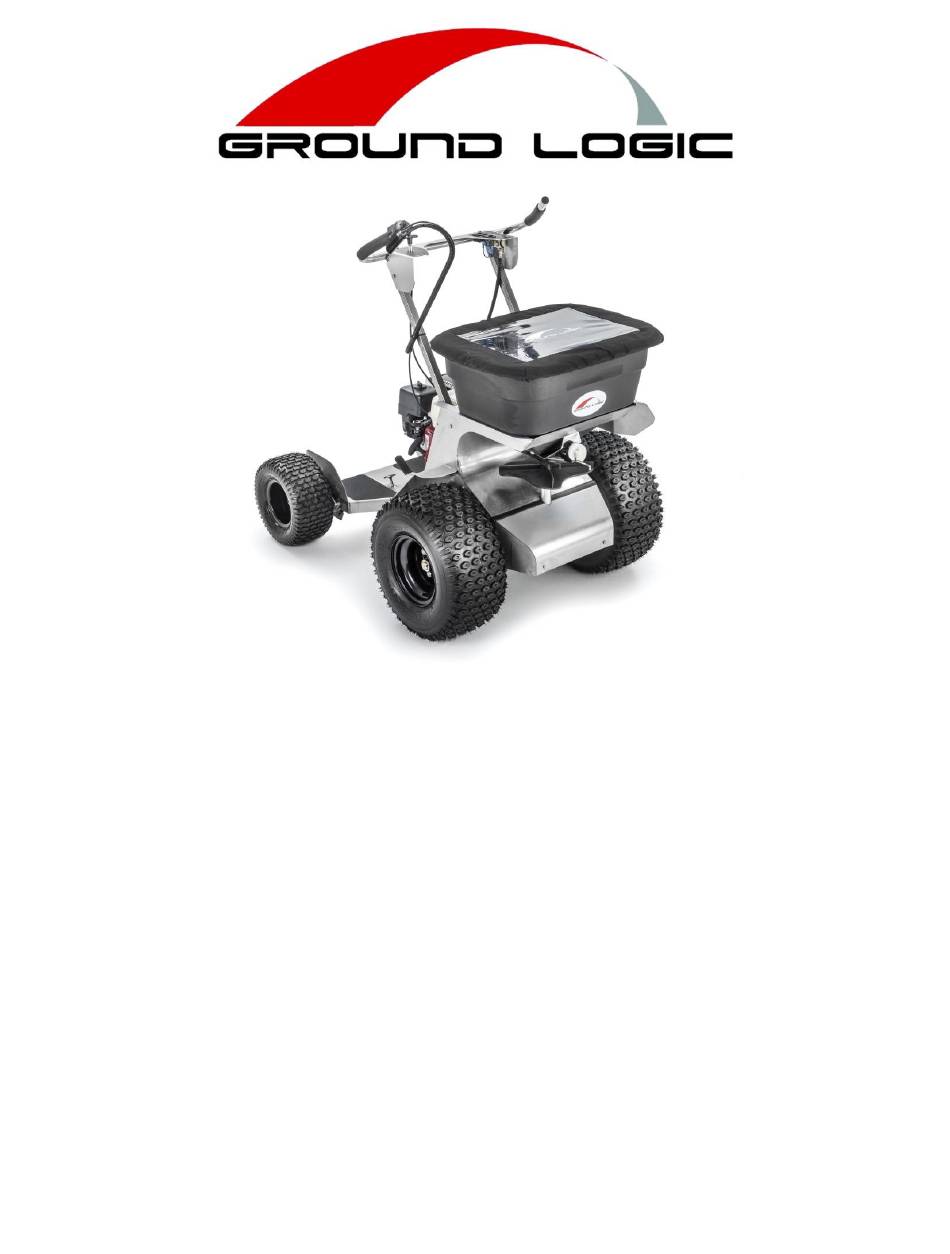

ROVER, ROVER XR
OPERATOR'S MANUAL
S/N: 2018036122 & Above
Congratulations on the purchase of your Ground Logic, Inc. machine.
This product has been carefully designed and manufactured to be a de-
pendable piece of equipment that will provide years of trouble-free opera-
tion.
BEFORE OPERATING YOUR MACHINE, CAREFULLY READ AND UN-
DERSTAND THIS MANUAL IN ITS ENTIRETY.
For future reference, place the serial number of the machine and date of
purchase below:
Serial Number: ________________
Date of Purchase: _____________
GROUND LOGIC, INC.
ROV-12000-2 AND ROV-22000-2
1
5105863_-_HI
Advertisement
Table of Contents
Related Manuals for ground logic ROVER
Summary of Contents for ground logic ROVER
- Page 1 ROVER, ROVER XR OPERATOR’S MANUAL S/N: 2018036122 & Above Congratulations on the purchase of your Ground Logic, Inc. machine. This product has been carefully designed and manufactured to be a de- pendable piece of equipment that will provide years of trouble-free opera- tion.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. MACHINE SPECIFICATIONS 1.1 Table of Specifications 1.2 Operator Controls 2. GENERAL OPERATIONAL SAFETY 2.1 Proposition 65 Statement 2.2 Operating Safely 2.3 Chemical Safety 2.4 Training 2.5 Preparation 2.6 Children 2.7 Safe Handling of Gasoline 3. SAFETY AND INSTRUCTIONAL DECALS 3.1 Introduction to Safety Alert Symbols and Signal Words 3.2 Safety Icons and Warning Decals 9-10... -
Page 3: Machine Specifications
1. MACHINE SPECIFICATIONS 1.1 TABLE OF SPECIFICATIONS ROVER ROVER XR MODEL NUMBER This manual is for model number 5901723 This manual is for model number 5901724 (ROV-12000-2). (ROV-22000-2). ENGINE • • Engine Model: GX160-URH2 Engine Model: GX160-URH2 • • Engine specifications: See your Honda Engine specifications: See your Honda engine owner’s manual. -
Page 4: Operator Controls
1. MACHINE SPECIFICATIONS CONTINUED 1.2 OPERATOR CONTROLS • The handlebars provide access to most of the machine controls. • Turning the handlebars while standing on the operator platform provides steering control. • Squeezing the throttle lever on the right side of the handlebars provides speed control. •... -
Page 5: Chemical Safety
2. GENERAL OPERATIONAL SAFETY 2.2 OPERATING SAFELY CONTINUED Keep both feet on the operator platform at all times. Power equipment is only as safe as the operator. If it is misused, or not properly maintained, it can be dangerous! Remember, you are responsible for your safety and that of those around you. -
Page 6: Training
2. GENERAL OPERATIONAL SAFETY CONTINUED 2.4 TRAINING • Read, understand, and follow all instructions in the manual and on the unit before starting. If the operator(s) or mechanic(s) cannot read English it is the owner’s responsibility to explain this material to them. -
Page 7: Children
2. GENERAL OPERATIONAL SAFETY CONTINUED CAUTION This machine produces sound levels in excess of 85 dBA at the operator’s ear and can cause hearing loss though extended periods of exposure. Wear hearing protection when operating this machine. 2.6 CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the unit and the operating activity. -
Page 8: Safety And Instructional Decals
2. GENERAL OPERATIONAL SAFETY CONTINUED 2.7 SAFE HANDLING OF GASOLINE To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. • Never over-fill the fuel tank. Replace gas cap and tighten securely. •... -
Page 9: Safety Icons And Warning Decals
3. SAFETY AND INSTRUCTIONAL DECALS CONTINUED 3.2 SAFETY ICONS AND WARNING DECALS Figure 2: Safety Icons Explanation of Icons in Figure 2 Callout Description Alert Read the Manual Thrown Objects Slope Direction for Safe Operation Amputation - Rotating Parts Caustic Liquid/Chemical Burn Gas Inhilation Hazard Figure 3: Explanation of Icons in Figure 2 Figure 4: Amputation and Pinch Point Hazard Decal... -
Page 10: Instructional Decals
3. SAFETY AND INSTRUCTIONAL DECALS CONTINUED 3.2 SAFETY ICONS AND WARNING DECALS CONTINUED Figure 5: Warning and Danger Combination Decal 3.3 INSTRUCTIONAL DECALS Figure 6: Foot Break Decal Foot Brake Decal: See section 4.2 CONTROLS for brake pedal operating instructions. Releasing the brake pedal disengages the band brakes on the rear wheels (OFF position). -
Page 11: Honda Engine Decals And Engine Controls
3. SAFETY AND INSTRUCTIONAL DECALS CONTINUED 3.3 INSTRUCTIONAL DECALS Figure 7: Parking Brake Decal Figure 8: Explanation of Parking Brake Decal 3.4 HONDA ENGINE DECALS AND ENGINE CONTROLS Set lever to choke when starting cold. Throttle lever Choke lever Set lever to desired engine speed. Move lever completely to the left to stop engine. -
Page 12: Operating Instructions
4. OPERATING INSTRUCTIONS 4.1 OPERATION • Keep both feet on the operator platform at all times. • Never run an engine in an enclosed area. • Operate only in the daylight or with good artificial light, keeping away from holes and hidden hazards. •... -
Page 13: User Controls
4. OPERATING INSTRUCTIONS CONTINUED 4.2 CONTROLS The user should become familiar with all controls before operating the machine. • Handlebars: The handlebars provide steering control of the machine and should be grasped with the hands at the location of the foam grips. •... -
Page 14: Pre-Start
4. OPERATING INSTRUCTIONS CONTINUED 4.4 PRE-START • Fill the fuel tank. For best results use only fresh, clean regular grade unleaded gasoline with an oc- tane rating of 87 or higher. Do not add oil to the gasoline. • Do not overfill the fuel tank. Never fill the fuel tank so that the fuel level rises above a level that is ½” below the bottom of the filler neck. -
Page 15: Transporting The Machine
4. OPERATING INSTRUCTIONS CONTINUED 4.7 TRANSPORTING THE MACHINE • Use a heavy-duty trailer or hitch-mounted rack to transport the machine. Securely fasten the machine to the trailer or rack with straps, chains, cable, or ropes. Make sure that the trailer or rack has all of the necessary lighting and markings that are required by law. -
Page 16: Slope Operational Safety
5. SLOPE OPERATIONAL SAFETY 5.1 SLOPE IDENTIFICATION GUIDE Figure 9 Measure the slope of a lawn surface with a smartphone or angle finder tool: WARNING Do not operate on slopes greater than 12 degrees. 1. Use a straight edge at least two (2) feet long (A, Figure 9). A 2x4 or a straight piece of metal works well. -
Page 17: Slope Operation
5. SLOPE OPERATIONAL SAFETY CONTINUED 5.2 SLOPE OPERATION Slopes are a major factor related to loss-of-control and tip-over accidents, which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not drive on it. -
Page 18: Operating On Slopes
• Do not operate on slopes if you cannot back up them. 5.3 OPERATING ON SLOPES Learn how to operate the Rover on slopes and use your body position to improve traction and control of the machine. Operation on slopes can be dangerous. Slopes are a major factor related to accidents, which can result in se- vere injury or death. -
Page 19: Calibration
5. SLOPE OPERATIONAL SAFETY CONTINUED 5.3 OPERATING ON SLOPES CONTINUED Operate up and down slopes, NOT across: • Operation down slopes can be dangerous and cause sliding, loss of steering, control, and possible rollover. Do NOT operate down a slope unless absolutely necessary. Drive very slowly in the lowest gear and be careful. -
Page 20: Centering The Spread Pattern
6. CALIBRATION CONTINUED 6.1 SPREADER FLOW RATE CALIBRATION CONTINUED • Set the gate stop to a setting of 5. This will be used as the starting setting for dialing in the correct gate stop setting for the particular material that is being used. Note that the spreader will have to be recalibrated for each different type of material that is spread. -
Page 21: Maintenance, Storage, And Service
6. CALIBRATION CONTINUED 6.2 CENTERING THE SPREAD PATTERN CONTINUED • Add together all of the eleven numbers to find the total material that was dispensed. • Divide the amount caught in each pan by the total amount. This is the percentage that was caught in each pan. -
Page 22: Periodic Service Intervals
7. MAINTENANCE, STORAGE, AND SERVICE 7.1 MANTENANCE AND STORAGE SAFETY CONTINUED • Park machine on level ground. Never allow untrained personnel to service machine. • Use jack stands to support components when required. • Carefully release pressure from components with stored energy. •... - Page 23 7. MAINTENANCE, STORAGE, AND SERVICE CONTINUED 7.2 PERIODIC SERVICE INTERVALS CONTINUED One Month or 20 Hour Maintenance Period: • Change the engine oil the first month or after 20 hours, whichever comes first. Change the engine oil every 100 hours after that. See the Engine Owner’s Manual. •...
-
Page 24: Fault Isolation
7. MAINTENANCE, STORAGE, AND SERVICE CONTINUED 7.2 PERIODIC SERVICE INTERVALS CONTINUED Hour Maintenance Interval: • Clean the combustion chamber.* *These items should be serviced by your Honda servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the Honda shop manual for service procedures. 8. -
Page 25: Spreading System Operates Incorrectly
8. FAULT ISOLATION CONTINUED 8.2 SPREADING SYSTEM OPERATES INCORRECTLY FAILURE MODE CAUSE OF PROBLEM CORRECTIVE ACTION Spreader pattern is uneven or The gate opening in the bottom of Remove the material from the spreader does not operate. the hopper is blocked. hopper and dislodge any clumps around the gate opening. -
Page 26: Warranty Information
9. WARRANTY INFORMATION BRIGGS & STRATTON WARRANTY POLICY (November 2017) LIMITED WARRANTY Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. - Page 27 ABOUT YOUR WARRANTY Warranty service is available only through Ground Logic Authorized Service Dealers. This warranty only covers defects in materials or workmanship. It does not cover damage caused by improper use or abuse, improper maintenance or repair, normal wear and tear, or stale or unapproved fuel.
