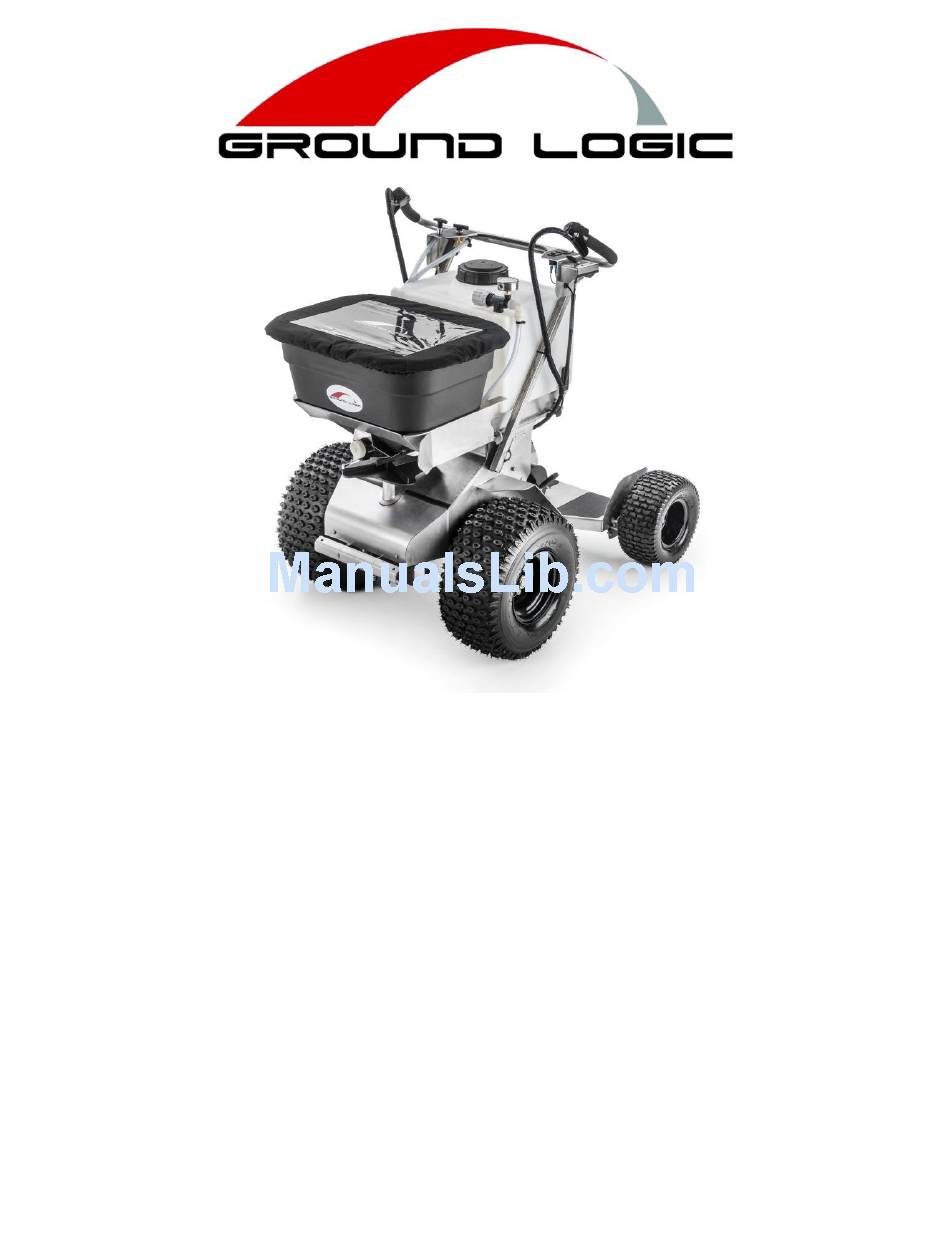

PATHFINDER, PATHFINDER XC
OPERATOR'S MANUAL
S/N: 20180360140 & Above
Congratulations on the purchase of your Ground Logic, Inc. machine.
This product has been carefully designed and manufactured to be a de-
pendable piece of equipment that will provide years of trouble-free opera-
tion.
BEFORE OPERATING YOUR MACHINE, CAREFULLY READ AND UN-
DERSTAND THIS MANUAL IN ITS ENTIRETY.
For future reference, place the serial number of the machine and date of
purchase below:
Serial Number: ________________
Date of Purchase: _____________
GROUND LOGIC, INC.
PAT-12012-2/PAT-22016-2
1
5105862_-_HI
Advertisement
Table of Contents
Related Manuals for ground logic PATHFINDER
Summary of Contents for ground logic PATHFINDER
- Page 1 PATHFINDER, PATHFINDER XC OPERATOR’S MANUAL S/N: 20180360140 & Above Congratulations on the purchase of your Ground Logic, Inc. machine. This product has been carefully designed and manufactured to be a de- pendable piece of equipment that will provide years of trouble-free opera- tion.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. MACHINE SPECIFICATIONS 1.1 Table of Specifications 1.2 Operator Controls 2. GENERAL OPERATIONAL SAFETY 2.1 Proposition 65 Statement 2.2 Operating Safely 2.3 Chemical Safety 2.4 Training 2.5 Preparation 2.6 Children 2.7 Safe Handling of Gasoline 3. SAFETY AND INSTRUCTIONAL DECALS 3.1 Introduction to Safety Alert Symbols and Signal Words 3.2 Safety Icons and Warning Decals 3.3 Instructional Decals... -
Page 3: Machine Specifications
1. MACHINE SPECIFICATIONS 1.1 TABLE OF SPECIFICATIONS PATHFINDER PATHFINDER XC MODEL NUMBER This manual is for model number 5901725 This manual is for model number 5901726 (PAT-12012-2). (PAT-22016-2). ENGINE • Engine Model: GX200-RT2RMG2 • Engine Model: GX200-RT2RMG2 • Engine specifications: See your Honda •... -
Page 4: Operator Controls
1. MACHINE SPECIFICATIONS CONTINUED 1.1 TABLE OF SPECIFICATIONS CONTINUED PATHFINDER PATHFINDER XC DIMENSIONS • Overall length: 54.0” (137 cm). • Overall length: 58.0” (147 cm). • Overall width: 35.5” (90 cm). • Overall width: 35.5” (90 cm). • Overall height: 49.0” (124 cm). -
Page 5: Operating Safely
2. GENERAL OPERATIONAL SAFETY CONTINUED 2.2 OPERATING SAFELY The safety alert triangle ( ) in text signifies important caustions or warnings which must be followed. Figure 1 Congratulations on purchasing a superior-quality piece of lawn and garden equipment. Our products are de- signed and manufactured to meet or exceed all industry standards for safety. -
Page 6: Training
2. GENERAL OPERATIONAL SAFETY CONTINUED 2.3 CHEMICAL SAFETY CONTINUED • Obtain the proper training before using or handling any chemicals. Follow all local, state and federal requirements for the handling and spreading or spraying of chemicals. • Be sure to verify there is an adequate supply of clean water and soap nearby and immediately wash off any chemicals that may contact you. -
Page 7: Children
2. GENERAL OPERATIONAL SAFETY CONTINUED 2.5 PREPARATION CONTINUED • Use extra care when handling gasoline and other fuels. They are flammable and vapors are explosive. • Use only an approved container for gasoline. • Never remove fuel cap or add fuel with the engine running. Allow engine to cool before refueling. Do not smoke. -
Page 8: Safe Handling Of Gasoline
2. GENERAL OPERATIONAL SAFETY CONTINUED 2.7 SAFE HANDLING OF GASOLINE To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. • Extinguish all cigarettes, cigars, pipes, and other sources of ignition. •... -
Page 9: Safety Icons And Warning Decals
3. SAFETY AND INSTRUCTIONAL DECALS CONTINUED 3.1 INTRODUCTION TO SAFETY ALERT SYMBOLS AND SIGNAL WORDS WARNING If any safety decals become worn or damaged, and cannot be read, order replacement decals from your local dealer. 3.2 SAFETY ICONS AND WARNING DECALS Figure 2: Safety Icons Explanation of Icons in Figure 2 Callout... -
Page 10: Instructional Decals
3. SAFETY AND INSTRUCTIONAL DECALS CONTINUED 3.2 SAFETY ICONS AND WARNING DECALS CONTINUED Loss of Control: To avoid serious injury or death: Caustic Liquid/Chemical Thrown Object Hazard: Operating on slopes can be hazardous and • Do NOT operate when Burn and Gases Inhalation cause loss of control. -
Page 11: Instructional Decals
3. SAFETY AND INSTRUCTIONAL DECALS CONTINUED 3.3 INSTRUCTIONAL DECALS CONTINUED Figure 7: Foot Brake Decal Foot Brake Decal: See section 4.2 CONTROLS for brake pedal operating instructions. Releasing the brake pedal disengages the band brakes on the rear wheels (OFF position). Depressing the brake pedal engages the band brakes on the rear wheels (ON position). -
Page 12: Honda Engine Decals And Engine Controls
3. SAFETY AND INSTRUCTIONAL DECALS CONTINUED 3.4 HONDA ENGINE DECALS AND ENGINE CONTROLS Set lever to choke when starting cold. Throttle lever Choke lever Set lever to desired engine speed. Move lever completely to the left to stop engine. Fuel valve... -
Page 13: Operating Instructions
4. OPERATING INSTRUCTIONS 4.1 OPERATION • Keep both feet on the operator platform at all times. • Never run an engine in an enclosed area. • Operate only in the daylight or with good artificial light, keeping away from holes and hidden hazards. •... -
Page 14: User Controls
4. OPERATING INSTRUCTIONS CONTINUED 4.2 CONTROLS The user should become familiar with all controls before operating the machine. • Handlebars: The handlebars provide steering control of the machine and should be grasped with the hands at the location of the foam grips. •... -
Page 15: Pre-Start
4. OPERATING INSTRUCTIONS CONTINUED 4.3 BEFORE FIRST TIME OPERATION CONTINUED WARNING Never operate on slopes greater than 12°. • Select slow ground speed before driving onto a slope. Use extra caution when operating on slopes with any accessories attached to the unit. •... -
Page 16: Stopping The Machine
4. OPERATING INSTRUCTIONS CONTINUED 4.6 STOPPING THE MACHINE • Position the machine on a flat and level surface. • Completely release the throttle lever. • Move the transmission lever to the neutral (N) position. • Move the engine ignition switch to the “OFF” position. 4.7 TRANSPORTING THE MACHINE •... -
Page 17: Operating The Sprayer
4. OPERATING INSTRUCTIONS CONTINUED 4.9 OPERATING THE SPRAYER • The sprayer has a pattern width of approximately 11 feet with the broadcast tip. The effective pattern width is approximately 7 feet wide which allows the same pass width as the spreader. For this reason, the spreader and spraying systems may be operated at the same time. -
Page 18: Slope Operational Safety
5. SLOPE OPERATIONAL SAFETY 5.1 SLOPE IDENTIFICATION GUIDE Figure 10 Measure the slope of a lawn surface with a smartphone or angle finder tool: WARNING Do not operate on slopes greater than 12 degrees. 1. Use a straight edge at least two (2) feet long (A, Figure 10). A 2x4 or a straight piece of metal works well. -
Page 19: Slope Operation
5. SLOPE OPERATIONAL SAFETY CONTINUED 5.2 SLOPE OPERATION Slopes are a major factor related to loss-of-control and tip-over accidents, which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not drive on it. -
Page 20: Operating On Slopes
• Do not operate on slopes if you cannot back up them. 5.3 OPERATING ON SLOPES Learn how to operate the Pathfinder on slopes and use your body position to improve traction and control of the machine. Operation on slopes can be dangerous. Slopes are a major factor related to accidents, which can result in se- vere injury or death. -
Page 21: Calibration
5. SLOPE OPERATIONAL SAFETY CONTINUED 5.3 OPERATING ON SLOPES CONTINUED Operate up and down slopes, NOT across: • Operation down slopes can be dangerous and cause sliding, loss of steering, control, and possible rollover. Do NOT operate down a slope unless absolutely necessary. Drive very slowly in the lowest gear and be careful. -
Page 22: Centering The Spread Pattern
6. CALIBRATION CONTINUED 6.1 SPREADER FLOW RATE CALIBRATION CONTINUED • Set the gate stop to a setting of 5. This will be used as the starting setting for dialing in the correct gate stop setting for the particular material that is being used. Note that the spreader will have to be recalibrated for each different type of material that is spread. -
Page 23: Calibrating The Spray Flow Rate
6. CALIBRATION CONTINUED 6.2 CENTERING THE SPREAD PATTERN CONTINUED • Add together all of the eleven numbers to find the total material that was dispensed. • Divide the amount caught in each pan by the total amount. This is the percentage that was caught in each pan. -
Page 24: Maintenance, Storage, And Service
7. MAINTENANCE, STORAGE, AND SERVICE 7.1 MANTENANCE AND STORAGE SAFETY • Always observe safe refueling and fuel handling practices when refueling the unit after transportation or storage. • Always follow the engine manual instructions for storage preparations before storing the unit for both short and long term periods. -
Page 25: Periodic Service Intervals
7. MAINTENANCE, STORAGE, AND SERVICE CONTINUED 7.1 MANTENANCE AND STORAGE SAFETY CONTINUED • Always comply with factory specifications on all settings and adjustments. • Only authorized service locations should be utilized for major service and repair requirements. • Never attempt to make major repairs on this unit unless you have been properly trained. Improper ser- vice procedures can result in hazardous operation, equipment damage and voiding of manufacturer’s warranty. -
Page 26: Periodic Service Intervals
7. MAINTENANCE, STORAGE, AND SERVICE CONTINUED 7.2 PERIODIC SERVICE INTERVALS CONTINUED 25 Hour Maintenance Interval: • Check the tire pressure in all four tires. Inflate the front drive tires to 10 psi. Inflate the rear operator platform tires to 15 psi. •... -
Page 27: Fault Isolation
8. FAULT ISOLATION This section provides a method for troubleshooting machine problems. Before utilizing the following proce- dures, check the machine for obvious signs of damage or failure. This includes missing or loose components, components that have failed, or physical damage. Do not attempt to operate the machine until the machine has been repaired. -
Page 28: Spreading System Operates Incorrectly
8. FAULT ISOLATION CONTINUED 8.2 SPREADING SYSTEM OPERATES INCORRECTLY FAILURE MODE CAUSE OF PROBLEM CORRECTIVE ACTION Spreader pattern is uneven or The gate opening in the bottom of Remove the material from the spreader does not operate. the hopper is blocked. hopper and dislodge any clumps around the gate opening. -
Page 29: Spraying System Operates Incorrectly
8. FAULT ISOLATION CONTINUED 8.3 SPRAYING SYSTEM OPERATES INCORRECTLY FAILURE MODE CAUSE OF PROBLEM CORRECTIVE ACTION Spraying pattern is Rotate the spray nozzle tips so that the tip ori- The spray nozzle tips are out of uneven or spraying fice is directed straight in front of the machine. position. -
Page 30: Warranty Information
9. WARRANTY INFORMATION BRIGGS & STRATTON WARRANTY POLICY (November 2017) LIMITED WARRANTY Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. - Page 31 ABOUT YOUR WARRANTY Warranty service is available only through Ground Logic Authorized Service Dealers. This warranty only covers defects in materials or workmanship. It does not cover damage caused by improper use or abuse, improper maintenance or repair, normal wear and tear, or stale or unapproved fuel.
