U.S.SAWS MC-45 Operating Manual

Milling machine
Hide thumbs

Advertisement

Quick Links

Download this manual
U.S.SAWS MC-45

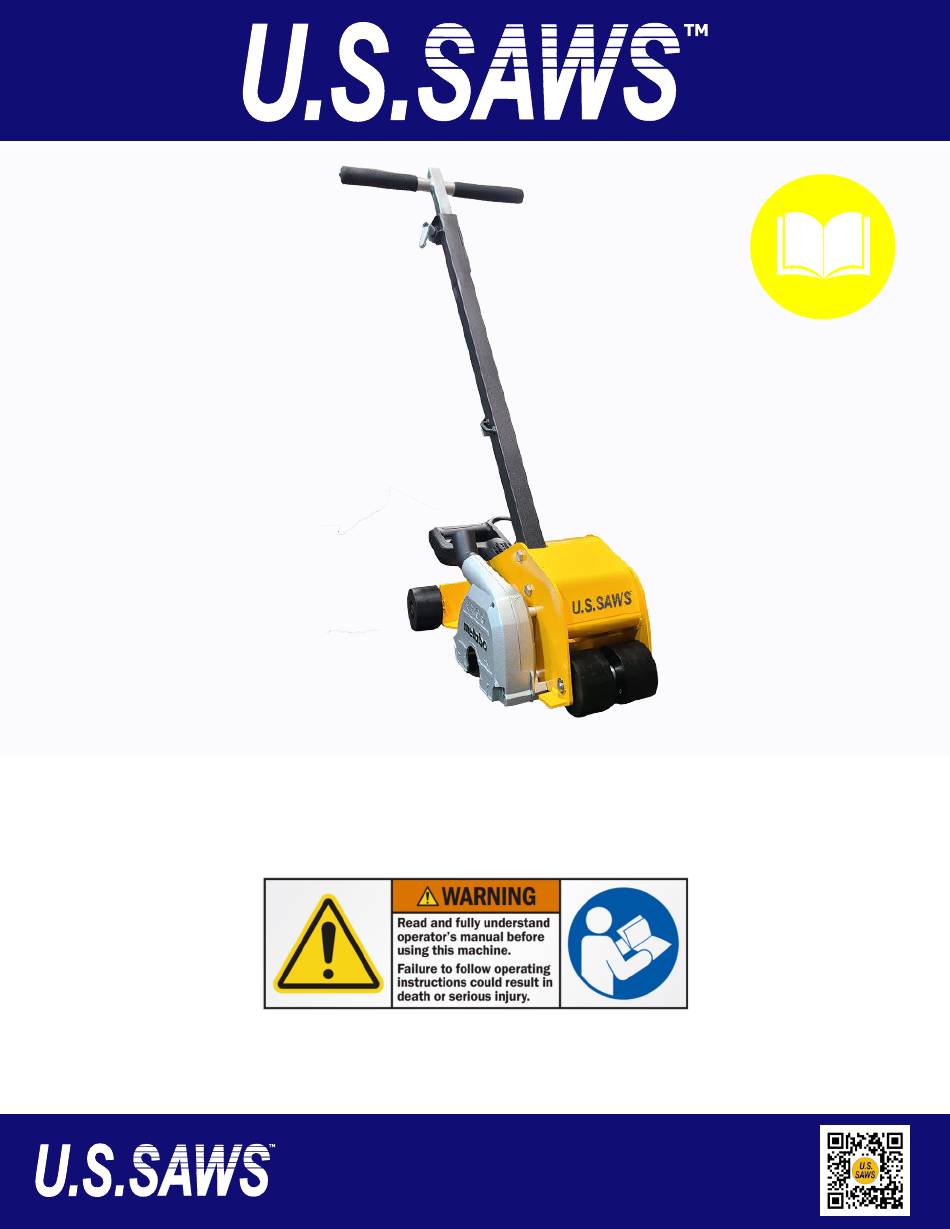

OPERATING MANUAL
Copyright 2020, by U.S.SAWS . All rights reserved. This work may not be reproduced or disseminated in whole or in part by any
Notice of Copyright Protection
means without the prior written permission of U.S.SAWS
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
sales@ussaws.com
U.S. English
06-29-2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the MC-45 and is the answer not in the manual?

Questions and answers

Related Manuals for U.S.SAWS MC-45

Summary of Contents for U.S.SAWS MC-45

  • Page 1 U.S.SAWS MC-45 OPERATING MANUAL Notice of Copyright Protection Copyright 2020, by U.S.SAWS . All rights reserved. This work may not be reproduced or disseminated in whole or in part by any means without the prior written permission of U.S.SAWS 06-29-2022...

  • Page 2: Table Of Contents

    & maintenance of the U.S.SAWS MC-45 Machine & to instruct you in safety practices for dealing with these conditions. Keep all manuals provided with your SPECIFICATIONS machine in a safe place at all times.

  • Page 3: Symbols & Decals

    You must clearly understand the written instructions supplied by U.S.SAWS, be trained - including actual operation - & know the safety rules & regulations for the job site. It is a safety practice to point out & explain safety signs & practices to others & to make sure they Wear appropriate clothing understand the importance of following these instructions.

  • Page 4: Safety Instruction

    RECEIVE PROPER TRAINING. electric shock. Do not operate this machine unless you have received operational and maintenance training from a U.S.SAWS representative or from an autho- 4.11 AVOID ANY AREAS OR ACTIONS THAT EXPOSE YOU TO CARBON rized distributor for U.S.SAWS.
  • Page 5 S A F E T Y I N S T R U C T I O N S 4.29 LOAD AND UNLOAD SAFELY. 4.18 DO NOT OVERREACH. Use proper heavy lifting procedures. Read & understand manuals before Keep proper footing and balance at all times. loading &...

  • Page 6: Pre-Operation Checklist

    Always perform a pre-operation inspection before each operation and correct any problem. CAUTION: Running the MC-45 generates heat in the motor, blade. Do Observe the condition of your work environment. Walk over not touch these components without wearing proper heat protecting area work area and look for hazards.
  • Page 7 If an accurate depth must be cut, install the blade to be used with the motor in the OFF position. Place the MC-45 in a secure position that allows the blade to overhang and be visibly measured at full blade depth.
  • Page 8 5.11 MC-45 premium dry cut diamond blades not in place. Never operate a MC-45 without guards in place. The proper position for the blade guard is down touching the horizontal surface. U.S.SAWS recommends soft blond blades for use with the MC-45.

  • Page 9: Operation & Parts

    The blade will turn as soon as the MC- SETTING THE BLADE DEPTH 45 is started. This could damage the blade or cause the MC-45 to jump backwards. The accurate way: Lay the saw on its side in the same position you would to change the blade.
  • Page 10 O P E R AT I O N LINING UP THE BLADE WITH THE CUT MC-45 HANDLE ASSEMBLY: The inner most blade position ( closest to motor) is naturally aligned with the edge of the yellow rolling frame along the right hand side.

  • Page 11: Parts Breakdown

    PA R T S B R E A K D O W N P: 877-817- 6687 F: 813-621-7125 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...
  • Page 12 PA R T S B R E A K D O W N P: 877-817- 6687 F: 813-621-7125 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...

  • Page 13: Operations Breakdown

    O P E R AT I O N S B R E A K D O W N P: 877-817- 6687 F: 813-621-7125 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...
  • Page 14 O P E R AT I O N S B R E A K D O W N P: 877-817- 6687 F: 813-621-7125 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...
  • Page 15 O P E R AT I O N S B R E A K D O W N P: 877-817- 6687 F: 813-621-7125 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...
  • Page 16 O P E R AT I O N S B R E A K D O W N P: 877-817- 6687 F: 813-621-7125 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...
  • Page 17 O P E R AT I O N S B R E A K D O W N P: 877-817- 6687 F: 813-621-7125 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...
  • Page 18 O P E R AT I O N S B R E A K D O W N P: 877-817- 6687 F: 813-621-7125 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...
  • Page 19 O P E R AT I O N S B R E A K D O W N P: 877-817- 6687 F: 813-621-7125 Surface Prep Visit us at www.ussaws.com Division sales@ussaws.com...

  • Page 20: Warranty & Service

    Warranty This document is to be used as a guide in determining warranty policies and procedures for U.S.SAWS and its U.S.SAWS products. It is to be used in determining whether a warranty is justified and as a procedural guide in completing a U.S.SAWS warranty claim form.
  • Page 21 FILL OUT THE ATTACHED CARD COMPLETELY AND ACCURATELY. WARRANTY REGISTRATION CARD IMPORTANT! To ensure that your U.S.SAWS machine is covered under warranty, please fill in the following information and mail or fax it to U.S.SAWS, 8004B E. Broadway Ave. Tampa, FL 33619, Fax No. (813) 621-7125...

This manual is also suitable for:

Sx45000
