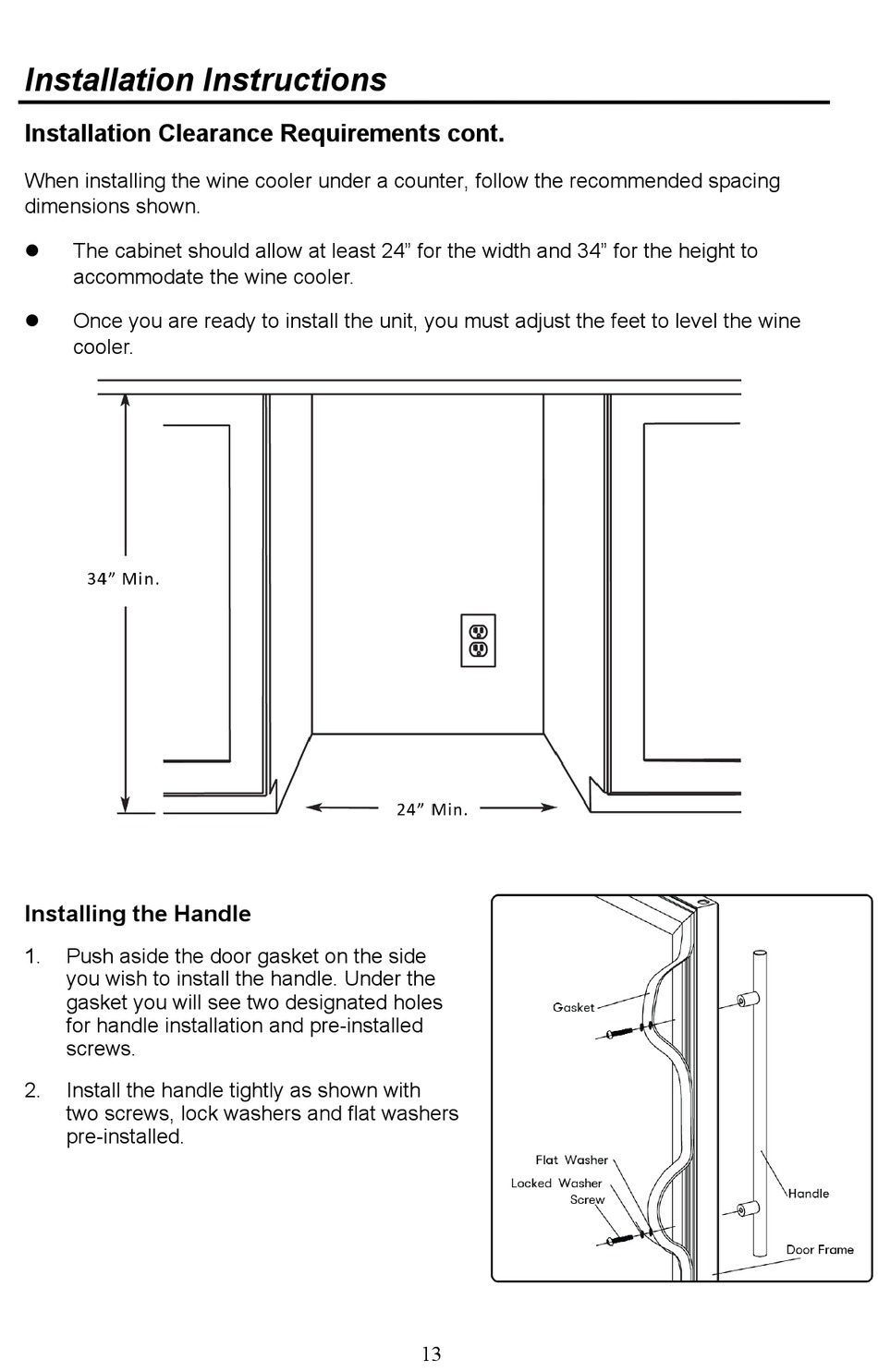

Zephyr UWN24C02BG Use, Care And Installation Manual page 13

Installation Instructions
Installation Clearance Requirements cont.
When installing the wine cooler under a counter, follow the recommended spacing
dimensions shown.
The cabinet should allow at least 24" for the width and 34" for the height to

accommodate the wine cooler.
Once you are ready to install the unit, you must adjust the feet to level the wine

cooler.
Installing the Handle
1. Push aside the door gasket on the side
you wish to install the handle. Under the
gasket you will see two designated holes
for handle installation and pre-installed
screws.
2. Install the handle tightly as shown with
two screws, lock washers and flat washers
pre-installed.
13
