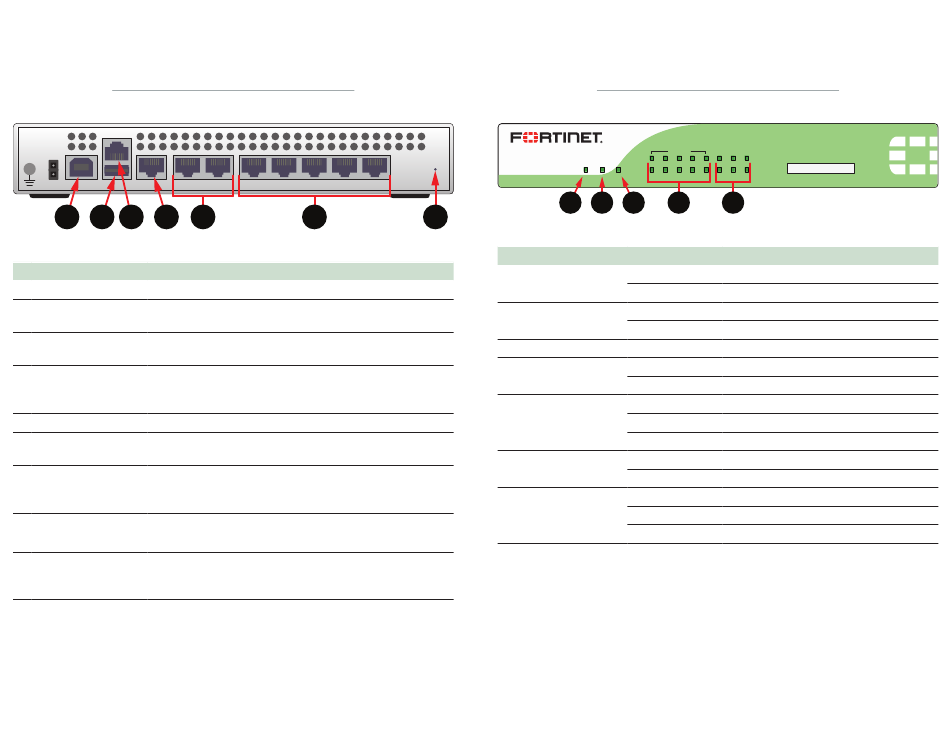

Technical Specifications

CONSOLE
DC+12V USB MGMT USB DMZ WAN2
1 2 3 4
# Interface Type
1 USB MGMT USB-B
2 USB USB-A
3 Console RJ-45
4 DMZ RJ-45
5 WAN1 & 2 RJ-45
6 Ethernet ports 1 - 5 RJ-45
7 Reset Button
Power Connection
ExpressCard slot
WAN1 5 4 3 2 1
5 6
Description
USB client port for management.
USB server port for USB key, modem, or
management functions.
Optional serial connection to the Management
Computer. Also gives access to the CLI.
Optional connection to a DMZ network/device
or to other FortiGate units for High Availability
(HA).
Gigabit Ethernet Internet connection.
Gigabit Ethernet 5-port switch connection for
the internal network.
When enabled (default state), resets the unit to
its factory default settings if pressed during the
first 30 seconds after a reboot.
12V DC, 2.5A
100-240V AC, 1.5A MAX, 50-60Hz adapter
The ExpressCard slot (on the front of the
device) adds wireless connectivity (card not
included).
Page 6

LED Specifications

FortiGate 60C-LENC
STATUS
PWR
1 2
7
# LED
1 PWR
2 STATUS
3 HA
Ethernet Ports
4
Link/Activity
Ethernet Ports
4
Speed
WAN and DMZ
5
Ports Link/Acticity
WAN and DMZ
5
Ports Speed
INTERNAL WAN1 WAN2 DMZ
LINK/ACT
SPEED
1 2 3 4 5
HA
3 4 5
State Description
Green The unit is on.
Off The unit is off.
Flashing Green The unit is booting.
Green The unit is running normally.
Green The unit is operating in an HA cluster.
Green Port is connected.
Flashing Green Port is transmitting and receiving data.
Green Port is connected at 1Gbps.
Amber Port is connected at 100Mbps.
Off Port is connected at 10Mbps
Green Port is connected.
Flashing Green Port is transmitting and receiving data.
Green Port is connected at 1Gbps.
Amber Port is connected at 100Mbps.
Off Port is connected at 10Mbps
Page 7
EXPRESS CARD
