Summary of Contents for Flexitron Webdyn MTX-IoT-XS

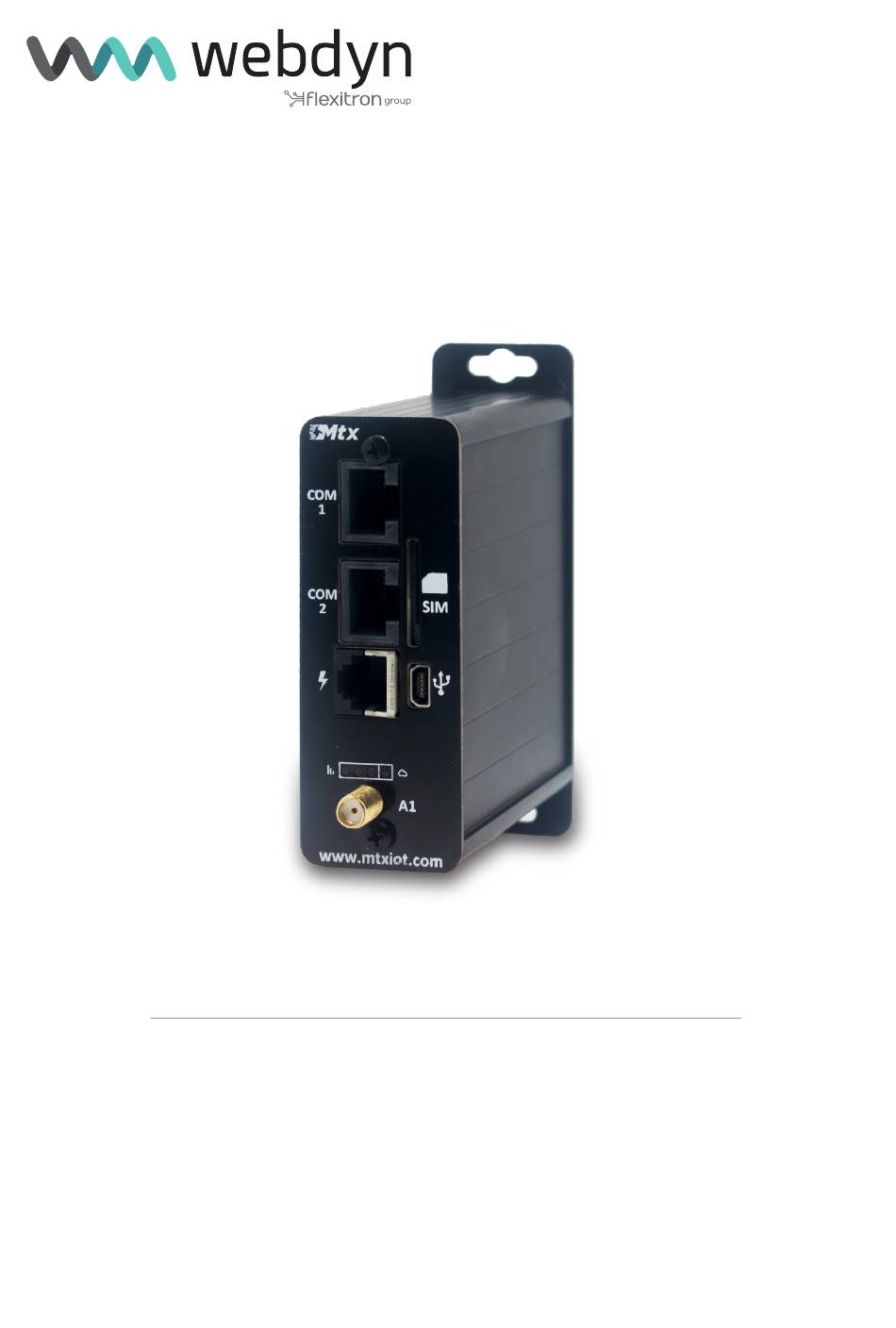

  • Page 1 MTX-IoT-XS Hardware User Guide www.webdyn.com...
  • Page 2: Table Of Contents

    1. Electrical specifications ........................36 1.1 Power supply ..........................36 1.2 RS232 interface ........................37 1.3 RS485 interface ........................38 1.4 Digital input ..........................39 1.5 Digital output ..........................39 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 3 5. Radio Frequency (RF) Exposure and SAR ................... 66 6. Personal Medical Devices ........................67 Modem Installation ......................68 1. Where to Install the Modem ......................... 68 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 4 RoHS Statement ....................... 81 Disposal Of Old Electrical And Electronic Equipment ............ 82 Abbreviations ........................83 AT Command Summary ....................89 Accessories ........................98 Sales Contact ........................99 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 5: General Notes

    Service and Support To contact customer support please contact your local distributor/sales agent or use the details below: Address: Alejandro Sánchez 109, 28019 Madrid (Spain) Email: gsmsupport@matrix.es Website: mtxm2m.com contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 6: Revision Information

    Revision Information Revision Date Author Changes 2020/06 Initial release 1.01 2020/10 Ordering information, description, hardware revision 1.02 2021/03 Hardware revision contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 7: Introduction

    The MTX-IOT-XS family is RoHS & WEEE compliant and it is manufactured following the ISO 9001 & IS0 14001 Quality certifications. A full list of antennas, cables and accessory supplies are available. The MTX-IOT-XS modems are powered by an internal EHS6/8/BGS5/ELS6/5 modules. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 8: Ordering Information

    2. Ordering Information [X-Options] 2: 2G N: (standard) 1xRS232, 1xRS485 3: 3G/2G D: 2x RS232 4: 4G/3G/2G contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 9: Highlights

    RJ45 (COM1): RS232, 1x input, 1x output 1x digital input RJ45 (COM2): RS232 or RS485 1x digital output (check options) RJ12: power supply 6-36V SIM card interface 1.8V and 3V contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 10 Authorized phone numbers Relays control Firewall IP, SSL/TLS connections, encrypted Access to serial devices using 2G/3G/4G and config Secure OTAP (remote FW upgrade) Astronomical clock Watchdog hardware contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 11: Product Label

    Product name (model) Hardware and firmware versions FCC ID Year/week of fabrication Barcode (code 128) (IMEI) CE logo RoHS symbol WEEE symbol Pb-free symbol PTCRB certification logo contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 12: Main Features And Services

    40V may damage the device during an extended use) Physical Dimensions: 100x80x30mm, peso: aprox. 130.5g RoHS All hardware components are fully compliant with the EU RoHS Directive contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 13 Text and PDU mode Storage: SIM card plus SMS locations in mobile equipment Software AT commands Hayes, 3GPP TS 27.007, 27.005, Gemalto M2M AT commands for RIL compatibility contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 14 Class 3 (+23dBm +1dB/-2dB) for LTE 900, LTE FDD Bd8 Class 3 (+23dBm +1dB/-2dB) for LTE 1800, LTE FDD Bd3 Class 3 (+23dBm +1dB/-2dB) for LTE 2100, LTE FDD Bd1 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 15 • NACC, extended UL TBF • Mobile Station Class B Point-to-point MT and MO Cell broadcast Text and PDU mode Storage: SIM card plus SMS locations in mobile equipment contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 16 Supports RTS/CTS hardware flow control Multiplex ability according to GSM 07.10 Multiplexer Protocol RS485 Adjustable baud rates: 1200bps to 921600bps Autobauding: 1200 to 230400bps Half-duplex 1x digital input 1x digital output contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 17 Automatic switch-off in case of high temperature or voltage conditions Software Reset Orderly shutdown and reset by AT command Hardware Reset Emergency reset by hardware Special Features Antenna SAIC/DARP Rx diversity (receiver type 3i – 64-QAM)/MIMO contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 18: Operating Modes

    Airplane mode shuts down the radio part of the module, causes the module to mode log off from the network and disables all AT commands whose execution requires a radio connection. Airplane mode can be controlled by AT command. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 19: Power Consumption

    GPRS Data transfer ROPR=4 (max. reduction) 57mA GSM1800/1900; PCL=0; 2Tx/3Rx ROPR=0 (no reduction) 85mA GPRS Data transfer ROPR=4 (max. reduction) 67mA GSM1800/1900; PCL=0; 4Tx/1Rx ROPR=0 (no reduction) 145mA contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 20 • With an impedance of ZLOAD=50Ohm at the antenna port • Measurements start 6 minutes after switching ON the modules Communication tester settings: no neighbor cells, no cell reselection etc., RMC (reference measurement channel). contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 21: Rf Antenna Interface Description

    Static Receiver Input Sensitivity @ GSM 850/E-GSM 900 -102 -109 GSM 1800/GSM 1900 -102 -108 RF Power @ ARP GSM 850/E-GSM 900 with 50Ohm Load GSM 1800/GSM 1900 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 22 50Ohm Load, (ROPR GSM 1800/GSM 1900 = 1) EDGE, 1 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 GPRS, 2 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 23 EDGE, 2 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 GPRS, 3 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 EDGE, 3 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 24 EDGE, 3 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 GPRS, 4 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 EDGE, 4 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 25 EDGE, 3 TX GSM 850/E-GSM 900 22.2 GSM 1800/GSM 1900 21.2 GPRS, 4 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 EDGE, 4 TX GSM 850/E-GSM 900 GSM 1800/GSM 1900 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 26 Small MS Static Receiver Input Sensitivity @ GSM 900 -102 -109 GSM 1800 -102 -108 RF Power @ ARP GSM 900 32.5 with 50Ω Load GSM 1800 29.5 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 27 GSM 900 32.5 with 50Ω Load, (ROPR = 1) GSM 1800 29.5 EDGE, 1 TX GSM 900 GSM 1800 GPRS, 2 TX GSM 900 32.5 GSM 1800 29.5 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 28 30.5 GSM 1800 27.5 EDGE, 2 TX GSM 900 GSM 1800 GPRS, 3 TX GSM 900 29.5 GSM 1800 26.5 EDGE, 3 TX GSM 900 GSM 1800 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 29 27.5 GSM 1800 24.5 EDGE, 3 TX GSM 900 GSM 1800 GPRS, 4 TX GSM 900 26.5 GSM 1800 23.5 EDGE, 4 TX GSM 900 GSM 1800 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 30: Sim Card

    The MTX-IOT-XS supports an external SIM card through the integrated SIM holder. Both 3V and 1.8V SIM technology is supported. Older 5V SIM technology is not supported. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 31: Precautions

    MTX-IOT-XS as a standalone item is designed for indoor use only. For outdoor use it must be integrated into a weatherproof enclosure. Do not exceed the environmental and electrical limits as specified in Technical Data. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 32: Block Diagram

    SIM card reader ASC0 ASC1 Mod I2C External power RJ11 power Power: 6-36Vdc RS232 Internal microprocessor (4-Wire) RJ45 COM 1 RJ45 RS485 COM 2 COVERAGE CLOUD 3x LED contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 33: Hardware Revisions

    8. Hardware Revisions Hardware revision Starting production date Changes 1.03 2020/10 Initial version contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 34: Mechanical Description

    The device case is made of aluminun and FR4. antenna (4G) RJ12 RJ45 RJ45 SIM card Mini USB LEDs reader DIN rail clips contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 35: Dimensions (Mm)

    2. Dimensions (mm) Packaging: Box 1 unit: 12x9.5x4cm, 150.6gr Box 120 units: 38.5x33.5x47cm, 18kg contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 36: Electrical And Environmental Characteristics

    Conditions Unit Supply voltage -0.3 Characteristics Symbol Parameter Conditions Unit Supply voltage Supply current η Efficiency VIN=12V, IOUT=1.5A Switching frequency *With a maximum coverage and 12V input contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 37: Rs232 Interface

    RTOUT VIN = 0V resistance Receiver RS-232 input VRIL threshold low Receiver RS-232 input VRIH threshold high VRIHYS Receiver input hysteresis RRIN Receiver input resistance kΩ contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 38: Rs485 Interface

    Input voltage at any bus terminal High-level input voltage (driver, driver enable, and receiver enable inputs) Low-level input voltage (driver, driver enable, and receiver enable inputs) Differential input voltage contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 39: Digital Input

    Input voltage range Characteristics Symbol Parameter Conditions Unit High-level input voltage Low-level input voltage 1.5 Digital output Absolute maximum ratings Symbol Parameter Conditions Unit Output voltage range contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 40 Characteristics Symbol Parameter Conditions Unit High-level output voltage Low-level output voltage contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 41: Operating Temperatures

    Note that within the specified operating temperature ranges the unit temperature may vary to a great extent depending on the operating mode, used frequency band, radio output power and current supply voltage. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 42: Storage Conditions

    Not recomm. IEC TR 60271-3-1:1S1 Sinusoidal vibration: IEC TR 60271-3-1:1M2 Displacement Acceleration m/s2 Frequency range 2-9 9-200 Shocks: IEC 60068-2-27 Ea Shock spectrum semi-sinusoidal Duration Acceleration m/s2 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 43: Interface Description

    • RJ45 female (main RS232 port, digital input and digital output) • RJ45 female (aux RS232 port or RS485 bus) • SIM card reader • SMA female coaxial jack RF contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 44: Power Supply Connector

    By default, the MTX-IoT-XS will automatically switch on when power supply is applied at PIN 1 and PIN 6. Signal Direction Limits Description Input Negative power (ground) Not connected Not connected Not connected Not connected Input 6-36VDC Positive power input contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 45: Micro Usb Connector

    The MTX-IOT-XS cannot be powered by a USB port. Only modems that have a mounted an internal Li-Po battery (B) can operate with USB power voltage. There are drivers available for Windows and Linux environment applications. Visit the MTX-IOT-XS web page at www.mtxm2m.com. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 46: Rj45 Connector: Com 1 Port

    The electrical characteristics of the serial port signals are shown below: Signal Direction Description RTS0 Input Request to send Ground connection TXD0 Input Transmitted data RXD0 Output Received data N.C. Not connected CTS0 Output Clear to send contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 47: Digital Input

    The electrical equivalent circuits of the counter input is shown in following figure: +4.2V 100k Internal processor BC846B 56VDC To know how to use this counter please read the MTX-IOT-XS Family Software Manual. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 48: Digital Output

    Description 4.1 (Connector pinout) to view the exact location of the signal I/O. The electrical equivalent circuits of the counter input is shown in following figure: +4.2V BAT54C 100k Internal processor BC846B contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 49: Rj45 Connector: Com 2 Port

    ITU-T V.24 Interchange Circuits DCE. It is configured for 8 data bits, no parity and 1 stop bit and can be operated at fixed bit rates from 300bps to 460.8kbps. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 50 • Can be operated at fixed bit rates from 1200 bps to 921600 bps. Autobauding is not supported • The default serial speed for MTX-IOT-XS is 115200bps contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 51: Sim Card Reader

    The full operation of the MTX-IOT-XS relies on a SIM card being inserted. Some MTX-IOT-XS functionality may be lost if you try to operate the control modem without a SIM card. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 52: Real Time Clock

    The MTX-IOT-XS modems also accommodate an independent super-cap inside to maintain the date and time of the RTC when the power supply is disconnected. This super-cap will be charged when power supply is present again. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 53: Gsm/Gprs/Umts Antenna Connector

    The modem is fitted with a 50Ω, FME male coaxial jack. RF signal These external antennas must be matched properly to achieve the best performance regarding radiated power, DC-power consumption, modulation accuracy and harmonic suppression. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 54: Firmware Updates

    It is possible and sometimes necessary to update the MTX-IOT-XS firmware. Updates must be carried out by an approved technician. Please contact iotsupport@mtxm2m.com for details regarding Service/ Programming. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 55: Operation

    This feature allows an application to be switched on all the time and also allows it to restart itself. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 56: Status Leds

    The blue color LED is handled by the processor, and indicates where the MTX-IOT-XS modem is connected to the cloud. To learn how to use these LEDs please read the MTX-IOT-XS Family Software Manual. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 57: At Command Interpreter

    This eliminates the need for the user to enter AT commands, such as +++ and ATO, as well as switching back and forth between command and online mode when working on one interface only. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 58: Embedded Applications

    • Capable of running multiple MIDlets in parallel with inter-MIDlet communication • Additional Java standard APIs: • JSR75 (FileConnection) • JSR177 (CRYPTO) • JSR280 (XML) • Additional Java proprietary APIs: • AT Command API • Watchdog API contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 59 • Application SW: OTAP • Firmware: FOTA (OMA compliant) Ask iotsupport@matrix.es for application notes and a free SDK (Software Development Kit); we will provide Matrix FTP server to download it. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 60: Mtx-Tunnel Software Application

    It acts as a transparent RS232 port. You will see your remote devices as if they were directly connected to the computer. MTX-Tunnel has extra features like webserver, SMS telemetry, Telnet, DNS, modbus and gateway RF. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 61 • User API • Telemetry (GPIOs and GPS) • Serial RS232/485 – HTTP Tunnel • Serial RS232/485 – SMS Tunnel • Timing synchronization • Modbus • RF gateway contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 62: Safety And Product Care

    SAR measurement test report and declaration • You are responsible for observing your country’s safety standards, and where applicable, the relevant wiring rules contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 63: General Precautions

    • Any incompatible components or products must not be connected to the MTX-IoT modem NOTE: MTX-IoT-XS distributors and sales offices may refuse warranty claims where evidence of product misuse is found. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 64: Sim Card Precautions

    SIM card protected by a PIN code. This will ensure that the SIM card cannot be used by an unauthorized person contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 65: Antenna Precautions

    • The modem and antenna may be damaged if either come into contact with ground potentials other than the one in your application. Beware: ground potentials are not always what they appear to be contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 66: Radio Frequency (Rf) Exposure And Sar

    SAR declaration, certification information and user guidance as appropriate. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 67: Personal Medical Devices

    If the user’s application is likely to be situated in the vicinity of personnel, a suitable warning should be contained in the equipment manual to this effect. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 68: Modem Installation

    Contact your service provider to obtain the necessary information. • If you intend to use SMS in the application, ensure this is included in your (voice) subscription • Consider the choice of supplementary services contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 69: How To Install The Modem

    • Where access is restricted, it may be easier to connect all the cables to the modem prior to securing it in the application • Securely attach the MTX-3G -Java Terminal modem to the host application using two 3mm diameter pan-head screws contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 70: Antenna

    70V/m and at 1m it will have reduced to 7V/m. In general, CE-marked products for residential / commercial areas and the light industry can withstand a minimum of 3V/m. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 71: The Antenna Cable

    • Hand-over occurs as you move from one cell to another in the GSM network. Your mobile application call is transferred from one cell to the next. Hand-over can briefly interfere with communication and may cause a delay, or at worst, disruption contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 72: Conformity Assessment

    The technical documentation relevant to the above equipment will be held at: MATRIX ELECTRÓNICA S.L., C/ Alejandro Sanchez 109, 28019 Madrid, Spain Madrid, 05/30/2017 Mr. J. Vicente Managing Board contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 73: Fcc Compliant

    P = 1866.38 mW or 974.99 mW R = 20 cm or 100cm π = 3.1416 G(dBi)=10*log10(G) Solving for G; the maximum antenna gain is: Band Distance Max. gain (dBi) 850MHz 20cm 1.7669 850MHz 50cm 9.7257 1900MHz 20cm 7.1227 1900MHz 50cm 15.0815 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 74: Declaración De Conformidad

    La documentación técnica referente a este equipo está disponible en: MATRIX ELECTRÓNICA S.L., C/ Alejandro Sanchez 109, 28019 Madrid, España Madrid, 30/05/2017 Sr. J. Vicente Junta Directiva contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 75: Conformidad Fcc

    P = 1866.38 mW o 974.99 mW R = 20 cm o 100cm π = 3.1416 G(dBi)=10*log10(G) Despejando G; la máxima ganancia de antena es: Banda Distancia Ganancia máx. (dBi) 850MHz 20cm 1.7669 850MHz 50cm 9.7257 1900MHz 20cm 7.1227 1900MHz 50cm 15.0815 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 76: Regulatory And Type Approval Information

    Overview of PCS Type certification review board Mobile Equipment Type. NAPRD.03 V5.15 Certification and IMEI control. PCS Type Certification Review board (PTCRB). RSS132 (Issue2) Canadian Standard. RSS133 (Issue5) contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 77 (0 Hz - 300 GHz). IEC/EN 60950- 1 : 2 0 0 6 + A 1 1 : 2 0 0 9 + Safety of information technology equipment. A1:2010+A12:2011 contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 78 Please see next table for an overview of toxic or hazardous substances or elements that might be contained in product parts in concentrations above the limits defined by SJ/T 11363-2006. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 79: Sar Requirements Specific To Portable Mobiles

    In this context, the term “fixed location” means that the device is physically secured at one location and cannot be easily moved to another location. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 80: Selv Requirements

    3. SELV Requirements The power supply connected to the MTX-IOT-XS modem shall be in compliance with the SELV requirements defined in EN 60950-1. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 81: Rohs Statement

    European Parliament and of the Council of 27 January 2003 (and revised on 8 June 2011) on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS). contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 82: Disposal Of Old Electrical And Electronic Equipment

    For more detailed information about the recycling of this product, please contact your local city office, household waste disposal service or the retail store where you purchased this product. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 83: Abbreviations

    Central Processing Unit Coding Scheme Circuit Switched Data Clear to Send Digital-to-Analog Converter Digital Audio Interface dBm0 Digital level, 3.14dBm0 corresponds to full scale, see ITU G.711, A-law contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 84 EGSM Enhanced GSM EIRP Equivalent Isotropic Radiated Power Electromagnetic Compatibility Effective Radiated Power Electrostatic Discharge European Telecommunication Standard ETSI European Telecommunications Standards Institute Federal Communications Commission (U.S.) contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 85 Light Emitting Diode Li-Ion/Li+ Lithium-Ion Li battery Rechargeable Lithium Ion or Lithium Polymer battery Link Power Management Moisture barrier bag Mbps Mbits per second contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 86 Personal Communications Network, also referred to as DCS 1800 Personal Communication System, also referred to as GSM 1900 Pull Down resistor (appr. 100k) Protocol Data Unit Phase Locked Loop Point-to-point protocol contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 87 Read-only Memory Real Time Clock Request to Send Receive Direction Specific Absorption Rate Surface Acoustic Wave SELV Safety Extra Low Voltage Subscriber Identification Module Surface Mount Device contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 88 Unsolicited Result Code Universal Serial Bus USIM UMTS Subscriber Identification Module USSD Unstructured Supplementary Service Data VSWR Voltage Standing Wave Ratio WCDMA Wideband Code Division Multiple Access contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 89: At Command Summary

    Accumulated call meter maximum (ACMmax) set or query AT+CAOC Advise of Charge Information AT+CBST Select Bearer Service Type AT+CCFC Call forwarding number and conditions control AT+CCID USIM Card Identification Number AT+CCLK Real Time Clock contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 90 Show PDP address AT+CGQMIN Quality of Service Profile (Minimum acceptable) AT+CGQREQ Quality of Service Profile (Requested) AT+CGREG Packet Domain Network Registration Status AT+CGSMS Select service for MO SMS messages contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 91 AT+CMMS More Messages to Send AT+CMSS Send short messages from storage AT+CMUT Mute control AT+CMUX Multiplex mode AT+CNAP Calling Name Presentation AT+CNMA New Message Acknowledgement to ME/TE contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 92 Change Password AT+CR Service reporting control AT+CRC Incoming Call Indication Format AT+CREG Network Registration Status AT+CRLP Configure RLP Parameters for Outgoing Non-Transparent Data Calls AT+CRSM Restricted SIM Access contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 93 AT+STKCC USAT Call Control Notification AT+STKCNF USAT Proactive Session Status AT+STKENV USAT Envelope Command AT+STKPRO USAT Proactive Command URCs AT+STKTR USAT Terminal Response Commands AT+VTD Tone duration contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 94 Extended Indicator Control AT^SIPS Internet Profile Storage AT^SISC Internet Service Close AT^SISE Internet Service Error Report AT^SISH Internet Listener Service Disconnect AT^SISI Internet Service Information AT^SISO Internet Service Open contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 95 AT^SNFM Set microphone audio path and power supply AT^SNFO Set audio output (= loudspeaker path) parameter AT^SNFS Select audio hardware set AT^SNFTTY Signal TTY/CTM audio mode capability contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 96 Mobile originated call from active memory using index number ATD><str> Mobile originated call from active memory using corresponding field ATDL Redial last number used AT Command Echo contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 97 Set number of seconds to wait for connection completion ATS8 Comma Dial Pause Time Result code format mode CONN251 4ECT Result Code Format Restore AT Command Settings from User Defined Profile contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 98: Accessories

    • All type of antennas (indoor, outdoor, high gain, etc.) • Cables and DIN adapters The MTX-IOT-XS is shipped without any accessories. Please visit the following websites to see the full range of accessories: mtxm2m.con/en/modem-router- gateway-accesories. contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
  • Page 99: Sales Contact

    803-804 8th floor, Vishwadeep Building District Centre, Janakpurt, 110058 New Delhi Phone: +91.1141519011 Email: purchase-india@webdyn.com PORTUGAL LusoMatrix Lda. Av. Coronel Eduardo Galhardo 7-1ºC 1170-105 Lisbon, Portugal Phone: +351.218162625 Email: comercial@lusomatrix.pt contact@webdyn.com | webdyn.com V1.0 subject to changes | Webdyn © by Flexitron Group...
