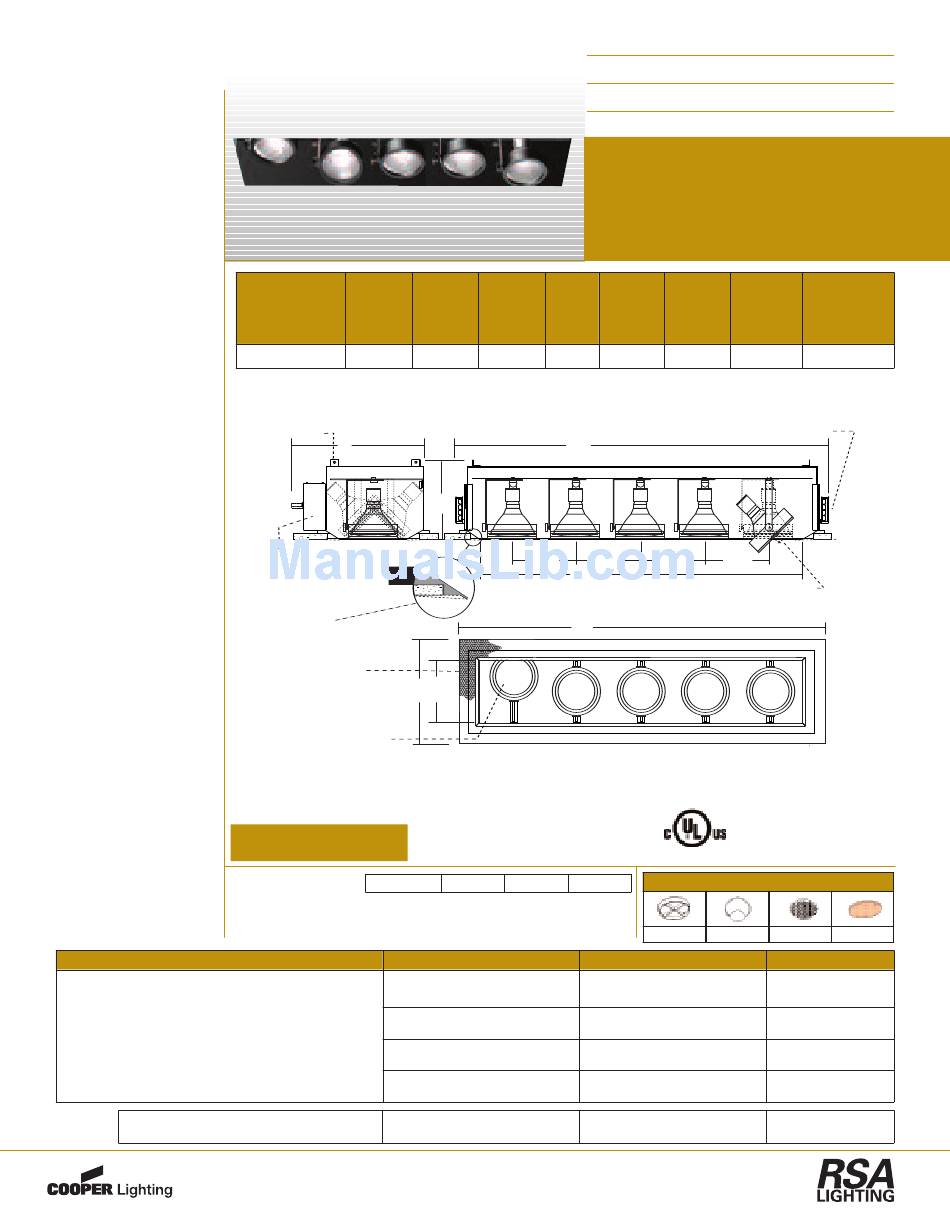

RECESSED PAR38MH
LV TRIMLESS
DESCRIPTION:
An adjustable PAR38MH fixture
suitable for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All
aluminum
construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless
trimless
mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50" or
0.625" drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
5 - PAR38MH lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Aromat® electronic metal halide
ballsts
in
remote
housing.
Junction box is UL listed for
through branch wiring, (access
above ceiling not required) for 8
#12, 90°C supply conductors or
60°C for end of run. Ballasts and
electrical accessible through ceil-
ing opening via access door on
housing sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Cat. # / Description
LV850MH : 5 Light Recessed Next Generation Trimless
Combo Fixture
PAR38MH
SPECIFY -
A
Dimensions
Housing
Length
50.20"
Tabs for aircraft
cable suspension
above ceiling
G
Side mounted compartment
houses wiring, Aromat®
electronic ballasts and
thermal protector.
Accessible through
fixture opening.
Ceiling mudding
compound is applied
directly to the edge
of the aperture.
Perforated mesh plaster
frame adheres to ceiling
compound for seamless
trimless mounting.
Beveled housing interior and
standard retractable yokes allow
lamp holders to slide within the
housing for added adjustability.
Includes Aromat® Electronic
Metal Halide Ballasts
LV850MH
ORDERING EXAMPLE:
= Five Light Trimless Recessed PAR38MH - White Interior - 70 watt lamps -
120 Volt
Interior Finish
BK - Black
WH - White
S - Silver
PT - Custom (Specify)
LV850MH
___
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
B
C
D
Housing
Aperture
Aperture
Height
Length
Width
9.02"
44.43"
8.90"
B
8.75"
Trimless
Detail
E D
WH
70
Catalog #
Type
Project
COMBOLIGHT
FIVE (5) Light Recessed
Next Generation Trimless
E
F
Plaster Frame
Plaster Frame
Above Ceiling
Width
Length
14.65"
50.18"
16.85"
Butterfly Brackets
for Black Iron mounting
A
8.75"
8.75"
8.75"
380º x 45º locking
angular adjustment
45º visual cut-off
F
120
Optional Accessories - Details on Other Side
Baffle
Snoots
Lamp Wattage
70 - 70 Watt PAR38MH
100 - 100 Watt PAR38MH
___
LV Series
®
Multi-Lamp Luminaire
PAR38 Metal Halide
G
Ceiling
Cut-Out
Width
47.52" x 12.10"
Other Adders
CC - Two Circuit
CP - Chicago Plenum
Louvers
Lenses
Voltage
120 - 120 Volt
(Standard)
277 - 277 Volt
___
