  • Page 1 TUNGSTEN SMART-HEAT™ WIRELESS ON/OFF CONTROL BY BROMIC USER MANUAL IMPORTANT READ THIS MANUAL CAREFULLY. SEE INSIDE COVER FOR IMPORTANT INFORMATION ABOUT THIS MANUAL.KEEP INSTRUCTION WITH APPLIANCE FOR FUTURE Version 1.0 REFERENCE. Doc. T757.01_EN TVRCL916A02F7BK7...
  • Page 2 Note: Bromic Heating reserves the right to make changes to specifications, parts, components and equipment without prior notification. This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Heating. Manufactured by Teleco Automation s.r.l. - Italy - www.telecoautomation.com...
  • Page 3: Table Of Contents

    CONTENTS IMPORTANT NOTES & WARNINGS PRODUCT OVERVIEW INSTALLATION & OPERATION TECHNICAL SPECIFICATIONS TROUBLESHOOTING WIRING DIAGRAM www.bromicheating.com...
  • Page 4: Important Notes & Warnings

    IMPORTANT NOTES AND WARNINGS WARNING • This appliance must only be used on a 110 - 230 Volt AC Single Phase electricity supply. • Read all instructions before installing or using this heater • This controller is NOT intended to be installed on recreational vehicles and/or boats.
  • Page 5: Product Overview

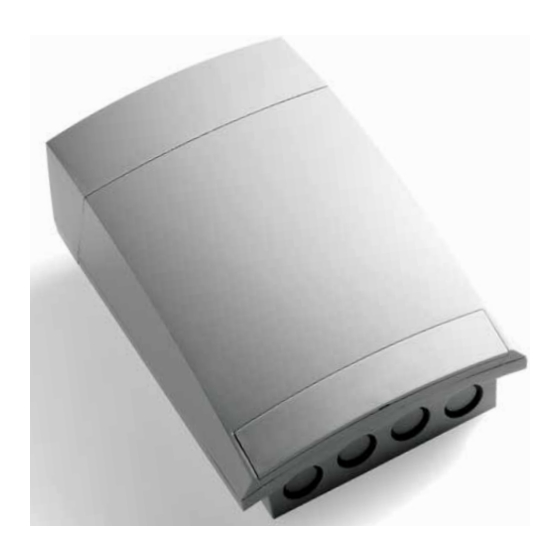

    PRODUCT OVERVIEW & INSTALLATION 1 DESCRIPTION The Wireless ON/OFF control is for resistive and infrared heaters. The controller allows the power output of the heater to be turned on/off. The wireless control can be used with 110 - 230VAC supply voltages. 1.1 FEATURES •...
  • Page 6: Installation & Operation

    OPERATION 2.2.1 Setting relay function - ON/OFF Press the ‘SET’ button twice and hold it down until the ‘ON-OFF’ LED turns on. Wait until the LED turns off to confirm the memorisation of the data. Twice and hold Before starting select the output L1 or L2, using the switch (see picture at page 8). The following memorization/deletion will be applied only to the selected output.
  • Page 7: Technical Specifications

    OPERATION 2.2.5 Deleting all remotes Press the DEL button two times and hold the DEL button on the second time until there will be a continuous sound after a quick and intermittent sound. Hearing the sound sequence above indicates that the whole memory of the receiver is deleted. Twice and hold 2.2.6 Deleting a remote from a remote.
  • Page 8: Wiring Diagram

    WIRING DIAGRAM hours LED minutes LED Box opening seconds LED ON/OFF LED Impulsive LED Switch for output selection Out L1 ↑ Out L2 ↓ Aerial connection L N T T1 T2 LINE IN L N L N OUT L1 OUT L2 (110/230Vac - 31A) (110/230Vac - 15A) (110/230Vac - 15A)
