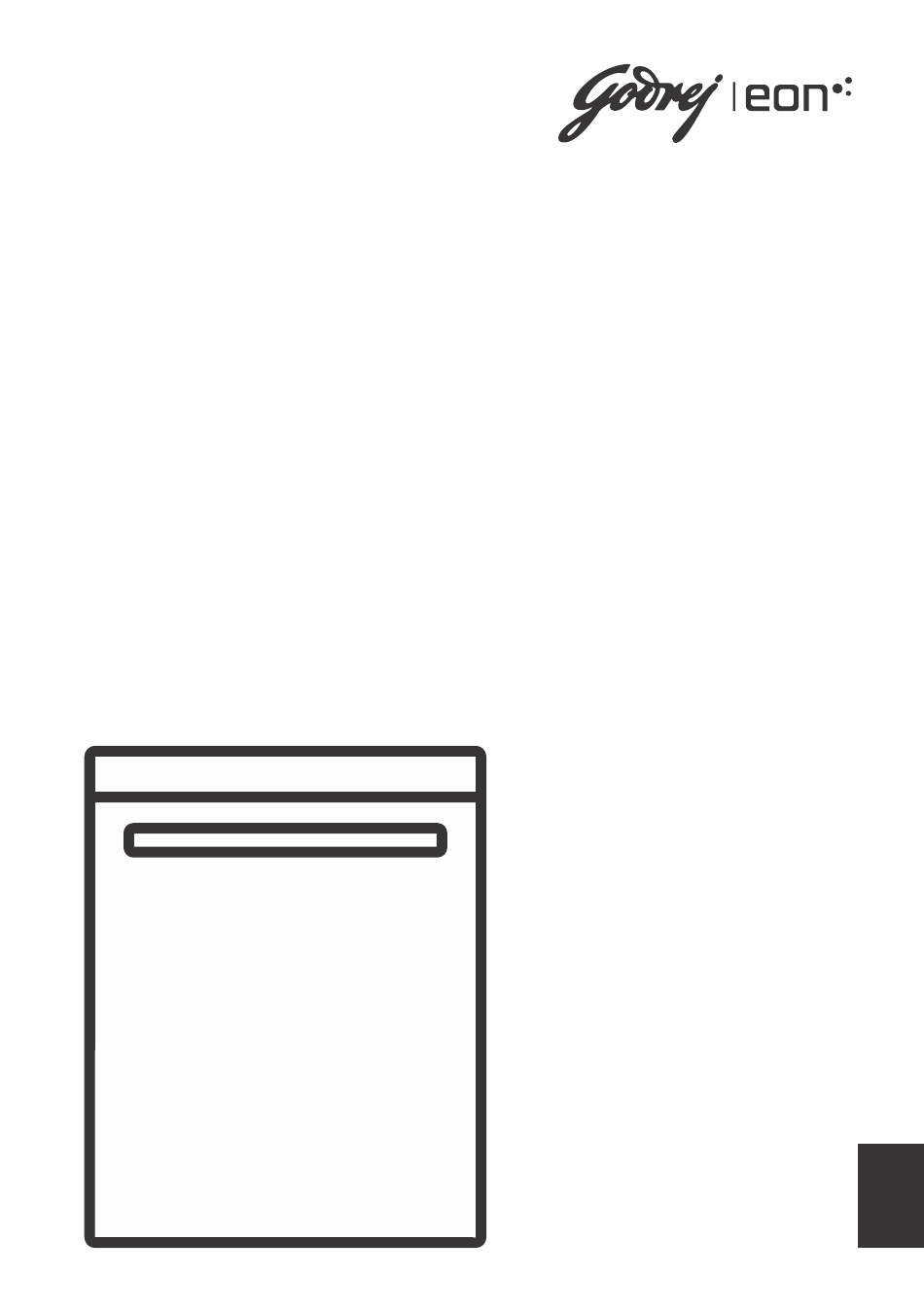

- Page 1 HOW TO GET THE BEST OUT OF YOUR GODREJ EON VESTA DISHWASHER Dishwasher USER MANUAL DWF EON VES 12B UI STSL This image is for representation purpose only.
- Page 2 Congratulations! You are now the proud owner of a new Godrej Eon Vesta Dishwasher Machine. You can look forward to years of smooth, trouble-free usage from your dishwasher, as well as considerable savings in time, money and effort. Please read this manual carefully as it will tell you how to operate your machine optimally in order to get the best results.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS 1.1 General Safety Warnings 1.2 Installation Warnings 1.3 During Use INSTALLATION 2.1 Machine Positioning 2.2 Water Connection 2.3 Water Inlet Hose 2.4 Drain Hose 2.5 Electrical Connection 2.6 Fitting the Machine Undercounter TECHNICAL SPECIFICATIONS 3.1 General Appearance 3.2 Technical Specifications BEFORE USING THE APPLIANCE 4.1 Preparing your Dishwasher for first use... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1 General Safety Warning • Read these instructions carefully before • This appliance can be used by children using your appliance and keep this aged from 8 years and above, and by manual for future reference. persons with reduced physical, sensory or mental capabilities or lack of experience Please check the packaging of your and knowledge if they have been given... - Page 5 Only put items in the machine which performed by Godrej authorised service are suitable for dishwashing, and take provider, otherwise the warranty will be care not to overfill the baskets.
-
Page 6: Installation
2. INSTALLATION 2.1 Machine positioning WARNING: Connect the hose directly to When positioning the machine, place it in an the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa area where dishes can be easily loaded and and a maximum of 1 MPa. -
Page 7: Drain Hose
Connecting the Water Supply Hose to the Connect water drain hose directly to water “Magic” Hose Joint drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and 1. While pushing the sleeve on the female maximum 110 cm from floor plane. -
Page 8: Electrical Connection
2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current. In the absence of earthing installation, an authorised electrician H1: min A H2: min B1 should carry out an earthing installation. -
Page 9: Technical Specifications
3. TECHNICAL SPECIFICATIONS 3.1 General appearance Detergent and rinse-aid dispenser Worktop 10. Cutlery basket Upper basket with racks 11. Salt dispenser Upper spray arm 12. Upper basket track latch Lower basket 13. Turbo Drying Unit: This system provides better drying performance for Lower spray arm your dishes. -
Page 10: Before Using The Appliance
4. BEFORE USING THE APPLIANCE 4.1Preparing your Dishwasher for first use • Check whether the electricity and supply water specifications match the values indicated in the installation instructions for the machine. • Remove all packaging materials inside the machine. • Set the water softener level. -
Page 11: Water Hardness Table
4.4 Water Hardness Table French British Level German dH Indicator L1 is seen on the display. 6-11 10-20 7-14 L2 is seen on the display. 12-17 21-30 15-21 L3 is seen on the display. 18-22 31-40 22-28 L4 is seen on the display. 23-31 41-55 29-39... -
Page 12: Rinse-Aid Usage
• Please use powder detergents in such programmes. • If you encounter problems when using combined detergents, please contact the detergent manufacturer. • When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to correct level. -
Page 13: Loading Your Dishwasher
5. LOADING YOUR DISHWASHER • For best results, follow these loading guidelines. • We recommend that you place large items (pots, pans, lids, plates and bowls) which are heavily soiled in the lower basket. • The upper basket is designed for delicate and lighter dishware such as glasses, coffee and tea cups and saucers. -
Page 14: Alternative Basket Loads
5.2 Alternative basket loads Lower basket Unsuitable items for dishwashing • Cutlery and utensils made of wood. • Delicate decorative glasses, craft and antique utensils. These utensils are not dishwasher-proof. • Plastic parts not resistant to heat. • Copper and tin utensils. •... -
Page 15: Programme Table
6. PROGRAMME TABLE Dual Smart Smart Smart Quick Super Mini Programme Pro Wash (Reference) 30°-50°C 50°-60°C 60°-70°C 50' 65°C 30' 40°C 60°C tT� .•.. -& l!!...J Icon � � Duration 79-91 100-122 111-179 (min) For both Automatic Auto Auto Suitable Description Standard To rinse... -
Page 16: The Control Panel
7. THE CONTROL PANEL 13 14 15... - Page 17 Press the Start/Pause button for 3 seconds. During cancellation, the End light blinks. The machine discharges the water inside it in about 30 seconds. When the End light turns on, switch your machine off by pressing the On/Off button. Pull the plug out of the outlet. Turn off the water tap.
- Page 18 Crystalight (Model Depending) This technology which have Ion and Light Technology together, provides to extra hygiene. It prevents bad odor during a washing program that includes a drying step. Crystalight function is activated or deactivated before starting program in ready state by pressing Options button (6) for 6 seconds.
-
Page 19: Cleaning And Maintenance
8. CLEANING AND MAINTENANCE Cleaning your Dishwasher is important to the metal filter (3).Rinse the filter with water until it is free of residue. Reassemble the maintain the machine's service life. filters. Replace the filter insert, and rotate it Oil and lime may build up in your clockwise (4). - Page 20 • Leave the door open slightly if the appliance will not be used for a while. This will prevent an unpleasant odour from developing. • Never clean the dishwasher using a steam cleaner. The manufacturer is not liable for any consequential damage. •...
-
Page 21: Troubleshooting
9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start. - Page 22 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remain on dishes.
- Page 23 CODE Pressure system failure Contact Godrej Smart Care . Continuous water input Close the tap and contact Godrej Smart Care. Water discharge hose and filters may be clogged. Inability to discharge water Cancel the program. If the error continues, contact Godrej Smart Care.
-
Page 24: Practical Information
10. PRACTICAL INFORMATION 1. When the machine isn’t in operation: • Disconnect the plug and close the tap. • Leave the door slightly open to prevent odour formation. 2. Select the dry option to remove water droplets. 3. Place dishes in the machine properly to achieve the best energy consumption, washing and drying performance. -
Page 25: Product Specifications
10. PRODUCT SPECIFICATIONS Brand GODREJ DWF EON VES 12B UI STSL Model Capacity of dishwasher The energy efficiency class Annual energy consumption in kWh per year (AEc) ( 280 Cycle )* Energy consumption (Et) (kWh per cycle) 0.807 Off-mode power consumption (W) (Po) 0.50... -
Page 26: Branch Address/Service Connect
11. BRANCH ADDRESSES / SERVICE CONNECT Service Connect Branch Branch Addresses... - Page 27 The Godrej Eon Vesta Dishwasher comes with 2 years comprehensive warranty from the date of purchase, against defective material or workmanship. In case of any such defect, Godrej & Boyce Mfg. Co. Ltd. - Appliance Division undertakes to get the appliance repaired free of charge during warranty period, subject to terms and conditions below.
- Page 30 Protection of Environment: Protection of environment” is one of the core values of Godrej and we seek your co-operation to make sure that the product, packaging and plastic material is not disposed as unsorted municipal waste. This symbol is known as the “Crossed-out Wheellie Bin Symbol”. It means that the product should not be disposed of with your general house-hold waste.
