Models/Modelos/Modèles
63125LFp & 63225LFp
Series/Series/Seria
ARTESSO™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
p Specify Finish / Especifíque el Acabado / Précisez le Fini
Date of Purchase: ____________________
Fecha de compra
Date d'achat
Register Online
Regístrese en línea
S'enregistrer en ligne
www.brizo.com/customer-support/product-registration
To reference replacement parts and access additional
technical documents and product info, visit www.brizo.com
Para referencia sobre las piezas de repuesto y acceder
a documentos técnicos adicionales e información del
producto, visite www.brizo.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.brizo.com
?
1-877-345-BRIZO (2749)
www.brizo.com/customer-support
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
04/08/2022

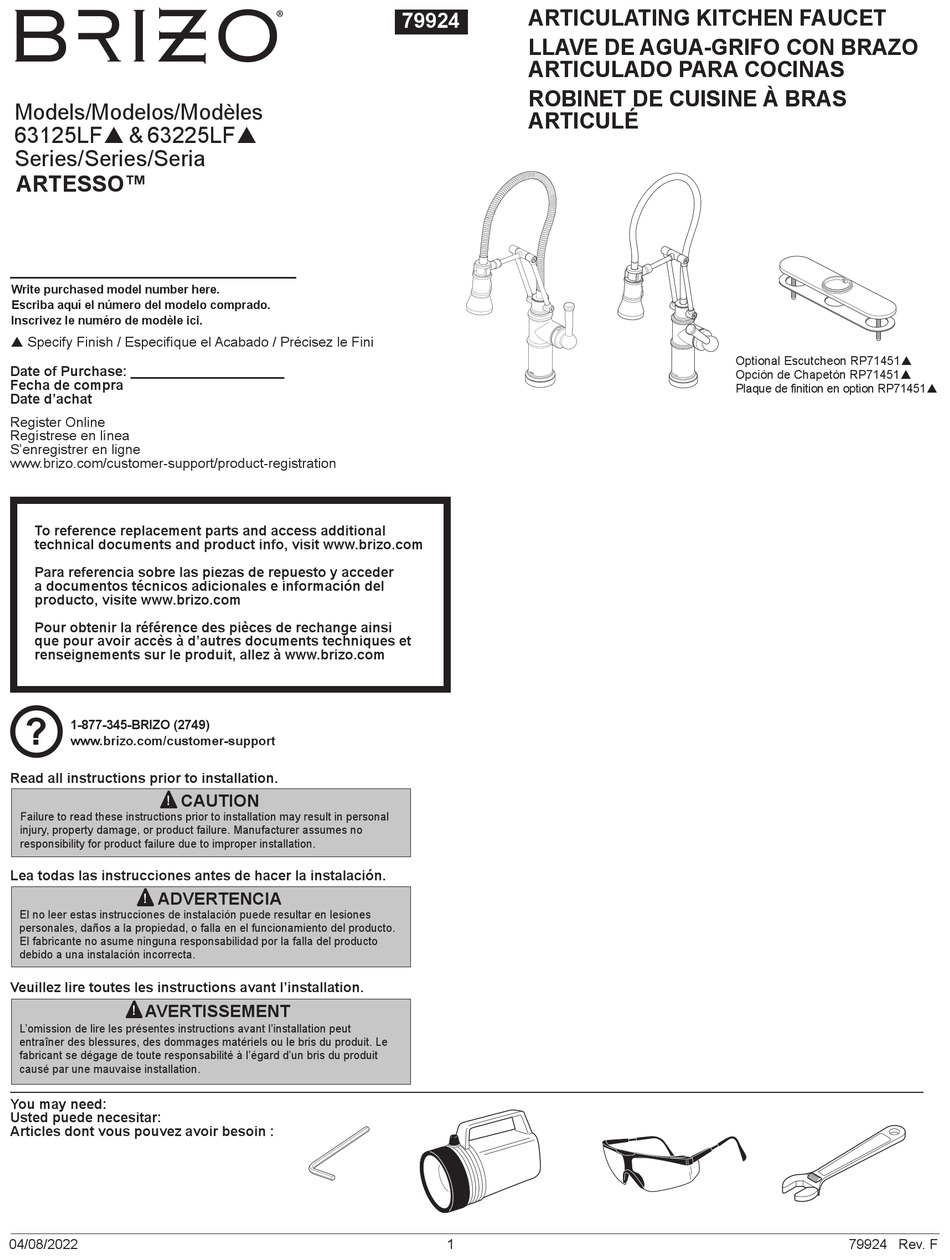

ARTICULATING KITCHEN FAUCET
79924
LLAVE DE AGUA-GRIFO CON BRAZO
ARTICULADO PARA COCINAS
ROBINET DE CUISINE À BRAS
ARTICULÉ
1
Optional Escutcheon RP71451p
Opción de Chapetón RP71451p
Plaque de finition en option RP71451p
79924 Rev. F
Advertisement
Related Manuals for Brizo ARTESSO 63225LF-SS
Summary of Contents for Brizo ARTESSO 63225LF-SS
- Page 1 Regístrese en línea S’enregistrer en ligne www.brizo.com/customer-support/product-registration To reference replacement parts and access additional technical documents and product info, visit www.brizo.com Para referencia sobre las piezas de repuesto y acceder a documentos técnicos adicionales e información del producto, visite www.brizo.com Pour obtenir la référence des pièces de rechange ainsi...
- Page 2 1 1/4" Min. From Center Line To Sink Bowl. 1 1/4" Mínimo. De la línea de centro para hundir el tazón de fuente. 1 1/4" ; Minimal. De la ligne centrale pour descendre la cuvette. Mount Faucet to Deck Install the mounting bracket (1) and nut (2) onto the SHUT OFF WATER SUPPLIES.
- Page 3 Optional / Opcional / Facultatif Optional Escutcheon Installation From underneath, install the nuts (1) and Install bracket (1) and nut (2) onto mounting washers (2) onto the studs (3). Ensure the shank (3). Tighten nut (2) securely using For optional installations using the 10" escutcheon (1), escutcheon is straight then tighten nuts (1), but wrench (4).
- Page 4 Custom Fit Connections Standard Connections Slide nut (1) over plastic sleeve (ferrule) (3). Start nut by hand NOTICE NOTICE onto supply valve connection (2) to prevent cross-threading. Turn nut until it feels snug. Then tighten nut at least 2 more To avoid risk of property damage, Follow If you determine the PEX supply tubing for this faucet is too turns with a wrench.
- Page 5 Correct method Incorrect Installation Instalación Incorrecta Método Correcto Installation Incorrecte Bonne méthode Do not install sleeve NOTICE Ensure cut is straight. upside down. Failure to use plastic sleeve (ferrule) in the correct orientation will result in disconnection and possible water damage. No instale la manga Asegúrese que el corte 1.
- Page 6 Note: Clip fits behind shoulders on outlet and hose fittings. Nota: Ajustes del clip detrás de hombros en las guarniciones del enchufe y de manguera. Note : Ajustements d’agrafe derrière des épaules sur des embouts de sortie et de durites. Flush Supply Lines Place a bucket below the outlet fitting and move the Push hose end (1) onto faucet outlet (2).
- Page 7 Optional Opcional Facultatif Soap Dispenser Installation (Accessory Order Only - RP75675 Specify Finish) Recommended spacing between holes for faucet and soap Notice dispenser is 4" (101.6 mm) minimum. Separate head (1) from body assembly (2). Make sure gasket (3) is properly seated in the base of the body assembly. Insert Property damage and water leak possible.
-
Page 8: Maintenance
Maintenance If faucet exhibits very low flow – TURN OFF WATER may be stiff due to O-ring, but should rotate by hand. NOTE: Exterior arm screws are decorative and will SUPPLIES. Unscrew adapter (1) & knurled knob (4) Remove bonnet nut (9) by rotating counterclockwise with NOT need to be tightened during the lifetime of the from spray head and clean debris from sprayer inlet a wrench. - Page 9 Hose and Sprayer Removal Hose and Sprayer Installation TURN OFF WATER SUPPLIES. Place bucket below outlet fitting under sink. Slide hose (1) through top of faucet hub (2). Screw decorative nut (3) clockwise Remove clip (1) from outlet (2) and disconnect hose (3). A small amount of water into top of faucet hub.
-
Page 10: Cleaning And Care
CLEANING AND CARE Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. LIMPIEZA Y CUIDADO DE SU LLAVE Tenga cuidado al ir a limpiar este producto. - Page 11 79924 Rev. F...
- Page 12 Brizo Kitchen & Bath Company Masco Canada Limited, Plumbing Group application” refers to the purchase of the faucet from an authorized Brizo seller by a purchaser who owns but does not live in the residential 55 E. 111th Street Technical Service Centre...
