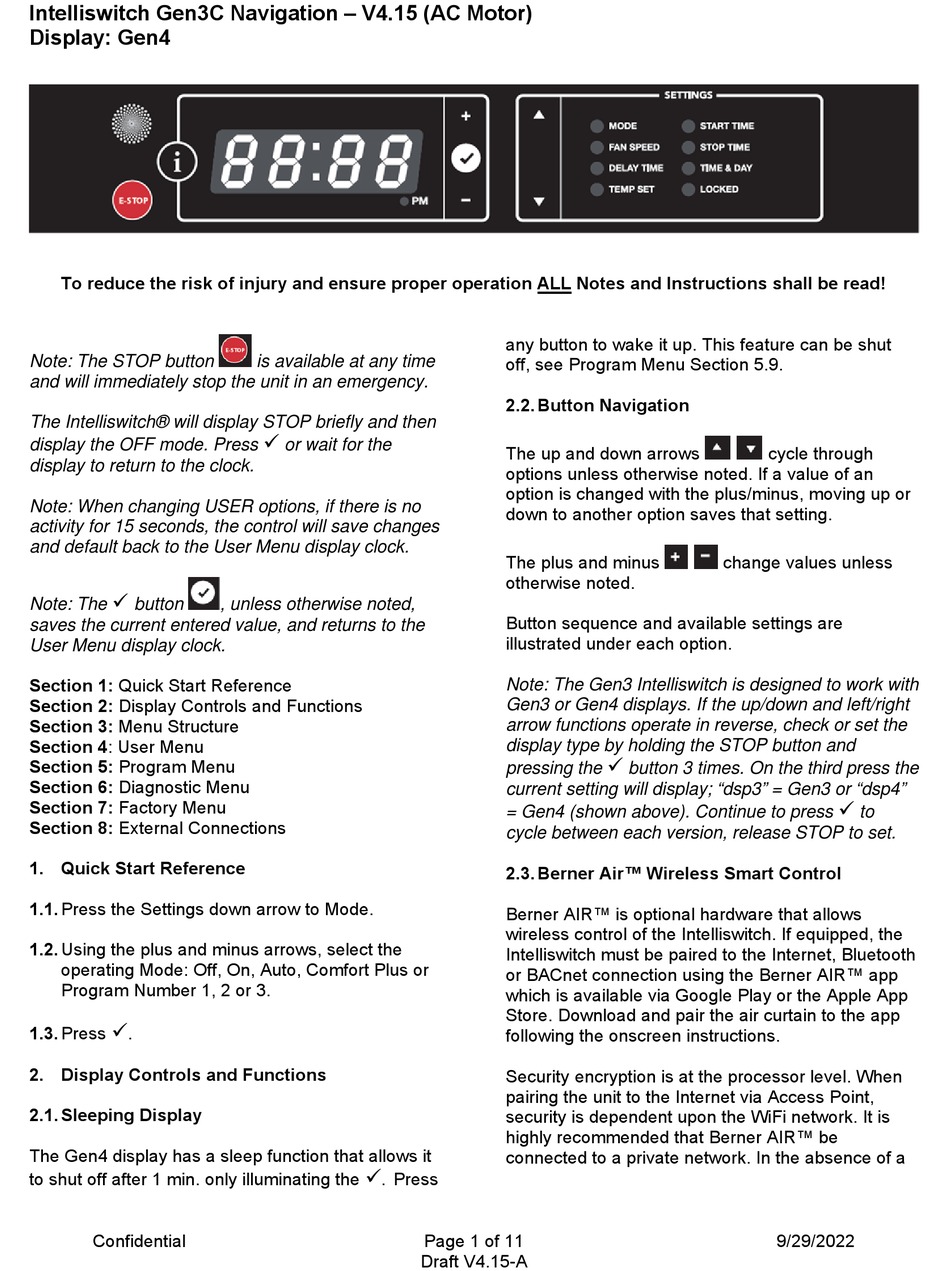

Berner Intelliswitch Gen3C Instruction Manual

Intelliswitch Gen3C Navigation – V4.15 (AC Motor)
Display: Gen4
To reduce the risk of injury and ensure proper operation ALL Notes and Instructions shall be read!
Note: The STOP button
and will immediately stop the unit in an emergency.
The Intelliswitch® will display STOP briefly and then
display the OFF mode. Press
display to return to the clock.
Note: When changing USER options, if there is no
activity for 15 seconds, the control will save changes
and default back to the User Menu display clock.

Note: The button
saves the current entered value, and returns to the
User Menu display clock.
Section 1: Quick Start Reference
Section 2: Display Controls and Functions
Section 3: Menu Structure
Section 4: User Menu
Section 5: Program Menu
Section 6: Diagnostic Menu
Section 7: Factory Menu
Section 8: External Connections
1. Quick Start Reference
1.1. Press the Settings down arrow to Mode.
1.2. Using the plus and minus arrows, select the
operating Mode: Off, On, Auto, Comfort Plus or
Program Number 1, 2 or 3.

1.3. Press .
2. Display Controls and Functions
2.1. Sleeping Display
The Gen4 display has a sleep function that allows it
to shut off after 1 min. only illuminating the
Confidential
is available at any time

or wait for the
, unless otherwise noted,
.
Press
any button to wake it up. This feature can be shut
off, see Program Menu Section 5.9.
2.2. Button Navigation
The up and down arrows
options unless otherwise noted. If a value of an
option is changed with the plus/minus, moving up or
down to another option saves that setting.
The plus and minus
otherwise noted.
Button sequence and available settings are
illustrated under each option.
Note: The Gen3 Intelliswitch is designed to work with
Gen3 or Gen4 displays. If the up/down and left/right
arrow functions operate in reverse, check or set the
display type by holding the STOP button and
pressing the
current setting will display; "dsp3" = Gen3 or "dsp4"
= Gen4 (shown above). Continue to press
cycle between each version, release STOP to set.
2.3. Berner Air™ Wireless Smart Control
Berner AIR™ is optional hardware that allows
wireless control of the Intelliswitch. If equipped, the
Intelliswitch must be paired to the Internet, Bluetooth
or BACnet connection using the Berner AIR™ app
which is available via Google Play or the Apple App
Store. Download and pair the air curtain to the app
following the onscreen instructions.
Security encryption is at the processor level. When
pairing the unit to the Internet via Access Point,
security is dependent upon the WiFi network. It is
highly recommended that Berner AIR™ be
connected to a private network. In the absence of a
Page 1 of 11
Draft V4.15-A
cycle through
change values unless

button 3 times. On the third press the
9/29/2022

to
