Mercedes-Benz E-class 300TD 1998 Operator's Manual
  1. Manuals
  2. Brands
  3. Mercedes-Benz Manuals
  4. Automobile
  5. E-class 300TD 1998
  6. Operator's manual
Mercedes-Benz E-class 300TD 1998 Operator's Manual

Mercedes-Benz E-class 300TD 1998 Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
E-class
E 300TD
E 320
Operator's Manual
E 430

Advertisement

loading
Need help?

Need help?

Do you have a question about the E-class 300TD 1998 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mercedes-Benz E-class 300TD 1998

Summary of Contents for Mercedes-Benz E-class 300TD 1998

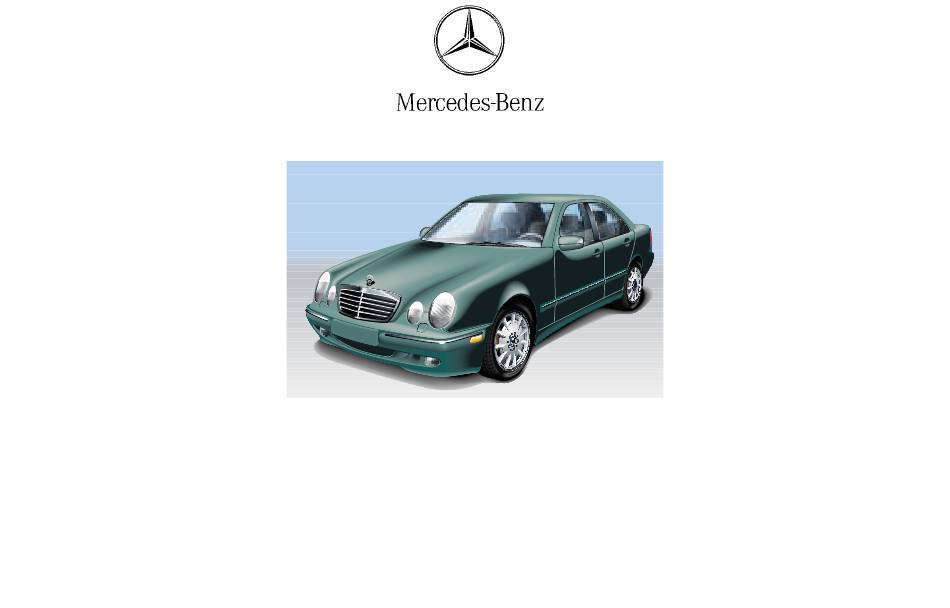

  • Page 1 E-class E 300TD E 320 Operator’s Manual E 430...
