DriSteem RL Series Manual

Round duct kit for Model RL-31 Dehumidifier
Part #: 601177

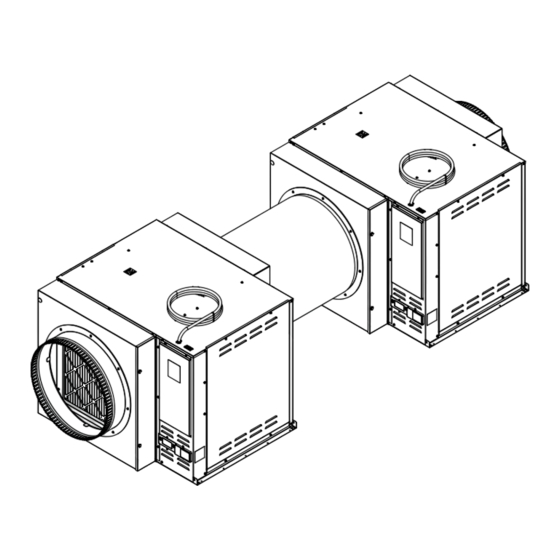

MODEL RL-31 DEHUMIDIFIER

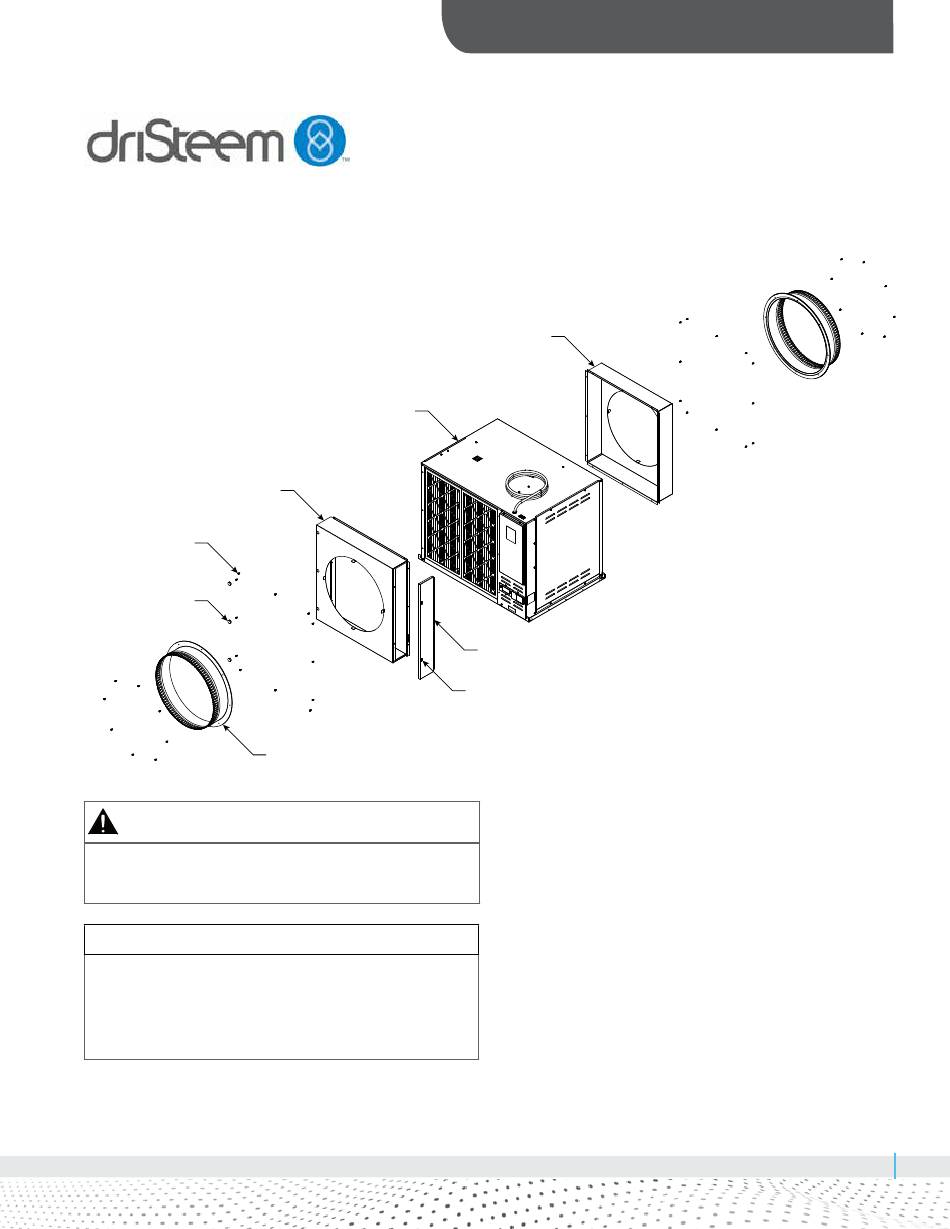

HOUSING INLET
SCREWS x40
SEALING PLUGS x3
CAUTION
Sharp edges may cause serious injury from cuts. Use care
when cutting plenum openings and handling duct work.
NOTICE
• Failure to follow ducting guidelines may negatively impact
unit performance.
• Minimize equivalent duct length to maximize unit capacity
and efficiency.
HOUSING OUTLET
24" (610 mm) INLET RING x2
FILTER ACCESS DOOR
THUMB SCREWS x2
AIRFLOW DELIVERY SPECIFICATIONS
• Nominal airflow through dehumidifier is 1760 cfm
(2991 m /h).
3
• Airflow decreases as duct length and bends increase,
therefore if the equivalent duct length is too long the
dehumidifier will cease to function properly.
CDS DEHUMIDIFIER
RL Series
90-2578
CDS Humidifier RL Series
1
