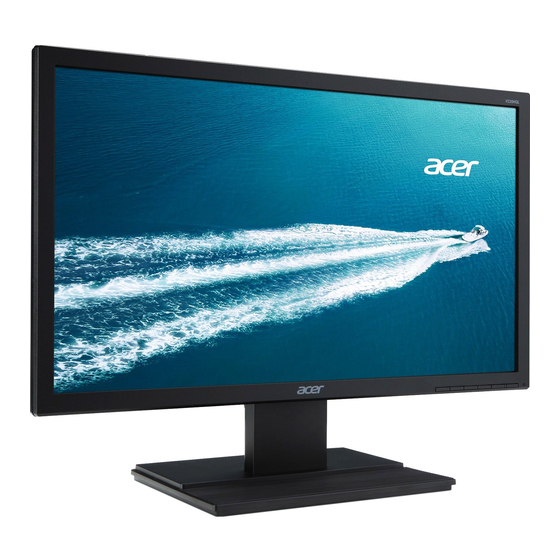

Acer LCD Monitor
User's Guide
V226HQL

Advertisement

Table of Contents
loading

Related Manuals for Acer V226HQL

Summary of Contents for Acer V226HQL

  • Page 1 Acer LCD Monitor User's Guide V226HQL...
  • Page 2 Acer Incorporated. Acer LCD Monitor User's Guide Model number: __________________________________ Serial number: ___________________________________ Date of purchase: _________________________________ Place of purchase: ________________________________ Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' their respective companies.

  • Page 3: Special Notes On Lcd Monitors

    Special notes on LCD monitors The following are normal with the LCD monitor and do not indicate a problem. • Due to the nature of the uorescent light, the screen may icker during initial use. Turn o the power switch and then turn it on again to make sure the icker disappears. •...

  • Page 4: Safe Listening

    Safe listening To protect your hearing, follow these instructions. • Gradually increase the volume until you can hear it clearly and comfortably and without distortion. • After setting the volume level, do not increase it after your ears have adjusted. •...

  • Page 5: Product Servicing

    Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product. • Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certi ed, type SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.5meters (15 feet) maximum length.

  • Page 6: It Equipment Recycling Information

    We at Acer are very conscious of the environmental e ects of our business and strive to identify and provide the best working procedures to reduce the environmental impact of our products.

  • Page 7: Tips And Information For Comfortable Use

    Tips and information for comfortable use Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.
  • Page 8 • Exercise regularly and maintain a healthy body. • In order to prevent damage to the monitor, do not lift the monitor by its base. Acer monitor is purposed for video and visual display of information obtained from electronic devices.

  • Page 9: Eu Declaration Of Conformity

    (“x” = 0~9, a ~ z, A ~ Z, or blank) We, ACER Incorporated ., hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following...
  • Page 10 Acer America Corporation 333 West San Carlos St., Suite 1500 San Jose, CA 95110, U. S. A. Tel : 254-298-4000 Fax : 254-298-4147 www.acer.com Federal Communications Commission Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following...
  • Page 11 Special notes on LCD monitors Information for your safety and comfort Safety instructions Cleaning your monitor Connecting/disconnecting the device Accessibility Safe listening Warnings Using electrical power Product servicing Additional safety information IT Equipment Recycling Information Disposal instructions LCD pixel statement Tips and information for comfortable use CE Declaration of Conformity Federal Communications Commission...
  • Page 12 Unpacking Please check that the following items are present when you unpack the box, and save the packing materials in case you need to ship or transport the monitor in the future. LCD Monitor Quick start guide Stand Base Adapter AC power cord VGA Cable（Optional）...

  • Page 13: Installing Monitor

    Installing monitor 1. Remove the monitor bracket and base from the packaging and place it on a stable and level workspace. The display support is aligned with the corresponding slot of the base, rmly installed on the base; Align the rotating shaft above the support with the corresponding slot below the monitor and install it rmly on the monitor.

  • Page 14: Connector Pin Assignment

    Connector pin assignment ♦ HDMI input connector Definition Description DATA2 - Data signal interface Ground DATA2+ Data signal interface DATA1- Data signal interface Ground DATA1+ DATA0- Data signal interface Ground DATA0+ Data signal interface DCLK - Data clock signal interface Ground DCLK+ Data clock signal interface...

  • Page 15: Standard Timing Table

    Standard timing table Mode Resolution VGA/HDMI 640x480 VGA/HDMI 640x480 VGA/HDMI 640x480 VGA/HDMI 640x480(Apple.Macll) 67 VGA/HDMI 720x400 VGA/HDMI 800x600 VGA/HDMI 800x600 VGA/HDMI 800x600 VGA/HDMI 800x600 VGA/HDMI 832x624(Apple.Macll) 75 VGA/HDMI 1024x768 VGA/HDMI 1024x768 VGA/HDMI 1024x768 VGA/HDMI 1152x870(Apple.Macll) 75 VGA/HDMI 1152x864 VGA/HDMI 1280x960 VGA/HDMI 1280x1024 VGA/HDMI...

  • Page 16: Installation

    Installation To install the monitor on your host system, please follow the steps below: Steps Connect the monitor to your computer 1. Turn off the computer power and unplug the computer power cord. 2. Connect one end of the signal cable to the VGA/HDMI input jack on your monitor and the other end to the VGA/HDMI input jack on your computer's graphics card.

  • Page 17: User Controls

    User controls Power Switch / Power LED: To turn the monitor ON or OFF. Lights up to indicate the power is turned ON. Using the Shortcut Menu External controls Power on/off the monitor. Green indicates that the power supply is turned on. Power Button Orange indicates that the device is in standby or energy saving mode.

  • Page 18: Adjusting The Osd Settings

    Adjusting the OSD settings Note: The following content is for general reference only. Actual produc ations may vary. The OSD can be used for adjusting the settings of your LCD Monitor. Press the key to open the OSD. You can use the OSD to adjust the picture quality, OSD setting and general settings. For advanced settings, please refer to following page: Adjusting the Picture quality 1.
  • Page 19 Adjusting the Color setting Press the key to bring up the OSD. Use the < / > keys to Color from OSD adjust the sliding scales. Press the key to con rm your select. 4. Use the < / > keys to choose Gamma、Color Temp.、R Gain、G Gain、B Gain、R Bias、 G Bias、B Bias、Modes、sRGB Mode、Grayscale Mode、6-axis Hue、6-axis Saturate.
  • Page 20 Adjusting the OSD settings Press the key to bring up the OSD. Use the < / > keys to OSD from OSD adjust the sliding scales. Press the key to c rm your select. Use the < / > keys to choose Language、OSD Timeout、Transparency、OSD Lock 5.
  • Page 21 Adjusting the Information setting Press the key to bring up the OSD. Use the < / > keys to Information from OSD adjust the sliding scales. Press the key to con rm your select. Use the < / > keys to choose Reset All Settings、Exit.

  • Page 22: Troubleshooting

    Troubleshooting Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem （VGA/HDM Model） Problems that arise •Possible solutions The power indicator is not on •Whether the power is on or not. •Whether the power cord is connected or not Unable to achieve plug-and-play •...
