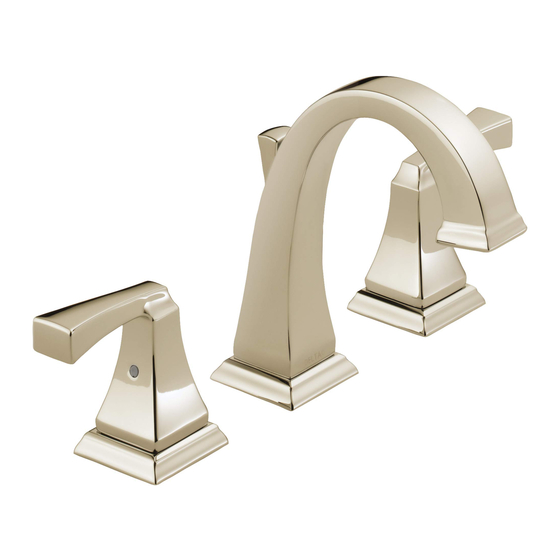

Delta Dryden 3551 Series Manual

Two handle widespread lavatory faucets
Hide thumbs Also See for Dryden 3551 Series:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
ICC/ANSI A117.1
3551 Model/Modelo/Modèle
™
Dryden
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your Delta
faucet you will need:
To READ ALL the instructions completely
before beginning.
To READ ALL warnings, care, and maintenance
information.
To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
LEER TODAS las instrucciones completamente
antes de empezar.
LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
LIRE TOUTES les instructions avant de
débuter;
LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
Acheter le bon nécessaire de raccordement.
53363
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
3/32" (2.38mm)
53363
1
TWO HANDLE WIDESPREAD
LAVATORY FAUCETS
LLAVES DE LAVAMANOS
EXTENDIDAS DE DOS MANIJAS
ROBINETS À ENTRAXE LONG À
DEUX POIGNÉES POUR LAVABO
?
?
7/17/12
Rev. F

Advertisement

loading

Related Manuals for Delta Dryden 3551 Series

Summary of Contents for Delta Dryden 3551 Series

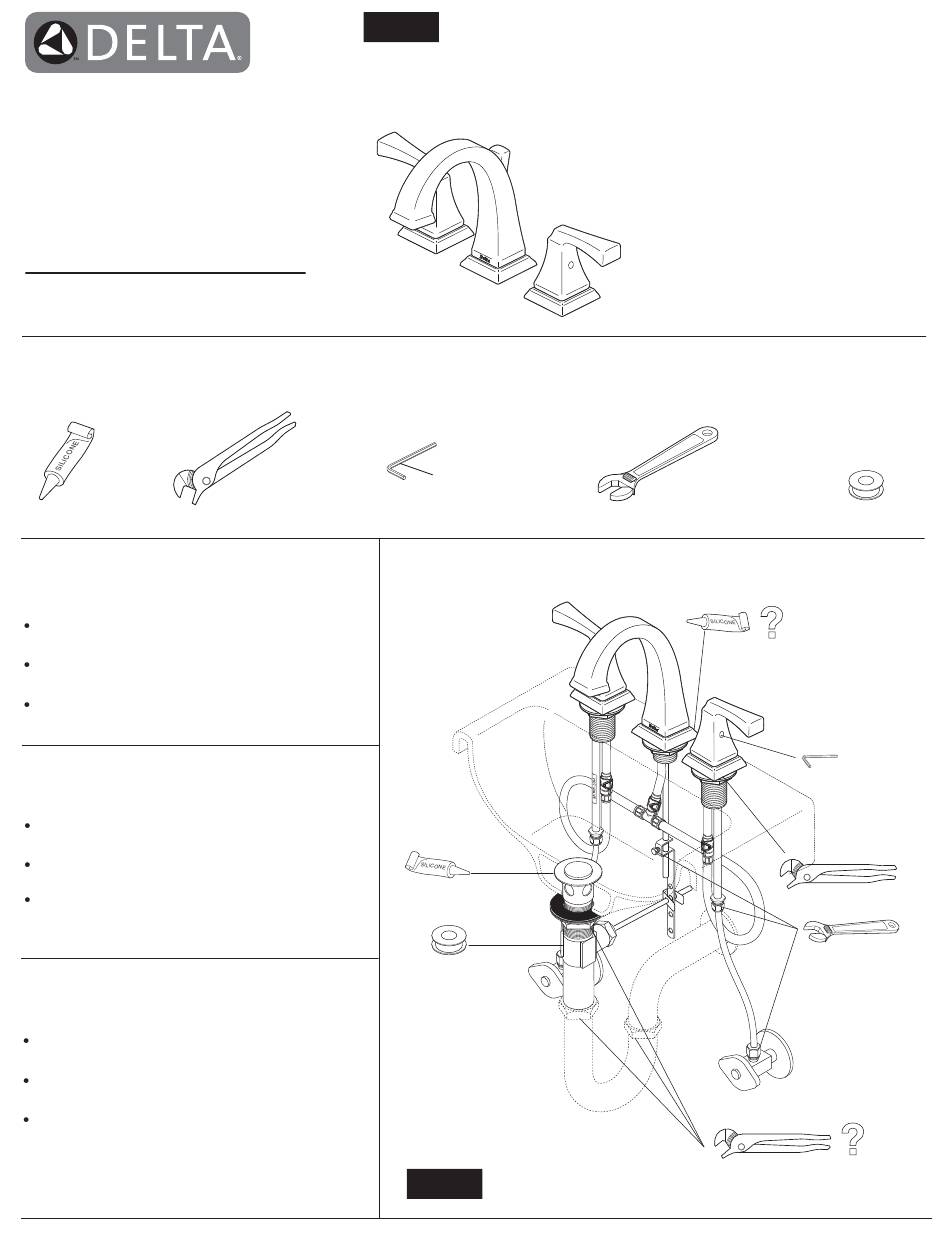

  • Page 1 To READ ALL warnings, care, and maintenance information. To purchase the correct water supply hook-up. Para instalación fácil de su llave Delta usted necesitará: LEER TODAS las instrucciones completamente antes de empezar. LEER TODOS los avisos, cuidados, e información de mantenimiento.

  • Page 2: Cleaning And Care

    & repair. OF MERCHANTABILITY. Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves This warranty excludes all industrial, commercial & business usage, whose purchasers are defective in material and/or workmanship under normal installation, use & service. Replacement hereby extended a five year limited warranty from the date of purchase, with all other terms of parts may be obtained by calling 1-800-345-DELTA (in the U.S.
  • Page 3 Slide hot (1) and cold (2) end valves with gaskets (3) through sink. Install spout (1) gasket (2) and base (3). Secure with washer and nut (3). Note: hot side end valve is labeled (4). Secure end valves with nuts Note: If sink is uneven, use silicone under the gasket.
  • Page 4 Metal Pop-Up Remove stopper (1) and flange (2). Apply silicone to underside of flange (1). Insert Remove pivot nut (1). Install horizontal rod (2) body (2) into sink. Screw flange (1) into body (2). and stopper (3) as removable (4) or non- removable (5).
  • Page 5 1/2" (13 mm) IPS Make Connections to water lines: Remove aerator (1) using supplied wrench (2) and turn faucet handles (3) all the way on. Turn on hot and cold water supplies Choose hook-ups for 1/2" I.P.S. connections: (4) and flush water lines for one minute. (1) Ball nose riser (3/8"...

  • Page 6: Maintenance

    RP54095▲ Lift Rod RP52658▲ Barra de Alzar Tige de Manoeuvre Handle Button (2) & Set Screw (2) RP49285▲ Botón de la manija (2) y Tornillo de Ajuste (2) Handle Assembly Vis de calage (2) et bouton de manette (2) Ensamble de la manija RP54712 Manette RP52216...
