Delta 3538 Series Manual

Delta 3538 Series Manual

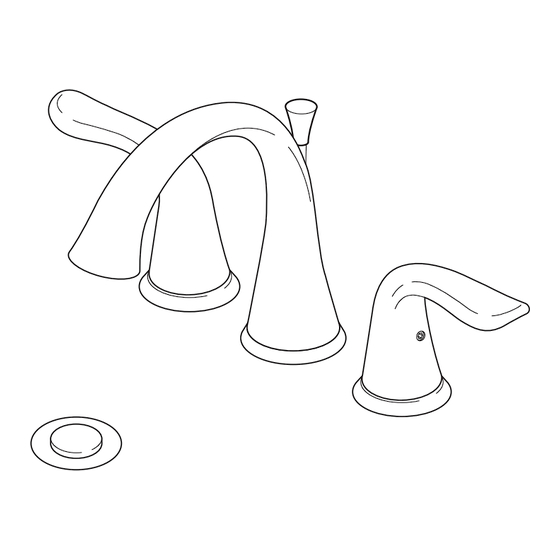

Two handle widespread lavatory faucets
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
U P
C
®
®
ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
NSF-61
ICC/ANSI A117.1
Model/Modelo/Modèle
3538
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
L
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant
de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
51331
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
L
51331
1
TWO HANDLE WIDESPREAD
LAVATORY FAUCETS
LLAVES DE LAVAMANOS
EXTENDIDAS DE DOS MANIJAS
ROBINETS À ENTRAXE LONG À
DEUX POIGNÉES POUR LAVABO
T E FLO N
T E FLO N
3/32" (2.38mm)
3/32"
(2.38mm)
8/24/09
Rev. D

Advertisement

Table of Contents
loading

Related Manuals for Delta 3538 Series

Summary of Contents for Delta 3538 Series

  • Page 1 • To READ ALL the instructions completely before beginning. • To READ ALL warnings, care, and maintenance information. • To purchase the correct water supply hook-up. Para instalación fácil de su llave Delta 3/32" usted necesitará: (2.38mm) • LEER TODAS las instrucciones completamente antes de empezar.

  • Page 2: Cleaning And Care

    MAKE ANY OTHER WARRANTY OF ANY KIND, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves defective in material and/or workmanship under normal installation, use & service. Replacement This warranty excludes all industrial, commercial &...
  • Page 3 RP51344▲ Lift Rod Finial Pomo de la barra ▲Specify Finish de alzar Grain de la Tirette Especifíque el Acabado Précisez le Fini RP51345 Aerator & Wrench RP6060, RP6060SB Bonnet Nuts Aireador y Llave Bonetes/Capuchones Aérateur et Clé Chapeaux Filetés RP24097 1/4 Turn Stop Tope a un 1/4 de Giración RP40267▲...

  • Page 4: Maintenance

    3/32" (2.38mm) Maintenance If faucet exhibits very low flow: A. Remove and clean Aerator (1) with supplied wrench (2), or B. SHUT OFF WATER SUPPLIES. Clean Seats and Springs (3) of any debris. If faucet leaks from spout outlet–SHUT OFF WATER SUPPLIES–Replace Seats and Springs (3).* If leak persists–SHUT OFF WATER SUPPLIES–Replace Stem Unit Assembly (4).* *Install stems (4) and 1/4 turn stops (5) correctly for proper handle rotation.
  • Page 5 3/32" (2.38mm) Slide hot (1) and cold (2) end valves with gaskets (3) through sink. Install the spout (1) and gasket (2). Secure with washer and nut (3). Note: If Note: hot side end valve is labeled (4)! Secure end valves with nuts surface is uneven, use silicone under the gasket.
  • Page 6 Pop-Up with Metal Flange and Plastic Tail Piece With pivot (1) facing toward faucet, pull pop- Remove pivot nut (1). Install horizontal rod (2) Remove stopper (1), brass nut & washer (2), black up straight down into drain hole and secure and stopper (3) as removable (4) or gasket (3) and tail piece (4).
  • Page 7 Step 3b Step 3e Metal Pop-up Remove pivot nut (1). Install horizontal rod (2) and Apply silicone to underside of flange (1). Step 3c stopper (3) as removable (4) or non-removable (5). Insert body (2) into sink. Screw flange (1) Remove stopper (1) and flange (2).
  • Page 8 1/2" (13 mm) IPS Make Connections to water lines: Remove aerator (1) using supplied wrench (2) and turn faucet handles (3) all the way on. Turn on hot and cold water supplies (4) Choose hook-ups for 1/2" I.P.S. connections: and flush water lines for one minute. Important: This flushes away (1) Ball nose riser (3/8"...
