Series 185
The Series 185 and 285 Smart Positioners control valve movements accurately
using an input signal of 4 to 20 mA from the controller. In addition, a highly efficient
microprocessing operator built into the product performs various functions such as
auto calibration, PID control, alarm and Hart
Features
• LCD allows the user to directly check the positioner condition in the field.
• Endures severe vibration.
• Operates normally regardless of changes in supply pressure during operation.
• Simple to use auto calibration.
• Easily equipped on small actuators because of its small size.
• Low air consumption reduces operating cost.
• Can be used in low voltage (8.5 V), leaving no limitation in controller.
• Variable orifice is applied in case of a small actuator; the hunting is controlled
to the optimum condition during operation.
• HART
communication processes various information for the valve and
®
positioner.
• Valve system is stabilized by outputting analog feedback signal.
• The adjustment of valve characteristics (linear, quick open, equal percentage)
is available.
• Specific flow control is available with setting 16 points at users' command.
• Tight shut-close and shut-open can be set voluntarily.
• PID parameters can easily be adjusted in the field without additional
communicator.
• The pressure of air filter regulator is sent directly to actuator using A/M
switch.
• Split ranges such as 4 to 20 mA, with 12 to 20 mA available.
• Setting zero and span as partial section is available by hand calibration
function.
• The valve defect is easily checked because the valve can be operated
voluntarily.
• Air filter regulator can be attached to the product with only one linear nipple
without extra piping.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.

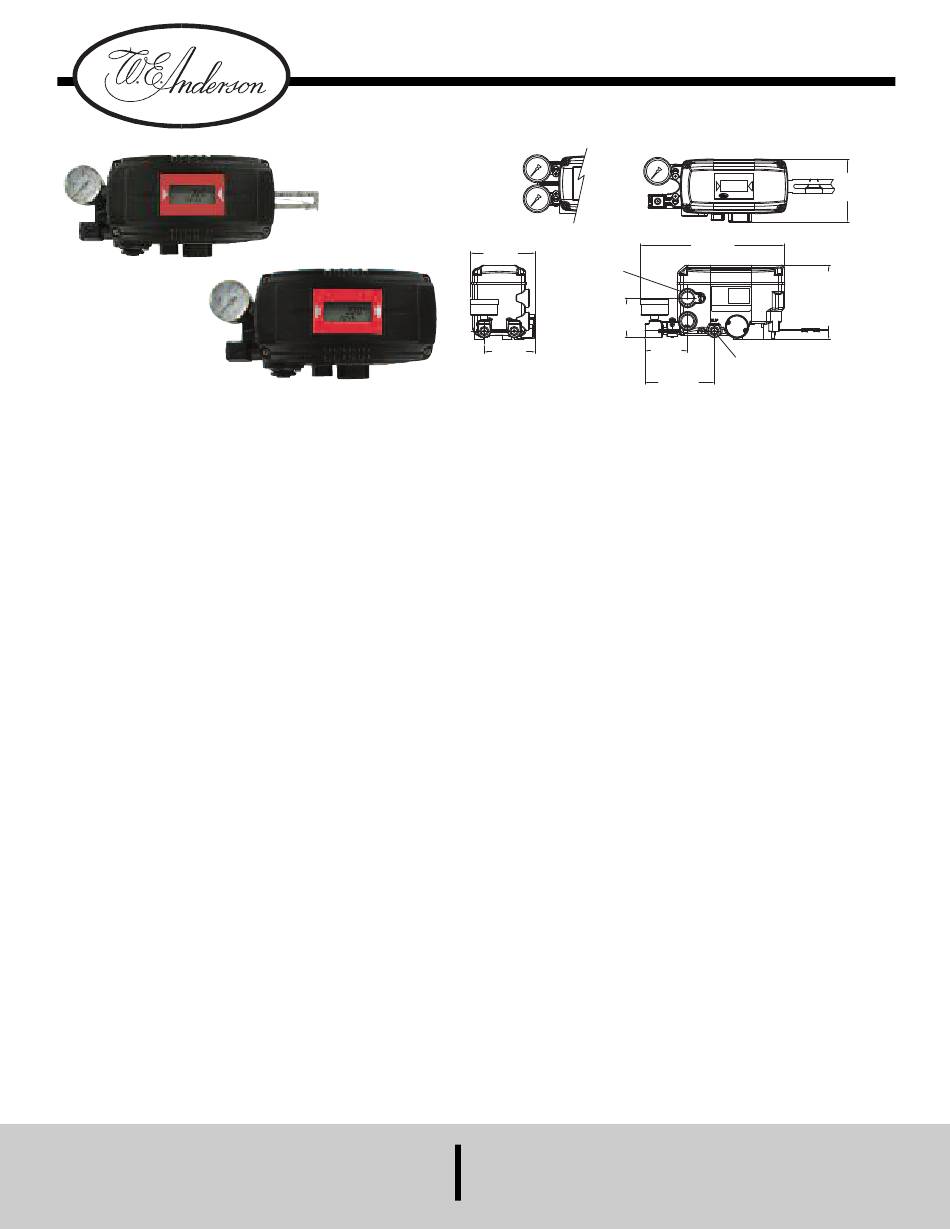

Series 185/285 Smart Positioners
TM
Specifications - Installation and Operating Instructions
Series 285
protocol.
®
DOUBLE
SINGLE
ACTION
ACTION
3-27/32
[97.50]
CONDUIT ENTRY
1/2 NPT
2-11/32
[59.60]
3-1/64
[76.50]
SPECIFICATIONS
Input Signal: 4 to 20 mA DC.
Input Impedance: 460 Ω max @ 20 mA DC.
Enclosure: Aluminum, SS.
Air Supply: 35 to 116 psi (3.5 to 9 bar).
Air Connection: 1/4˝ NPT.
Gage Connection: 1/8˝ NPT.
Conduit Connection: 1/2˝ NPT.
Linearity: ±0.5% FS.
Hysteresis: ±0.5% FS.
Sensitivity: ±0.2% FS.
Repeatability: ±0.3% FS.
Air Consumption: .0004 scfm (.01 LPM) at 20 psig (1.4 bar) supply.
Flow Capacity: 2.1 scfm (60 LPM) at 20 psig (1.4 bar) supply.
Stroke: 185: 0.5 to 6 in (10 to 150 mm); 285: 0 to 90°.
Enclosure Rating: NEMA 4X (IP66).
Temperature: Operating: -22 to 185°F (-30 to 85°C).
Weight: 185: 3.3 lb (1.5 kg); 285: 6.4lb (2.9 kg).
Lever: 185: .39 to 1.57 in (10 to 40 mm); 285: NAMUR.
HART
is a registered trademark of Hart Communication Foundation
®
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin V-185/285
LCD SCREEN
SMART POSITIONER
8-31/64
[215.70]
STAINLESS STEEL
4-31/64
[113.8]
STANDARD
2-33/64
[64.00]
SUPPLY
1/4 NPT
4-7/64
[104.20]
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
3-47/64
[95.00]
4-13/32
[111.90]

Advertisement

loading
Need help?

Need help?

Do you have a question about the 185 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for W.E. Anderson 185 Series

  • Page 1 Bulletin V-185/285 Series 185/285 Smart Positioners Specifications - Installation and Operating Instructions DOUBLE SINGLE ACTION ACTION 3-47/64 LCD SCREEN [95.00] SMART POSITIONER 8-31/64 3-27/32 [215.70] [97.50] 4-13/32 CONDUIT ENTRY Series 185 [111.90] 1/2 NPT STAINLESS STEEL 4-31/64 [113.8] 2-11/32 STANDARD [59.60] 2-33/64 3-1/64...
  • Page 2: Installation

    Structure Installing Series 185 with Bracket The structure of the 185 is shown below. The Series 285 structure is the same as It is necessary to make a proper bracket to attach on the actuator yoke. the linear model without the feedback lever. The most important considerations in the design of the bracket are as follows: - Series 185 feedback lever should be at 50% of valve stroke.
  • Page 3 6. Insert the connection bar attached on the actuator clamp into the slot of Series 185’s feedback lever. In order to reduce hysteresis, it should appear as shown: 9. Once the Series 185 is installed according to the above procedures, tighten the bolts and nuts of the bracket and feedback lever connection bar completely.
  • Page 4: Piping Connection

    Installing Series 285 with Bracket 5.Once the fork lever position is set, lock the check nuts on the bottom of the fork Series 285 is supplied with a standard bracket. The bracket consists of two parts lever by turning clockwise. Set the upper height of the fork lever to .24˝ to .43˝ (6 and is used with a NAMUR shaft.
  • Page 5 Piping Connection With Actuator Single Acting Actuator Series 185 and Series 285 single acting units are set to use OUT1 port. Therefore, when using the single acting spring return actuator, OUT1 port should be connected to the supply pressure port of the actuator. Terminal Plate of Series 185 and 285 Terminal Connection of Current Input Signal LCD SCREEN...
  • Page 6 Auto Calibration and Basic Operations Auto Calibration (AUTO CAL) The calibration of the positioner is simply performed by auto calibration. There are CAUTION Since this makes the valve or actuator move, before auto 3 types of auto calibration: AUTO1, AUTO2 and AUTO3. calibration, the valve must be separated from the entire system.
  • Page 7 Parameter Mode (PARAM) Parameter Types 1-3. Adjustment method and procedure same as dEAdZONE. There are four types in parameter mode: Dead Zone, KP, KI, and KD. 4. Push <DOWN> 7 times at dEAdZONE mode and PT mode is displayed. These values are reflected as soon as they are changed, therefore the 5.
  • Page 8 Adjustment of zero point (1 to 4) and end point (5 to 9) of transmitter. User Characteristics (USER SET) When a specific characteristic is needed but not included in the above If valve zero point and end point are changed, transmitter is also changed characteristics, the user can make a specific characteristic curve by choosing 16 automatically.
  • Page 9 Description Positioner model YT-2500L VERSION Main software version HART V HART Protocol version Adjustment of Tight Shut Open (TSHUT OP) POL AddR Channel address that is used in HART Protocol 1. Push <Enter > at VALVE mode and ACT RA or ACT DA is displayed. Push bIAS value for motor/piezo valve control.
  • Page 10: Maintenance/Repair

    Warning Code Firmware MAP This code is displayed when the positioner control is available but there is a Error code possibility of malfunction or low accuracy. Code B, F, G, H applies. View method Warning Code Code Description and Cause Action PV end-PV zero range is below Re-install/mount the positioner.
