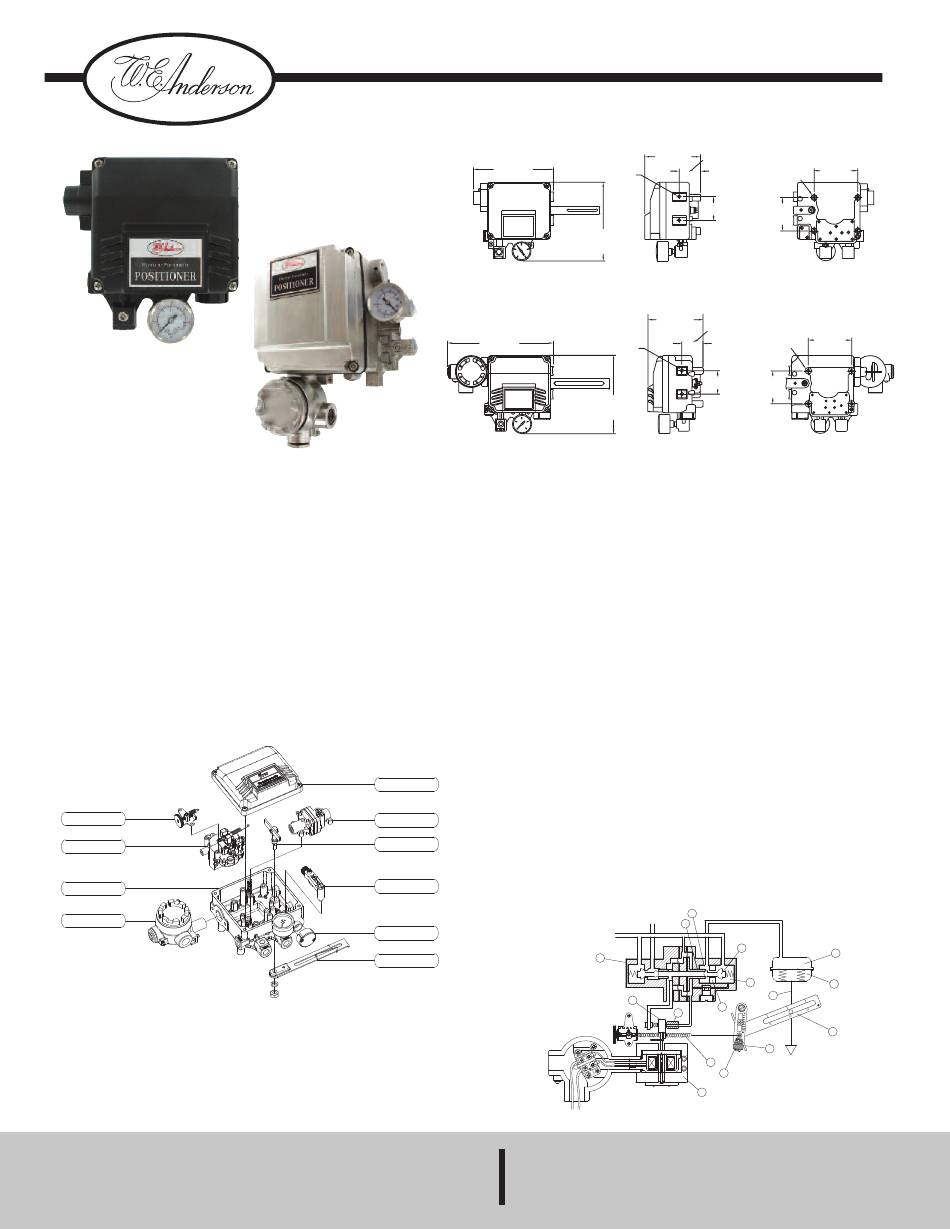

W.E. Anderson PRECISOR II 165EL Series Installation And Operating Instructions

The Series 165EL PRECISOR
ear operation of pneumatic linear valve actuators by means of electrical controller
or control systems with an analog output signal of 4 to 20 mA or split ranges.
FEATURES
• There is no resonance in the range of 5 to 200 Hz.
• Perform 1/2 split control without any other substitutes.
• Easy to adjust zero and span.
• Easy to convert from reverse action to direct action or vice versa.
• Easy feedback connection.
• Fast and accurate response.
• Low air consumption.
• Designed as multi-port type for air tubing.
• Easy to install air tubing connection in any direction.
• Designed as block build structure for maintenance and repair.
STRUCTURE
ZERO UNIT
TORQUE MORTOR
BASE BODY
JUNCTION BOX
W.E. ANDERSON DIV., DWYER INSTRUMENTS, INC.
P.O. BOX 358 • MICHIGAN CITY, INDIANA 46360 U.S.A.
Series 165EL PRECISOR
TM
Specifications - Installation and Operating Instructions
II Electro-Pneumatic Positioner is used for lin-
®
FEEDBACK SHAFT
FEEDBACK LEVER
II Electro-Pneumatic Linear Positioner
®
6-43/64
[169.47]
8-3/4
[225.30]
SPECIFICATIONS
Input Signal: 4 to 20 mA DC.
Input Impedance: 250 ±15 Ω.
Material: Aluminum diecasting.
Air Supply: 20 to 101 psig (1.4 to 7.0
bar).
Air Supply Connection: 1/4˝ NPT.
Gage Connection: 1/8˝ NPT.
Electrical Connection: Screw
Terminal.
Conduit Connection: 1/2˝ NPT.
Linearity: ±0.2% of FS.
Hysteresis: 1% of FS.
Sensitivity: ±0.2% of FS.
Repeatability: ±0.5% of FS.
Air Consumption: 0.10 scfm (3 LPM)
at 20 psig (1.4 bar) supply.
PRINCIPLE OF OPERATION
Increase the input current signal to change lift position of valve. Force exerted by
BASE COVER
(1) Torque Motor reduces Nozzle Back Pressure with increase in gap between (2)
Flapper and (3) Nozzle. Then (5) Spool moves upward and the (7) Seat opens
simultaneously. Air pressure of OUT1 pipe is discharged to (10) Actuator. As pres-
PILOT VALVE
sure in the actuator chamber goes up, (12) Actuator Stem starts to move. The
movement of (12) Actuator Stem exerts force to the (a) Feedback Spring through
Feedback Shaft connections. Then (10) Actuator will stop at the point of force bal-
ance exerted by the input current signal and the feedback spring.
SPAN UNIT
VENT UNIT
Phone: 219/879-8000
Fax: 219/872-9057
4-41/64
1-25/32
[117.87]
[45.24]
4X M8X1.25
2X M8X1.25
1-31/32
2-49/64
[50.01]
6-9/16
[166.69]
STANDARD VERSION
4-19/32
[116.69] 1-25/32
[45.24]
4X M8X1.25
2X M8X1.25
1-31/32
2-3/4
[50.01]
[69.85]
6-9/16
[166.69]
STAINLESS STEEL VERSION
Flow Capacity: 28 scfm (80 LPM) at
20 psig (1.4 bar) supply.
Stroke: 0.5 to 6˝ (10 to 150 mm).
Enclosure Rating: IP66.
Operating Temperature:
165EL: -4 to 158°F (-20 to 70°C);
165EL-SS: -40 to 158°F (-40 to
70°C);
165EL-FM: -4 to 140°F (-20 to
60°C).
Weight: 165EL: 6.1 lb (2.7 kg);
165EL-SS: 12.6 lb (5.7 kg).
Agency Approvals: CE (165EL
only), FM (165EL only).
9
OUT1
OUT2
5
SUPPLY
8
4
6
2
7
3
E
16
15
1
INPUT SIGNAL
4 ~ 20 mA
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
Bulletin F-90
