Summary of Contents for Ignite Grande

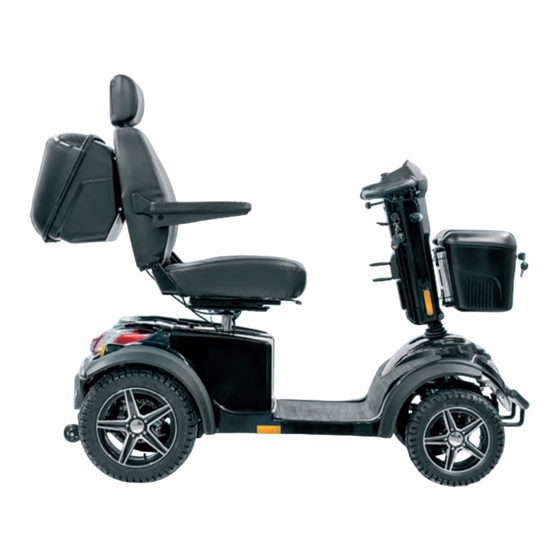

  • Page 1 User ManUal...

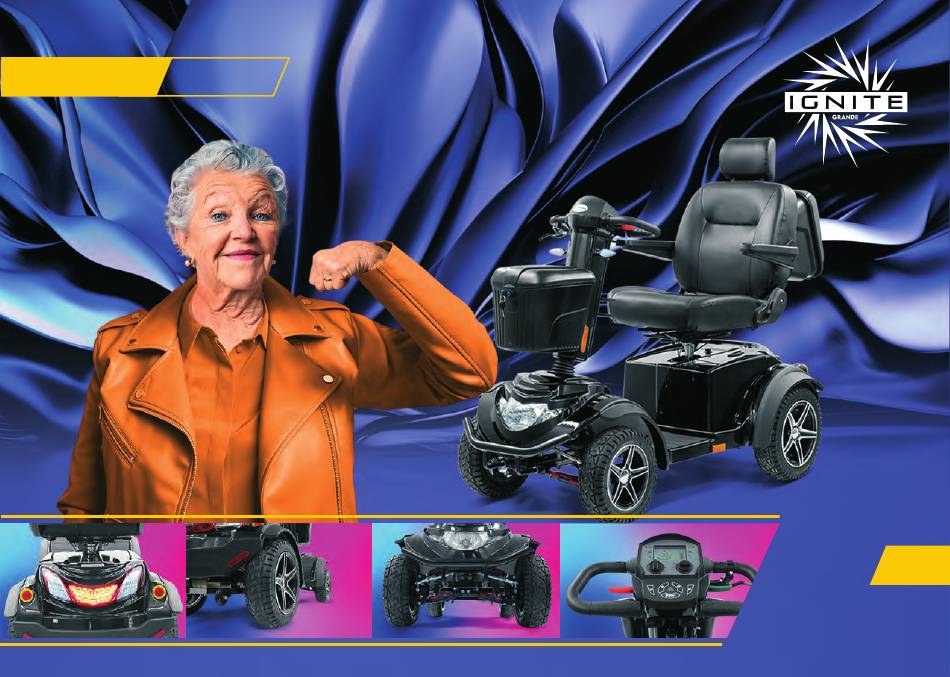

  • Page 2 The mobility scooter that keeps on giving. . .
  • Page 3 Heated Seat as standard Learn more about your Ignite Grande today...

  • Page 4: Table Of Contents

    Keys & Fobs ................ 14 Maintenance ................31 Seat Adjustments ............15 Replacing Bulbs ............... 31 Tiller Adjustments ............17 Battery Care ............... 31 Steering ................18 Fuses ..................32 Acceleration & Braking ..........19 Scooterpac Ignite Grande | User Manual...
  • Page 5 Cleaning & Maintenance ..........34 12 Servicing ..................38 13 Notes ....................42 9.5.1 Rubber Mats ..............34 9.5.2 Paintwork ..............34 10 Warranty ..................35 11 Specifications ................36 11.1 Technical Specification ..........36 Scooterpac Ignite Grande | User Manual...

  • Page 6: Welcome

    Scooterpac dealer will need to keep your Ignite in good working order. Address 2 ________________________ If you have any questions, please contact the Scooterpac Town/City ________________________ dealer that supplied your Ignite and they will be happy to help you. Postcode ________________________ Please fully charge your scooter, Phone Number ________________________ at least once a week to maintain battery life &...

  • Page 7: Legal

    2 Legal The Scooterpac Ignite Grande is designed to be operated by a single person, in accordance with the legal requirements for operating a Class 3 invalid carriage in the jurisdiction in which it was sold. Operating the vehicle outside of these limitations may invalidate your warranty.

  • Page 8: Safety

    3.1 Anti-Tip Wheels The Ignite Grande is fitted with rear anti-tip wheels. These are an emergency failsafe that should never be relied upon in normal operation. These are designed to stop the Ignite Grande tipping backwards on a steep incline. Should you see any damage to the wheels, you should cease using the scooter and take it to a certified mechanic who can ensure that the chassis has not been damaged.

  • Page 9: Safe Inclines

    3.2 Safe Inclines The Ignite Grande can climb inclines of up to 12˚ without danger. On this 12˚ incline, the Ignite Grande can stop, brake and turn. It is possible to attempt steeper inclines, but we strongly suggest that you do not. To reduce the possibility of tipping backwards on inclines, lessen the load on the back of the scooter by sliding the seat forward as much as possible and leaning forward.

  • Page 10: Introduction

    4 Introduction Your Ignite Grande is a high-tech piece of mobility equipment that will give you years of faithful service and enjoyment. This manual introduces you to the operation, maintenance and care of your Ignite. If you have any questions, or are unsure of anything, please contact the dealer your originally purchased the Ignite from.

  • Page 11: Your Ignite

    5.1 Intended Use The Ignite Grande is designed for use on smooth pavement or roadway, in accordance with local laws. The Ignite can be used in wet and windy weather, but discretion should be used when planning a journey in adverse weather conditions. If there is more than 1cm of water standing on the pavement, extra care should be taken as the scooter may have reduced ability to grip and steer.

  • Page 12: Unintentional Movement

    5.2 Unintentional Movement Before entering, the Ignite Grande should always be stationary. When the Ignite Grande is switched on, it will remain stationary until one of the following: 1. The forward or reverse lever is pulled. 2. The freewheel function is engaged.

  • Page 13: Digital Tiller Guide

    6 Digital Tiller Guide Figure 2 – Digital Tiller guide Scooterpac Ignite Grande | User Manual...

  • Page 14: Operating Your Ignite

    7 Operating Your Ignite 7.1 Keys & Fobs The Ignite Grande is delivered with several keys which operate various functions: Ignition Lockable Box Keys Keys Scooterpac Ignite Grande | User Manual...

  • Page 15: Seat Adjustments

    Backrest Adjustment The pitch of the seat can be changed by the lifting lever located on the right- hand side of the seat when seated. Figure 4 – Pull black handle to adjust the backrest Scooterpac Ignite Grande | User Manual...
  • Page 16 To change the angle of the seat, sit on the seat, pull the swivel handle towards the front of the scooter and turn the seat anti-clockwise. Figure 6 – Pull black handle to adjust the backrest Figure 5 – Seat, side positioned Scooterpac Ignite Grande | User Manual...

  • Page 17: Tiller Adjustments

    Try to find a position that allows a good view of the digital control panel and allows full left and right movement of the steering. Figure 7 – Press the black handle down to adjust tiller pitch Scooterpac Ignite Grande | User Manual...

  • Page 18: Steering

    The Ignite Grande is fitted with a mechanical steering column that ideally should be operated with both hands. When the Ignite is stationary the steering may feel a little heavy or stiff. Steering will become lighter whilst the vehicle is in motion.

  • Page 19: Acceleration & Braking

    7.5 Acceleration & Braking 7.5.1 Speed Controls The Ignite Grande has several methods for controlling speed; the High and Low Speed Modes, the Max Speed Limiter and the Throttle Levers. 7.5.1.1 High and Low Speed Modes The high (“H”) and low (“L”) speed modes are controlled by the right-hand dial on the tiller.

  • Page 20: Freewheel Function

    To move forward, gently squeeze the green lever. The Ignite will accelerate up to the maximum allowable speed set by the speed controls. To slow down or stop, release the accelerator and the scooter will stop. In an emergency the handbrake can be applied by pulling the brake handle located on the right of the handlebars.

  • Page 21: Reversing

    7.5.3 Reversing To engage reverse mode, ensure that the Ignite is stationary and on even ground. Before moving, check that the area is clear of obstructions and your planned path is of adequate size. Gently squeeze the red lever, and the Ignite will begin to slowly move backwards.

  • Page 22: Starting The Ignite

    7.6 Starting the Ignite The Ignite Grande will start once the Ignition Key is inserted into the housing on the tiller and turned clockwise (figure 10). The Ignite Grande is powered on and ready to be used when the digital dashboard displays visual data (figure 11).

  • Page 23: Digital Lcd Display

    7.7 Digital LCD Display Figure 12 – Digital LCD Display Scooterpac Ignite Grande | User Manual...

  • Page 24: Odometer

    7.7.1 Odometer The displayed miles/kilometres on the Digital LCD Display are cumulative and represent the total distance the Ignite has travelled. 7.7.2 Setting the Clock To set the clock follow the below instructions: 1. Press and hold the headlight button for five seconds 2.

  • Page 25: Indicators

    The indicators are bright LEDs used for easy visibility, in an orange colour. To switch them on press the button once before initiating a manoeuvre. Once the turn is complete and it is safe to do so, press the again to turn off the indicator. Scooterpac Ignite Grande | User Manual...

  • Page 26: Hazard Lights

    The electric horn is activated by pressing the button on the tiller top. The horn should only be used in compliance with the Highway Code. The horn will only sound if the ignition is switched on. Scooterpac Ignite Grande | User Manual...

  • Page 27: Usb Charging Ports

    7.11 USB Charging Ports The Ignite Grande is equipped with USB Charging Ports on the right-hand side of the tiller column. The two USB ports provide different power outputs. USB Port 1 is located next to the LED light and USB Port 2 can be found on right hand side.

  • Page 28: Cup Holder

    7.12 Cup Holder For your convenience, the Ignite is fitted with a bottle/cup holder. It can be opened by pulling down on the upper ring. The lower ring will follow. TOP TIP – The cup holder should not be used to store alcoholic beverages.

  • Page 29: Charge Port

    7.13 Charge Port Charging the Ignite Grande can be completed by using the charge port on the tiller. The port is located on the tiller column on the right-hand side. To charge the vehicle, simply connect the supplied charge cable to the port.

  • Page 30: Heated Seat

    When the heated seat button is LED is not illuminated this indicates illuminated this indicates the heated that the heated seat function is off. seat function is on. Figure 16 – Heated seat button Scooterpac Ignite Grande | User Manual...

  • Page 31: Maintenance

    LEDs are energy efficient and long lasting however they may eventually require replacement. LED bulbs can be purchased from the dealer that supplied your Ignite. Replacing bulbs should only be completed by an approved Scooterpac dealer, as it involves disassembling units that must be resealed to the original manufacturing specification.

  • Page 32: Fuses

    9.3 Fuses The fuses used on the Ignite are accessible through a covered hatch on the front of the tiller. To access the fuse board, simply pull down on the retaining clip and slide the cover out of place. Fuses should only be changed by professionals, as improper work may damage the Ignite electrical system.

  • Page 33: Tyre Pressures

    The tyres should always have at least 3mm of tread to provide adequate grip on the road surface. If the tyres become worn, they should be replaced before the Ignite is used again.

  • Page 34: Cleaning & Maintenance

    TOP TIP – Please do not use bleach. 9.5.2 Paintwork To care for the paint, regularly wash the Ignite using soft cloths and a mild automotive detergent. Apply automotive polish to achieve a high-shine finish. It is highly recommended that polish is applied in areas where the paintwork may be exposed to adverse weather conditions.

  • Page 35: Warranty

    Scooterpac dealer from which it was purchased. If a repair cannot be completed a replacement part will be fitted. If a manufacturing defect is found, it must be reported in writing to the Scooterpac dealer from which the Ignite was purchased from within 28 days of purchase.

  • Page 36: Specifications

    11 Specifications 11.1 Technical Specification Rear Wheel Drive Sealed Transaxle Dual 12V 120Ah Motor Batteries 1400w (4 Pole) 24 Volt DC Digital Dashboard Display 6-button Tiller Pneumatic Dashboard Tyres Max Speed Dial Speed Mode Dial Scooterpac Ignite Grande | User Manual...

  • Page 37: Sizes & Weights

    +/-3%. Width 770 mm Tyres 14” pneumatic tyres Varies with user weight, terrain type, battery charge, Wheels Front – 14 inches battery condition, tyre condition. Rear – 16 inches Maximum Slope 12 degrees Scooterpac Ignite Grande | User Manual...

  • Page 38: Servicing

    12 Servicing In order to ensure continued safe operation, the Ignite Grande must be serviced every 12 months. We recommend recording the servicing dates and locations on the sheets below. Always have your Ignite serviced at an authorised Scooterpac dealer, using original Scooterpac parts.
  • Page 39 Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Scooterpac Ignite Grande | User Manual...
  • Page 40 Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Scooterpac Ignite Grande | User Manual...
  • Page 41 Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Scooterpac Ignite Grande | User Manual...

  • Page 42: Notes

    13 Notes Scooterpac Ignite Grande | User Manual...
  • Page 43 Scooterpac Ignite Grande | User Manual...
  • Page 44 Brighten your day Tel: 0330 124 1733 Web: www.scooterpac.com SP/IGG/M/EN/2023-A...
