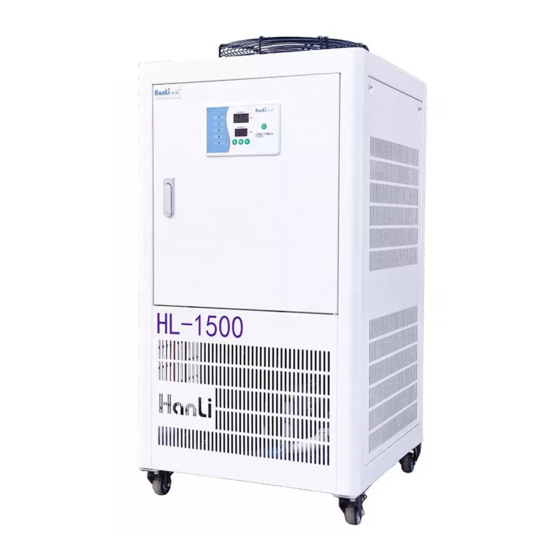

HL-1000/1500/2000/3000/4000/6000/8000/12000/15000/20000/30000/40000/50000 Series
SCH-/1500/2000/3000 Series
SCL-/1500/2000/3000 Series
SCHYTJ-/1500/2000/3000 Series
SY-1500/2000 Series
User's Manual of Fiber Laser Chiller
WUHAN HANLI REFRIGERATION TECHNOLOGY CO., LTD.
Add: No. 1, Second Road, XinFuYua, Hannan District, Wuhan, China
Post Code: 430090 Email: hanli-laserchiller@hanlizl.com
Tel: +86-13682641130 ，
www.hanlichiller.com
User's Manual of Fiber Laser Chiller
1
Advertisement
Table of Contents
Related Manuals for HANLI HL-1000 Series
Summary of Contents for HANLI HL-1000 Series
- Page 1 HL-1000/1500/2000/3000/4000/6000/8000/12000/15000/20000/30000/40000/50000 Series SCH-/1500/2000/3000 Series SCL-/1500/2000/3000 Series SCHYTJ-/1500/2000/3000 Series SY-1500/2000 Series User’s Manual of Fiber Laser Chiller WUHAN HANLI REFRIGERATION TECHNOLOGY CO., LTD. Add: No. 1, Second Road, XinFuYua, Hannan District, Wuhan, China Post Code: 430090 Email: hanli-laserchiller@hanlizl.com Tel: +86-13682641130 ， www.hanlichiller.com...
-
Page 2: Table Of Contents
7 Product use ------------------------------------------------------------------------------------------- 16 7.1 Inspection before commissioning ------------------------------------------------------- 16 7.2 Introduction to controller panel --------------------------------------------------------- 16 7.2.1 Introduction to Hanli split controller panel ------------------------------------ 16 7.2.2 Introduction to Jingchuang split controller panel --------------------------- 17 7.2.3 Introduction to LCD controller panel ---------------------------------------- 18 7.3 Power on display ---------------------------------------------------------------------------- 18... - Page 3 User's Manual of Fiber Laser Chiller 8 Maintenance ---------------------------------------------------------------------------------------- 20 8.1 Dustproof in summer --------------------------------------------------------------------- 20 8.2 Anti-freeze in winter ---------------------------------------------------------------------- 21 8.3 Routine maintenance ---------------------------------------------------------------------- 22 9 Fault analysis and troubleshooting --------------------------------------------------------------- 23 10 Circuit diagram ----------------------------------------------------------------------------------- 25 11 Transportation and storage ---------------------------------------------------------------------- 27 11.1 Transport requirements ----------------------------------------------------------------- 27 11.2 Storage requirements -------------------------------------------------------------------- 27 12 Other instructions --------------------------------------------------------------------------------- 27...
-
Page 4: Foreword
User's Manual of Fiber Laser Chiller foreword Thank you for your trust in our company and choosing to use our company's fiber laser chiller. In order to enable you to better understand and use our company's products, to make them play the best effect, and to provide you with perfect after-sales service, we sincerely welcome you to Read this manual carefully before use, and consult this manual if you have any doubts during the use of the product. - Page 5 User's Manual of Fiber Laser Chiller knowledge Must be implemented High Voltage Risk Contact with live parts can result in serious personal injury or death. Any part of the body and heat resistant articles must be kept away from this high temperature area, otherwise it will cause scald burn risk personal injury or property loss.
- Page 6 User's Manual of Fiber Laser Chiller Warning tips Warning signs Operational specifications Transport, installation When the equipment is transported and installed, the equipment must be fixed firmly, otherwise there is a risk of overturning and falling. Must be implemented Electrical protection Power cable access terminal must match the leakage and overload protection device according to the rated current indicated on the equipment nameplate.
- Page 7 User's Manual of Fiber Laser Chiller Must be port and 2.0 meters around the outlet. If suction and exhaust implemented are obstructed, the cooling capacity of the equipment cannot be used. Before trial operation a) Need to ensure that the equipment side water supply pipe is not obstructed;...
-
Page 8: Overview
User's Manual of Fiber Laser Chiller overview This product is a cooling device designed and manufactured for laser cutting, laser welding, laser engraving, laser marking, laser printing, etc. Coolant, to cool down the fiber laser, the other is normal temperature coolant,Cool down the fiber laser cutting head The chiller is composed of a compressor, a condenser, a throttling device, an evaporator, a water tank and a water pump, etc. -
Page 9: Conditions Of Use
User's Manual of Fiber Laser Chiller 2 Conditions of use 2.1 Environmental requirements Ambient temperature: 0 ~ 45℃; Relative humidity: ≤90%; Altitude: ≤3000m; The relationship between the temperature of the cooling medium and the ambient temperature is shown in Figure 2. Normal operating range Ambient temperature℃... -
Page 10: Medium Requirements
User's Manual of Fiber Laser Chiller 2.2 Medium requirement The cooling medium must be softened water, such as pure water, distilled water, high-purity water, etc. It is allowed to add ethylene glycol with a volume ratio of ≤30%, or ethanol with a volume ratio of ≤20%, and it is allowed to add preservatives and bactericides approved by the manufacturer. - Page 11 User's Manual of Fiber Laser Chiller 380V HL-6000- 750×610×1070 50Hz QG2/2 380V HL-8000- 58.5 930×790×1250 50Hz QG2/2 1170×787× 380V HL-12000- R410A 58.5 50Hz 1495 QG2/2 1540×730× 380V HL-15000- R410A 1.9*2 50Hz 1120 QG2/2 1700×765× 380V HL-20000- R410A 2.7*2 50Hz 1135 QG2/2 2250×1000×...
-
Page 12: Appearance And Part Name
User's Manual of Fiber Laser Chiller 5 Appearance and part name Add water Low temperature water outlet Air switch Low temperature water inlet Controller Normal temperature water outlet Normal temperature water inlet Air suction (including filter Power cord outlet Liquid level Wheel Drain valve Note: the appearance and part name above are only one of the models. - Page 13 User's Manual of Fiber Laser Chiller FIG. 3 Requirements for equipment installation form Exhaust air suction suction FIG. 4 Equipment installation space requirements Direct sunlight FIG. 5 Environmental requirements for equipment installation...
-
Page 14: Waterway Connection
User's Manual of Fiber Laser Chiller 6.2 Waterway connection Determine the piping layout direction according to the equipment import and export label, in case the equipment cannot run normally. The pipeline should be cleaned during internal construction to strictly avoid impurities. ... -
Page 15: Add Water And Exhaust
User's Manual of Fiber Laser Chiller 6.4 Add water and exhaust air 6.4.1 Add water Add softened water through the water inlet of the equipment to the standard liquid level area (green area), as shown in Figure 7. High water level Normal water level Low water level Figure 7 Liquid level identification... -
Page 16: Product Use
7.2 Introduction to controller panel At present, there are three types of controllers for Hanli fiber laser chillers, most of which are split digital tube controllers, as shown in Figure 8 and Figure 9, while a few models use LCD controllers as shown in Figure 10. -
Page 17: Introduction To Jingchuang Split Controller Panel
User's Manual of Fiber Laser Chiller 7.2.2 Introduction to the Jingchuang split controller panel Figure 9 Jingchuang split controller panel Digital tube Uses Di s p l a y of measured temperature (low temperature water Display window L.xx.x / normal water H.xx.x), set temperature display (low temperature water S. -
Page 18: Introduction To Lcd Controller Panel
User's Manual of Fiber Laser Chiller 7.2.3 Introduction to the LCD controller panel Figure 10 LCD controller panel Number Management Uses Code Real Time Temperature Display of "actual measured water temperature, alarm code". ( PV ) Set temperature ( SV ) The "set temperature"... -
Page 19: Power On Display
User's Manual of Fiber Laser Chiller 7.3 Power on display When the split controller unit is powered up, the display shows the software version information (Fxx/v100 /A00) and after approx. 7seconds it enters the temperature display. When the LCD controller is in the main interface, press for 3 seconds to switch on the machine, the status bar of the main interface will show "Running"... -
Page 20: Maintenance
User's Manual of Fiber Laser Chiller 7.5.2 LCD controller parameter setting Wash and dry Blow it with ①, Quick change of set temperature compressed air If the user parameter [Lock Temperature] is set to "No", the set temperature can be changed directly in the main interface. - Page 21 User's Manual of Fiber Laser Chiller 8.2 Winter frost protection Fig. 12 Winter frost protection maintenance When the appliance is in transport or not in use for a long period of time, the water in the tank should be drained through the drain valve and the remaining water in the pump should be drained by loosening the drain screw plug under the pump, as shown in Figure 12.
- Page 22 User's Manual of Fiber Laser Chiller 22.2 47.8 95.8 -11.0 -36.0 -19.0 24.1 49.8 -12.0 -13.0 -38.0 8.3 Daily maintenance In order to ensure the good performance of the equipment and to prolong its service life, it is necessary to carry out maintenance on the equipment at a frequency of once a week.
-
Page 23: Fault Analysis And Troubleshooting
User's Manual of Fiber Laser Chiller 9 Fault analysis and troubleshooting When the machine detects a fault, the display alternates between the temperature and the fault code "Exx". If there are multiple faults, press <Up> or <Down> to toggle between the different faults, press <Up>... - Page 24 User's Manual of Fiber Laser Chiller high A: Check the relay Stop the compressor, A : Low water temperature for adhesion temperatur not the pump of the equipment e water temperature alarm A: Inspection of Room A: Ambient water probe No pump stop, all probe terminals and temperature...
- Page 25 User's Manual of Fiber Laser Chiller Alarm, power failure Automatic Probe ① High heating ① temperature alarm Stop the normal Automatic Probe ② Low temperature water valve, temperature alarm not the pump Alarm, power failure Automatic Probe ② High heating ② temperature alarm Temperature Manual...
- Page 26 User's Manual of Fiber Laser Chiller Passive output signal Common port Normal temperature water flow switch high-voltage switch Low temperature water flow switch Remote switch/phase sequence switch/low voltage switch Low temperature water Normal temperature water Figure 14 circuit diagram of 380V split controller Figure 15 circuit diagram of 220V split controller...
-
Page 27: Transportation And Storage
User's Manual of Fiber Laser Chiller Figure 16 380V LCD controller circuit diagram 11 Transportation and storage 11.1 Transportation requirements 1. When transporting or handling, do not bump or tilt excessively (not more than 45°), avoid bumping, hitting and overturning. 2. -
Page 28: Storage Requirements
User's Manual of Fiber Laser Chiller 4.When using a forklift to move the equipment, make sure the equipment is stable and <200mm above the ground, and make sure to avoid the equipment casters. 5.When using an overhead crane to move the equipment, use a wire rope to hold the equipment in a stable position before moving.
