SERVICE MANUAL
Ver. 1.1 2005.11
• HT-DDW660 is composed of following models.
As for the service manual, it is issued for each component
model, then, please refer to them.
COMPONENT MODEL NAME
FM STEREO FM-AM RECEIVER
PACKAGE SPEAKER
FRONT SPEAKER
CENTER SPEAKER
SURROUND SPEAKER
SUB WOOFER SPEAKER
Sony Corporation
9-877-521-02
2005K16-1
Home Audio Division
© 2005.11
Published by Sony Engineering Corporation
HT-DDW660
HT-DDW660
STR-K660P
SS-VE66P
SS-MSP66L/MSP66R
SS-CNP66
SS-MSP66SL/MSP66SR
SS-WMSP66
PARTS LIST
Part No.
Description
ACCESSORIES
************
1-478-581-12 COMMANDER, STANDARD (RM-U66)
(Including Battery Cover)(EXCEPT MX)
1-478-792-12 COMMANDER, STANDARD (RM-U66A)
(Including Battery Cover)(MX)
1-501-374-12 ANTENNA, LOOP (AM)
1-501-807-12 ANTENNA (FM) (AUS)
1-751-347-13 CORD, CONNECTION (Long 10m)
1-769-433-62 CORD, SPEAKER (Short 3.5m)
1-793-184-23 CONNECTOR (F TYPE ADAPTOR) (FM)
1-823-135-21 CORD (CONNECTION)
2-055-280-01 FOOT (For SUB WOOFER)
4-235-237-01 FOOT (For SPEAKERS)
4-254-461-11 INSTRUCTION MANUAL (ENGLISH)
4-254-461-21 INSTRUCTION MANUAL (FRENCH) (CND)
4-254-461-32 INSTRUCTION MANUAL (SPANISH) (E51, MX)
•
Abbreviation
CND : Canadian model
E51
: Chilean and Peruvian model
MX
: Mexican model
AUS
: Australian model
Remarks
(EXCEPT AUS)
(COAXIAL DIGITAL CORD)
(EXCEPT MX)

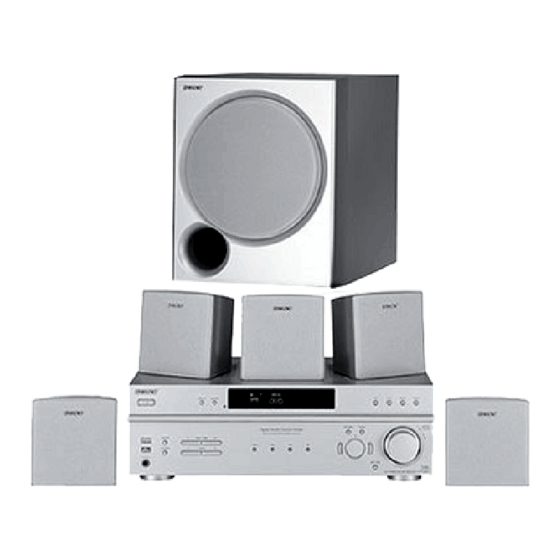

HOME THEATER SYSTEM
US Model
Canadian Model
E Model
Australian Model
