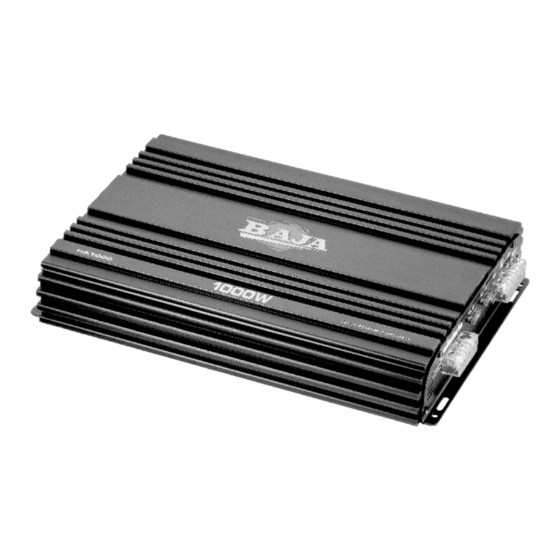

- Page 1 MOSFET POWER AMPLIFIERS Installation Instructions / Owner's Manual HA400 HA600 HA1000 HA740 HA1040 HA700M HA1000M...
- Page 2 It is recommended that you have our product installed by an authorized Profile retailer. However, if you decide to install it yourself, please carefully read through this manual and take your time to do a quality installation.
-
Page 3: Safety Precautions
AFETY PRECAUTIONS Fuse amplifier's power wire at the battery. Be sure to fuse the power wire within 12" of the car's battery. This will protect the car's battery in case of a short circuit between the power amplifier and battery. THIS IS A MUST. The amplifier's built-in fuse will only protect the power amplifier and not the car's battery! The fuse value is based on the amplifiers rated power and how many amplifiers will be run off the same power wire. -
Page 4: Features And Benefits
(80 Hz ~ 1.2k Hz) for precise high pass filter and (50 Hz ~ 250 Hz) for low pass filter. ** HA1000, HA700M and HA1000M models only have a 50 Hz ~ 250 Hz low pass filter. Bass Boost For added low frequency performance the amplifiers are equipped with a variable 0~12 dB bass boost @ 45Hz. - Page 5 Tri-Mode Capable (Excluding HA700M & HA1000M models) If so desired the amplifier may be run in stereo and mono at the same time. For example, this feature would allow you to run a pair of mids and tweeters in stereo and a subwoofer in mono. Remote Turn-on Automatically turns amplifier on when connected to the head unit's remote output.
- Page 6 Short Circuit Protection The circuit protects the amplifier from damage due to a short found in the speakers or wiring. If one of the speakers or its wiring comes in contact with ground, the amplifier will shut down. To resume normal operation, correct the problem and turn the head unit off, then back on. The amplifier will reset and play again.
-
Page 7: Power Connections
OWER CONNECTIONS IN-LINE POWER FUSE MOUNTED WITHIN 12" FROM BATTERY RECOMMENDED (NOT PROVIDED) CAR BATTERY +12V IMPORTANT! Before making any connections, disconnect the car's battery until the installation is completed to avoid possible damage to the electrical system. Connect the B+ terminal of the amplifier to the car's battery. At times, the amplifier will need to draw large levels of current that cannot be provided by any circuit in the car's fuse box. -
Page 8: Mounting Location
OUNTING LOCATION Before you start the installation, it will be necessary to find a mounting location for the amplifier. Find a location in which the amplifier will receive adequate ventilation in order to dissipate the heat it develops during operation. Two popular mounting locations are in the trunk or under the seat. -
Page 9: Signal Connections
IGNAL CONNECTIONS Connect the RCA output of the head unit (AM/FM cassette player, CD, or DAT) to the RCA input terminals of the amplifier. To make these connections, we recommend high quality RCA cables, which are available at your local car audio retailer. Run signal wires away from electrical wires to avoid possibility of induced noise from the car's electrical system (i.e. - Page 10 IGH LEVEL CONNECTIONS (OPTIONAL) High level inputs have been included in all Baja amplifiers excluding 4 Channel amps to connect the amplifier to a factory radio without low-level RCA outputs. This connection will allow you to connect directly to the speaker output of the radio, without the need of an external adapter.
-
Page 11: Speaker Connections
PEAKER CONNECTIONS Make the speaker connections using speaker wire that is at least 14 gauge or heavier. As with any audio component, proper phasing of the amplifier and speakers is essential for strong bass response. When connecting, make sure that positive (+) from the amplifier is connected to the positive (+) of the speaker, and the same for negative (-). - Page 12 PEAKER CONNECTIONS (BRIDGED) Two and four channel amplifiers are capable of being bridged ** into a mono configuration. This feature allows you the flexibility of using the amplifier to drive a subwoofer or a center channel. In this configuration the amplifier sums the right and left channel to deliver one channel (mono) output.
- Page 13 4 Ohm connections. If you wish to use multiple speakers to achieve a lower impedance and higher power, it is strongly recommended that you seek professional advice from your Profile retailer before attempting to make these connections. Please Note: In the Tri-mode configuration, the amplifier's built-in crossover must be set to "FULL"(OFF) position.
- Page 14 ETTING THE CROSSOVER AND BASS/TREBLE BOOST (Please note: If you intend to use the amplifier in the Tri-mode configuration, it is necessary to set the crossover control to the "Full" setting in order to receive full range output) The Baja amplifiers are equipped with a built-in variable crossover network allowing you to select the crossover type, "...
-
Page 15: Setting The Gain
SING SUBSONIC FILTER AND PHASE CONTROL Using the Subsonic Filter. Models HA1000,HA700M, and HA1000M are equipped with Subsonic a variable reproduction of inaudible low frequencies on the amplifier which could damage the displacement of the subwoofer cone. You would want to set the frequency point where frequencies below that point. -
Page 16: Troubleshooting The System
ROUBLE SHOOTING THE SYSTEM We have put together this trouble-shooting guide if you experience problems after installing the amplifier. Please keep in mind that the majority of problems incurred are caused by improper installation and not the equipment itself. In addition, there are many components in the system that could cause various signal problems such as inducted electrical noise and engine noise. - Page 17 2 x 30A " x 9 " x 11 " " x 9 " x 14 11/16 13/16 11/16 3/16 HA1000 2 x 320W 2 x 160W 2 x 500W 2 x 240W 1 x 480W Yes(Dual) <0.07% 20Hz ~ 30kHz >100dB...
-
Page 18: Specifications
Max Power Output@4 Ohm RMS Power Output@4 Ohm Max Power Output@2 Ohm RMS Power Output@2 Ohm MOSFET Power Supply THD@RMS Power Frequency Response Signal To Noise Stereo Separation Pre-Amp Output RCA Input Voltage RCA Input Impedance High Level Input Impedance Load Impedance Mono Crossover Type(12dB/Octave) LP Crossover Frequency(Variable) -
Page 19: Limited Warranty
One (1) Year from the date of sale to the original consumer purchaser. If this product is proven to be defective within this one year period, Profile will repair it when said product is returned, with a copy of the dated sales receipt, freight prepaid to Profile. - Page 20 5) Include the return street address and daytime telephone number. 6) Allow 2~3 weeks for repair (this period includes shipping time). Send unit to PROFILE CONSUMER ELECTRONICS, INC. 15060 SHOEMAKER AVE. SANTA FE SPRINGS, CA 90670 TEL: (562) 404-9393 Note: All units failing to meet the above requirements will be subject to a charge and or may not be repaired.
