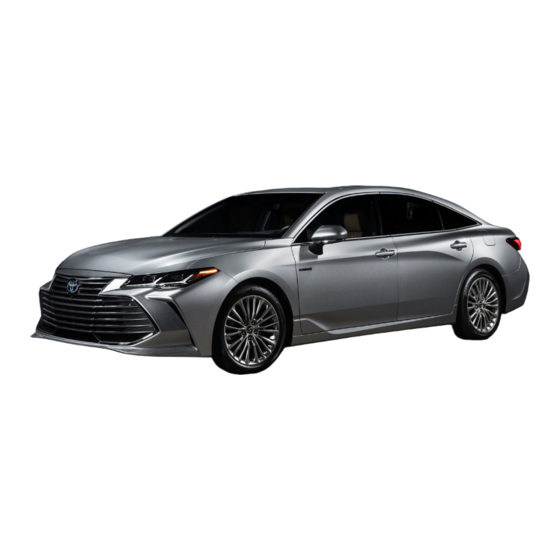

Toyota AVALON HYBRID 2019 Manual

Table of Contents

Quick Links

Download this manual

Pictorial index

For safety

and security

Instrument

cluster

Operation of

each

component

Driving

Interior features

Maintenance

and care

When trouble

arises

Vehicle

specifications

For owners

Index

Search by illustration

Make sure to read through them

How to read the gauges and meters, the variety of

warning lights and indicators, etc.

Opening and closing the doors and windows,

adjustment before driving, etc.

Operations and advice which are necessary for

driving

Usage of the interior features, etc.

Caring for your vehicle and maintenance

procedures

What to do in case of malfunction or emergency

Vehicle specifications, customizable features, etc.

Reporting safety defects for U.S. owners

Search by symptom

Search alphabetically

Table of Contents

Need help?

Do you have a question about the AVALON HYBRID 2019 and is the answer not in the manual?

Questions and answers

Summary of Contents for Toyota AVALON HYBRID 2019

Page 1 Pictorial index Search by illustration For safety Make sure to read through them and security Instrument How to read the gauges and meters, the variety of cluster warning lights and indicators, etc. Operation of Opening and closing the doors and windows, each adjustment before driving, etc.
Page 2: Table Of Contents
TABLE OF CONTENTS For your information....... 6 Operation of each Reading this manual ....12 component How to search......13 Pictorial index ......14 3-1. Key information Keys........128 For safety and security 3-2. Opening, closing and locking the doors Doors .........
Page 3 Interior lights list....346 4-5. Using the driving • Interior light ....347 support systems • Personal lights....347 Toyota Safety Sense P ..229 • Ambient lights....348 (Pre-Collision System) ..236 5-3. Using the storage LDA (Lane Departure...
Page 4 TABLE OF CONTENTS 5-4. Other interior features Maintenance and care Other interior features ..356 • Sun visors ..... 356 6-1. Maintenance and care • Vanity mirrors....356 Cleaning and protecting • Power outlet ....357 the vehicle exterior ..386 •...
Page 5 If the vehicle becomes stuck........ 495 For information regarding the equipment listed below, refer to “NAV- IGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”. • Navigation system • Panoramic view monitor • Audio/visual system • Toyota Entune • Toyota parking assist monitor...
Page 6: For Your Information
Accessories, spare parts and modification of your Toyota A wide variety of non-genuine spare parts and accessories for Toyota vehi- cles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.
Page 7 ● Seat belt pretensioner system Be sure to check with your Toyota dealer for precautionary measures or spe- cial instructions regarding installation of a mobile two-way radio system. High voltage parts and cables on the hybrid vehicles emit approximately the...
Page 8 ● Usage of data collected through Safety Connect (U.S. mainland only) If your Toyota has Safety Connect and if you have subscribed to those ser- vices, please refer to the Safety Connect Telematics Subscription Service Agreement for information on data collected and its usage.
Page 9 EDR. ● Disclosure of the EDR data Toyota will not disclose the data recorded in an EDR to a third party except when: • An agreement from the vehicle’s owner (or the lessee for a leased vehi- cle) is obtained •...
Page 10 Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.
Page 12: Reading This Manual
Reading this manual WARNING: Explains something that, if not obeyed, could cause death or serious injury to people. NOTICE: Explains something that, if not obeyed, could cause damage to or a malfunction in the vehicle or its equipment. 1 2 3 Indicates operating or working procedures.
Page 13: How To Search
How to search Searching by name ■ • Alphabetical index ..P. 540 Searching installation ■ position • Pictorial index....P. 14 Searching by symptom or ■ sound • What to do if... (Troubleshooting) ..P. 536 Searching by title ■ • Table of contents .....P. 2...
Page 14: Pictorial Index
Pictorial index Pictorial index ■ Exterior Doors ......... . . P. 132 Locking/unlocking .
Page 15 Pictorial index Windshield wipers ....... . . P. 220 Precautions for winter season ......P. 327 Fuel filler door .
Page 16 Pictorial index ■ Instrument panel Power switch ........P. 190 Starting the hybrid system/changing the modes .
Page 17 Pictorial index Parking brake switch ....... P. 206 Applying/releasing ......P. 206, 207 Precautions for winter season .
Page 18 Pictorial index ■ Switches Automatic High Beam switch ......P. 216 VSC OFF switch ........P. 318 Heated steering wheel .
Page 19 Pictorial index Driving position memory switches ....P. 153 Driving position memory ......P. 153 Outside rear view mirror switch .
Page 20 Pictorial index Meter control switches ......P. 97 Paddle shift switches .
Page 21 Pictorial index ■ Interior SRS airbags ........P. 34 Floor mats .
Page 22 Pictorial index Interior lights/personal lights ..... . P. 346 Moon roof switches ......P. 171 “SOS”...
Page 23 For safety and security 1-1. For safe use Before driving...... 24 For safe driving ....26 Seat belts ......28 SRS airbags......34 Front passenger occupant classification system ..48 Safety information for children ......53 Child restraint systems..54 Installing child restraints..
Page 24: 1-1. For Safe Use
1-1. For safe use Before driving Floor mat Use only floor mats designed specifically for vehicles of the same model and model year as your vehicle. Fix them securely in place onto the carpet. Insert the retaining hooks (clips) into the floor mat eyelets. Turn the upper knob of each retaining hook (clip) to secure the floor mats in place.
Page 25 When installing the driver’s floor mat ● Do not use floor mats designed for other models or different model year vehicles, even if they are Toyota Genuine floor mats. ● Only use floor mats designed for the driver’s seat. ●...
Page 26: For Safe Driving
1-1. For safe use For safe driving For safe driving, adjust the seat and mirror to an appropriate position before driving. Correct driving posture Adjust the angle of the seat- back so that you are sitting straight up and so that you do not have to lean forward to steer.
Page 27 1-1. For safe use WARNING Observe the following precautions. Failure to do so may result in death or serious injury. ● Do not adjust the position of the driver’s seat while driving. Doing so could cause the driver to lose control of the vehicle. ●...
Page 28: Seat Belts
1-1. For safe use Seat belts Make sure that all occupants are wearing their seat belts before driving the vehicle. Correct use of the seat belts ● Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.
Page 29 1-1. For safe use Adjusting the seat belt shoulder anchor height (front seats) Push the seat belt shoulder Release button anchor down while pressing the release button. Push the seat belt shoulder anchor up. Move the height adjuster up and down as needed until you hear a click.
Page 30 Toyota dealer free of charge. ■ Rear seat belt Use the seat belt after passing it through the guide if the seat belt comes free from...
Page 31 Each seat belt should be used by one person only. Do not use a seat belt for more than one person at once, including children. ● Toyota recommends that children be seated in the rear seat and always use a seat belt and/or an appropriate child restraint system. ●...
Page 32 ● Ensure that the belt and plate are locked and the belt is not twisted. If the seat belt does not function correctly, immediately contact your Toyota dealer. ● Replace the seat assembly, including the belts, if your vehicle has been involved in a serious accident, even if there is no obvious damage.
Page 33 1-1. For safe use WARNING ■ Using a seat belt extender ● Do not wear the seat belt extender if you can fasten the seat belt without the extender. ● Do not use the seat belt extender when installing a child restraint system because the belt will not securely hold the child restraint system, increas- ing the risk of death or serious injury in the event of an accident.
Page 34: Srs Airbags
1-1. For safe use SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury. ◆...
Page 35 1-1. For safe use ◆ SRS side and curtain shield airbags SRS front side airbags Can help protect the torso of the front seat occupants SRS rear side airbags Can help protect the torso of occupants in the rear outer seats SRS curtain shield airbags ●...
Page 36 1-1. For safe use SRS airbag system components “AIR BAG ON” and “AIR BAG Front impact sensors OFF” indicator lights Front passenger occupant SRS warning light classification system (ECU and sensors) Airbag sensor assembly Knee airbags Side impact sensors (rear) Side impact sensors (front Driver airbag doors)
Page 37 1-1. For safe use WARNING ■ SRS airbag precautions Observe the following precautions regarding the SRS airbags. Failure to do so may cause death or serious injury. ● The driver and all passengers in the vehicle must wear their seat belts properly.
Page 38 An infant or child who is too small to use a seat belt should be properly secured using a child restraint sys- tem. Toyota strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are...
Page 39 1-1. For safe use WARNING ■ SRS airbag precautions ● Do not sit on the edge of the seat or lean against the dashboard. ● Do not allow a child to stand in front of the SRS front passenger airbag unit or sit on the knees of a front passenger.
Page 40 1-1. For safe use WARNING ■ SRS airbag precautions ● Do not attach anything to or lean any- thing against areas such as the dash- board, steering wheel pad and lower portion of the instrument panel. These items can become projectiles when the SRS driver, front passenger and knee airbags deploy.
Page 41 If the areas where the SRS airbags are stored, such as the steering wheel pad and front and rear pillar garnishes, are damaged or cracked, have them replaced by your Toyota dealer. ● Do not place anything, such as a cushion, on the front passenger's seat.
Page 42 Modification and disposal of SRS airbag system components Do not dispose of your vehicle or perform any of the following modifications without consulting your Toyota dealer. The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or serious injury.
Page 43 1-1. For safe use ■ If the SRS airbags deploy (inflate) ● Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the extremely high speed deployment (inflation) by hot gases. ● A loud noise and white powder will be emitted. ●...
Page 44 1-1. For safe use ■ SRS airbag deployment conditions (SRS side and curtain shield airbags) ● The SRS side and curtain shield airbags will deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to the impact force produced by an approximately 3300 lb.
Page 45 1-1. For safe use ■ Types of collisions that may not deploy the SRS airbags (SRS front air- bags) The SRS front airbags do not generally inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision.
Page 46 Pitching end over end ■ When to contact your Toyota dealer In the following cases, the vehicle will require inspection and/or repair. Con- tact your Toyota dealer as soon as possible. ● Any of the SRS airbags have been inflated. ●...
Page 47 1-1. For safe use ● The surface of the seats with the SRS side airbag is scratched, cracked, or oth- erwise damaged. ● The portion of the front pillars, rear pil- lars or roof side rail garnishes (padding) containing the SRS curtain shield air- bags inside is scratched, cracked, or otherwise damaged.
Page 48: Front Passenger Occupant Classification System
1-1. For safe use Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classi- fication system. This system detects the conditions of the front passenger seat and activates or deactivates the front passenger airbag and front passenger knee airbag. Driver’s and front passenger’s seat belt reminder light SRS warning light...
Page 49 1-1. For safe use Condition and operation in the front passenger occupant classi- fication system Adult ■ “AIR BAG ON” and “AIR BAG OFF” “AIR BAG ON” indicator lights Indicator/ SRS warning light warning light Driver’s and front passenger’s seat belt reminder light flashing Front passenger airbag...
Page 50 1-1. For safe use Unoccupied ■ “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights OFF” Indicator/ SRS warning light warning light Driver’s and front passenger’s seat belt reminder light Front passenger airbag Devices Deactivated Front passenger knee airbag There is a malfunction in the system ■...
Page 51 1-1. For safe use WARNING ■ Front passenger occupant classification system precautions Observe the following precautions regarding the front passenger occupant classification system. Failure to do so may cause death or serious injury. ● Wear the seat belt properly. ● Make sure the front passenger’s seat belt plate has not been left inserted into the buckle before someone sits in the front passenger seat.
Page 52 SRS warning light may come on to indicate a malfunction of the front passenger occupant classification system. In this case, contact your Toyota dealer immediately. ● Child restraint systems installed on the rear seat should not contact the front seatbacks.
Page 53: Safety Information For Children
1-1. For safe use Safety information for children Observe the following precautions when children are in the vehi- cle. Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle’s seat belt.
Page 54: Child Restraint Systems
1-1. For safe use Child restraint systems A child restraint system for a small child or baby must itself be properly restrained on the seat with the LATCH anchors or the lap portion of the lap/shoulder belt. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
Page 55 1-1. For safe use Types of child restraints Child restraint systems are classified into the following 3 types according to the age and size of the child: Rear facing  Infant seat/con- Forward facing  Convertible   vertible seat seat Booster seat ...
Page 56 ● Toyota strongly urges the use of a proper child restraint system that con- forms to the size of the child, installed on the rear seat. According to acci- dent statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 57 1-1. For safe use WARNING ■ When children are in the vehicle Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or other serious injuries that could result in death.
Page 58: Installing Child Restraints
1-1. For safe use Installing child restraints Follow the child restraint system manufacturer’s instructions. Firmly secure child restraints to the seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint. The lap/shoulder belt can be used if your child restraint system is not compatible with the LATCH (Lower Anchors and Tethers for Children) system.
Page 59 1-1. For safe use Installation with LATCH system When installing in the rear outboard seats ■ Install the child restraint system in accordance to the operation manual enclosed with the child restraint system. If the head restraint interferes with the child restraint sys- tem installation and the head restraint can be removed, remove the head restraint.
Page 60 1-1. For safe use With rigid lower attachments  Latch the buckles onto the LATCH anchors. For owners in Canada: symbol child restraint system indicates the presence of a lower connec- tor system. If the child restraint has a top tether strap, follow the child restraint manufacturer’s operation manual regarding the installa- tion, using the top tether strap to latch onto the top tether strap anchor.
Page 61 1-1. For safe use Installing child restraints using a seat belt (child restraint lock function belt) Rear-facing  Infant seat/convertible seat ■ Place the child restraint sys- tem on the rear seat facing the rear of the vehicle. Run the seat belt through the child restraint system and insert the plate into the buckle.
Page 62 1-1. For safe use While pushing child restraint system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place. After the shoulder belt has retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.
Page 63 1-1. For safe use Fully extend the shoulder belt and allow it to retract to put it in lock mode. In lock mode, the belt cannot be extended. While pushing child restraint system into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.
Page 64 1-1. For safe use Booster seat ■ Place the child restraint sys- tem on the seat facing the front of the vehicle. Sit the child in the child restraint system. Fit the seat belt to the child restraint sys- tem according to the manu- facturer’s instructions insert the plate into the...
Page 65 1-1. For safe use Child restraint systems with a top tether strap Install the child restraint system in accordance to the operation man- ual enclosed with the child restraint system. Adjust the head restraint to the upmost position. If the head restraint interferes with the child restraint system installation head...
Page 66 1-1. For safe use WARNING ■ When installing a booster seat To prevent the belt from going into ALR lock mode, do not fully extend the shoulder belt. ALR mode causes the belt to tighten only. This could cause injury or discomfort to the child. (P. 30) ■...
Page 67 1-1. For safe use WARNING ■ When installing a child restraint system ● When a booster seat is installed, always ensure that the shoulder belt is positioned across the center of the child’s shoulder. The belt should be kept away from the child’s neck, but not so that it could fall off the child’s shoulder.
Page 68: Exhaust Gas Precautions
Keep the trunk lid closed. ● If you smell exhaust gases in the vehicle even when the trunk lid is closed, open the windows and have the vehicle inspected at your Toyota dealer as soon as possible. ■ When parking ●...
Page 69: Hybrid System
1-2. Hybrid system Hybrid system features Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles. Be sure you are closely familiar with the characteristics of your vehicle, and operate it with care. The hybrid system combines the use of a gasoline engine and an electric motor (traction motor) according to driving condi- tions, improving fuel efficiency and reducing exhaust emis- sions.
Page 70 1-2. Hybrid system ◆ When stopped/during start off The gasoline engine stops , when the vehicle is stopped. During start off, the electric motor (traction motor) drives the vehicle. At slow speeds or when traveling down a gentle slope, the engine is stopped and the electric motor (traction motor) is used.
Page 71 30 minutes or 10 miles (16 km). If the hybrid battery (traction battery) becomes fully discharged and you are unable to start the hybrid system, contact your Toyota dealer. ■ Charging the 12-volt battery P.
Page 72 ■ Maintenance, repair, recycling, and disposal Contact your Toyota dealer regarding maintenance, repair, recycling and dis- posal. Do not dispose of the vehicle yourself. ■ Customization...
Page 73: Hybrid System Precautions
1-2. Hybrid system Hybrid system precautions Take care when handling the hybrid system, as it is a high volt- age system (about 650 V at maximum) as well as contains parts that become extremely hot when the hybrid system is operating. Obey the warning labels attached to the vehicle.
Page 74 If the emergency shut off system activates, your vehicle will not restart. To restart the hybrid system, contact your Toyota dealer. Hybrid warning message A message is automatically displayed when a malfunction occurs in the hybrid system or an improper operation is attempted.
Page 75 If a warning light comes on, a warning message is displayed, or the 12- volt battery is disconnected The hybrid system may not start. In this case, try to start the system again. If the “READY” indicator does not come on, contact your Toyota dealer. ■ Running out of fuel...
Page 76 1-2. Hybrid system WARNING ■ High voltage precautions This vehicle has high voltage DC and AC systems as well as a 12-volt sys- tem. DC and AC high voltage is very dangerous and can cause severe burns and electric shock that may result in death or serious injury. ●...
Page 77 1-2. Hybrid system WARNING ■ Road accident cautions Observe the following precautions to reduce the risk of death or serious injury: ● Pull your vehicle off the road, apply the parking brake, shift the shift lever to P, and turn the hybrid system off. ●...
Page 78 Toyota dealer or a qualified service shop. If the hybrid battery is not dis- posed of properly, it may cause electric shock that can result in death or...
Page 79 Do not carry large amounts of water such as water cooler bottles in the vehicle. If water spills onto the hybrid battery (traction battery), the battery may be damaged. Have the vehicle inspected by your Toyota dealer. ● There is a filter installed to the air intake vent. When the filter remains noticeably dirty even after cleaning the air intake vent, filter cleaning or replacement is recommended.
Page 80: 1-3. Theft Deterrent System
1-3. Theft deterrent system Immobilizer system The vehicle’s keys have built-in transponder chips that prevent the hybrid system from starting if a key has not been previously registered in the vehicle’s on-board computer. Never leave the keys inside the vehicle when you leave the vehi- cle.
Page 81 1-3. Theft deterrent system ■ Certifications for the immobilizer system For vehicles sold in the U.S.A.  For vehicles sold in Canada  WARNING ■ Certifications for the engine immobilizer system Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Page 82: Alarm
1-3. Theft deterrent system Alarm The alarm The alarm uses light and sound to give an alert when an intrusion is detected. The alarm is triggered in the following situations when the alarm is set: ● A locked door is unlocked or opened in any way other than using the entry function, wireless remote control or mechanical key.
Page 83 1-3. Theft deterrent system ■ System maintenance The vehicle has a maintenance-free type alarm system. ■ Items to check before locking the vehicle To prevent unexpected triggering of the alarm and vehicle theft, make sure of the following: ● Nobody is in the vehicle. ●...
Page 84 1-3. Theft deterrent system ■ Alarm-operated door lock In the following cases, depending on the situation, the door may automatically lock to prevent improper entry into the vehicle: ● When a person remaining in the vehicle unlocks the door and the alarm is activated.
Page 85: Instrument Cluster
Instrument cluster Instrument cluster Warning lights and indicators ......86 Gauges and meters .... 92 Multi-information display....... 96 Head-up display ....115 Energy monitor/ consumption screen..122...
Page 86: Warning Lights And Indicators
2. Instrument cluster Warning lights and indicators The warning lights and indicators on the instrument cluster, cen- ter panel and outside rear view mirrors inform the driver of the status of the vehicle’s various systems. For the purpose of explanation, the following illustrations dis- play all warning lights and indicators illuminated.
Page 87 2. Instrument cluster Warning lights Warning lights inform the driver of malfunctions in any of the vehicle’s systems. Brake system warning Parking brake indicator light (P. 452) (P. 453) (Red) 1, 3 Brake system warning Brake hold operated light (P. 452) indicator (P.
Page 88 There may be a malfunction in a system if a light does not come on, or turn off. Have the vehicle inspected by your Toyota dealer. : This light illuminates on the multi-information display.
Page 89: Indicators
2. Instrument cluster Indicators The indicators inform the driver of the operating state of the vehicle’s various systems. Turn signal indicator Radar cruise control (P. 205) indicator (P. 258) Cruise control “SET” Headlight indicator indicator (P. 212) (P. 258) 1, 3 Headlight high beam PCS warning light indicator (P.
Page 90 2. Instrument cluster “BSM” indicator “SPORT” indicator (P. 271) (P. 315) “RCTA” indicator “ECO MODE” indicator (P. 271) (P. 315) BSM (Blind Spot Moni- 5, 6 tor) outside rear view EV drive mode indicator mirror indicators (P. 196) (P. 271) 1, 7 “AIR BAG ON/OFF”...
Page 91 Have the vehicle inspected by your Toyota dealer immediately if this occurs.
Page 92: Gauges And Meters
2. Instrument cluster Gauges and meters The units used on the meters may differ depending on the target region. Hybrid System Indicator Displays hybrid system output or regeneration level (P. 94) Shift position (P. 199) Outside temperature Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C).
Page 93 2. Instrument cluster Instrument panel light control The brightness of the instrument panel lights can be adjusted. The brightness of some of the interior lights will be changed when the brightness of the instrument panel lights is adjusted. (→P. 346) Darker Brighter •...
Page 94 2. Instrument cluster ■ The meters and display illuminate when The power switch is in ON mode. ■ Brightness of the meters (day mode and night mode) ● The brightness of the meters is changed between day mode and night mode.
Page 95 When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.) ● When “” or “E” is displayed, the system may be malfunctioning. Take your vehicle to your Toyota dealer. NOTICE ■ To prevent damage to the engine and its components The engine may be overheating if the engine coolant temperature gauge is in the red zone (H).
Page 96: Multi-Information Display
2. Instrument cluster Multi-information display Summary of functions The multi-information display presents the driver with a variety of driv- ing-related data, such as the current outside temperature. The multi- information display can also be used to change the display settings and other settings.
Page 97 2. Instrument cluster Odometer/trip meter (P. 111) Shift position (P. 199) Outside temperature (P. 92) Menu icons (P. 98) “ODO/TRIP” switch (P. 97) Meter control switches (P. 97) Using the multi-information display ◆ Using the content display area The content display area is operated using the meter control switches.
Page 98 2. Instrument cluster Menu icons Select a menu icon to display its content. Driving information (P. 100) Select to display the following: • Speedometer/driving range • Fuel consumption • Eco guide Driving assist system information Select to perform the following: Display the operational status of the following systems: •...
Page 99 2. Instrument cluster Warning message display (P. 462) Select to display warning messages and measures to be taken if a mal- function is detected.
Page 100 2. Instrument cluster Driving information ( Speedometer/driving range ■ • Speedometer • Driving range Displays the driving range with remaining fuel. When only a small amount of fuel is added to the tank, the display may not be updated. When refueling, turn the power switch off. If the vehicle is refueled with- out turning the power switch off, the display may not be updated.
Page 101 2. Instrument cluster Gadget The following items can be displayed by changing the settings for gad- get content and fuel economy type on . (P. 105) Displayable item Content Gadget Fuel economy content type Trip Displays the average vehicle speed since Average (after start) hybrid system start.
Page 102 2. Instrument cluster : Use the displayed fuel consumption as a reference only. : When only a small amount of fuel is added to the tank, the display may not be updated. When refueling, turn the power switch off. If the vehicle is refueled with- out turning the power switch off, the display may not be updated.
Page 103 2. Instrument cluster Eco guide ■ The Eco guide displays a guide for eco-friendly acceleration and scores which represent an evaluation of how the vehicle has been driven ecologically in different states. ECO Accelerator Guidance Eco score ● ECO Accelerator Guidance Eco area Indicates that the vehicle is being driven in an Eco-friendly...
Page 104 2. Instrument cluster ● Eco score The following 3 Eco driving methods are evaluated in 5 levels: Smooth start-off acceleration, driving without sudden acceleration, and smooth stopping. When the vehicle is stopped, an Eco score out of 100 points will be displayed. Eco start status Eco cruise status Eco stop status...
Page 105 2. Instrument cluster Settings display ( ◆ Changing settings Use the meter control switches on the steering wheel to change settings. Press to select Operate the switches to select a desired item. Press or press and hold The available settings will differ depending on if is pressed or pressed and held.
Page 106 2. Instrument cluster PCS (Pre-Collision System) (P. 236) ■ Press to enable/disable the pre-collision system. Item Settings Details Select to enable/disable the pre- collision system. Press and hold to change the settings of the following item: Item Settings Details (Far) Warning sensitivity Select to change the warning (Middle)
Page 107 2. Instrument cluster RCTA (Rear Cross Traffic Alert) (P. 271) ■ Press to enable/disable the Rear Cross Traffic Alert function. Item Settings Details Select to enable/disable the Rear RCTA Cross Traffic Alert function. Press and hold to change the settings of the following item: Item Settings Details...
Page 108 2. Instrument cluster HUD (Head-up display) (if equipped) (P. 115) ■ Press to enable/disable the head-up display. Item Settings Details Select enable/disable head-up display. Press and hold to change the settings of the following items: Item Settings Details Select to adjust the brightness/ position of the head-up display.
Page 109 2. Instrument cluster Vehicle settings ■ Press and hold to change the settings of the following items: Item Settings Details TPWS (Tire pressure warning system) (P. 416) Select to initialize the tire pres- sure warning system. To per- form initialization, press and hold Set pressure (tire pressure warning sys- switch.
Page 110 2. Instrument cluster Meter settings ■ Press and hold to change the settings of the following items: Item Settings Details Select to change the language Language displayed. Select to change the units of Units measure displayed. Select to enable/disable the EV (EV indicator) indicator.
Page 111 2. Instrument cluster Odometer/trip meter Odometer ■ Displays the total distance the vehicle has been driven. Trip meter A/trip meter B ■ Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and dis- play different distances independently.
Page 112 2. Instrument cluster Suggestion function Displays suggestions to the driver in the following situations. To select a response to a displayed suggestion, use the meter control switches. The suggestion function can be turned on/off. (Customizable features:P. 522) Suggestion to turn off the headlights ■...
Page 113 2. Instrument cluster ■ The Eco guide will not operate when The Eco guide will not operate in the following situations: ● The Hybrid System Indicator is not operating. ● The vehicle is being driven using the dynamic radar cruise control with full- speed range.
Page 114 2. Instrument cluster WARNING ■ Caution for use while driving ● When operating the multi-information display while driving, pay extra attention to the safety of the area around the vehicle. ● Do not look continuously at the multi-information display while driving as you may fail to see pedestrians, objects on the road, etc.
Page 115: Head-Up Display
2. Instrument cluster  Head-up display Summary of functions The head-up display is linked to the meters and navigation system and projects a variety of information in front of the driver, such as the current vehicle speed. Driving assist system status/navigation system-linked display area (P.
Page 116 2. Instrument cluster Using the head-up display Select on the multi-information display (P. 105) and then ◆ Enabling/disabling the head-up display Press to enable/disable the head-up display. ◆ Changing the head-up display settings Press and hold to change the following settings: Display brightness/position ■...
Page 117 2. Instrument cluster Driving assist system status/navigation system-linked display area ◆ Driving assist system status display Displays the operational status of the following systems: • Dynamic radar cruise control with full-speed range (P. 258) • LDA (Lane Departure Alert with steering control) (P. 247) •...
Page 118 2. Instrument cluster Hybrid System Indicator/Tachometer Hybrid System Indicator ■ Charge area Hybrid Eco area Eco area Power area Displayed content is the same as that displayed on the meter (Hybrid System Indicator). For details, refer to P. 94. Tachometer ■...
Page 119 2. Instrument cluster Information display area Displays the following items in the appropriate situation: Warning/Message ■ ● Alert from the LDA (Lane Departure Alert with steering control) ● Dynamic radar cruise control with full-speed range ● message Displayed when a suggestion/advice pop-up display is displayed on the multi-information display.
Page 120 2. Instrument cluster ■ Head-up display The head-up display may seem dark or hard to see when viewed through sunglasses, especially polarized sunglasses. Adjust the brightness of the head-up display or remove your sunglasses. ■ Display brightness The brightness of the head-up display can be adjusted on of the multi- information display.
Page 121 2. Instrument cluster NOTICE ■ To prevent damage to components ● Do not place any drinks near the head- up display projector. If the projector gets wet, electrical malfunctions may result. ● Do not place anything on or put stickers onto the head-up display projector.
Page 122: Energy Monitor/Consumption Screen
2. Instrument cluster Energy monitor/consumption screen You can view the status of your hybrid system on the multi-infor- mation display, the audio system screen. Audio system screen Multi-information display Energy monitor Press the “MENU” button. Select “Info” on the “Menu” screen.
Page 123 2. Instrument cluster Multi-information display ■ Press meter control switches on the steering wheel several times to select the energy monitor display. Multi-information Audio system screen display When the vehi- cle is powered by the electric motor (traction motor) When the vehi- cle is powered by the gasoline engine...
Page 124 2. Instrument cluster Multi-information Audio system screen display When the vehi- cle is charging the hybrid bat- tery (traction battery) When there is no energy flow Hybrid battery (traction bat- tery) status Full Full...
Page 125 2. Instrument cluster Fuel consumption screen Trip information ■ Press the “MENU” button. (P. 122) Select “Info” on the “Menu” screen. Select “ECO” on the “Information” screen. If “Energy Monitor” or “History” screen is displayed, select “Trip Informa- tion”. Resetting the consumption data Displays the average vehicle speed since the hybrid sys-...
Page 126 2. Instrument cluster History ■ Press the “MENU” button. (P. 122) Select “Info” on the “Menu” screen. Select “ECO” on the “Information” screen. If “Energy Monitor” or “Trip Information” screen is displayed, select “His- tory”. Resetting the past record data Best past fuel consumption Current fuel economy Previous fuel consumption...
Page 127: Operation Of Each Component
Operation of each component 3-1. Key information Keys ........128 3-2. Opening, closing and locking the doors Doors ........ 132 Trunk......... 138 Smart key system ..... 142 3-3. Adjusting the seats Front seats ......149 Rear seats......151 Driving position memory ......
Page 128: 3-1. Key Information
Locks all the doors (P. 132) Unlocks all the doors (P. 132) Opens windows 1, 2 moon roof (P. 132) Opens the trunk (P. 139) Sounds the alarm (P. 129) : If equipped : This setting must be customized at your Toyota dealer.
Page 129 ■ If you lose your mechanical keys New genuine mechanical keys can be made by your Toyota dealer using the other mechanical key and the key number stamped on your key number plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
Page 130 ■ Confirmation of the registered key number The number of keys already registered to the vehicle can be confirmed. Ask your Toyota dealer for details. ■ If a wrong key is used The key cylinder rotates freely to isolate inside mechanism.
Page 131 Toyota dealer. ■ When an electronic key is lost If the electronic key remains lost, the risk of vehicle theft increases signifi- cantly. Visit your Toyota dealer immediately with all remaining electronic keys that were provided with your vehicle.
Page 132: Doors
Pressing the but- ton again within 3 seconds unlocks the other doors. Press and hold to open the win- 1, 2 dows and moon roof. (P. 167, 172) : If equipped : This setting must be customized at your Toyota dealer.
Page 133 3-2. Opening, closing and locking the doors ■ Operation signals Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice) Windows and moon roof: A buzzer sounds to indicate that the windows and moon roof are opening. ■...
Page 134 3-2. Opening, closing and locking the doors Unlocking and locking the doors from the inside ◆ Door lock switches Locks all the doors Unlocks all the doors ◆ Inside lock buttons Locks the door Unlocks the door The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.
Page 135 3-2. Opening, closing and locking the doors Rear door child-protector lock The door cannot be opened from inside the vehicle when the lock is set. Unlock Lock These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.
Page 136 3-2. Opening, closing and locking the doors ■ Switching the door unlock function It is possible to set which doors the entry function unlocks using the wireless remote control. Turn the power switch off. When the indicator light on the key surface is not on, press and hold for approximately 5 seconds while pressing and holding The setting changes each time an operation is performed, as shown below.
Page 137 3-2. Opening, closing and locking the doors ■ Conditions affecting the operation of the smart key system or wireless remote control P. 145 ■ Customization Some functions can be customized. (P. 522) WARNING ■ To prevent an accident Observe the following precautions while driving the vehicle. Failure to do so may result in a door opening and an occupant falling out, resulting in death or serious injury.
Page 138: Trunk
3-2. Opening, closing and locking the doors Trunk The trunk can be opened using the trunk opener switch, entry function or wireless remote control. Opening the trunk from inside the vehicle Press the trunk opener switch. Opening the trunk from outside the vehicle ◆...
Page 139 3-2. Opening, closing and locking the doors ◆ Wireless remote control Press and hold the switch. A buzzer sounds. ■ Trunk light The trunk light turns on when the trunk is opened. ■ Function to prevent the trunk being locked with the electronic key inside ●...
Page 140 3-2. Opening, closing and locking the doors ■ Internal trunk release lever The trunk lid can be opened by pulling up the glow-in-the-dark lever located on the inside of the trunk lid. The lever will continue to glow for some time after the trunk lid is closed.
Page 141 ● Do not attach any accessories other than genuine Toyota parts to the trunk lid. Such additional weight on the trunk lid may cause the lid to suddenly shut again after it is opened.
Page 142: Smart Key System
3-2. Opening, closing and locking the doors Smart key system The following operations can be performed simply by carrying the electronic key on your person, for example in your pocket. The driver should always carry the electronic key. ● Locks and unlocks the doors (P. 132) ●...
Page 143 3-2. Opening, closing and locking the doors ■ Alarms and warning indicators A combination of exterior and interior alarms as well as warning messages shown on the multi-information display are used to prevent theft of the vehicle and accidents resulting from erroneous operation. Take appropriate mea- sures in response to any warning message on the multi-information display.
Page 144 3-2. Opening, closing and locking the doors ■ Battery-saving function The battery-saving function will be activated in order to prevent the electronic key battery and the 12-volt battery from being discharged while the vehicle is not in operation for a long time. ●...
Page 145 3-2. Opening, closing and locking the doors ■ Conditions affecting operation The smart key system, wireless remote control and immobilizer system use weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart key system, wireless remote control and immobilizer system from operating prop- erly.
Page 146 3-2. Opening, closing and locking the doors ■ Note for the entry function ● Even when the electronic key is within the effective range (detection areas), the system may not operate properly in the following cases: • The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.
Page 147 Fingernails may scrape against the door during operation of the door han- dle. Be careful not to injure fingernails or damage the surface of the door. : This setting can be customized at your Toyota dealer. ■ When the vehicle is not driven for extended periods ●...
Page 148 (P. 142) The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Toyota dealer for details, such as the frequency of radio waves and timing of the emitted radio waves.
Page 149: 3-3. Adjusting The Seats
3-3. Adjusting the seats Front seats Adjustment procedure Seat position adjustment switch Seatback angle adjustment switch Seat cushion (front) angle adjustment switch Vertical height adjustment switch Lumbar support firmness adjustment switch (if equipped) Lumbar support height adjust- ment switch (if equipped) ■...
Page 150 3-3. Adjusting the seats WARNING ■ When adjusting the seat position ● Take care when adjusting the seat position to ensure that other passen- gers are not injured by the moving seat. ● Do not put your hands under the seat or near the moving parts to avoid injury.
Page 151: Rear Seats
3-3. Adjusting the seats Rear seats The seatbacks of the rear seats can be folded down. Folding down the rear seatbacks Pull the seatback lever in the trunk for the seatback you wish to fold down and then fold the seatback down.
Page 152 3-3. Adjusting the seats WARNING ■ When folding the seatbacks down Observe the following precautions. Failure to do so may result in death or serious injury. ● Do not fold the seatbacks down while driving. ● Stop the vehicle on level ground, set the parking brake and shift the shift lever to P.
Page 153: Driving Position Memory
3-3. Adjusting the seats  Driving position memory This feature automatically adjusts the driver’s seat, steering wheel and outside rear view mirrors to make entering and exit- ing the vehicle easier or to suit your preferences. Power easy access system The seat and steering wheel are automatically adjusted to allow the driver to enter and exit the vehicle easily.
Page 154 3-3. Adjusting the seats Driving position memory Your preferred driving position (the position of the driver’s seat, steer- ing wheel and outside rear view mirrors) can be recorded and recalled by pressing a button. Two different driving positions can be recorded into memory. Recording procedure ■...
Page 155 3-3. Adjusting the seats ■ To stop the position recall operation part-way through Perform any of the following operations: ● Press the “SET” button. ● Press button “1” or “2”. ● Operate any of the seat adjustment switches (only cancels seat position recall).
Page 156 3-3. Adjusting the seats Memory recall function Each electronic key can be registered to recall your preferred driving position. Registering procedure ■ Record your driving position to button 1 or 2 before performing the following: Carry only the key you want to register, and then close the driver’s door.
Page 157 3-3. Adjusting the seats Cancelation procedure ■ Carry only the key you want to cancel and then close the driver’s door. If 2 or more keys are in the vehicle, the driving position cannot be canceled properly. Turn the power switch to ON mode. While pressing the “SET”...
Page 158: Head Restraints
3-3. Adjusting the seats Head restraints Head restraints are provided for all seats. Front seats and rear outboard seats  Pull the head restraint up. Down Push the head restraint down while pressing the lock release button. Lock release button Rear center seat ...
Page 159 3-3. Adjusting the seats ■ Installing the head restraints Front seats  Align the head restraint with the installa- tion holes and push it down to the lock position. Press and hold the lock release button when lowering the head restraint. Lock release button Rear outboard seats...
Page 160: Steering Wheel
3-4. Adjusting the steering wheel and mirrors Steering wheel Adjustment procedure Manual type  Hold the steering wheel and push the lever down. Adjust to the ideal position by moving the steering wheel hori- zontally and vertically. After adjustment, pull the lever up to secure the steering wheel.
Page 161 3-4. Adjusting the steering wheel and mirrors Horn To sound the horn, press on or close to the mark. ■ The steering wheel can be adjusted when (power type) The power switch is in ACCESSORY or ON mode. ■ Automatic adjustment of the steering position (vehicles with driving position memory) A desired steering position can be entered to memory and recalled automati- cally by the driving position memory system.
Page 162: Inside Rear View Mirror
3-4. Adjusting the steering wheel and mirrors Inside rear view mirror The rear view mirror’s position can be adjusted to enable suffi- cient confirmation of the rear view. Adjusting the height of rear view mirror The height of the rear view mirror can be adjusted to suit your driving posture.
Page 163 3-4. Adjusting the steering wheel and mirrors ■ To prevent sensor error Vehicles without garage door opener  To ensure that the sensors operate prop- erly, do not touch or cover them. Vehicles with garage door opener  To ensure that the sensors operate prop- erly, do not touch or cover them.
Page 164: Outside Rear View Mirrors
3-4. Adjusting the steering wheel and mirrors Outside rear view mirrors Adjustment procedure To select a mirror to adjust, turn the switch. Left Right To adjust the mirror, operate the switch. Right Down Left Folding the mirrors Push the mirror back in the direc- tion of the vehicle’s rear.
Page 165 3-4. Adjusting the steering wheel and mirrors Linked mirror function when reversing (vehicles with driving position memory) When the mirror select switch is in the “L” or “R” position, the outside rear view mirrors will automatically angle downwards when the vehicle is reversing in order to give a better view of the ground.
Page 166 3-4. Adjusting the steering wheel and mirrors WARNING ■ Important points while driving Observe the following precautions while driving. Failure to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury. ●...
Page 167: Opening And Closing
3-5. Opening and closing the windows Power windows Opening and closing procedures The power windows can be opened and closed using the switches. Operating the switch moves the windows as follows: Closing One-touch closing Opening One-touch opening : To stop the window partway, oper- ate the switch in the opposite direc- tion.
Page 168 1 second or more. If you release the switch while the window is moving, start again from the beginning. If the window reverses and cannot be fully closed or opened, have the vehicle inspected by your Toyota dealer.
Page 169 The power windows can be opened using the wireless remote control.  P. 132) : These settings must be customized at your Toyota dealer. ■ Alarm The alarm may be triggered if the alarm is set and a power window is closed using the door lock linked power window operation function.
Page 170 3-5. Opening and closing the windows WARNING Observe the following precautions. Failing to do so may result in death or serious injury. ■ Opening and closing the windows ● The driver is responsible for all the power window operations, including the operation for the passengers.
Page 171: Moon Roof
3-5. Opening and closing the windows  Moon roof Use the overhead switches to open and close the moon roof and tilt it up and down. Opening and closing Opens the moon roof The moon roof stops slightly before the fully open position to reduce wind noise.
Page 172 Door lock linked moon roof operation ● The moon roof can be opened and closed using the mechanical key. (P. 481) ● The moon roof can be opened using the wireless remote control. (P. 132) : These settings must be customized at your Toyota dealer.
Page 173 If the moon roof does not fully close even after performing the above proce- dure correctly, have the vehicle inspected by your Toyota dealer. ■ Alarm The alarm may be triggered if the alarm is set and the moon roof is closed using the door lock linked moon roof operation function.
Page 174 3-5. Opening and closing the windows WARNING Observe the following precautions. Failing to do so may cause death or serious injury. ■ Opening the moon roof ● Do not allow any passengers to put their hands or heads outside the vehi- cle while it is moving.
Page 175: Driving
Driving 4-1. Before driving 4-5. Using the driving support systems Driving the vehicle..... 176 Toyota Safety Sense P ..229 Cargo and luggage ... 184 Vehicle load limits ..... 187 (Pre-Collision System) ..236 Trailer towing..... 188 LDA (Lane Departure Dinghy towing ....
Page 176: Driving The Vehicle
4-1. Before driving Driving the vehicle The following procedures should be observed to ensure safe driving: Starting the hybrid system P. 190 Driving With the brake pedal depressed, shift the shift lever to D. (P. 199) Release the parking brake. (P. 206) Gradually release the brake pedal and gently depress the accelera- tor pedal to accelerate the vehicle.
Page 177 4-1. Before driving ■ When starting off on an uphill The hill-start assist control will activate. (P. 318) ■ For fuel-efficient driving Keep in mind that hybrid vehicles are similar to conventional vehicles, and it is necessary to refrain from activities such as sudden acceleration. (P. 324) ■...
Page 178 318) to cancel Drive-Start Control so that the vehicle may become able to escape from the mud or fresh snow. ■ Breaking in your new Toyota To extend the life of the vehicle, observing the following precautions is recom- mended: ●...
Page 179 4-1. Before driving WARNING Observe the following precautions. Failure to do so may result in death or serious injury. ■ When starting the vehicle Always keep your foot on the brake pedal while stopped with the “READY” indicator is illuminated. This prevents the vehicle from creeping. ■...
Page 180 4-1. Before driving WARNING Observe the following precautions. Failure to do so may result in death or serious injury. ■ When driving the vehicle ● Do not drive in excess of the speed limit. Even if the legal speed limit per- mits it, do not drive over 85 mph (140 km/h) unless your vehicle has high- speed capability tires.
Page 181 If you hear a squealing or scraping noise (brake pad wear limit indica- tors) Have the brake pads checked and replaced by your Toyota dealer as soon as possible. Rotor damage may result if the pads are not replaced when needed.
Page 182 4-1. Before driving WARNING Observe the following precautions. Failure to do so may result in death or serious injury. ■ When the vehicle is parked ● Do not leave a door or window open if the curved glass is coated with a metallized film such as a silver-colored one.
Page 183 Short in electrical components ● Engine damage caused by water immersion In the event that you drive on a flooded road and the vehicle is flooded, be sure to have your Toyota dealer check the following: ● Brake function ●...
Page 184: Cargo And Luggage
Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. (P. 187) Toyota does not recommend towing a trailer with your vehicle. Your vehicle is not designed for trailer towing.
Page 185 4-1. Before driving Calculation formula for your vehicle Cargo capacity Total load capacity (vehicle capacity weight) (P. 498) When 2 people with the combined weight of A lb. (kg) are riding in your vehicle, which has a total load capacity (vehicle capacity weight) of B lb.
Page 186 4-1. Before driving WARNING ■ Things that must not be carried in the trunk The following things may cause a fire if loaded in the trunk: ● Receptacles containing gasoline ● Aerosol cans Storage precautions ■ Observe the following precautions. Failure to do so may prevent the pedals from being depressed properly, may block the driver’s vision, or may result in items hitting the driver or passengers, possibly causing an accident.
Page 187: Vehicle Load Limits
Seating capacity means the maximum number of occupants whose estimated average weight is 150 lb. (68 kg) per person. ◆ Towing capacity Toyota does not recommend towing a trailer with your vehicle. ◆ Cargo capacity Cargo capacity may increase or decrease depending on the weight and the number of occupants.
Page 188: Trailer Towing
Trailer towing Toyota does not recommend towing a trailer with your vehicle. Toyota also does not recommend the installation of a tow hitch or the use of a tow hitch carrier for a wheelchair, scooter, bicy- cle, etc. Your vehicle is not designed for trailer towing or for the...
Page 189: Dinghy Towing
4-1. Before driving Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. NOTICE ■ To avoid serious damage to your vehicle Do not tow your vehicle with four wheels on the ground.
Page 190: 4-2. Driving Procedures
4-2. Driving procedures Power (ignition) switch Performing the following operations when carrying the elec- tronic key on your person starts the hybrid system or changes power switch modes. Starting the hybrid system Check that the parking brake is set. Check that the shift lever is in P. Firmly depress the brake pedal.
Page 191 4-2. Driving procedures Changing power switch modes Modes can be changed by pressing the power switch with brake pedal released. (The mode changes each time the switch is pressed.) The emergency flashers can be used. ACCESSORY mode Some electrical components such as the audio system can be used.
Page 192 If the hybrid system does not start ● The immobilizer system may not have been deactivated. (P. 80) Contact your Toyota dealer. ● Check that the shift lever is securely set in P. The hybrid system may not start if the shift lever is displaced out of P.
Page 193 ■ If the “READY” indicator does not come on In the event that the “READY” indicator does not come on even after perform- ing the proper procedures for starting the vehicle, contact your Toyota dealer immediately. ■ If the hybrid system is malfunctioning P.
Page 194 4-2. Driving procedures WARNING ■ When starting the hybrid system Always start the hybrid system while sitting in the driver’s seat. Do not depress the accelerator pedal while starting the hybrid system under any circumstances. Doing so may cause an accident resulting in death or serious injury. ■...
Page 195 Do not depress the accelerator pedal unnecessarily. ● If the hybrid system becomes difficult to start, have your vehicle checked by your Toyota dealer immediately. ■ Symptoms indicating a malfunction with the power switch If the power switch seems to be operating somewhat differently than usual, such as the switch sticking slightly, there may be a malfunction.
Page 196: Ev Drive Mode
4-2. Driving procedures EV drive mode In EV drive mode, electric power is supplied by the hybrid bat- tery (traction battery), and only the electric motor (traction motor) is used to drive the vehicle. This mode allows you to drive in residential areas early in the morning and late at night, or in indoor parking lots etc.
Page 197 4-2. Driving procedures ■ Switching to EV drive mode when the gasoline engine is cold If the hybrid system is started while the gasoline engine is cold, the gasoline engine will start automatically after a short period of time in order to warm up. In this case, you will become unable to switch to EV drive mode.
Page 198 4-2. Driving procedures WARNING ■ Caution while driving When driving in EV drive mode no engine noise is made. As such, pedestri- ans, people riding bicycles or other people and vehicles in the surrounding area may not be aware of the vehicle starting off or approaching them. Therefore, take extra care while driving even if the vehicle proximity notifica- tion system is active.
Page 199: Hybrid Transmission
4-2. Driving procedures Hybrid transmission Shifting the shift lever While the power switch is in ON mode and the brake pedal depressed , shift the shift lever while pushing the shift release button on the shift knob. Shift the shift lever while pushing the shift release button on the shift knob.
Page 200 4-2. Driving procedures Shift position purpose Shift position Objective or function Parking the vehicle/starting the hybrid system Reversing Neutral Normal driving S mode driving (P. 201) : To improve fuel efficiency and reduce noise, shift the shift lever to D for normal driving.
Page 201 4-2. Driving procedures Selecting the driving mode P. 315 Changing shift ranges in S mode When the shift lever is in the S position, the shift lever or paddle shift switches (if equipped) can be operated as follows: Shift lever Paddle shift switches...
Page 202 4-2. Driving procedures Selecting shift ranges in the D position (vehicles with paddle shift switches) To drive using temporary shift range selection, operate the “-” paddle shift switch. The shift range can then be selected by operating the “-” and “+” paddle shift switches. Changing the shift range allows restric- tion of the highest gear, preventing upshifting and enabling the level of engine braking force to be selected.
Page 203 If the shift lever cannot be shifted even though the brake pedal is depressed and the shift release button is pushed, there may be a problem with the shift lock system. Have the vehicle inspected by your Toyota dealer immediately. The following steps may be used as an emergency measure to ensure that the shift lever can be shifted.
Page 204 S This may indicate a malfunction in the automatic transmission system. Have the vehicle inspected by your Toyota dealer immediately. (In this situation, the transmission will operate in the same manner as when the shift lever is in D.) WARNING ■...
Page 205: Turn Signal Lever
4-2. Driving procedures Turn signal lever Operating instructions Right turn Lane change to the right (move the lever partway and release The right hand signals will flash 3 times. Lane change to the left (move the lever partway and release The left hand signals will flash 3 times.
Page 206: Parking Brake
4-2. Driving procedures Parking brake A mode can be selected from the following modes. Automatic mode The parking brake is set or released automatically according to the shift lever operation. Even when in automatic mode, the parking brake can be set and released manually.
Page 207 4-2. Driving procedures Manual mode The parking brake can be set and released manually. Sets the parking brake The parking brake indicator light and parking brake light will turn on. Pull and hold the parking brake switch if an emergency occurs and it is necessary to operate the park- ing brake while driving.
Page 208 Operate the parking brake switch. If the message does not disappear after operating the switch several times, the system may be malfunctioning. Have the vehicle inspected by your Toyota dealer immediately. ■ Parking brake operation sound When the parking brake operates, a motor sound (whirring sound) may be heard.
Page 209 When the parking brake cannot be released due to a malfunction Driving the vehicle with the parking brake set will lead to brake components overheating, which may affect braking performance and increase brake wear. Contact your Toyota dealer immediately if this occurs.
Page 210: Brake Hold
4-2. Driving procedures Brake Hold The brake hold system keeps the brake applied when the shift lever is in D, S or N with the system on and the brake pedal has been depressed to stop the vehicle. The system releases the brake when the accelerator pedal is depressed with the shift lever in D or S to allow smooth start off.
Page 211 Make sure that the parking brake indicator light goes off. (P. 206) ■ When an inspection at your Toyota dealer is necessary When the brake hold standby indicator (green) does not illuminate even when the brake hold switch is pressed with the brake hold system operating condi- tions met, the system may be malfunctioning.
Page 212: Headlight Switch
4-3. Operating the lights and wipers Headlight switch The headlights can be operated manually or automatically. Operating instructions Turning the end of the lever turns on the lights as follows: The headlights, day- time running lights (P. 213) and all the lights listed below turn on and off automatically.
Page 213 4-3. Operating the lights and wipers Cornering lights (if equipped) ● When the steering wheel or turn signal lever is operated while the headlights are on (low beam), a cornering light will turn on and light up the direction of movement of the vehicle. The cornering lights are designed to ensure excellent visibility when making a turn at an intersection.
Page 214 4-3. Operating the lights and wipers ■ Headlight control sensor The sensor may not function properly if an object is placed on the sensor, or anything that blocks the sensor is affixed to the windshield. Doing so interferes with the sensor detecting the level of ambient light and may cause the automatic headlight sys- tem to malfunction.
Page 215 4-3. Operating the lights and wipers ■ 12-volt battery-saving function In the following conditions, the remaining lights will go off automatically after 20 minutes in order to prevent the 12-volt battery from being discharged: ● The headlights and/or tail lights are on. ●...
Page 216: Automatic High Beam
4-3. Operating the lights and wipers Automatic High Beam The Automatic High Beam uses a camera sensor located behind the upper portion of the windshield to assess the brightness of the lights of vehicles ahead, streetlights, etc., and automatically turns the high beams on or off as necessary. WARNING ■...
Page 217 4-3. Operating the lights and wipers Turning the high beams on/off manually Switching to the low beams ■ Pull the lever to its original posi- tion. The Automatic High Beam indi- cator will turn off. Push the lever away from you to activate the Automatic High...
Page 218 4-3. Operating the lights and wipers ■ Conditions to turn the high beams on/off automatically ● When all of the following conditions are met, the high beams will be turned on automatically (after approximately 1 second): • The vehicle speed is approximately 21 mph (34 km/h) or more. •...
Page 219 4-3. Operating the lights and wipers ● In the following situations the system may not be able to correctly detect the surrounding brightness level. This may cause the low beams to remain on or the high beams to flash or dazzle pedestrians or vehicles ahead. In such a case, it is necessary to manually switch between the high and low beams.
Page 220: Windshield Wipers And Washer
4-3. Operating the lights and wipers Windshield wipers and washer Operating the wiper lever The wiper operation is selected by moving the lever as follows. When intermittent windshield wiper operation is selected, the wiper interval can be also adjusted. Intermittent windshield wiper operation The intermittent wind-...
Page 221 Damage to the washer fluid pump may be caused if the lever is pulled toward you and held continually. ■ When a nozzle becomes blocked In this case, contact your Toyota dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged.
Page 222 4-3. Operating the lights and wipers Changing the windshield wiper rest position/Lifting the wind- shield wipers When the windshield wipers are not being used, they retract to below the hood. To enable the windshield wipers to be lifted when parking in cold conditions or when replacing a windshield wiper insert, change the rest position of the windshield wipers to the service position using the wiper lever.
Page 223 4-3. Operating the lights and wipers ■ Lowering the windshield wipers to the retracted position With the windshield wipers placed on the windshield, turn the power switch to ON mode and then move the wiper lever to an operating position. When the wiper switch is turned off, the windshield wipers will stop at the retracted posi- tion.
Page 224: Tank Cap
4-4. Refueling Opening the fuel tank cap The fuel tank of your vehicle has a special structure, which requires a reduction in fuel tank pressure before refueling. After the opener switch has been pressed, it will take several seconds until the vehicle is ready for refueling. Before refueling the vehicle ●...
Page 225 4-4. Refueling WARNING ■ When refueling the vehicle Observe the following precautions while refueling the vehicle. Failure to do so may result in death or serious injury. ● After exiting the vehicle and before opening the fuel door, touch an unpainted metal surface to discharge any static electricity.
Page 226: Refueling
4-4. Refueling NOTICE ■ Refueling ● Finish refueling within 30 minutes. If more than 30 minutes passes, the internal valve closes. In this condition, fuel may overflow during the refuel- ing process. Press the fuel filler door opener switch again. ●...
Page 227 4-4. Refueling Opening the fuel tank cap Press the opener to open the fuel filler door. The fuel filler door will open within about 10 seconds of the switch being pressed. Before refueling is possible, a message will be shown on the multi-information display in the instrument cluster to indicate the progress of the fuel filler...
Page 228 WARNING ■ When replacing the fuel tank cap Do not use anything but a genuine Toyota fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 229: Using The Driving Support Systems
■ Toyota Safety Sense P The Toyota Safety Sense P is designed to operate under the assumption that the driver will drive safely, and is designed to help reduce the impact to the occupants and the vehicle in the case of a collision or assist the driver in normal driving conditions.
Page 230 Toyota will not disclose the recorded data to a third party except: • With the consent of the vehicle owner or with the consent of the lessee if the vehicle is leased •...
Page 231 4-5. Using the driving support systems Sensors Two types of sensors, located behind the front grille and windshield, detect information necessary to operate the drive assist systems. Radar sensor Camera sensor...
Page 232 Do not subject the radar sensor or surrounding area to a strong impact. If the radar sensor, front grille, or front bumper has been subjected to a strong impact, have the vehicle inspected by your Toyota dealer. ● Do not disassemble the radar sensor.
Page 233 ● Do not attach window tinting to the windshield. ● Replace the windshield if it is damaged or cracked. If the windshield needs to be replaced, contact your Toyota dealer. ● Do not get the camera sensor wet. ● Do not allow bright lights to shine into the camera sensor.
Page 234 ● Do not attach any accessories that may obstruct the camera sensor to the hood, front grille or front bumper. Contact your Toyota dealer for details. ● If a surfboard or other long object is to be mounted on the roof, make sure that it will not obstruct the camera sensor.
Page 235 4-5. Using the driving support systems ■ Certification...
Page 236: (Pre-Collision System)
4-5. Using the driving support systems PCS (Pre-Collision System) The pre-collision system uses a radar sensor and camera sen- sor to detect vehicles and pedestrians in front of your vehicle. When the system determines that the possibility of a frontal col- lision with a vehicle or pedestrian is high, a warning operates to urge the driver to take evasive action and the potential brake pressure is increased to help the driver avoid the collision.
Page 237 4-5. Using the driving support systems WARNING ■ Limitations of the pre-collision system ● The driver is solely responsible for safe driving. Always drive safely, taking care to observe your surroundings. Do not use the pre-collision system instead of normal braking operations under any circumstances.
Page 238 4-5. Using the driving support systems WARNING ■ When to disable the pre-collision system In the following situations, disable the system, as it may not operate prop- erly, possibly leading to an accident resulting in death or serious injury: ● When the vehicle is being towed ●...
Page 239 4-5. Using the driving support systems Changing settings of the pre-collision system Enabling/disabling the pre-collision system ■ The pre-collision system can be enabled/disabled on (P. 105) of the multi-information display. The system is automatically enabled each time the power switch is turned to ON mode.
Page 240 4-5. Using the driving support systems ■ Operational conditions The pre-collision system is enabled and the system determines that the pos- sibility of a frontal collision with a vehicle or pedestrian is high. Each function is operational at the following speeds: ●...
Page 241 4-5. Using the driving support systems ■ Conditions under which the system may operate even if there is no pos- sibility of a collision ● In some situations such as the following, the system may determine that there is a possibility of a frontal collision and operate. •...
Page 242 4-5. Using the driving support systems • When there is a metal object (manhole cover, steel plate, etc.), steps, or a protrusion on the road surface or roadside • When crossing pedestrian approaches very close to the vehicle • When passing through a place with a low structure above the road (low ceil- ing, traffic sign, etc.) •...
Page 243 4-5. Using the driving support systems ■ Situations in which the system may not operate properly ● In some situations such as the following, a vehicle may not be detected by the radar sensor and camera sensor, preventing the system from operating properly: •...
Page 244 4-5. Using the driving support systems • When a very bright light, such as the sun or the headlights of oncoming traffic, shines directly into the camera sensor • When the surrounding area is dim, such as at dawn or dusk, or while at night or in a tunnel •...
Page 245 If the PCS warning light continues to flash or remains illuminated or the warning message does not disappear even though the vehicle has returned to normal, the system may be malfunctioning. Have the vehicle inspected by your Toyota dealer immediately.
Page 246 4-5. Using the driving support systems ■ If VSC is disabled ● If VSC is disabled (P. 318), the pre-collision brake assist and pre-collision braking functions are also disabled. ● The PCS warning light will turn on and “VSC Turned Off Pre-Collision Brake System Unavailable”...
Page 247: Lda (Lane Departure Alert With Steering Control)
4-5. Using the driving support systems LDA (Lane Departure Alert with steering control) Summary of functions When driving on highways and freeways with white (yellow) lines, this function alerts the driver when the vehicle might depart from its lane and provides assistance by operating the steering wheel to keep the vehicle in its lane.
Page 248 4-5. Using the driving support systems Functions included in LDA system ◆ Lane departure alert function When the system determines that the vehicle might depart from its lane, a warning is dis- played on the multi-information display and the warning buzzer sounds to alert the driver.
Page 249 4-5. Using the driving support systems ◆ Steering control function When the system determines that the vehicle might depart from its lane, the system pro- vides assistance as necessary by operating the steering wheel in small amounts for a short period of time to keep the vehi- cle in its lane.
Page 250 4-5. Using the driving support systems ◆ Vehicle sway warning function When the vehicle is swaying or appears as if it may depart from its lane multiple times, the warning buzzer sounds and a message is displayed on the multi-information display to alert the driver.
Page 251 Do not modify the suspension etc. If the suspension etc. needs to be replaced, contact your Toyota dealer. ● Do not install or place anything on the hood or grille. Also, do not install a grille guard (bull bars, kangaroo bar, etc.). ● If your windshield needs repairs, contact your Toyota dealer.
Page 252 4-5. Using the driving support systems Turning LDA system on Press the LDA switch to turn the LDA system on. The LDA indicator illuminates and a message is displayed on the multi-information display. Press the LDA switch again to turn the LDA system off.
Page 253 4-5. Using the driving support systems Indications on multi-information display The illustration used is intended as an example, and may differ from the image that is actually displayed on the multi-information display. LDA indicator The illumination condition of the indicator informs the driver of the system operation status.
Page 254 4-5. Using the driving support systems ■ Operation conditions of each function ● Lane departure alert function This function operates when all of the following conditions are met. • LDA is turned on. • Vehicle speed is approximately 32 mph (50 km/h) or more. •...
Page 255 4-5. Using the driving support systems ■ Temporary cancellation of functions When the operation conditions are no longer met, a function may be tempo- rarily canceled. However, when the operation conditions are met again, oper- ation of the function is automatically restored. (P. 254) ■...
Page 256 4-5. Using the driving support systems ■ Conditions in which functions may not operate properly In the following situations, the camera sensor may not detect white (yellow) lines and various functions may not operate normally. ● There are shadows on the road that run parallel with, or cover, the white (yellow) lines.
Page 257 The system may not be operating “LDA Malfunction properly.  Have the vehicle inspected at your Visit Your Dealer” Toyota dealer. The operation conditions of the cam- era sensor (temperature, etc.) are not met.  When the operation conditions of the camera sensor (temperature, “Front Camera Unavailable”...
Page 258: Dynamic Radar Cruise Control With Full-Speed Range
4-5. Using the driving support systems Dynamic radar cruise control with full- speed range Summary of functions In vehicle-to-vehicle distance control mode, the vehicle automatically accelerates, decelerates and stops to match the speed changes of the preceding vehicle even if the accelerator pedal is not depressed. In constant speed control mode, the vehicle runs at a fixed speed.
Page 259 4-5. Using the driving support systems WARNING ■ Before using dynamic radar cruise control with full-speed range Driving safely is the sole responsibility of the driver. Do not rely solely on the system, and drive safely by always paying careful attention to your sur- roundings.
Page 260 4-5. Using the driving support systems WARNING ■ To avoid inadvertent dynamic radar cruise control with full-speed range activation Switch the dynamic radar cruise control with full-speed range off using the cruise control main switch when not in use. ■ Situations unsuitable for dynamic radar cruise control with full-speed range Do not use dynamic radar cruise control with full-speed range in any of the...
Page 261 4-5. Using the driving support systems Driving in vehicle-to-vehicle distance control mode This mode employs a radar sensor to detect the presence of vehicles up to approximately 328 ft. (100 m) ahead, determines the current vehicle-to-vehicle following distance, and operates to maintain a suit- able following distance from the vehicle ahead.
Page 262 4-5. Using the driving support systems Example of acceleration When there are no longer any preceding vehicles driving slower than the set speed The system accelerates until the set speed is reached. The system then returns to constant speed cruising. Setting the vehicle speed (vehicle-to-vehicle distance control mode) Press the cruise control main...
Page 263 4-5. Using the driving support systems Adjusting the set speed To change the set speed, operate the “+ RES” or “- SET” switch until the desired set speed is displayed. Increases the speed (Except when the vehicle has been stopped by system control in vehi- cle-to-vehicle distance control...
Page 264 4-5. Using the driving support systems Changing the vehicle-to-vehicle distance (vehicle-to-vehicle dis- tance control mode) Pressing the switch changes the Preceding vehicle-to-vehicle distance as fol- vehicle mark lows: Long Medium Short The vehicle-to-vehicle distance is set automatically to long mode when the power switch is turned to ON mode.
Page 265 4-5. Using the driving support systems Resuming follow-up cruising when the vehicle has been stopped by system control (vehicle-to-vehicle distance control mode) After the vehicle ahead of you starts off, press the “+ RES” switch. Your vehicle will also resume fol- low-up cruising if the accelerator pedal is depressed after the vehi- cle ahead of you starts off.
Page 266 4-5. Using the driving support systems Approach warning (vehicle-to-vehicle distance control mode) When your vehicle is too close to a vehicle ahead, and sufficient automatic deceleration via the cruise control is not possible, the display will flash and the buzzer will sound to alert the driver.
Page 267 4-5. Using the driving support systems Selecting constant speed control mode When constant speed control mode is selected, your vehicle will main- tain a set speed without controlling the vehicle-to-vehicle distance. Select this mode only when vehicle-to-vehicle distance control mode does not function correctly due to a dirty radar sensor, etc.
Page 268 • The driver’s door is opened. • The vehicle has been stopped for about 3 minutes If vehicle-to-vehicle distance control mode is automatically canceled for any other reason, there may be a malfunction in the system. Contact your Toyota dealer.
Page 269 ● Pre-collision braking is activated. If constant speed control mode is automatically canceled for any other rea- son, there may be a malfunction in the system. Contact your Toyota dealer. ■ Brake system operation sound If the brakes are applied automatically while the vehicle is in vehicle-to-vehi- cle distance control mode, a brake system operation sound may be heard.
Page 270 4-5. Using the driving support systems ● Motorcycles traveling in the same lane ● When water or snow thrown up by the surrounding vehicles hinders the detecting of the sensor ● When your vehicle is pointing upwards (caused by a heavy load in the luggage compartment, etc.) ●...
Page 271: (Blind Spot Monitor)
4-5. Using the driving support systems BSM (Blind Spot Monitor) Summary of the Blind Spot Monitor The Blind Spot Monitor is a system that has 2 functions; ● The BSM (Blind Spot Monitor) function Assists the driver in making a decision when changing lanes ●...
Page 272 4-5. Using the driving support systems Audio system screen (RCTA function only) If a vehicle approaching from the right or left at the rear of the vehicle is detected, the RCTA icon (P. 278) for the detected side will be displayed. buzzer ( function only) RCTA...
Page 273 4-5. Using the driving support systems ■ Certification for the Blind Spot Monitor...
Page 274 Do not attach accessories or stickers to the sensor or surrounding area on the bumper. ● Do not modify the sensor or surrounding area on the bumper. ● Do not paint the rear bumper any color other than an official Toyota color.
Page 275: Bsm Function
4-5. Using the driving support systems BSM function The BSM function uses radar sensors to detect vehicles that are trav- eling in an adjacent lane in the area that is usually not reflected in the outside rear view mirror (the blind spot), and advises the driver of the vehicles existence via the outside rear view mirror indicator.
Page 276 4-5. Using the driving support systems ■ Conditions under which the BSM function will not detect a vehicle The BSM function is not designed to detect the following types of vehicles and/or objects: ● Small motorcycles, bicycles, pedestrians, etc. ● Vehicles traveling in the opposite direction ●...
Page 277: Rcta Function
4-5. Using the driving support systems ● Instances of the BSM function unnecessarily detecting a vehicle and/or object may increase under the following conditions: • When the sensor is misaligned due to a strong impact to the sensor or its surrounding area •...
Page 278 RCTA icon display ■ When a vehicle approaching from the right or left at the rear of the vehicle is detected, the following will be displayed on the audio sys- tem screen. Toyota parking Panoramic view Content assist monitor monitor...
Page 279 4-5. Using the driving support systems RCTA function detection areas The areas that vehicles can be detected in are outlined below. To give the driver a more consistent time to react, the buzzer can alert for faster vehicles from farther away. Example: Approximate Approaching vehicle...
Page 280 4-5. Using the driving support systems ■ Conditions under which the RCTA function will not detect a vehicle The RCTA function is not designed to detect the following types of vehicles and/or objects: ● Small motorcycles, bicycles, pedestrians, etc. ● Vehicles approaching from directly behind ●...
Page 281 4-5. Using the driving support systems ● Instances of the RCTA function unnecessarily detecting a vehicle and/or object may increase in the following situations: • When a vehicle passes by the side of your vehicle • When the parking space faces a street and vehicles are being driven on the street •...
Page 282: Rear Camera Detection Function
4-5. Using the driving support systems Rear Camera Detection function (vehicles with panoramic view monitor) When the vehicle is backing up, the rear camera detection func- tion can detect pedestrians in the detection area behind the vehicle. If a pedestrian is detected, a buzzer will sound and an icon on the audio system screen will be displayed to inform the driver of the pedestrian.
Page 283 If the rear camera detection function is malfunctioning If a malfunction of the rear camera detection function is detected, one of the following messages will be displayed on the audio system screen. Have the vehicle inspected by your Toyota dealer. ● “RCD malfunction.”...
Page 284 4-5. Using the driving support systems ■ If “Clean dirt from lens” is displayed on the audio system screen A rear camera lens may be dirty or covered with snow or ice. In such cases, if it is removed from the rear camera lens, the system should return to normal. (It may be necessary to drive the vehicle for some time before the system returns to normal.) ■...
Page 285 4-5. Using the driving support systems ● In some situations, such as the following, the rear camera detection function may operate even though there are no pedestrians in the detection area. • When a three dimensional object, such as a pole, traffic cone, fence, or parked vehicle, is detected •...
Page 286: Intuitive Parking Assist
4-5. Using the driving support systems  Intuitive parking assist The distance from your vehicle to nearby obstacles when paral- lel parking or maneuvering into a garage is measured by the sensors and communicated via the displays and a buzzer. Always check the surrounding area when using this system.
Page 287 4-5. Using the driving support systems Display When the sensors detect an obstacle, the following displays inform the driver of the position and distance to the obstacle. Multi-information display ■ Front corner sensor opera- tion Front center sensor opera- tion Rear corner sensor operation Rear center sensor operation Select to mute the buzzer...
Page 288 4-5. Using the driving support systems Sensor detection display, obstacle distance Distance display ■ Sensors that detect an obstacle will illuminate continuously or blink. Approximate distance to obstacle Multi- Insert information Front and rear Front and rear display display center sensor corner sensor Front center sensor:...
Page 289 4-5. Using the driving support systems Buzzer operation and distance to an obstacle ■ A buzzer sounds when the sensors are operating. ● The buzzer sounds faster as the vehicle approaches an obstacle. When the vehicle comes within the following distance of the obstacle, the buzzer sounds continuously: Approximately 1.2 ft.
Page 290 ■ Intuitive parking assist display When an obstacle is detected while the Toyota parking assist monitor or pan- oramic view monitor is in use, the warning indicator will appear in the upper part of the screen even if the display setting has been set to off.
Page 291 4-5. Using the driving support systems ■ Sensor detection information ● The sensor’s detection areas are limited to the areas around the vehicle’s bumper. ● Depending on the shape of the obstacle and other factors, the detection dis- tance may shorten, or detection may be impossible. ●...
Page 292 The area directly under the bumpers is not detected. ● If obstacles draw too close to the sensor. ● A non-genuine Toyota suspension (lowered suspension, etc.) is installed. ● A backlit license plate is installed. In addition to the examples above, there are instances in which, because of their shape, signs and other objects may be judged by a sensor to be closer than they are.
Page 293 When using intuitive parking assist In the following situations, the system may not function correctly due to a sensor malfunction, etc. Have the vehicle checked by your Toyota dealer. ● The intuitive parking assist operation display flashes, and a buzzer sounds when no obstacles are detected.
Page 294: Intelligent Clearance Sonar (Ics)
4-5. Using the driving support systems  Intelligent Clearance Sonar (ICS) If a collision with an object may occur due to the vehicle sud- denly moving forward due to an accidental accelerator pedal operation, the vehicle moving the unintended direction due to the wrong shift position being selected, or while parking or trav- eling at low speeds, the sensors detect objects, such as a wall, in the traveling direction of the vehicle, and the system operates...
Page 295 4-5. Using the driving support systems ◆ When the accelerator pedal is depressed excessively ◆ When the vehicle moves in the unintended direction due to the wrong shift position being selected...
Page 296 4-5. Using the driving support systems Rear Cross Traffic Auto Brake function If a radar sensor detects a vehicle approaching from the right or left at the rear of the vehicle and a collision may occur, this function will per- form brake control to reduce the likelihood of an impact with the approaching vehicle.
Page 297 4-5. Using the driving support systems Types of sensors Front corner sensors Front center sensors Rear corner sensors Rear center sensors Turning the Intelligent Clearance Sonar system on/off Press of the meter con- trol switches, select Press of the meter con- trol switches, select Press of the meter con-...
Page 298 4-5. Using the driving support systems Displays and buzzers for hybrid system output restriction con- trol and brake control If the hybrid system output restriction control or brake control oper- ates, a buzzer will sound and a message will be displayed on the multi-information display to alert the driver.
Page 299 4-5. Using the driving support systems Intelligent Clearance Sonar function If the Intelligent Clearance Sonar function detects that a collision with an object is possible, the hybrid system output will be restricted to restrain any increase in the vehicle speed. (Hybrid system output restriction control: See A below.) Additionally, if the accelerator pedal continues to be depressed, the brakes will be applied automatically to reduce the vehicle speed.
Page 300 4-5. Using the driving support systems Time Down Time Down Time Accelerator pedal Start of control Brake pedal High possibility of a collision Hybrid system output Extremely high possibility of a collision Braking force...
Page 301 4-5. Using the driving support systems ■ The Intelligent Clearance Sonar function will operate when The function will operate when the ICS OFF indicator is not illuminated or flashing (P. 297, 305) and all of the following conditions are met: ●...
Page 302 4-5. Using the driving support systems ■ Re-enabling the Intelligent Clearance Sonar system To re-enable the Intelligent Clearance Sonar system when it is disabled due to operation of the Intelligent Clearance Sonar function, either enable the sys- tem again (P. 297), or turn the power switch off and then back to ON mode. Additionally, if the object becomes no longer in the traveling direction of the vehicle or if the traveling direction of the vehicle changes (such as changing from moving forward to backing up, or from backing up to moving forward),...
Page 303 4-5. Using the driving support systems ■ Situations in which the Intelligent Clearance Sonar function may operate even if there is no possibility of a collision In some situations such as the following, the Intelligent Clearance Sonar function may operate even though there is no possibility of a collision. ●...
Page 304 4-5. Using the driving support systems ● Changes in the vehicle posture • If the vehicle is significantly tilted • If the front of the vehicle is raised or lowered due to the carried load • If the orientation of a sensor has been changed due to a collision or other impact ■...
Page 305 If this message continues to be displayed even after cleaning the sensor, or is displayed even though the sensor is clean, have the vehicle inspected by your Toyota dealer. ● Initialization may not have been performed after a 12-volt battery terminal...
Page 306 4-5. Using the driving support systems WARNING ■ Limitations of the Intelligent Clearance Sonar system Do not overly rely on the system, as doing so may lead to an accident. ● The driver is solely responsible for safe driving. Always drive carefully, tak- ing care to observe your surroundings.
Page 307 If the area around a sensor is subjected to an impact, the system may not operate properly due to the sensor being misaligned. Have the vehicle inspected by your Toyota dealer. ● When using a high pressure washer to wash the vehicle, do not spray the sensors directly, as doing so may cause a sensor to malfunction.
Page 308 4-5. Using the driving support systems Rear Cross Traffic Auto Brake function If the Rear Cross Traffic Auto Brake function detects that a collision with an approaching vehicle is possible, the hybrid system output will be restricted to restrain any increase in vehicle speed. (Hybrid system output restriction control: See A below.) Additionally, if the accelerator pedal continues to be depressed, the brakes will be applied automatically to reduce the vehicle speed.
Page 309 4-5. Using the driving support systems Time Down Time Down Time Accelerator pedal Start of control Brake pedal High possibility of a collision Hybrid system output Extremely high possibility of a collision Braking force...
Page 310 4-5. Using the driving support systems ■ The Rear Cross Traffic Auto Brake function will operate when The function will operate when the ICS OFF indicator is not illuminated or flashing (P. 297, 305) and all of the following conditions are met: ●...
Page 311 4-5. Using the driving support systems ■ Re-enabling the Rear Cross Traffic Auto Brake function To re-enable the Rear Cross Traffic Auto Brake function when it is disabled while it is operating, either enable the Intelligent Clearance Sonar system again (P. 297), or turn the power switch off and then back to ON mode. When the function is disabled, the ICS OFF indicator will illuminate.
Page 312 4-5. Using the driving support systems ■ Situations in which the system may operate even though there is no possibility of a collision In some situations such as the following, the Rear Cross Traffic Auto Brake function may operate even though there is no possibility of a collision. ●...
Page 313 4-5. Using the driving support systems ■ Situations in which the Rear Cross Traffic Auto Brake function may not operate properly In some situations such as the following, this function may not operate prop- erly. ● Objects and vehicles which the radar sensors are not designed to detect •...
Page 314 4-5. Using the driving support systems • When backing out of a shallow angle parking spot • Vehicles that the sensors cannot detect due to obstructions • When backing up on a slope with a sharp change in grade • When a vehicle turns into the detec- tion area ■...
Page 315: Driving Mode Select Switches
4-5. Using the driving support systems Driving mode select switches The driving modes can be selected to suit driving condition. Normal mode Use for normal driving. While in Eco drive mode or Sport mode, press the “NORMAL” switch to change the driving mode to normal mode. Eco drive mode Use Eco drive mode to help achieve low fuel consumption during trips that involve frequent accelerating.
Page 316 4-5. Using the driving support systems ■ Operation of the air conditioning system in Eco drive mode Eco drive mode controls the heating/cooling operations and fan speed of the air conditioning system to enhance fuel efficiency (P. 332). To improve air conditioning performance, adjust the fan speed or turn off Eco drive mode.
Page 317: Driving Assist Systems
4-5. Using the driving support systems Driving assist systems To keep driving safety and performance, the following systems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehi- cle.
Page 318 4-5. Using the driving support systems ◆ Hill-start assist control Helps to reduce the backward movement of the vehicle when start- ing on an uphill ◆ EPS (Electric Power Steering) Employs an electric motor to reduce the amount of effort needed to turn the steering wheel When the TRAC/VSC/ABS systems are operating The slip indicator light will flash...
Page 319 When the message is displayed on the multi-information display show- ing that TRAC has been disabled even if has not been pressed TRAC cannot be operated. Contact your Toyota dealer. ■ Operating conditions of hill-start assist control When the following four conditions are met, the hill-start assist control will operate: ●...
Page 320 4-5. Using the driving support systems ■ Sounds and vibrations caused by the ABS, brake assist, VSC, TRAC, and hill-start assist control systems ● A sound may be heard from the engine compartment when the brake pedal is depressed repeatedly, when the hybrid system is started or just after the vehicle begins to move.
Page 321 4-5. Using the driving support systems ■ Automatic reactivation of TRAC and VSC systems After turning the TRAC and VSC systems off, the systems will be automati- cally re-enabled in the following situations: ● When the power switch is turned off ●...
Page 322 4-5. Using the driving support systems WARNING ■ The ABS does not operate effectively when ● The limits of tire gripping performance have been exceeded (such as excessively worn tires on a snow covered road). ● The vehicle hydroplanes while driving at high speed on wet or slick roads. ■...
Page 323 The ABS, TRAC and VSC systems will not function correctly if different tires are installed on the vehicle. Contact your Toyota dealer for further information when replacing tires or wheels. ■ Handling of tires and the suspension Using tires with any kind of problem or modifying the suspension will affect the driving assist systems, and may cause a system to malfunction.
Page 324: 4-6. Driving Tips
4-6. Driving tips Hybrid vehicle driving tips For economical and ecological driving, pay attention to the fol- lowing points: ◆ Using Eco drive mode When using Eco drive mode, the torque corresponding to the accel- erator pedal depression amount can be generated more smoothly than it is in normal conditions.
Page 325 4-6. Driving tips ◆ When braking Make sure to operate the brakes gently and in a timely manner. A greater amount of electrical energy can be regenerated when slow- ing down. ◆ Delays Repeated acceleration and deceleration, as well as long waits at traffic lights, will lead to bad fuel economy.
Page 326 4-6. Driving tips ◆ Luggage Carrying heavy luggage will lead to poor fuel economy. Avoid carry- ing unnecessary luggage. Installing a large roof rack will also cause poor fuel economy. ◆ Warming up before driving Since the gasoline engine starts up and cuts out automatically when cold, warming up the engine is unnecessary.
Page 327: Winter Driving Tips
4-6. Driving tips Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a man- ner appropriate to the prevailing weather conditions. Preparation for winter ● Use fluids that are appropriate to the prevailing outside tempera- tures.
Page 328 If the shift lever can be shifted from P, there may be a problem with the shift lock system. Have the vehicle inspected by your Toyota dealer immediately. Selecting tire chains Vehicles with 17-inch tires ...
Page 329 4-6. Driving tips Regulations on the use of tire chains Regulations regarding the use of tire chains vary depending on loca- tion and type of road. Always check local regulations before installing chains. ■ Tire chain installation Observe the following precautions when installing and removing chains: ●...
Page 330 NOTICE ■ Repairing or replacing snow tires Request repairs or replacement of snow tires from Toyota dealers or legiti- mate tire retailers. This is because the removal and attachment of snow tires affects the opera- tion of the tire pressure warning valves and transmitters.
Page 331: 5-1. Using The Air
Interior features 5-1. Using the air 5-4. Other interior features conditioning system Other interior features ..356 and defogger • Sun visors ..... 356 Automatic air conditioning • Vanity mirrors....356 system......332 • Power outlet....357 Heated steering wheel/ •...
Page 332: Automatic Air Conditioning
5-1. Using the air conditioning system and defogger Automatic air conditioning system Air outlets and fan speed are automatically adjusted according to the temperature setting. Press the “MENU” button on the Entune Audio Plus or Entune Premium Audio, then select “Climate” to display the air condi- tioning control screen.
Page 333 5-1. Using the air conditioning system and defogger Individual mode (indicator off): The temperature for the driver’s and front passenger’s side can be adjusted separately. Fan speed setting ■ To adjust the fan speed, press to increase the fan speed to decrease the fan speed.
Page 334 5-1. Using the air conditioning system and defogger Control screen Adjust the driver’s side tem- perature setting Adjust the fan speed setting Select the air flow mode Adjust the front passenger’s side temperature setting Display option control screen (P. 335) Turn automatic mode on/off Turn the fan off Turn cooling and dehumidification function on/off...
Page 335 5-1. Using the air conditioning system and defogger Option control screen ■ Select on the air conditioning control screen to display the option control screen. The functions can be switched on and off. When the function is on, the indicator illuminates on the screen. Select to change the tem- perature setting...
Page 336 5-1. Using the air conditioning system and defogger ● The following S-FLOW modes are available: Automatic S-FLOW mode  When this mode is selected, if the rear seats are determined to be unoccupied, the air conditioning system will operate in S- FLOW mode.
Page 337 5-1. Using the air conditioning system and defogger Other functions Switching between outside air and recirculated air modes ■ Press The mode switches between outside air mode (indicator off) and recir- culated air mode (indicator on) each time is pressed. Defogging the windshield ■...
Page 338 5-1. Using the air conditioning system and defogger Air outlets Location of air outlets ■ The air outlets and air volume change according selected airflow mode. Adjusting the position of and opening and closing the air out- ■ lets Front Rear ...
Page 339 5-1. Using the air conditioning system and defogger ■ Using automatic mode Fan speed is adjusted automatically according to the temperature setting and the ambient conditions. Therefore, the fan may stop for a while until warm or cool air is ready to flow immediately after is pressed or is selected.
Page 340 5-1. Using the air conditioning system and defogger ■ Windshield fog detection function When automatic mode is set, the humidity sensor (P. 342) detects fog on the windshield and controls the air conditioning system to prevent fog. ■ Outside/recirculated air mode ●...
Page 341 5-1. Using the air conditioning system and defogger ■ Ventilation and air conditioning odors ● To let fresh air in, set the air conditioning system to the outside air mode. ● During use, various odors from inside and outside the vehicle may enter into and accumulate in the air conditioning system.
Page 342 5-1. Using the air conditioning system and defogger NOTICE ■ Humidity sensor In order to detect fog on the windshield, a sensor which monitors the temperature of the windshield, the surround humidity, etc. is installed. (P. 340) Follow these points to avoid damaging the sensor: ●...
Page 343: Heated Steering Wheel /Seat Heaters/Seat Ventilators
5-1. Using the air conditioning system and defogger  Heated steering wheel /seat heaters/seat  ventilators Heated steering wheel and seat heaters heat the side grips of the steering wheel and seats, respectively. Seat ventilators maintain good ventilation by pulling air through the seat upholstery. WARNING ●...
Page 344 5-1. Using the air conditioning system and defogger Heated steering wheel Turns the heated steering wheel on/off The indicator light comes on when the heated steering wheel is oper- ating. The heated steering wheel can be used when the power switch is in ON mode.
Page 345 5-1. Using the air conditioning system and defogger Rear (if equipped) ■ Turns the heated rear seat on/off The indicator light will illuminate when the rear seat heater is oper- ating. The seat heaters can be used when the power switch is in ON mode. Seat ventilators Each time the switch is pressed, the operation condition changes...
Page 346: 5-2. Using The Interior Lights
5-2. Using the interior lights Interior lights list Front interior/personal lights (P. 347) Shift lever light Ambient lights (if equipped) (P. 348) Door courtesy lights Rear personal lights (P. 347) Footwell lights Front center console light...
Page 347: Interior Light
5-2. Using the interior lights Interior light The rear personal lights turn on/off together with the interior light. Turns the lights on/off linked to door positions Turns the lights on/off Personal lights Front ■ Turns the lights on/off Rear ■ Turns the lights on/off...
Page 348: Ambient Lights
5-2. Using the interior lights Ambient lights (if equipped) Each time the “MOOD” switch is pressed, brightness level changes. ● Illuminated entry system: The lights automatically turn on/off according to the power switch mode, the presence of the electronic key, whether the doors are locked/unlocked, and whether the doors are open/closed.
Page 349: Using The Storage Features
5-3. Using the storage features List of storage features Auxiliary boxes (P. 353) Cup holders (P. 352) Glove box (P. 350) Console box (P. 350) Bottle holders/door pockets Auxiliary box/open tray (P. 351) (P. 353, 354) WARNING ● Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high: •...
Page 350: Glove Box
5-3. Using the storage features Glove box Push the button to open the glove box. The glove box light turns on when the power switch is in ACCESSORY or ON mode. Console box Push the knob. ■ Console box tray The tray can be removed.
Page 351: Bottle Holders
5-3. Using the storage features Bottle holders Front Rear   ● When storing a bottle, close the cap. ● The bottle may not be stored depending on its size or shape. WARNING Do not place anything other than a bottle in the bottle holders. Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury.
Page 352: Cup Holders
5-3. Using the storage features Cup holders Front Rear   Pull the armrest down. WARNING ● Do not place any objects that fit loosely or are very tall in the cup holders, otherwise they may fall out while driving, possibly leading to an accident. ●...
Page 353: Auxiliary Boxes
5-3. Using the storage features Auxiliary boxes Type A (if equipped) Type B   Push the lid. Pull the armrest down. Type C  Opening: Push the tray forward until it locks. Closing: Push the tray forward to release the lock and the tray will automati- cally close.
Page 354: Open Tray
5-3. Using the storage features ■ When using wireless charger (if equipped) P. 360 WARNING ■ Items unsuitable for storing (type A) Do not store items heavier than 0.4 lb. (0.2 kg). Doing so may cause the auxiliary box to open and the items inside may fall out, resulting in an accident.
Page 355: Trunk Features
5-3. Using the storage features Trunk features Grocery bag hooks NOTICE To prevent damage to the hooks, do not apply too much load to the hooks. Cargo net...
Page 356: 5-4. Other Interior Features
5-4. Other interior features Other interior features Sun visors To set the visor in the forward position, flip it down. To set the visor in the side posi- tion, flip down, unhook, and swing it to the side. To use the side extender, place the visor in the side position, then slide it backward.
Page 357: Power Outlet
5-4. Other interior features Power outlet Please use as a power supply for electronic goods that use less than 12 VDC/10 A (power consumption of 120 W). Open the lid. The power outlet can be used when the power switch is in ACCESSORY or ON mode.
Page 358: Usb Charging Ports
5-4. Other interior features USB charging ports The USB charging ports are used to supply 2.1 A of electricity at 5 V to external devices (power consumption of 10.5 W). The USB charging ports are for charging only. They are not designed for data transfer or other purposes.
Page 359 5-4. Other interior features ■ Cable pass through ● The cutouts on the console box rim allow power cables to be passed through when the console box lid is closed. ● An electronic device on the console box tray can be recharged by running power cables through the clearance of the tray and connecting it to the USB charging ports underneath the tray.
Page 360: Wireless Charger
5-4. Other interior features Wireless charger (if equipped) A portable device, such as a smartphone or mobile battery, can be charged by just placing it on the charging area, provided the device is compatible with the Qi wireless charging standard created by the Wireless Power Consortium.
Page 361 5-4. Other interior features Using the wireless charger ■ Push the open tray forward until it locks. (P. 353) Press power supply switch of the wireless char- ger. Pressing the switch again turns the wireless charger off. When turned on, the operation indicator light (green) comes on.
Page 362 (orange). Take the appropriate measures according to the table below. Operation indicator light Suspected causes Measure Blinks (orange) at a Vehicle to charger com- Contact your Toyota second interval munication failure. dealer. continuously A foreign object exists between the portable...
Page 363 5-4. Other interior features ■ The wireless charger can be operated when The power switch is in ACCESSORY or ON mode. ■ Portable devices that can be charged ● Portable devices compatible with the Qi wireless charging standard can be charged by the wireless charger.
Page 364 5-4. Other interior features ■ Certification for the wireless charger...
Page 365 5-4. Other interior features...
Page 366 5-4. Other interior features...
Page 367 5-4. Other interior features WARNING ■ Caution while driving When charging a portable device while driving, for safety reasons, the driver should not operate the portable device. ■ Caution regarding interference with electronic devices People with implantable cardiac pacemakers, cardiac resynchronization therapy pacemakers or implantable cardioverter defibrillators, as well as any other electrical medical device, should consult their physician about the usage of the wireless charger.
Page 368 If in situations other than above the wireless charger does not operate prop- erly or the operation indicator light is blinking, the wireless charger may be malfunctioning. Contact your Toyota dealer. ■ To prevent failure or damage to data ●...
Page 369: Armrest
5-4. Other interior features Armrest Fold down the armrest for use. NOTICE To prevent damage to the armrest, do not apply too much load on the arm- rest. Assist grips An assist grip installed on the ceil- ing can be used to support your body while sitting on the seat.
Page 370: Coat Hooks
5-4. Other interior features Coat hooks Coat hooks are provided on the rear assist grips. WARNING Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles, causing death or serious injury.
Page 371: Garage Door Opener
5-4. Other interior features  Garage door opener The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, security systems, and other devices. ® HomeLink ® The HomeLink wireless control system in your vehicle has 3 buttons which can be programmed to operate 3 different devices.
Page 372 5-4. Other interior features ® Programming the HomeLink ■ Steps through must be performed within 60 seconds, other- wise the indicator light will stop flashing and programming will not be able to be completed. ® Press and release the HomeLink button you want to program ®...
Page 373 5-4. Other interior features ® Test the HomeLink operation by pressing the newly pro- grammed button and observing the indicator light: ● Indicator light illuminates: Programming of a fixed code device has completed. The garage door or other device should operate ®...
Page 374 5-4. Other interior features Press and hold the desired ® HomeLink button (inside the vehicle) for 2 seconds and release Repeat this sequence (press/hold/ release) up to 3 times to complete programming. If the garage door opener motor operates when the ®...
Page 375 5-4. Other interior features ® Reprogramming a single HomeLink button ■ When the following procedure is performed, buttons which already have devices registered to them can be overwritten: ® With one hand, press and hold the desired HomeLink button. ® When the HomeLink indicator starts flashing orange, continue ®...
Page 376 Install a new battery in the transmitter. ● The battery side of the transmitter must be pointed away from the Home- ® Link ■ Certification for the garage door opener ■ When support is necessary Visit on the web at www.homelink.com/toyota or call 1-800-355-3515.
Page 377 5-4. Other interior features WARNING ■ When programming a garage door or other remote control device The garage door or other device may operate, so ensure people and objects are out of danger to prevent potential harm. ■ Conforming to federal safety standards ®...
Page 378: Safety Connect
Telematics Subscription Service Agreement and its Terms and Conditions, as in effect and amended from time to time, a current copy of which is available at Toyota.com in the United States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.
Page 379 A variety of subscription terms are available for purchase. Contact your Toyota dealer, call the following appropriate Safety Connect response center or push the “SOS” button in your vehicle for further subscription details.
Page 380 Safety Connect. ● Safety Connect is available beginning Fall 2009 on select Toyota models (in the contiguous United States only). Contact with the Safety Connect response center is dependent upon the telematics device being in operative...
Page 381 Safety-Connect-equipped vehicle location data may, under certain circumstances, be shared with third parties to locate your vehicle. Further information is available at Toyota.com in the United States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada. Emergency Assistance Button (“SOS”) ■...
Page 382 5-4. Other interior features Safety information for Safety Connect Important! Read this information before using Safety Connect. Exposure to radio frequency signals ■ The Safety Connect system installed in your vehicle is a low-power radio transmitter and receiver. It receives and also sends out radio frequency (RF) signals.
Page 383 5-4. Other interior features ■ Certification for Safety Connect FCC ID: LHJ-TVN IC: 2807E-TVN...
Page 384 5-4. Other interior features...
Page 385 Maintenance and care 6-1. Maintenance and care Cleaning and protecting the vehicle exterior..386 Cleaning and protecting the vehicle interior... 389 6-2. Maintenance Maintenance requirements ....392 General maintenance..394 Emission inspection and maintenance (I/M) programs......398 6-3. Do-it-yourself maintenance Do-it-yourself service precautions .....
Page 386: The Vehicle Exterior
6-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condition: ● Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.
Page 387 ■ Precaution regarding the rear bumper with Blind Spot Monitor If the paint of the rear bumper is chipped or scratched, the system may mal- function. If this occurs, avoid using the system and consult your Toyota dealer.
Page 388 6-1. Maintenance and care NOTICE ■ To prevent paint deterioration and corrosion on the body and compo- nents (aluminum wheels, etc.) ● Wash the vehicle immediately in the following cases: • After driving near the sea coast • After driving on salted roads •...
Page 389: Cleaning And Protecting The Vehicle Interior
6-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle’s interior and keep it in top condition: Protecting the vehicle interior ● Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth dampened with lukewarm water.
Page 390 6-1. Maintenance and care ■ Caring for leather areas Toyota recommends cleaning the interior of the vehicle at least twice a year to maintain the quality of the vehicle's interior. ■ Shampooing the carpets There are several commercial foaming-type cleaners available. Use a sponge or brush to apply the foam.
Page 391 6-1. Maintenance and care NOTICE ■ Cleaning detergents ● Do not use the following types of detergent, as they may discolor the vehi- cle interior or cause streaks or damage to painted surfaces: • Areas other than the seats and steering wheel: Organic substances such as benzene or gasoline, alkaline or acidic solutions, dye, and bleach •...
Page 392: Requirements
Toyota recommends the following main- tenance: General maintenance General maintenance should be performed on a daily basis. This can be done by yourself or by a Toyota dealer. Scheduled maintenance Scheduled maintenance should be performed at specified intervals according to the maintenance schedule.
Page 393 ■ Repair and replacement It is recommended that genuine Toyota parts be used for repairs to ensure performance of each system. If non-Toyota parts are used in replacement or if a repair shop other than a Toyota dealer performs repairs, confirm the war- ranty coverage.
Page 394: General Maintenance
“Owner’s Warranty Information Booklet” or “Owner’s Manual Supplement/Sched- uled Maintenance Guide”. It is recommended that any problem you notice should be brought to the attention of your Toyota dealer or qualified service shop for advice. Engine compartment...
Page 395 6-2. Maintenance Vehicle interior Items Check points • The accelerator pedal should Accelerator pedal move smoothly (without uneven pedal effort or catching). • When parked on a slope and the Hybrid transmission “Park” mecha- shift lever is in P, is the vehicle nism securely stopped? •...
Page 396 6-2. Maintenance Items Check points • Do seat belts operate smoothly? Seat belts • The seat belts should not be dam- aged. • Do the seat controls operate prop- Seats erly? • Does the steering wheel rotate smoothly? • Does the steering wheel have the Steering wheel correct amount of free play? •...
Page 397 6-2. Maintenance WARNING ■ If the hybrid system is operating Turn the hybrid system off and ensure that there is adequate ventilation before performing maintenance checks.
Page 398: Emission Inspection And Maintenance (I/M) Programs
The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/M test and may need to be repaired. Contact your Toyota dealer to service the vehicle. Your vehicle may not pass the I/M test in the following situations: ●...
Page 399: 6-3. Do-It-Yourself Maintenance
SAE J1704 or FMVSS No.116 DOT 4 (P. 409) • Rag or paper towel • Funnel (used only for adding brake fluid) • “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol-based non-silicate, non- Engine/power amine, non-nitrite and non-borate coolant with long-...
Page 400 6-3. Do-it-yourself maintenance Items Parts and tools Tire inflation • Tire pressure gauge pressure • Compressed air source (P. 427) • Water or washer fluid containing antifreeze (for win- Washer fluid ter use) (P. 410) • Funnel (used only for adding water or washer fluid) WARNING The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized.
Page 401: Hood
6-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood lock release lever. The hood will pop up slightly. Pull up the auxiliary catch lever and lift the hood. ■ Open hood warning buzzer If the vehicle reaches a speed of 3 mph (5 km/h), the master warning light flashes and a buzzer sounds to indicate that the hood is not fully closed.
Page 402: Positioning A Floor Jack
6-3. Do-it-yourself maintenance Positioning a floor jack When using a floor jack, follow the instructions in the manual provided with the jack and perform the operation safely. When raising your vehicle with a floor jack, position the jack cor- rectly. Improper placement may damage your vehicle or cause injury.
Page 403: Engine Compartment
6-3. Do-it-yourself maintenance Engine compartment Fuse boxes (P. 441) Electric cooling fan Engine oil filler cap (P. 405) Condenser (P. 408) Engine oil level dipstick Power control unit (P. 404) coolant reservoir (P. 407) Brake fluid reservoir Engine coolant reservoir (P.
Page 404 6-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. Checking the engine oil ■ Park the vehicle on level ground. After warming up the engine and turning it off the hybrid system, wait more than 5 minutes for the oil to drain back into the bottom of the engine.
Page 405 6-3. Do-it-yourself maintenance Adding engine oil ■ If the oil level is below or near the low level mark, add engine oil of the same type as that already in the engine. Make sure to check the oil type and prepare the items needed before adding oil.
Page 406 Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of used oil and filters in household trash, in sewers or onto the ground. Call your Toyota dealer, service station or auto parts store for information concerning recycling or disposal. ●...
Page 407 Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology. “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion- ized water. (Minimum temperature: -31F [-35C])
Page 408 If the coolant level drops within a short time of replenishing Visually check the radiators, hoses, engine/power control unit coolant reser- voir caps, drain cock and water pump. If you cannot find a leak, have your Toyota dealer test the cap and check for leaks in the cooling system. WARNING ■...
Page 409 6-3. Do-it-yourself maintenance Brake fluid Checking fluid level ■ The brake fluid level should be between the “MAX” and “MIN” lines on the tank. “MAX” “MIN” Adding fluid ■ Make sure to check the fluid type and prepare the necessary item. SAE J1703 or FMVSS No.116 DOT 3 brake fluid Fluid type SAE J1704 or FMVSS No.116 DOT 4 brake fluid...
Page 410 6-3. Do-it-yourself maintenance Washer fluid Add washer fluid in the following situations: ● A washer does not work. ● “Windshield Washer Fluid Low” is displayed on the multi-infor- mation display. WARNING ■ When adding washer fluid Do not add washer fluid when the hybrid system is hot or operating as washer fluid contains alcohol and may catch fire if spilled on the engine, etc.
Page 411: 12-Volt Battery
6-3. Do-it-yourself maintenance 12-volt battery Location The 12-volt battery is located on the right-hand side of the trunk. Removing the 12-volt battery cover Remove the 12-volt battery cover.
Page 412 12-volt battery was disconnected. Make sure to turn off the power before disconnecting the 12-volt battery. Take extra care when connecting the 12-volt battery if the power switch mode prior to discharge is unknown. If the system will not start even after multiple attempts, contact your Toyota dealer.
Page 413 When replacing the 12-volt battery Use a 12-volt battery designed for this vehicle. Failure to do so may cause gas (hydrogen) to enter the passenger compartment, causing a fire or explosion. For replacement of the 12-volt battery, contact your Toyota dealer.
Page 414 6-3. Do-it-yourself maintenance NOTICE ■ When recharging the 12-volt battery Never recharge the 12-volt battery while the hybrid system is operating. Also, be sure all accessories are turned off.
Page 415: Tires
Tire rotation Rotate the tires in the order shown. To equalize tire wear and extend tire life, Toyota recommends that tire rotation is carried out at the same interval as tire inspection. Front Do not fail to initialize the tire pressure warning system after tire rotation.
Page 416 6-3. Do-it-yourself maintenance Tire pressure warning system Your vehicle is equipped with a tire pressure warning system that uses tire pressure warning valve and transmitters to detect low tire inflation pressure before serious problems arise. ● The tire pressure detected by the tire pressure warning sys- tem can be displayed on the multi-information display.
Page 417 6-3. Do-it-yourself maintenance ◆ Installing tire pressure warning valves and transmitters When replacing the tires or wheels, the tire pressure warning valve and transmitters must be installed to the wheels which will be installed to the vehicle. When new tire pressure warning valve and transmitters are installed, new ID codes must be registered in the tire pressure warning computer and the tire pressure warning system must be initialized.
Page 418 6-3. Do-it-yourself maintenance Select “Set Pressure” then press and hold until the tire pressure warning light blinks 3 times. Then a message will be dis- played on the multi-information display. “---” will be displayed on the multi-information display for the inflation pressure of each tire while initialization is being performed.
Page 419 6-3. Do-it-yourself maintenance ◆ Registering ID codes Every tire pressure warning valve and transmitter has a unique ID code. When replacing a tire pressure warning valve and transmitter, it is necessary to register the ID codes. The ID codes can be registered on of the multi-information dis- play.
Page 420 ● A tire goes flat repeatedly or cannot be properly repaired due to the size or location of a cut or other damage If you are not sure, consult with your Toyota dealer. ■ Replacing tires and wheels If the ID codes of the tire pressure warning valve and transmitters are not registered, the tire pressure warning system will not work properly.
Page 421 6-3. Do-it-yourself maintenance ■ Tire types ● Summer tires Summer tires are high-speed performance tires best suited to highway driving under dry conditions. Since summer tires do not have the same traction performance as snow tires, summer tires are inadequate for driving on snow-covered or icy roads.
Page 422 ● In the following situations, the tire pressure warning system may not operate properly. • If non-genuine Toyota wheels are used. • If a tire has been replaced with a tire that is not an OE (Original Equipment) tire. • If a tire has been replaced with a tire that is not of the specified size.
Page 423 1 minute and then illuminates. ● If initialization cannot be completed after performing the above proce- dure, contact your Toyota dealer. ■ When registering ID codes ● Before performing ID code registration, make sure that no wheels with tire pressure warning valve and transmitters installed are near the vehi- cle.
Page 424 • If, when the vehicle has been driven for about 20 minutes after per- forming ID code registration, the tire pressure warning light blinks for approximately 1 minute and then illuminates. ● If ID code registration cannot be completed after performing the above procedure, contact your Toyota dealer.
Page 425 Do not mix tires of different makes, models or tread patterns. Also, do not mix tires of remarkably different treadwear. ● Do not use tire sizes other than those recommended by Toyota. ● Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
Page 426 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.
Page 427: Tire Inflation Pressure
6-3. Do-it-yourself maintenance Tire inflation pressure Tire inflation pressure The recommended cold tire infla- tion pressure and tire size are dis- played on the tire and loading information label. (P. 504)
Page 428 Driving with incorrect tire inflation pressure may result in the following: ● Reduced fuel economy ● Reduced driving comfort and poor handling ● Reduced tire life due to wear ● Reduced safety ● Damage to the drivetrain If a tire needs frequent inflating, have it checked by your Toyota dealer.
Page 429 6-3. Do-it-yourself maintenance ■ Instructions for checking tire inflation pressure When checking tire inflation pressure, observe the following: ● Check only when the tires are cold. If your vehicle has been parked for at least 3 hours or has not been driven for more than 1 mile or 1.5 km, you will get an accurate cold tire inflation pressure reading.
Page 430: Wheels
● Used wheels ● Bent wheels that have been straightened Aluminum wheel precautions ● Use only Toyota wheel nuts and wrenches designed for use with your aluminum wheels. ● When rotating, repairing or changing your tires, check that the wheel nuts are still tight after driving 1000 miles (1600 km).
Page 431 Because tire repair or replacement may affect the tire pressure warn- ing valve and transmitters, make sure to have tires serviced by your Toyota dealer or other qualified service shop. In addition, make sure to purchase your tire pressure warning valve and transmitters at your Toyota dealer.
Page 432: Air Conditioning Filter
6-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be changed regularly to maintain air conditioning efficiency. Removal method Turn the power switch off. Open glove remove the glove box cover inside the glove box. Remove the filter cover. Unlock the filter cover.
Page 433 6-3. Do-it-yourself maintenance Remove the air conditioning fil- ter from the filter case and replace it with a new one. The “UP” marks shown on the fil- ter and the filter case should be pointing up. ■ Checking interval Inspect and replace the air conditioning filter according to the maintenance schedule.
Page 434: Cleaning The Hybrid Battery (Traction Battery) Air Intake Vent And Filter
6-3. Do-it-yourself maintenance Cleaning the hybrid battery (traction bat- tery) air intake vent and filter To prevent an increase in fuel consumption, visually inspect the hybrid battery (traction battery) air intake vent periodically for dust and clogs. If it is dusty or clogged or if “Maintenance Required for Traction Battery Cooling Parts See Owner’s Man- ual”...
Page 435 6-3. Do-it-yourself maintenance Remove the air intake vent cover. Pull the cover as shown in the illustration to disengage the 7 claws, starting from the claw in the upper right cor- ner. Pull the cover toward the front of the vehicle to remove Remove the air intake vent fil- ter.
Page 436 6-3. Do-it-yourself maintenance Reinstall the filter to the cover. Engage the filter to the 2 claws as shown in the illus- tration. Engage the 3 claws to install the filter. Make sure that the filter is not crooked or deformed when install- ing it.
Page 437 It may take approximately 20 minutes after the hybrid system is started until the warning message disappears. If the warning message does not disap- pear, have the vehicle inspected by your Toyota dealer. WARNING When cleaning the air intake vent ■...
Page 438 ● Carefully handle the removed filter so that it will not be damaged. If the filter is damaged, have it replaced with a new filter by your Toyota dealer. ● Make sure to reinstall the filter and cover to their original positions after cleaning.
Page 439: Electronic Key Battery
6-3. Do-it-yourself maintenance Electronic key battery Replace the battery with a new one if it is depleted. You will need the following items: ● Flathead screwdriver ● Small flathead screwdriver ● Lithium battery CR2032 Replacing the battery Release the lock and remove the mechanical key.
Page 440 Be careful not to lose the battery or any other small parts. ■ Use a CR2032 lithium battery ● Batteries can be purchased at your Toyota dealer, local electrical appliance shops or camera stores. ● Replace only with the same or equivalent type recommended by the manu- facturer.
Page 441: Checking And Replacing Fuses
6-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as nec- essary. Turn the power switch off. Open the fuse box cover. Engine compartment (type A) Engine compartment (type B) ...
Page 442 6-3. Do-it-yourself maintenance Remove the fuse with the pull- out tool. Only type A fuses can be removed using the pullout tool. Check if the fuse is blown. Type A Type B   Type C  Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rat- ing.
Page 443 If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement. (P. 444) ● If the replaced fuse blows again, have the vehicle inspected by your Toyota dealer. ■ If there is an overload in a circuit The fuses are designed to blow, protecting the wiring harness from damage.
Page 444: Light Bulbs
6-3. Do-it-yourself maintenance Light bulbs If any lights burn out, have it replaced by your Toyota dealer. ■ LED lights The lights consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to have the light replaced.
Page 445 When trouble arises 7-1. Essential information Emergency flashers ..446 If your vehicle has to be stopped in an emergency ...... 447 7-2. Steps to take in an emergency If your vehicle needs to be towed ..... 448 If you think something is wrong ......
Page 446: 7-1. Essential Information
7-1. Essential information Emergency flashers The emergency flashers are used to warn other drivers when the vehicle has to be stopped on the road due to a breakdown, etc. Press the switch. All the turn signal lights will flash. To turn them off, press the switch once again.
Page 447: If Your Vehicle Has To Be Stopped In An Emergency
7-1. Essential information If your vehicle has to be stopped in an emergency Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the follow- ing procedure: Steadily step on the brake pedal with both feet and firmly depress it. Do not pump the brake pedal repeatedly as this will increase the effort required to slow the vehicle.
Page 448: 7-2. Steps To Take In An Emergency
If your vehicle needs to be towed If towing is necessary, we recommend having your vehicle towed by your Toyota dealer or a commercial towing service, using a wheel-lift type truck or flatbed truck. Use a safety chain system for all towing, and abide by all state/ provincial and local laws.
Page 449 7-2. Steps to take in an emergency Using a flatbed truck If your vehicle is transported by a flatbed truck, it should be tied down at the locations shown in the illustration. Covers are installed to the tie-down holes. After transporting vehicle, make sure to reinstall the covers to...
Page 450 7-2. Steps to take in an emergency WARNING Observe the following precautions. Failure to do so may result in death or serious injury. ■ When towing the vehicle Be sure to transport the vehicle with the front wheels raised or with all four wheels raised off the ground.
Page 451: If You Think Something Is Wrong
7-2. Steps to take in an emergency If you think something is wrong If you notice any of the following symptoms, your vehicle proba- bly needs adjustment or repair. Contact your Toyota dealer as soon as possible. Visible symptoms ● Fluid leaks under the vehicle.
Page 452: If A Warning Light Turns On Or A Warning Buzzer Sounds
• The brake system is malfunctioning  Immediately stop the vehicle in a safe place and con- (Red) tact your Toyota dealer. Continuing to drive the vehi- cle may be dangerous. Brake system warning light (warning buzzer) Indicates a malfunction in: •...
Page 453 • The electronic engine control system; or • The electronic throttle control system; or • The electronic hybrid transmission control system  Have the vehicle inspected by your Toyota dealer immediately. SRS warning light (warning buzzer) Indicates a malfunction in: •...
Page 454 7-2. Steps to take in an emergency Warning light Warning light/Details/Actions Brake hold operated indicator Indicates a malfunction in the brake hold system  Have the vehicle inspected by your Toyota dealer (Flashes) immediately. Electric power steering system warning light (warning buzzer)
Page 455 • The hill-start assist control system The light will flash when the ABS, VSC or TRAC system is operating.  Have the vehicle inspected by your Toyota dealer immediately. Low fuel level warning light Indicates that remaining fuel is approximately 1.8 gal. (6.7 L, 1.5 Imp.
Page 456 7-2. Steps to take in an emergency : This light illuminates on the multi-information display. : Parking brake engaged warning buzzer: A buzzer will sound if the vehicle is driven at a speed of approximately 3 mph (5 km/h) or more. : Driver’s and front passenger’s seat belt warning buzzer: The driver’s seat belt warning buzzer sounds to alert the driver that his or her seat belt is not fastened.
Page 457 Is the fuel tank cap loose? If it is, tighten it securely. The light will go off after several driving trips. If the light does not go off even after several trips, contact your Toyota dealer as soon as possible. ■...
Page 458 (P. 417) If the warning light does not turn off several minutes after the initialization has been performed, have the vehicle inspected by your Toyota dealer immediately. If the tire pressure warning light blinks for 1 minute then stays on ...
Page 459 ■ If both the ABS and the brake system warning lights remain on Stop your vehicle in a safe place immediately and contact your Toyota dealer. The vehicle will become extremely unstable during braking, and the ABS system may fail, which could cause an accident resulting in death or serious injury.
Page 460 7-2. Steps to take in an emergency WARNING ■ Maintenance of the tires Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label (tire and load information label).
Page 461 7-2. Steps to take in an emergency NOTICE ■ To ensure the tire pressure warning system operates properly Do not install tires with different specifications or makers, as the tire pressure warning system may not operate properly.
Page 462: If A Warning Message Is Displayed
Multi-information display Handling method Follow the instructions of the message on the multi-information display. If any of the warning messages are shown again after the appropriate actions have been performed, contact your Toyota dealer.
Page 463 Messages and warnings The warning lights and warning buzzers operate as follows depending on the content of the message. If a message indicates the need for inspection by a dealer, have the vehicle inspected by your Toyota dealer immediately. System...
Page 464 ● If the following messages are shown, there may be a malfunction. Immediately stop the vehicle in a safe place and contact your Toyota dealer. Continuing to drive the vehicle may be dangerous. • “Low Braking Power Stop in a Safe Place See Owner’s Manual”...
Page 465 ● If the message is being displayed and the air intake vent and filter are not dirty, have the vehicle inspected at your Toyota dealer. ■ If “Traction Battery Needs to be Protected Refrain From the Use of N Position”...
Page 466 If this message is displayed but you have not had a new electronic key regis- tered, ask your Toyota dealer to check if an unknown electronic key (other than those in your possession) has been registered.
Page 467 NOTICE ■ If “High Power Consumption Power to Climate Temporarily Limited” is frequently shown There is a possible malfunction relating to the charging system or the 12- volt battery may be deteriorating. Have the vehicle inspected by your Toyota dealer.
Page 468: If You Have A Flat Tire
7-2. Steps to take in an emergency If you have a flat tire Your vehicle is equipped with a spare tire. The flat tire can be replaced with the spare tire. For details about tires: P. 415 WARNING ■ If you have a flat tire Do not continue driving with a flat tire.
Page 469 7-2. Steps to take in an emergency WARNING ■ Using the tire jack Observe the following precautions. Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading to death or serious injury. ● Do not use the tire jack for any purpose other than replacing tires or installing and removing tire chains.
Page 470 7-2. Steps to take in an emergency Taking out the jack Lift up the hook of the luggage floor cover on the trunk floor. Secure the luggage floor cover using the hook provided. Remove the jack. Taking out the spare tire Lift up the hook of the luggage floor cover on the trunk floor.
Page 471 7-2. Steps to take in an emergency Secure the luggage floor cover using the hook provided. Remove the tool tray. Loosen the center fastener that secures the spare tire. When taking out or stowing the spare tire, make sure to firmly hold opposite end of the tire.
Page 472 7-2. Steps to take in an emergency Replacing a flat tire Chock the tires. Flat tire Wheel chock positions Left-hand side Behind the rear right-hand side tire Front Right-hand side Behind the rear left-hand side tire Left-hand side In front of the front right-hand side tire Rear Right-hand side In front of the front left-hand side tire...
Page 473 7-2. Steps to take in an emergency Assemble the jack handle. Raise the vehicle until the tire is slightly raised off the ground. Remove all the wheel nuts and the tire. When resting the tire on the ground, place the tire so that the wheel design faces up to avoid scratching the wheel surface.
Page 474 • If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Toyota dealer. • When installing the wheel nuts, be sure to install them with the...
Page 475 7-2. Steps to take in an emergency Installing the spare tire Remove any dirt or foreign mat- ter from the wheel contact sur- face. If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, causing the tire to come off.
Page 476 7-2. Steps to take in an emergency ■ The compact spare tire ● The compact spare tire is identified by the label “TEMPORARY USE ONLY” on the tire sidewall. Use the compact spare tire temporarily, and only in an emergency. ●...
Page 477 • Automatic High Beam (ICS) • Dynamic radar cruise control • Rear view monitor system with full-speed range • Toyota parking assist monitor • LDA (Lane Departure Alert with • Panoramic view monitor steering control) • Navigation system • PCS (Pre-Collision System) : If equipped ■...
Page 478 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and...
Page 479: If The Hybrid System Will Not Start
7-2. Steps to take in an emergency If the hybrid system will not start Reasons for the hybrid system not starting vary depending on the situation. Check the following and perform the appropriate procedure: The hybrid system will not start even though the correct starting procedure is being followed.
Page 480 ● The 12-volt battery may be discharged. (P. 484) ● One or both of the 12-volt battery terminals may be disconnected. (P. 411) Contact your Toyota dealer if the problem cannot be repaired, or if repair procedures are unknown. Emergency start function...
Page 481: If The Electronic Key Does Not Operate Properly
Turning the key rearward unlocks the driver's door. Turning the key once again unlocks the other doors. Opens the windows and the moon roof (turn and hold) : If equipped : This setting must be customized at your Toyota dealer.
Page 482 Turn the mechanical key clock- wise to open. Starting the hybrid system Ensure that the shift lever is in P and firmly depress the brake pedal. Touch the Toyota emblem side of the electronic key to the power switch. When electronic detected, a buzzer sounds and the power switch will turn to ON mode.
Page 483 7-2. Steps to take in an emergency ■ Stopping the hybrid system Shift the shift lever to P and press the power switch as you normally do when stopping the hybrid system. ■ Replacing the key battery As the above procedure is a temporary measure, it is recommended that the electronic key battery be replaced immediately when the battery is depleted.
Page 484: If The 12-Volt Battery Is Discharged
The following procedures may be used to start the hybrid sys- tem if the vehicle’s 12-volt battery is discharged. You can also call your Toyota dealer or a qualified repair shop. If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt battery, you can jump start your vehicle by following the steps below.
Page 485 7-2. Steps to take in an emergency Connect the jumper cables according to the following procedure: Connect a positive jumper cable clamp to the exclusive jump starting terminal on your vehicle. Connect the clamp on the other end of the positive cable to the positive (+) battery terminal on the second vehicle.
Page 486 ON mode, then start the vehicle's engine. Make sure the “READY” indicator comes on. If the indicator does not come on, contact your Toyota dealer. Once the hybrid system has started, remove the jumper cables in the exact reverse order from which they were connected.
Page 487 ■ When the 12-volt battery is removed or discharged ● Information stored in the ECU is cleared. When the 12-volt battery is depleted, have the vehicle inspected at your Toyota dealer. ● Some systems may require initialization. (P. 531) ■...
Page 488 (Depending on the 12-volt battery to be replaced, the exhaust hole may be plugged.) Exhaust hole plug Exhaust hole Exhaust hose Hole section of the vehicle For details, consult your Toyota dealer.
Page 489 Do not allow children near the 12-volt battery. ■ After recharging the 12-volt battery Have the 12-volt battery inspected at your Toyota dealer as soon as possi- ble. If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to emit a malodorous gas, which may be detrimental to the health of passengers.
Page 490 7-2. Steps to take in an emergency WARNING ■ When replacing the 12-volt battery After replacing, securely attach the exhaust hose and exhaust hole plug to the exhaust hole of the replaced 12-volt battery. If not properly installed, gases (hydrogen) may leak into the vehicle interior, and there is the possi- ble danger of the gas igniting and exploding.
Page 491: If Your Vehicle Overheats
If you do not see steam: Carefully lift the hood. After the hybrid system has cooled down sufficiently, inspect the hoses and radiator core (radiator) for any leaks. Radiator Cooling fan If a large amount of coolant leaks, immediately contact your Toyota dealer.
Page 492 (The fan may not operate in freezing tem- peratures.) If the fan is not operating: Stop the hybrid system immediately and contact your Toyota dealer. If the fan is operating: Have the vehicle inspected at the nearest Toyota dealer.
Page 493 (radiator) for any leaks. Radiator Cooling fan If a large amount of coolant leaks, immediately contact your Toyota dealer. The coolant level is satisfac- tory if it is between the “FULL” and “LOW” lines on the reservoir. Reservoir “FULL”...
Page 494 Stop the hybrid system and contact your Toyota dealer. If the message is not displayed: The hybrid system temperature has dropped and the vehicle may be driven normally. However, if the message appears again frequently, contact your Toyota dealer. WARNING ■...
Page 495: If The Vehicle Becomes Stuck
7-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt or snow: Stop the hybrid system. Set the parking brake and shift the shift lever to P.
Page 496 7-2. Steps to take in an emergency NOTICE ■ To avoid damaging the transmission and other components ● Avoid spinning the front wheels and depressing the accelerator pedal more than necessary. ● If the vehicle remains stuck even after these procedures are performed, the vehicle may require towing to be freed.
Page 497: Vehicle Specifications
Vehicle specifications 8-1. Specifications Maintenance data (fuel, oil level, etc.) ..498 Fuel information ....506 Tire information ....509 8-2. Customization Customizable features ..522 8-3. Items to initialize Items to initialize ....531...
Page 498: Specifications Maintenance Data
8-1.Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weights Overall length 195.9 in. (4975 mm) Overall width 72.8 in. (1850 mm) Overall height 56.5 in. (1435 mm) Wheelbase 113.0 in. (2870 mm) 62.6 in. (1590 mm) Front 63.0 in. (1600 mm) Tread 63.2 in.
Page 499: Specifications
The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle. This number is stamped on the top left of the instrument panel.
Page 500 8-1. Specifications Engine Model A25A-FXS Type 4-cylinder in line, 4-cycle, gasoline 3.44  4.07 in. (87.5  103.4 mm) Bore and stroke Displacement 151.8 cu. in. (2487 cm Valve clearance Automatic adjustment Fuel Fuel type Unleaded gasoline only Octane rating 87 (Research Octane Number 91) or higher Fuel tank capacity 13 gal.
Page 501 5 minutes, and check the oil level on the dipstick. Engine oil selection ■ “Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat- isfy the following grade and viscosity.
Page 502 (Reference) Power control unit  1.9 qt. (1.8 L, 1.6 Imp. qt.) Use either of the following: • “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based Coolant type non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology Do not use plain water alone.
Page 503 : The fluid capacity is a reference quantity. If replacement is necessary, contact your Toyota dealer. NOTICE ■ Transmission fluid type Using transmission fluid other than “Toyota Genuine ATF WS” may ulti- mately damage the transmission of your vehicle. Brakes Pedal clearance 3.3 in. (85 mm) 0.04 ...
Page 504 8-1. Specifications Tires and wheels 17-inch tires  Tire size 215/55R17 94V, T155/70D17 110M Driving under normal conditions Front: 35 psi (240 kPa, 2.4 kgf/cm or bar) Rear: 35 psi (240 kPa, 2.4 kgf/cm or bar) Spare: Tire inflation pressure 60 psi (420 kPa, 4.2 kgf/cm or bar) (Recommended cold tire...
Page 505 8-1. Specifications 19-inch tires  Tire size 235/40R19 92V, T155/70D17 110M Driving under normal conditions Front: 35 psi (240 kPa, 2.4 kgf/cm or bar) Rear: 35 psi (240 kPa, 2.4 kgf/cm or bar) Spare: Tire inflation pressure 60 psi (420 kPa, 4.2 kgf/cm or bar) (Recommended cold tire Driving at high speeds (above 100 mph...
Page 506: Fuel Information
In very few cases, driveability problems may be caused by the brand of gaso- line you are using. If driveability problems persist, try changing the brand of gasoline. If this does not correct the problem, consult your Toyota dealer. ■...
Page 507 Non-recommendation of the use of gasoline containing MMT Some gasoline contains an octane enhancing additive called MMT (Methylcy- clopentadienyl Manganese Tricarbonyl). Toyota does not recommend the use of gasoline that contains MMT. If fuel containing MMT is used, your emission control system may be adversely affected.
Page 508 8-1. Specifications NOTICE ■ Notice on fuel quality ● Do not use improper fuels. If improper fuels are used, the engine will be damaged. ● Do not use leaded gasoline. Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters causing the emission control system to malfunction.
Page 509: Tire Information
8-1. Specifications Tire information Typical tire symbols Full-size tire  Compact spare tire ...
Page 510 8-1. Specifications Tire size (P. 512) Summer tires or all season tires (P. 421) An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer tire. TUBELESS or TUBE TYPE A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a tube inside the tire and the tube maintains the air pressure.
Page 511 8-1. Specifications Typical DOT and Tire Identification Number (TIN) Type A Type B   DOT symbol Tire Identification Number (TIN) Tire manufacturer’s identification mark Tire size code Manufacturer’s optional tire type code (3 or 4 letters) Manufacturing week Manufacturing year Manufacturer’s code : The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.
Page 512 8-1. Specifications Tire size Typical tire size information ■ The illustration indicates typical tire size. Tire use (P = Passenger car [some- times omitted], T = Temporary use) Section width (millimeters) Aspect ratio (tire height to section width) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (inches) Load index (2 digits or 3 digits) Speed symbol (alphabet with one letter)
Page 513 8-1. Specifications Tire section names Bead Sidewall Shoulder Tread Belt Inner liner Reinforcing rubber Carcass Rim lines Bead wires Chafer...
Page 514 U.S. Department of Transportation. It provides the purchasers and/or prospective purchasers of Toyota vehicles with information on uniform tire quality grading. Your Toyota dealer will help answer any questions you may have as you read this information. DOT quality grades ■...
Page 515 8-1. Specifications Temperature A, B, C ■ The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissi- pate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
Page 516 8-1. Specifications Glossary of tire terminology Tire related term Meaning Tire pressure when the vehicle has been Cold tire inflation pres- parked for three hours or more, or has not sure been driven more than 1 mile or 1.5 km under that condition The maximum cold inflated pressure to which Maximum...
Page 517 8-1. Specifications Tire related term Meaning The combined weight of installed regular pro- duction options weighing over 5 lb. (2.3 kg) in excess of the standard items which they Production options replace, not previously considered in curb weight weight or accessory weight, including heavy duty brakes, ride levelers, roof rack, heavy duty 12-volt battery, and special trim A metal support for a tire or a tire and tube...
Page 518 8-1. Specifications Tire related term Meaning A pneumatic tire in which the ply cords that extend to the beads are laid at alternate Bias ply tire angles substantially less than 90 degrees to the centerline of the tread The tire structure, except tread and sidewall Carcass rubber which, when inflated, bears the load The breaking away of pieces of the tread or...
Page 519 8-1. Specifications Tire related term Meaning A tire designated by its manufacturer as pri- Light truck (LT) tire marily intended for use on lightweight trucks or multipurpose passenger vehicles The maximum load that a tire is rated to carry Load rating for a given inflation pressure The load rating for a tire at the maximum per- Maximum load rating...
Page 520 8-1. Specifications Tire related term Meaning The linear distance between the exteriors of the sidewalls of an inflated tire, excluding ele- Section width vations due to labeling, decoration, or protec- tive bands That portion of a tire between the tread and Sidewall bead The parting of the rubber compound from the...
Page 521 8-1. Specifications Designated seating Occupant distribution Vehicle normal load, capacity, Number of in a normally loaded Number of occupants occupants vehicle 2 through 4 2 in front 2 in front, 1 in second 5 through 10 seat 2 in front, 1 in second 11 through 15 seat, 1 in third seat, 1 in fourth seat...
Page 522: 8-2. Customization
The settings of these fea- tures can be changed using the multi-information display, on the audio system screen, or at your Toyota dealer. Customizing vehicle features When customizing vehicle features, ensure that the vehicle is parked in a safe place with the shift lever in P and the parking brake set.
Page 523 Customizable features Some function settings are changed simultaneously with other func- tions being customized. Contact your Toyota dealer for further details. Settings that can be changed on the audio system screen Settings that can be changed by your Toyota dealer Definition of symbols: O = Available, —...
Page 524 8-2. Customization Gauges, meters and multi-information display (P. 92, 96) ■ Function Default setting Customized setting French Language English O — Spanish miles (MPG Imperial) Units miles (MPG US) km (L/100 km) O — km (km/L) (when the vehicle is Convenience services stopped) (Suggestion function)
Page 525 8-2. Customization Smart key system and wireless remote control ■ (P. 132, 138, 142) Function Default setting Customized setting Operating signal Off to 7 (Buzzers) Operation signal (Emergency flashers) Time elapsed before automatic door lock 30 seconds function is activated if 60 seconds door is not opened after 120 seconds...
Page 526 8-2. Customization Wireless remote control (P. 128, 132, 138) ■ Function Default setting Customized setting Wireless remote control — O Driver’s door unlocked in one All doors unlocked in Unlocking operation step, all doors one step unlocked in two steps One short press Push twice Trunk unlocking opera-...
Page 527 8-2. Customization Moon roof (P. 171) ■ Function Default setting Customized setting Linked operation of com- ponents when mechani- Slide only Tilt only — O cal key is used (open only) Linked operation of com- ponents when wireless Slide only Tilt only —...
Page 528 8-2. Customization Lights (P. 212) ■ Function Default setting Customized setting Daytime running light system Welcome lighting — O Windshield wiper linked — O headlight illumination Intuitive parking assist (P. 286) ■ Function Default setting Customized setting Detection distance of the Near —...
Page 529 8-2. Customization Automatic air conditioning system (P. 332) ■ Function Default setting Customized setting A/C auto switch opera- Auto Manual tion Illumination (P. 346) ■ Function Default setting Customized setting Time elapsed before 15 seconds 7.5 seconds lights turn off 30 seconds Operation after...
Page 530 8-2. Customization WARNING ■ During customization As the hybrid system needs to be operating during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle.
Page 531: 8-3. Items To Initialize
8-3. Items to initialize Items to initialize The following items must be initialized for normal system opera- tion after such cases as the 12-volt battery being reconnected, or maintenance being performed on the vehicle: Item When to initialize Reference Message indicating mainte- •...
Page 532 8-3. Items to initialize...
Page 533: For Owners
For owners Reporting safety defects for U.S. owners......534...
Page 534: Reporting Safety Defects For U.s. Owners
National Highway Traffic Safety Administration (NHTSA) in addi- tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800- 331-4331). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 535: Index
(Troubleshooting) ....536 Alphabetical index ..... 540 For information regarding the equipment listed below, refer to “NAV- IGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”. • Navigation system • Audio/visual system • Toyota parking assist monitor • Panoramic view monitor • Toyota Entune...
Page 536: (Troubleshooting)
Toyota dealer. (P. 129) ● If you lose your electronic keys, the risk of vehicle theft increases signifi- cantly. Contact your Toyota dealer immediately. (P. 131) The doors cannot be locked or unlocked ● Is the key battery weak or depleted? (P. 439) ●...
Page 537 What to do if... (Troubleshooting) If you think something is wrong The hybrid system does not start ● Did you press the power switch while firmly depressing the brake pedal? (P. 190) ● Is the shift lever in P? (P. 192) ●...
Page 538 What to do if... (Troubleshooting) A warning buzzer sounds during driving ● The seat belt reminder light is flashing Are the driver and the passenger wearing the seat belts? (P. 455) ● The parking brake indicator is on Is the parking brake released? (P. 206) Depending on the situation, other types of warning buzzer may also sound.
Page 539 What to do if... (Troubleshooting) When a problem has occurred If you have a flat tire ● Stop the vehicle in a safe place and replace the flat tire with the spare tire. (P. 468) The vehicle becomes stuck ● Try the procedure for when the vehicle becomes stuck in mud, dirt, or snow.
Page 540: Alphabetical Index
Alphabetical index Alphabetical index Alarm .......... 82 Ambient lights ......348 A/C ..........332 Anchor brackets ......58 Air conditioning filter ..... 432 Antennas Automatic air (smart key system) ....142 conditioning system.... 332 Anti-lock Brake System (ABS) ........317 (Anti-lock Brake System)..
Page 541 Alphabetical index Back-up lights Care Replacing light bulb ....444 Aluminum wheels ....387 Battery (12-volt battery) ..411 Exterior ......... 386 Battery checking ....411 Interior ........389 If the battery is discharged..484 Seat belts......390 Preparing and checking Cargo capacity......
Page 542 Alphabetical index Child safety ........ 53 Cooling system......407 12-volt battery Hybrid system precautions....413, 489 overheating ......491 Airbag precautions....37 Cornering lights....... 213 Battery precautions..413, 489 Cruise control Child restraint system ..... 54 Dynamic radar cruise control How your child should wear with full-speed range ..
Page 543 Alphabetical index Door lock Doors ........132 ECO Accelerator Guidance ..103 Smart key system ....132 Eco drive mode......315 Wireless remote control ..132 Eco guide ......... 103 Doors ........132 Eco score ......... 103 Automatic door locking and unlocking systems ..
Page 544 Alphabetical index Emergency, in case of Engine coolant If a warning buzzer Capacity........ 502 sounds........ 452 Checking....... 407 If a warning light turns on..452 Preparing and checking If a warning message is before winter ...... 327 displayed ......462 Engine coolant temperature If the 12-volt battery is gauge ........
Page 545 Alphabetical index Fuel consumption ... 100, 125 Fuel filler door ......224 Flat tire........468 If the fuel filler door Floor mats ........24 cannot be opened ....228 Fluid Refueling ......224 Brake ........503 Fuses ........441 Hybrid transmission ....503 Washer .........
Page 546 Alphabetical index Hooks Coat hooks......370 I/M test ........398 Grocery bag hooks ....355 ICS (Intelligent Clearance Retaining hooks (floor mat)..24 Sonar)........294 Horn .......... 161 Warning light......454 HUD (Head-up display).... 115 Warning messages....305 Hybrid battery Identification (traction battery)......
Page 547 Alphabetical index Jack Lane Departure Alert with Positioning the jack....402 steering control (LDA) ..247 Vehicle-equipped jack... 468 Language (multi- Jack handle ......468 information display)....110 Jam protection function LATCH anchors ......59 Moon roof......172 LDA (Lane Departure Alert Power window.......
Page 548 Alphabetical index Multi-information display..96 Driving information....100 Maintenance Dynamic radar cruise control Do-it-yourself maintenance... 399 with full-speed range ..258 General maintenance ... 394 Language......110 Maintenance data ....498 LDA (Lane Departure Alert Maintenance with steering control) ..253 requirements ......
Page 549 Alphabetical index Paddle shift switches ....202 Radar cruise control Panic mode ......129 (dynamic radar cruise Panoramic view monitor control with full-speed Parking brake......206 range) ........258 Parking brake engaged Radiator........408 warning buzzer/ Rear Camera Detection message......209 Function.........
Page 550 Alphabetical index Reporting safety defects Seats......... 149, 151 for U.S. owners...... 534 Adjustment....149, 151 Resetting the message Adjustment indicating maintenance is precautions....150, 152 required........393 Child seats/child restraint Road accident cautions .... 77 system installation....58 Cleaning ....... 389 Driving position memory ..
Page 551 Alphabetical index Shift lever ......... 199 Speedometer......92 Hybrid transmission ....199 Sport mode ......315 If the shift lever cannot Steering lock be shifted from P ....203 Column lock release ..... 192 S mode ......... 201 Steering wheel ......160 Shift lock system .....
Page 552 Alphabetical index Fuel door opener switch ..227 Garage door opener Tachometer ........ 92 switches......371 Tail lights Heated steering wheel ..343 Light switch......212 Ignition switch ....... 190 Replacing light bulbs .... 444 LDA (Lane Departure Alert Theft deterrent system with steering control) Alarm ........
Page 553 Toyota Entune Wireless remote control..139 Toyota parking assist Trunk light monitor Trunk light......139 Toyota Safety Sense P .... 229 Wattage ........ 505 Automatic High Beam ... 216 Turn signal lights Dynamic radar cruise control Replacing light bulbs .... 444 with full-speed range ..
Page 554 Alphabetical index Warning lights ......87 ABS ........453 Vanity lights ......356 Brake hold operated Wattage ........ 505 indicator......454 Vanity mirrors ......356 Brake Override System ..453 Vanity lights ......356 Brake system......452 Vehicle data recording ....8 Charging system....
Page 555 Alphabetical index Washer........220 Checking....... 410 Preparing and checking before winter....... 327 Switch ........220 Washing and waxing ....386 Weight........498 Cargo capacity...... 187 Load limits......187 Vehicle capacity weight ..498 Wheels ........430 Replacing......430 Size........504 Window glasses.......
Page 556 13 gal. (49.3 L, 10.8 Imp. gal.) (Reference) Fuel type P. 500, 506 Cold tire inflation P. 504 pressure Engine oil capacity (Drain and refill — P. 501 reference) “Toyota Genuine Motor Oil” or equivalent Engine oil type P. 501...
