GameSir G4 pro - Wireless Controller Manual

SYSTEM REQUIREMENTS

Android 8.0 or above
iOS 13 or above
Windows 7/8/10
Mac OS

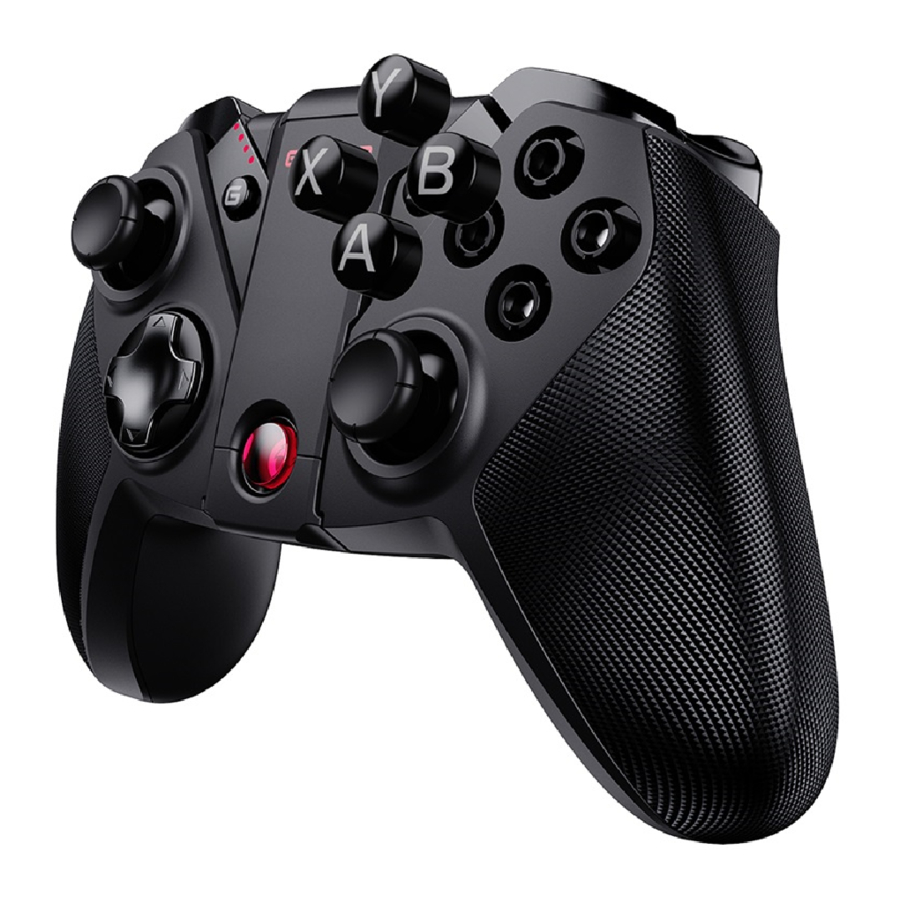

DEVICE LAYOUT

1. Left joystick
2. D-Pad
3. Select button
4. Home button
5. Start button
6. Right joystick
7. ABXY button
8. Turbo button
9. Screenshot button
10. Charging indicator
11. L2 button
12. L1 button
13. R2 button
14. R1 button
15. Type-C Connector
16. Receiver storage
17. Phone holder

HOW TO USE THE PHONE HOLDER

Push the phone holder up from the bottom of the controller to expand it.

HOW TO CHARGE THE CONTROLLER

Use the charging cable to connect the Type-C interface on the top of the controller to the USB charging port

BATTERY STATUS

Charging indicator	Description
	In use, 100% remaining
	In use, 75% remaining
	In use, 50% remaining
	In use, 25% remaining
Red light flashes quickly	Less than 15%
Red light flashes slowly	Charging
Red light stays on	Fully charged

TURN OFF

Long press the HOME button for 5 seconds to turn off the G4 pro.

CONNECT TO PC VIA USB RECEIVER OR USB CABLE

1. Long press the X + HOME until the controller is turned on
2. Plug the USB receiver into the USB port of your computer or use the USB cable to connect the controller to the computer USB port
3. The next time you connect to the computer, as long as you press and hold the HOME for 2 seconds to turn it on, the controller will auto connect to computer
   Note: If the controller has switched to other modes, you need to use the key combination again to reboot.
   If you still cannot connect after inserting the USB receiver, press and hold the G+S button for 5 seconds, and the controller will re-pair with the receiver after it restarts automatically.


CONNECT TO NINTENDO SWITCH OR SWITCH LITE VIA BLUETOOTH

1. Go to the home page of the Switch, and click: Controllers——change the grip / order and enter the pairing interface
2. Press and hold the Y + HOME until the controller is turned on
3. The controller will automatically pair with Switch or Switch Lite
4. The next time you connect to Switch or Switch Lite, as long as you press and hold the HOME for 2 seconds to turn it on, the controller will auto connect to Switch or Switch Lite
   Note: If you need to switch the gamepad to other modes, go to the Switch homepage, and click Controller—> Change the grip/order to enter the pairing page. Turn off the gamepad and press the key combination to turn it on and pair it with the Switch. If you need to cancel the pairing with the current gamepad for the Switch or the controller needs to be connected to the new Switch, please go to the Switch homepage, click in order: Controller—>Change the grip/order, and enter the pairing page. Press and hold the G+S button of the gamepad for 5 seconds, and the controller will re-pair with the Switch after it auto restarts.


CONNECT TO MOBILE PHONE VIA BLUETOOTH

Play Android controller-supported games Refers to mobile games that support using a gamepad

1. Press the A + HOME until the controller is turned on
2. Turn on the Bluetooth, search for Gamesir-G4pro gamepad, click and pair.
3. The next time you connect, as long as you press and hold the HOME for 2 seconds to turn it on, the controller will auto connect to mobile phone
   Note:If the gamepad needs to be switched to another mode, you need to turn off the gamepad and then use the key combination to turn it on again. Then turn on the mobile phone Bluetooth to search for Gamesir-G4pro and pair. If the Android phone ignores/cancel the Bluetooth pairing of the gamepad or connects to a new Android phone, you need to press and hold the G+S button for 5 seconds, and the gamepad will re-pair with the Android phone after it restarts automatically. Turn on the phone's Bluetooth, search for the Gamesir-G4pro, click and pair.


ONLINE TUTORIAL

To learn more about Android controller-supported games, Apple Arcade games, MFi games and how to use GameSir G4 pro, please scan the following QR code or refer to the online advanced user guide.

UPGRADE THE GAMEPAD VIA THE MOBILE APP

The GameSir mobile app can provide firmware upgrading and other functions.
Please scan the QR code to download

SCREENSHOT, RECORDING AND KEY COMBINATION

TURBO FUNCTION

AUTO SLEEP

When the gamepad is in a normal wireless connection, it will auto sleep within 600 seconds without any operation. When the gamepad is not connected, it will auto sleep within 120 seconds without any operation. After auto sleep, long press the HOME button for 2 seconds to wake up and connect the device.

NOTICE:
PLEASE READ THIS PRECAUTIONS CAREFULLY.

• CONTAINS SMALL PARTS. Keep out of reach of children under the age of 3. Seek immediate medical attention if swallowed or inhaled.
• DO NOT use the product near fire.
• DO NOT expose to direct sunlight or high temperatures.
• DO NOT leave the product in a humid or dusty environment.
• DO NOT impact the product or cause it to fall due to strong impact.
• DO NOT touch USB port directly or it might cause malfunctions.
• DO NOT strongly bend or pull cable parts.
• Use a soft, dry cloth while cleaning.
• DO NOT use chemicals such as gasoline or thinner.
• DO NOT disassemble, repair or modify.
• DO NOT use for purposes other than its original purpose. We are NOT responsible for accidents or damage when used for non-original purposes.
• DO NOT look directly at the optical light. It might damage your eyes.
• If you have any quality concerns or suggestions, please contact GameSir or your local distributor.

Nintendo Switch™ is a registered trademark of Nintendo Inc. All rights reserved. All other trademarks are property of their respective owners. Photos and illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. This product is not distributed under official license form or approved, sponsored or endorsed by Nintendo Inc. This product is not manufactured for Nintendo Inc.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
