Rollei Power Station 500 Manual

Before the First Use

Read the operating instructions and safety instructions carefully before using the appliance for the first time.

Keep the operating instructions together with the appliance for later use. If other people use this appliance, make this manual available to them. If you sell the appliance, this manual is part of the appliance and must be supplied with it.

Intended Use

This product is designed as a power station for use in a dry environment and for private use only.

Explanation of Symbols

The following symbols are used in this manual, on the flash, the power supply unit or on the packaging.

Products marked with this symbol comply with all relevant community regulations of the European Economic Area.

Products marked with this symbol are operated with direct current.

Products marked with this symbol are operated with alternating current.

Products with this symbol have additional or reinforced insulation and comply with protection class II.

Products marked with this symbol comply with Class VI of the Energy Efficiency Standard for Power Supplies.

Safety Instructions

Attention! Non-observance can lead to serious injuries¹⁾ or death – Do not disassemble, repair or modificate the unit or the battery.

• Do not place the unit near fire or in a fire and do not expose it to heat. The unit should also be protected from direct sunlight.
• Do not charge, use or store the unit in a bathroom or in an area exposed to rain or moisture.
• Use the output socket only to power the external equipment. Never connect the output socket to the mains.
• Do not under any circumstances touch the appliance or the outlet socket with wet hands.
• Do not connect any metallic objects to the DC input or AC output.
• Do not rub your eyes if liquid coming from inside the unit touches your hands.
• Do not dispose of the unit together with household waste.
• Only use the power supply unit supplied. Do not operate devices whose input voltage is higher than the specified value.
• Do not use the unit if it is not working properly.
• Do not move the unit when it is being charged or used.
• Do not insert your fingers or hands into the product.
• Do not use damaged or modified batteries or devices. Damaged or modified batteries may exhibit unpredictable behaviour. This will result in fire, explosion or risk of injury.
• Do not disassemble the power supply unit, but take it to a qualified service technician when service or repair is required. Incorrect reassembly may result in fire or electric shock hazard.

1) Serious injury includes blindness, burns, electrocution, fractures, poisoning, etc., which may result in complications, hospitalisation or permanent treatment.

Non-observance can lead to serious injury²⁾ or death

• Use and store the unit only in a clean and dry environment. do not use and store in a dusty and damp environment.
• Check the unit before each use. Do not use the unit if it is damaged or broken.
• Do not use the appliance if the power cord is damaged or broken.
• Keep the appliance away from children. Do not let children use the power supply under any circumstances. Keep this product away from pets.
• Do not use or store the unit in an area or environment with high temperature.
• If liquid from inside the unit gets on your skin or clothes, wash the affected parts with tap water.
• Unplug the power cord from the power outlet during storms.
• Do not charge the appliance in the power supply system whose voltage is outside 100 – 240 V.
• Do not place the unit on its side or upside down during use or storage.
• Do not use accessories for other purposes.

2) Injuries include burns, electric shocks, etc. that do not result in hospitalisation or permanent treatment.

Non-observance can lead to injuries and / or damage to property³⁾

• If you observe rust, peculiar odours, overheating or other abnormal conditions, stop using the unit and contact your dealer or support.
• The unit complies with all legal requirements for the transport of dangerous goods.
• Ensure that the unit is properly secured when transported in a motor vehicle.
• Only charge, use and store the unit within an ambient temperature range of 0 to 40°C (32 to 104°F).
• Switch off the unit immediately if it is accidentally dropped or exposed to vibration.
• Carefully read the instructions for the electrical equipment you intend to connect.
• Before connecting, make sure that the connected device is switched off.

Risk of explosive gases

• Follow these instructions and those published by the battery manufacturer and the manufacturer of any equipment you intend to use near the battery to reduce the risk of battery explosion.
• Check the warning labels on these products.

Personal safety precaution

• Never allow smoke, sparks or flames near the battery.
• Take extra care to reduce the risk of dropping a metal tool on the battery. This may cause the battery or other electrical part to spark or short circuit, which may cause an explosion.
• Do not expose the power supply unit toM fire or excessive temperature. Fire or temperatures above 130°C may cause explosions.

3) Property damage includes buildings, belongings, pets, etc.

Observe!

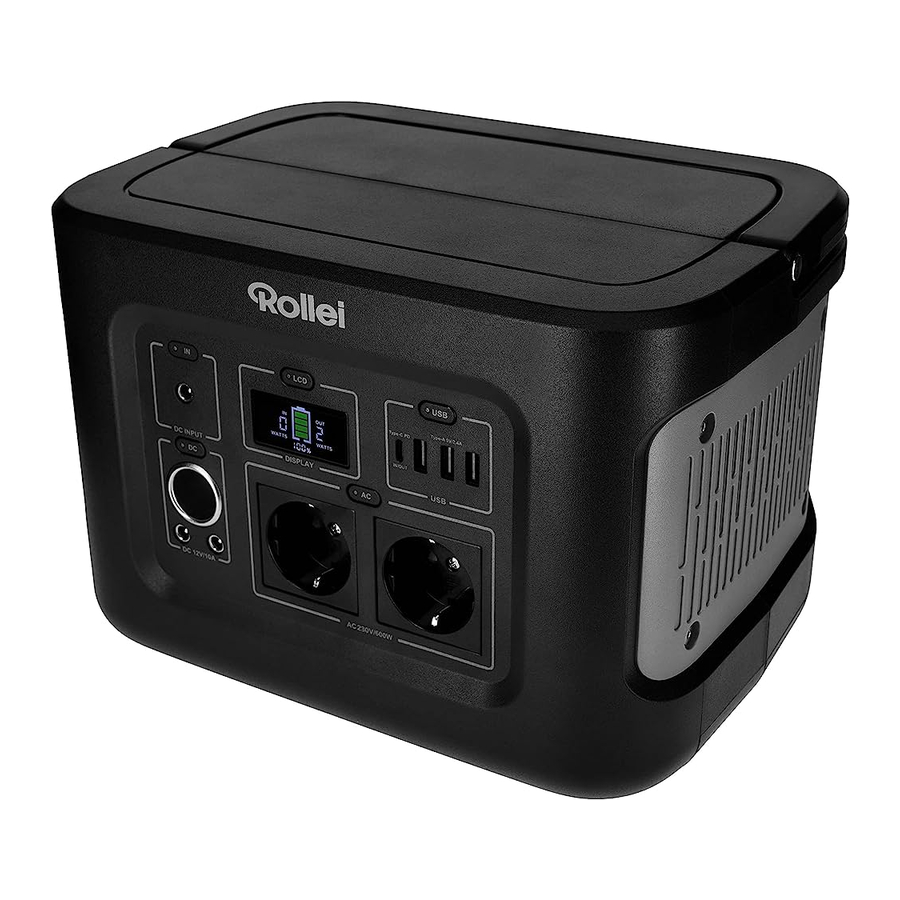

Components

8. USB output on/off button
9. USB-A output ports
10. USB-C PD input/output connector
11. AC output on/off button
12. 230 V AC output connectors
13. Foldable handle
14. Emergency light on/off button
15. Emergency light

Charging

Green energy first: We advocate using green energy as a priority. Before using or storing the Power Station, plug your Power Station into the wall socket until it is fully charged. When the Power Station is fully charged, all four battery charging lights will be solid green and the LCD digital display will show 100%. If the LCD shows that the battery capacity is less than 20%, connect the Power Station to a power source such as a wall socket or solar panel as soon as possible.

Notes:

• For optional or dual charging, the Power Station can also be charged via the USB-C PD port using a USB-C charging adapter (not included).
• The Power Station can also be charged via a solar panel (not included) and car charger (not included).
• The Power Station can be charged and discharged at the same time.

There are five ways to charge your Power Station:

• Charging via the power socket (90.0 W)
  Charging time approx. 6.0 hours.
  Use the mains cable included in the delivery.
• Charging via a solar panel (100.0 W / optional)
  Charging time approx. 6.5 hours (depending on weather conditions).
• Charging via solar / solar generator connection (optionally available)
  With solar/solar generators and their adapters, two or three solar panels can be connected in series. To ensure that the solar panel can produce the maximum power, make sure that you use the same type of solar panel type when connecting them in series.
• Charging in the car
  Charging time approx. 4.5 hours.
  This product can be charged via the 12 V car connection. Start the vehicle before charging to prevent the car battery from discharging and your vehicle from not starting.
  In the meantime, make sure that the car charger and the cigarette lighter in the car make a good connection and make sure that the car charger is fully plugged in. Also, when the car is driving on bumpy roads, it is forbidden to use the car charger as it may burn out due to a bad connection. Rollei GmbH & Co. KG is not liable for any damage caused by non-standard operation.
• Charging via USB-C connection (PD 100.0 W)
  Charging time approx. 6.0 hours.
• Dual charging via power socket and USB-C connection
  Charging time approx. 4.0 hours.

Charging Cycles / Runtimes

Selection of commercially available devices and their power requirements:

Power Station 500
Smartphone 38x	Cooler 8.0 hours
Notebook 19x	TV set 4.0 hours
Drone 6x	Heating 1.0 hours
E-bike 0.5x	Electric blanket 7.0 hours
Fan 16.0 hours

Button Functions

• LCD button: To switch on the LCD display, press the LCD button. The LCD will automatically turn off after 15 seconds if nothing is connected to the output terminals.
• DC on/off button: To switch on, press the DC on/off button. The DC indicator lights up and the LCD screen turns on. To switch the unit off, press the DC On/Off button.
  Note: The inputs and outputs of the Type-C connection are not controlled by the general ON/OFF button.
• AC On/Off button: To switch on, press the AC On/Off button. The AC indicator lights up and the LCD screen turns on. To switch the unit off, press the AC On/Off button.
  Note: To conserve battery power, turn off the DC, USB and AC outputs when the unit is not in use. The standard standby time of the AC output is 8 hours. If there is no charging for 8 hours, the AC power switch switches off automatically.

Connections

Using the 230 V AC output connections:
The Power Station can be used to power your electronic devices, equipment and appliances at 220 – 240 V and 400 watts. First connect the AC mains plug of your appliance/equipment/equipment into the AC output of the Power Station and then press the AC on/off button.

Note: Make sure that the AC power plug is fully inserted into the AC output.

The Power Station provides up to 800 watts of peak power for 5 seconds.

Using the 12 V DC outlet and the 5525 outlets:
The Power Station can be used to power your 12 V DC electronic devices, equipment and appliances. First press the DC on/off button and then connect your 12 V compatible device/equipment/appliance to the power outlet or the 5525 output port(s).

USB Smart Charge Technology:
Your portable power station incorporates USB Smart Charge Technology to provide greater compatibility when charging USB electronic devices. USB Smart Charge Technology allows the Power Station to communicate with your electronic device and provide the fastest and safest charge for that device.

Using the USB ports:
The Power Station is compatible with the USB charging cable supplied with your electronic device. First press the DC on/off button, then plug the standard USB end of the cable into one of the 5V/2.4A USB output ports. Plug the other end into the input of your electronic device to start charging. For the PD (Power Delivery) output, use a USB-C to USB-C cable (not included) to charge your compatible electronic devices.

Using the Emergency Light

• Press the emergency light on/off button once to turn it on.
• Press the emergency light on/off button twice to reduce the brightness to 50%.
• Press the emergency light on/off button three times to set the brightness to 100%.
• Press the emergency light on/off button four times to turn off the emergency light.
• Double-click the emergency light on/off button to switch on the light in SOS mode.

Troubleshooting

If the Power Station fails to charge or power devices, check the following steps:

• Make sure the general Power ON/OFF button is ON. The buttons are green.
• Check the battery capacity. If it is less than 3%, charge the Power Station.
• Make sure that the power consumption does not exceed the rated power of the connection.
• If an error code occurs, refer to the error code table on the next page.
• Do not operate the Power Station outside the permissible operating temperature. (-10 – 40°C).

Error Codes

	Input overvoltage protection: The symbol flashes for 5 seconds when an input overvoltage is detected.
	Output overload protection: The symbol flashes for 5 seconds when an AC output overload is detected.
	Low power alarm: The icon flashes when the Power Station battery capacity is less than 3%.
	Low temperature alarm: The low temperature symbol is displayed when an attempt is made to use the Power Station outside the permissible operating temperature.
	High temperature alarm: This high temperature symbol is displayed when an attempt is made to use the Power Station outside the permissible operating temperature.

Technical Data

Disposal

Dispose of the packaging according to its type. Use the local possibilities for collecting paper, cardboard and other materials (applicable in the European Union and other European countries with systems for the separate collection of recyclable materials).

Devices that are marked with this symbol must not be disposed of with household waste! You are legally obliged to dispose of old devices separately from to dispose of household waste. Information on collection points that accept old appliances free of charge can be obtained from your local authority or town council.

Batteries and rechargeable accumulators must not be dis posed of in household waste! As a consumer you are legally obliged to dispose of all batteries and accumulators, whether they contain harmful substances* or not, to be disposed of in an environmentally sound manner. Accumulators and batteries are therefore marked with the symbol shown opposite. For more infor mation, contact your dealer or contact return and collection points in your community.

*marked with: Cd = Cadmium, Hg = Mercury, Pb = Lead.

Conformity

Rollei GmbH & Co. KG hereby declares that this device "Rollei Power Station 500" complies with the following directives:

2011/65/EU RoHS Directive
2014/30/EU EMC Directive
2014/35/EU Low Voltage Directive
2009/125/EC ERP Directive

The full text of the EU Declaration of Conformity is available at the following internet address:
www.rollei.com/egk/powerstation500

Rollei GmbH & Co. KG
In de Tarpen 42
D-22848 Norderstedt
Germany
