Mayer EMI MD900 Manual

Hide thumbs Also See for MD900:
Table of Contents

Advertisement

Quick Links

Download this manual
MD900
Update XVAOS 2.20 A
V1.0A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD900 and is the answer not in the manual?

Questions and answers

Related Manuals for Mayer EMI MD900

Summary of Contents for Mayer EMI MD900

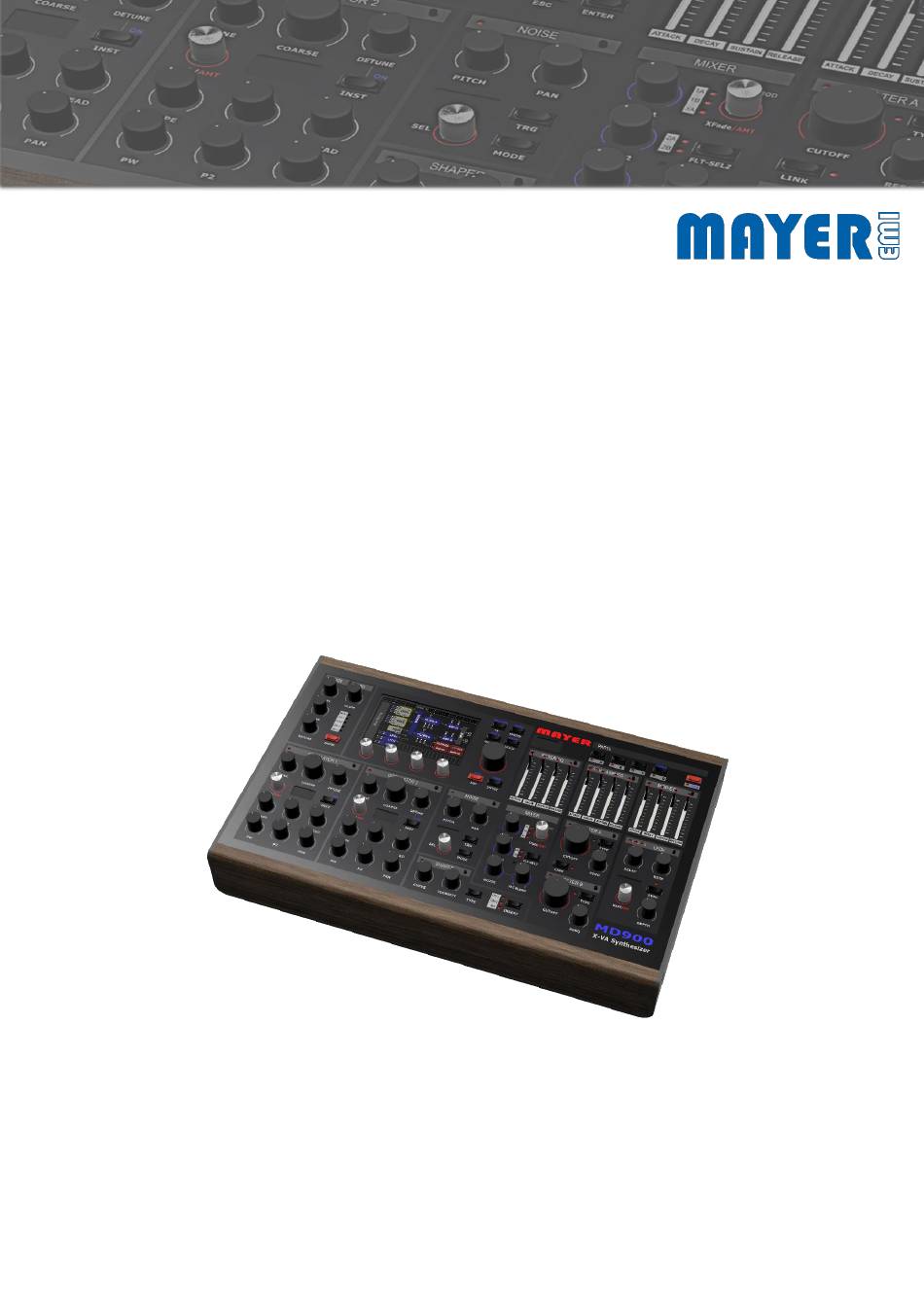

  • Page 1 MD900 Update XVAOS 2.20 A V1.0A...

  • Page 2: Table Of Contents

    PREFACE NEW FUNCTIONS & ENHANCEMENTS LFOS SHAPER: OSCILLATOR 1&2 NOISE FILTER MATRIX PART CLIP...

  • Page 3: Preface

    MD900 Preface Version 2.20 contains a number of stability improvements, in the "Synth Engine" and essentially the graphical user interface. The "workflow" remains completely unchanged. Only further information like popup windows (load/save) or more info on panel level, were added to allow a better overview.

  • Page 4: New Functions & Enhancements

    MD900 New functions & enhancements LFOs FIXED: Quantization noise with slow modulations (FILTER, OSC-Phase,…) The LFOs have got new waveforms: PLS_HL: PLS_LH: PLS_DECENT: SIN_VARIANTS:...
  • Page 5 MD900 LFO Wavetable [USER]: Used defined "Wavetable" , this is done by the 16 points which are internally interpolated to a complete high resolution "Wavetable". These points can be moved vertically directly on the touch display and smoothed with the help of the SMOOTH parameter (0-100%).

  • Page 6: Shaper

    MD900 SHAPER: Is now implemented. The Pre(Gain) parameter sets the working range in unit gain. The CURVE parameter changes the curve depending on the shaper type. TYPEN:  TANH  HARD  ARC  SIN  EXP  CRUSHER The insert of the SHAPER can be done after OSC1 or OSC2 or the MIX of all OSC1, OSC2, NOISE (see MIXER).
  • Page 7 MD900 FM-FACTOR: Allows setting the multiplier for frequency modulation. (x0.1, x1, x2, x5, x10) FM-DEVIATION: This parameter controls the phase position of the UNISONO oscillators and is only active with UNISON > 2,3,4. If these are detuned to each other by the DETUNE parameter (see Oscillator Panel), phase shifts occur between these UNISONO signals.

  • Page 8: Noise

    MD900 NOISE This sample-based oscillator has been extended with a "multisample functionality". Features: • Mono Stereo Samples, • Note Range • Velocity Range • Panorama • 2 x Regions parallel (Mono Samples -> Stereo) These multisamples are stored in the preset just like the single samples. This also preserves the portability.

  • Page 9: Matrix

    MD900 MATRIX The modulation matrix has been extended with the possibility to choose between Bipolar/Unipolar. Modulation Sources (SRC) Reference OSC1.out, OSC2.out Bipolar Output (-1 to +1) LFO1.out, LFO2.out, LFO3.out Bipolar Output (-1 to +1) EG-A.CV, EG-B.CV, EG-FLT.CV, EG-MOD.CV Unipolar Output (0 to +1) FLTA.out, FLTB.out...
  • Page 10 Bipolar as shown in the figure. RANDOM generates a random value between 0 and +1.0 at each MIDI note hit. Modulation Destination (DST) Reference Only the new targets are indicated here (see Md900 Instruction Manual Modulation Targets, page 62,63) SHAPER.CM...

  • Page 11: Clip

    MD900 PART Improvement of the display of loaded presets & category independently of the selection view. a e P ese P e e Popup Load / Store, for presets with multi samples the loading time can take several seconds, The preset is fully loaded when the popup disappears.
