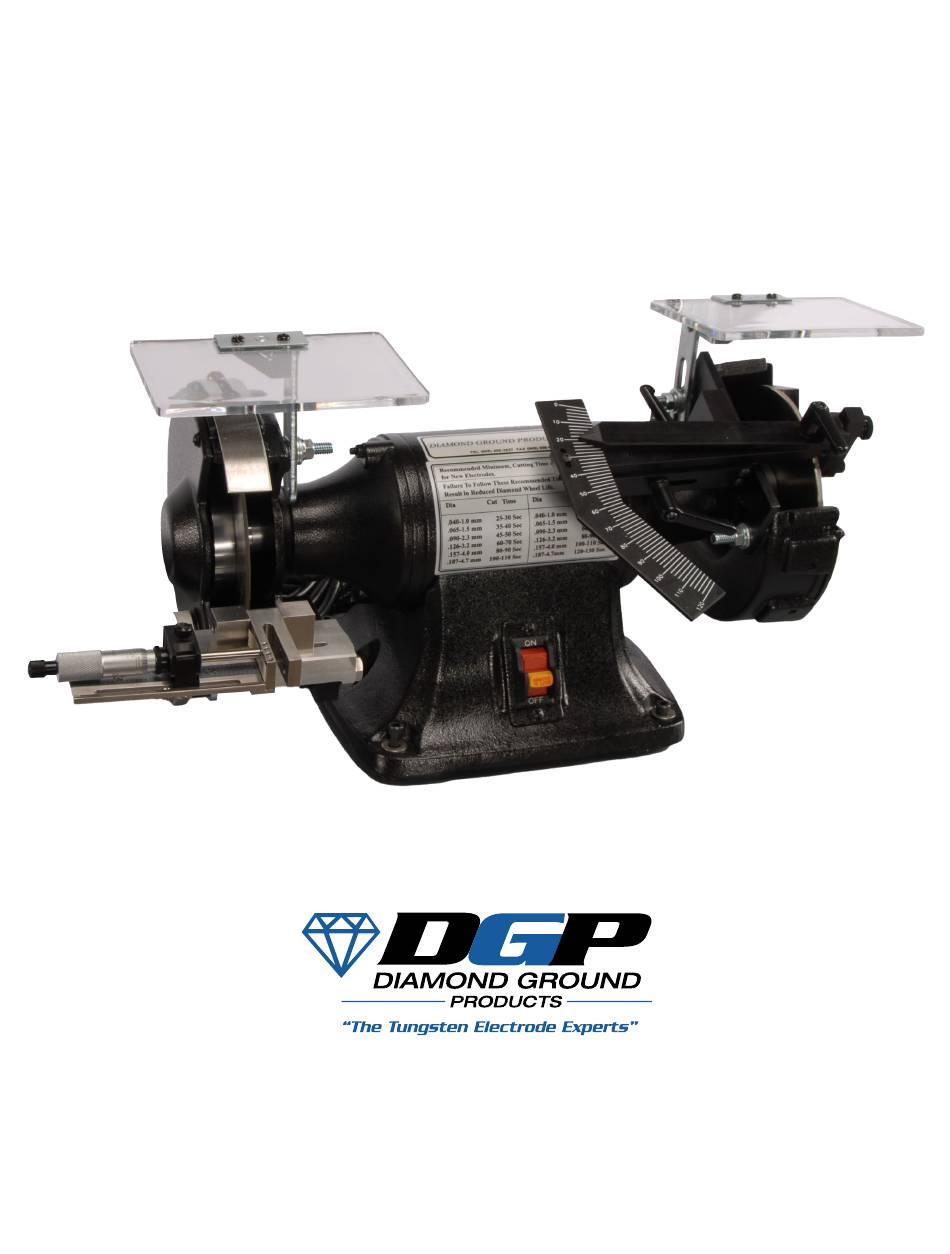

- Page 1 DGP-3 & DGP-3-V2 Model 3 Tungsten Grinder USER MANUAL 2651 Lavery Court • Newbury Park, CA 91320 Tel: 805.498.3837 • Fax: 805.498.9347 • sales@diamondground.com www.diamondground.com DGP-3 & DGP-3-V2 User Manual Rev:B • 05/16/2023...
-
Page 2: Table Of Contents
Tips for effective use Recommended grinding times Other Information 9, 11 Exploded Views - Left & Right Sides 10, 12 Parts Lists - Left & Right Sides Accessories and Consumables Parts List DGP-3 & DGP-3-V2 User Manual Rev:B • 05/16/2023... -
Page 3: Dgp-3 & Dgp-3-V2
DGP-3 constists of a horizontal axis grinder that can be pedestal mounted, a diamond grinding wheel and assembly on the right side, and a general purpose aluminum oxide wheel for general shop uses on the left side. The DGP-3-V2 adds foam-insulated cabinet, vacuum system for dust collection, and a flexible spotlight in addition to the DGP-3 features. -
Page 4: Specifications
3. Collets (two of your choice) - used to guide the tungsten and hold it at the proper angle while grinding. 4. Scale Setting Rod and Block - used to calibrate the angle positioner from time to time as the wheel becomes worn. -
Page 5: Operator Information
• Check for damaged parts and alignment of moving parts, binding of moving parts, breakage of mounting parts, and any other condition that may affec tthe grinders operation. • Consult DGP factory for replacement parts at (805) 498-3837. 9. WORK AREA SHOULD BE READY FOR THE JOB •... -
Page 6: Troubleshooting Chart
(without power) MOUNTING THE DGP-3 The DGP-3 stand alone grinder (without vacuum system and cabinet) should be mounted to a solid horizontal surface (mounting hardware is not provided). If mounted to a metal cabinet or pedestal, align the mounting holes with the corresponding holes in the cabinet or pedestal. -
Page 7: Operating
1. If the tungsten you are using is already flat at the end, like new tungsten straight out of the box, proceed to Step 4. 2. Locate the Block Point Flat Dresser (DGP-F180) attached at the 12 o’clock position of the right side wheel cover. -
Page 8: Tips For Effective Use
See page 13 for the part number. Also note, a microscope or comparator 3. Up and down positioning: Adjust the electrode can be used to verify the angle (taper) of the grind in a grinder assembly using the vertical adjustment knob very precise and efficient manner. - Page 9 DGP-3 PRECISION TUNGSTEN GRINDER LEFT SIDE DGP-3 & DGP-3-V2 User Manual Rev:B • 05/16/2023...
-
Page 10: Parts Lists - Left & Right Sides
Screw - Pan Head #10-24 x 3/8 — OBSOLETE DGP-PG1397 Screw - SHC #10-32 x 5/8 SST (CHECK W/ ASSEMBLY) DGP-PG1420 Spacer - 5/16 ID x 19/32 OD x 3/8 — OBSOLETE DGP-F050 Support Arm DGP-F222 Upright Bar — OBSOLETE DGP-F222 Upright Bar (CUT IN HALF) —... - Page 11 DGP-3 PRECISION TUNGSTEN GRINDER RIGHT SIDE DGP-3 & DGP-3-V2 User Manual Rev:B • 05/16/2023...
- Page 12 Screw — BHSCS #8 32X1/2” Black DGP-F230 Support Bracket DGP-F222 Upright Bar — OBSOLETE DGP-P730 Washer — Flat #10X1/2” OD X 3/32” DGP-P725 Washer — Flat 3/8” DGP-P724 Washer — Split Lock 3/8” — OBSOLETE DGP-PG1425 Wheel — Diamond - 300 Grit (STANDARD) DGP-PG1426 Wheel —...
-
Page 13: Accessories And Consumables Parts List
ACCESSORIES AND CONSUMABLES PARTS LIST DESCRIPTION PART NO. 300 Grit Grinding Wheel - For grinding .040” to 3/32” (1.0mm to 2.4mm) DGP-PG1425 600 Grit Grinding Wheel - For grinding 3/32” to 3/16” (2.4mm to 4.8mm) DGP-PG1426 Aluminum Oxide Wheel DGP-P770...
