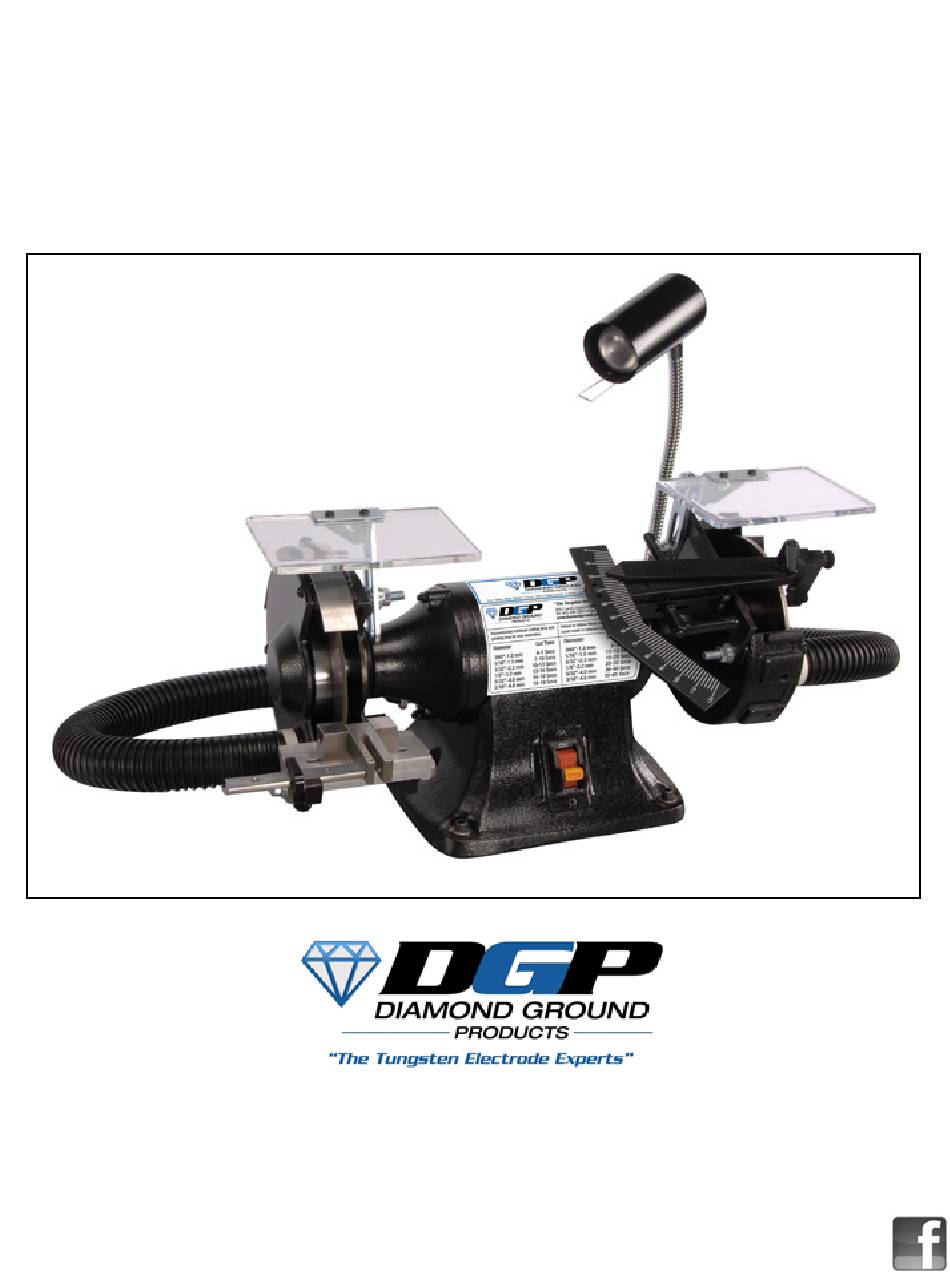

- Page 1 DGP-2 AND DGP-2-V2 TUNGSTEN GRINDERS USER’S MANUAL since 1992 2651 Lavery Court • Newbury Park, CA 91320 Tel: 805.498.3837 • Fax: 805.498.9347 sales@diamondground.com www.diamondground.com Document: DGP-2 & DGP-2-V2 Tungsten Grinder Product User Manual | Released: 5/13, Rev. A...
-
Page 2: Table Of Contents
Operating Tips for effective use Recommended grinding times Other Information Exploded view of the DGP-2 9,11 Parts List 10,12 Accessories and Consumable Parts List Page 2 Document: DGP-2 & DGP-2-V2 Tungsten Grinder Product User Manual | Released: 5/13, Rev. A... -
Page 3: General Description
The DGP-2 and DGP-2-V2 Tungsten Electrode Grinders offer precise grinding for your precision welding needs. The DGP-2 consists of a horizontal axis grinder that can be pedestal mounted, a diamond grinding wheel and assembly on the right side, and a general purpose aluminum oxide wheel for general shop uses on the left side. -
Page 4: Specifications
4. WarrantY The DGP-2 & DGP-2-V2 comes with a one-year warranty on parts and labor, excluding wheels that are a comsumable part that naturally wears over time. This warranty also excludes abuse to the machine, dropping of the unit or improper handling by the operator. -
Page 5: Operator Information
• Wear face mask or dust mask. • Be alert and think clearly. Never operate power tools when tired, intoxicated, or when taking medications that cause drowsiness. Page 5 Document: DGP-2 & DGP-2-V2 Tungsten Grinder Product User Manual | Released: 5/13, Rev. A... -
Page 6: Grinder Maintenance
• Check for damaged parts and alignment of moving parts, binding of moving parts, breakage of mounting parts and any other condition that may affect the grinders operation. Consult DGP factory for replacement parts at: (805) 498-3837. -
Page 7: Mounting The Dgp-2
1. If the tungsten you are using is already flat at the end, like new tungsten straight out of the box, proceed to Step 4. 2. Locate the Point Flat Dresser Block (DGP-F180) attached at the 12 o’clock position of the right side wheel cover. Find the hole that matches the diameter of your tungsten and turn on the grinder. -
Page 8: Tips For Effective Use
Accessories wheels. If you grind tools or other metal items, other than electrodes, there is always the risk of contaminating the wheels. Page 8 Document: DGP-2 & DGP-2-V2 Tungsten Grinder Product User Manual | Released: 5/13, Rev. A... - Page 9 LEFT SIDE OF DGP-2 PRECISION TUNGSTEN GRINDER Page 9 Document: DGP-2 & DGP-2-V2 Tungsten Grinder Product User Manual | Released: 5/13, Rev. A...
-
Page 10: Parts List
WASHER - FLAT - #10 X 7/16 OD X .05 THK SST DGP-PG1398 WASHER - SPLIT LOCK - #6 SST DGP-PG1399 SCREW - SHC - 3/8-16 X 3/4 - ALLOY - BLACK Page 10 Document: DGP-2 & DGP-2-V2 Tungsten Grinder Product User Manual | Released: 5/13, Rev. A... - Page 11 RIGHT SIDE OF DGP-2 PRECISION TUNGSTEN GRINDER Page 11 Document: DGP-2 & DGP-2-V2 Tungsten Grinder Product User Manual | Released: 5/13, Rev. A...
- Page 12 GRINDER - BENCH 6” SINGLE PHASE 1/3 HP DGP-F180-A BLOCK POINT FLAT DRESSER DGP-P550 SCREW SET SHC CUP DGP-P179 1/4”-20 X 3/8” KNOB DGP-PG1334 1/4” WASHER FLAT SS Page 12 Document: DGP-2 & DGP-2-V2 Tungsten Grinder Product User Manual | Released: 5/13, Rev. A...
-
Page 13: Accessories And Consumable Parts List
To order your replacement parts, or if we may assist you, please call us: 2651 Lavery Court • Newbury Park, CA 91320 Tel: 805.498.3837 • Fax: 805.498.9347 sales@diamondground.com www.diamondground.com Page 13 Document: DGP-2 & DGP-2-V2 Tungsten Grinder Product User Manual | Released: 5/13, Rev. A...
