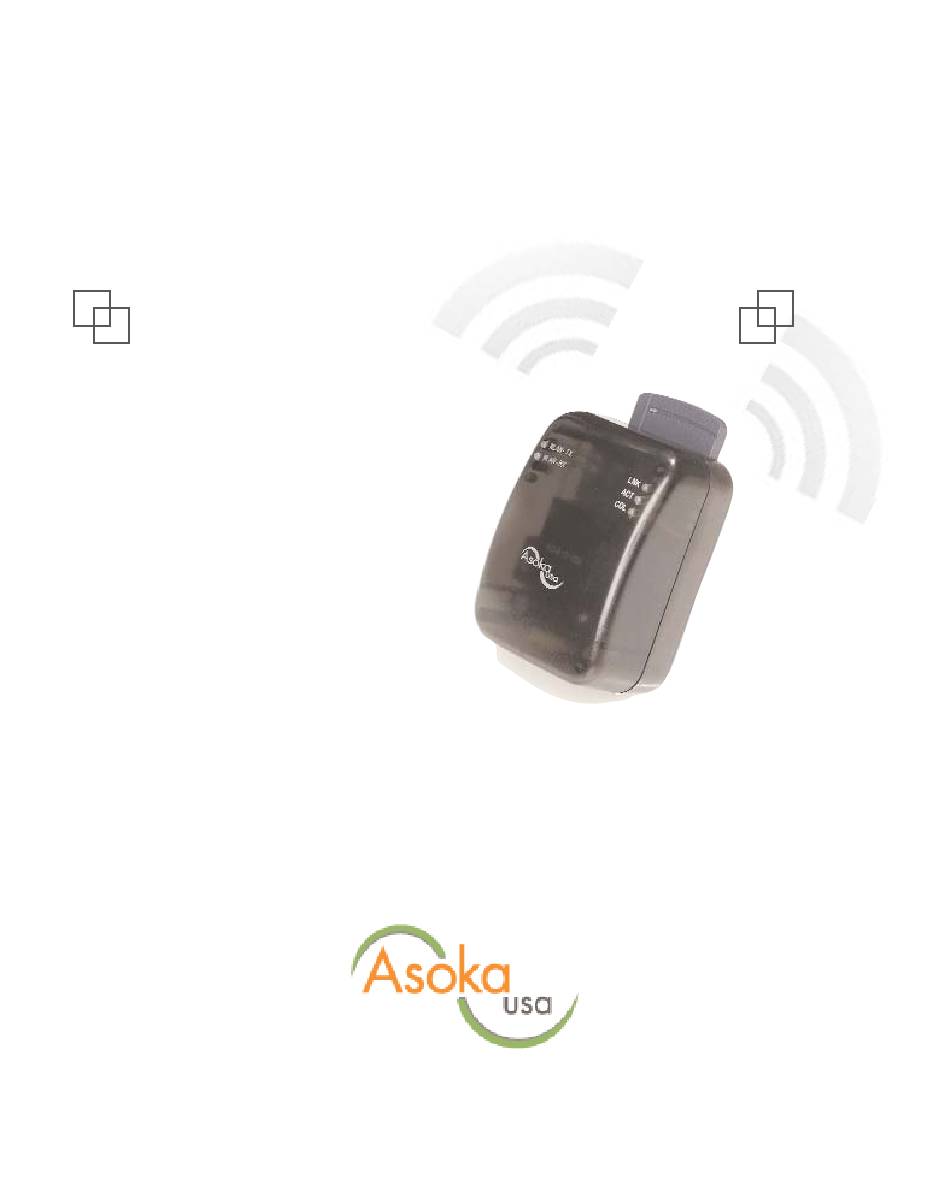

PlugLink™ Wireless Access Point
User Guide
Turning Every Outlet into Network Access Point
© 2003. Asoka USA Corporation. All Rights Reserved. Asoka, PlugLink, and the Asoka Logo are trademarks of
Asoka USA Corporation. Other product and company names mentioned herein may be trademarks and/or reg-
istered trademarks of their respective companies.
Part Number: 65-9520-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PlugLink PL9520-WAP and is the answer not in the manual?

Questions and answers

Related Manuals for Asoka PlugLink PL9520-WAP

Summary of Contents for Asoka PlugLink PL9520-WAP

  • Page 1 User Guide Turning Every Outlet into Network Access Point © 2003. Asoka USA Corporation. All Rights Reserved. Asoka, PlugLink, and the Asoka Logo are trademarks of Asoka USA Corporation. Other product and company names mentioned herein may be trademarks and/or reg- istered trademarks of their respective companies.
  • Page 2 User Guide for any other purpose is in violation of United States copyright laws. While every precaution has been taken in the preparation of this document, Asoka assumes no responsiblity for errors or omissions. This document and features described herein are subject to change without notice.

  • Page 3: Table Of Contents

    PlugLink™ Wireless Access Point User Guide Table of Content Section Page Introduction Important Safety Information Getting Intimate with your Powerline Device Getting Started PC or Laptop Setup Guide PL9520-WAP Setup Guide Accessing the PL9520-WAP Setting up the IP Address on the PL9520-WAP Other Features Appendix A: Specifications Appendix B: Limited Warranty Information...

  • Page 4: Introduction

    We are confident that the one you purchase will meet your own exacting standards. Thank you for choosing Asoka and, by all means, enjoy your PlugLink Wireless Access Point. For the latest product information, please visit us on the web at...

  • Page 5: Important Safety Information

    PlugLink™ Wireless Access Point User Guide Important Safety Information This product is intended for connection to the AC power. The following precautions should be taken when using this product. - Read all instructions before installing and operating this product. - Follow all warnings and instructions marked on the product. - Do not operate this product near water.

  • Page 6: Getting Intimate With Your Powerline Device

    Asoka™ PlugLink Family Getting Intimate with your Powerline Device Before installing your powerline networking device, please take a moment to examine and familiarize yourself with it. Below is a diagram of the PL9520-WAP along with a brief description of what each LED and slot represent.

  • Page 7: Getting Started

    PlugLink™ Wireless Access Point User Guide Getting Started What This Package Contains? Upon receiving your wireless access point, please check to make sure the following contents are packaged: - PlugLink Wireless Access Point (PL9520-WAP) - Wireless Compact Flash Card - User's manual Necessary Equipment? - One or more computers using either an Ethernet, USB, or another PL9520-WAP...

  • Page 8: Pc Or Laptop Setup Guide

    Asoka™ PlugLink Family PC or Laptop Setup Guide Note: If you have not installed your PCMCIA wireless card to your lap- top as of yet, please do so. For instructions on how to install your PCMCIA wireless card, please contact the manufacturer of that wireless card.

  • Page 9: Pl9520-Wap Setup Guide

    PlugLink™ Wireless Access Point User Guide 4. In the SSID field, type in the following: PL9520-WAP (This is case sensitive) 5. Click on the Apply Changes button. 6. In the Tx field make sure Fully Automatic is selected. 7. PS Mode should not be checked. 8.
  • Page 10 Asoka™ PlugLink Family 10. Click OK to close the Network panel. 11. You will need to restart the PC in order for the changes to take effect. Windows 2000 / XP 1. Open Network Connections. - Win 2000: Click on Start, Settings, then Network, and Dial-up Connections.

  • Page 11: Accessing The Pl9520-Wap

    PlugLink™ Wireless Access Point User Guide 8. Click OK to close the Network panel and the changes will take effect when this panel is closed. Log onto the PL9520 and change the powerline password as well as the IP address according to your existing network. Accessing the PL9520-WAP 1.
  • Page 12 Asoka™ PlugLink Family 3. The information screen should now appear in the browser window. Here is where the Firmware revision, MAC address of the WAP, and current IP address are displayed. 4. Click on the Powerline Tab.

  • Page 13: Setting Up The Ip Address On The Pl9520-Wap

    PlugLink™ Wireless Access Point User Guide 5. The default powerline password is HomePlug. If your existing powerline password is different, change this password accordingly. 6. Click on the Save button. 7. Click on the Reboot button when it appears. A small window will then appear asking you to confirm your changes, click Yes.
  • Page 14 Asoka™ PlugLink Family 8. Click OK to close the Network panel. You will need to restart the PC in order for the changes to take effect. Windows 2000 / XP 1. Open Network Connections. - Win 2000: Click on Start, Settings, then Network and Dial-up Connections.

  • Page 15: Other Features

    PlugLink™ Wireless Access Point User Guide The changes will take effect when this panel is closed. Open a new web browser and type in the new PL9520s IP address to ensure the changes have taken affect. Other Features Associations Tab - This screen lists all stations that are associated with this unit.
  • Page 16 Asoka™ PlugLink Family Security Tab - Here is where you can adjust security and encryption settings. The following can be set: - AP visibility - Enable WEP - Set WEP key lengths - Set WEP Keys 1 - 4 - Set the WEP key to use...
  • Page 17 PlugLink™ Wireless Access Point User Guide Notes...

  • Page 18: Appendix A: Specifications

    Asoka™ PlugLink Family Appendix A: Specifications Standard Compliance LED Status Lights Operating Temperature ® • HomePlug v1.01 WLAN-TX, WLAN-RX 32°F to 131°F • Windows ® 98SE, 2000, LNK, ACT, COL (0°C to 55°C) ME & XP Compatible Power Input Storage Temperature •...

  • Page 19: Appendix B: Limited Warranty Information

    Asoka; (b) if you use parts not manufactured or sold by Asoka; or (c) to damage caused by modification of the product or as a result of service by anyone other than Asoka or an Asoka-authorized service provider.

  • Page 20: Appendix C: Fcc Statement

    Asoka™ PlugLink Family Appendix C: FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation.

  • Page 21: Appendix D: Tech Support Information

    PlugLink™ Wireless Access Point User Guide Appendix D: Technical Support Please contact the Asoka Service and Support Center at: Asoka USA Corporation 820 American Street San Carlos CA 94070 Technical Support Tel: (650) 591-3189 Fax: (650) 591-3782 E-mail: support@asokausa.com url: http://www.asokausa.com...
  • Page 22 Asoka USA Corporation Making Connectivity a Reality...
