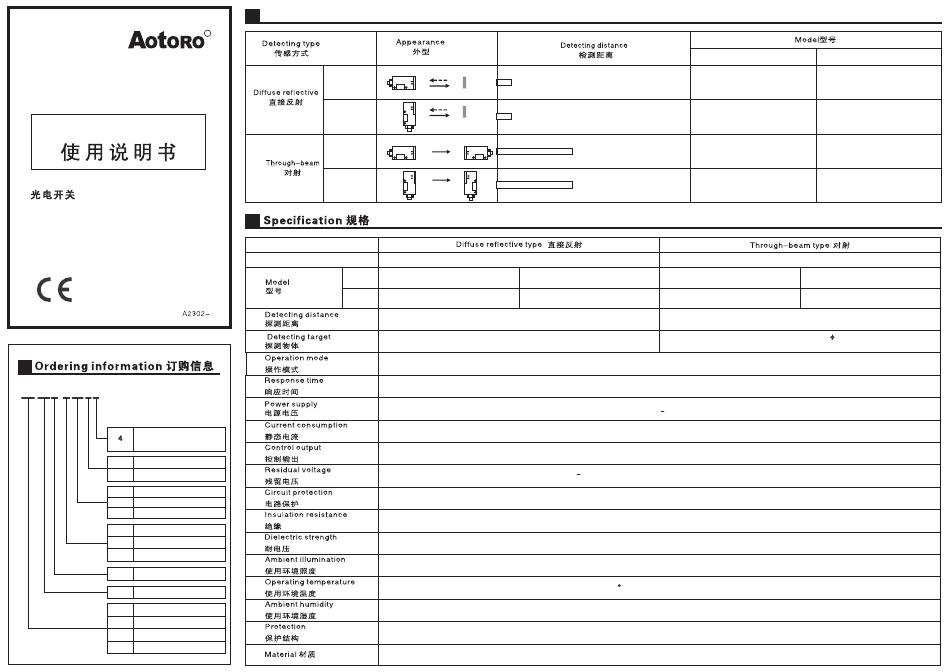

Aotoro ED45 Series Instruction Manual

ED 45
小型直流通用型
DC univesal type
INSTRUCTION MANUAL
PHOTOELECTRIC SENSOR

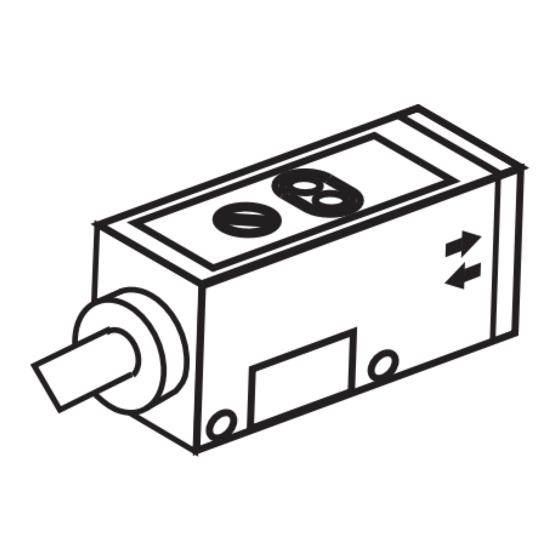

ED45L-D30C4
Light ON or Dark ON selec-
table by wiring 通过接线选
择入光ON或遮光ON
Control
C
DC NPN output
output
控制输出
B DC PNP output
30
Detecting 30cm
distance
3 3m
检测距离
10
10m
D Diffuse reflective直接反射
Detecting
method
Retro reflective反射板反射
R
传感方法
Through-beam 对射
T
L
Lateral detection侧面检测型
Serial number
side length 外壳边长
45
设计序号
EK Relay contact output触点输出型
ER 圆柱型
Cylindrical type
Photoelectric switch
光电开关
DC univesal type 通用型
ED
EU Groove shape type 槽型
型号选择
Model selectable
R
conventional type
常规型
Lateral detection
侧面检测型
conventional type
常规型
Lateral detection
侧面检测型
Detection 检测方式
Function 机能
NPN
PNP
16
30cm
30cm
10m
10m
Infrared beam type 红外光源型
ED45-D30C4 ED45L-D30C4
ED45-D30B4 ED45L-D30B4
30cm
(White paper 白纸 10x10cm)
Transparent, Translucent, Opaque material
透明体，半透明体，不透明体
Light ON or Dark ON selectable by control wiring 通过控制线选择入光ON或遮光ON
Open collector output: Max.100mA 集电极开路输出
Max.1V (Load current less than 10mA) 负载电流小于10mA时
Max.2V (Load current less than 10-100mA) 负载电流10mA-100mA时
Short-ciruit protection, Reverse polarity protection短路保护，电源反连接保护
Sunlight太阳光：Max.10000lx, Incandescent lamp日光灯：Max.3000lx
-20 to 60 C(non-freezing condition 不结冰）
NPN OUTPUT
Infrared LED(红外光) ED45-D30C4
Infrared LED(红外光)
ED45L-D30C4
发 射 ：ED45-T10DL
Infrared LED(红外光)
接 收 ：ED45-T10C4
发 射 ：ED45-T10DL
Infrared LED(红外光)
接 收 ：ED45L-T10C4
Infrared beam type 红外光源型
ED45-T10DL ED45-T10C4
ED45-T10DL ED45-T10B4
Opaque materials of Min. 10mm
直径10mm以上不透明体
Max.1ms
DC12-24V+10%以下
Max.15mA
Min.20MΩ(500VDC)
1500VAC 50/60HZ for 1minute
35 to 85%RH
IP 64
Case: ABS, Lens: PC
PNP OUTPUT
ED45-D30B4
ED45L-D30B4
发 射 ：ED45-T10DL
接 收 ：ED45-T10B4
发 射 ：ED45-T10DL
接 收 ：ED45L-T10B4
ED45-T10DL ED45L-T10C4
ED45-T10DL ED45L-T10B4
0-10m
