Aotoro ED 30 Instruction Manual

ED 30
小型直流通用型
DC univesal type
INSTRUCTION MANUAL

PHOTOELECTRIC SENSOR

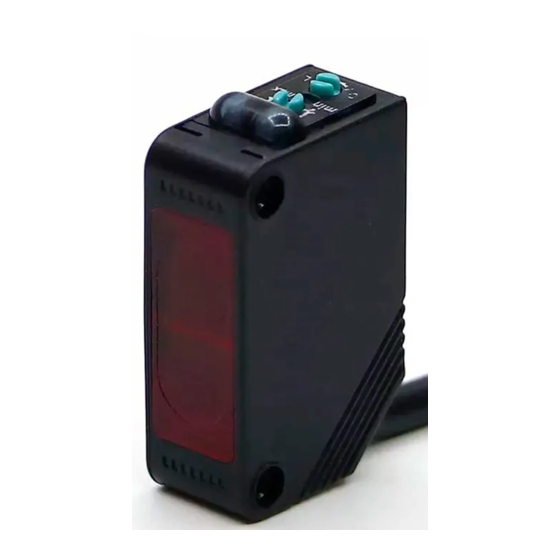

ED30-D10C4-R
only when
I
Infrared LED(红外光)
customizing
*
仅定制时标注
R Red LED(红色光)
Light ON/Dark ON switch
selectable 通过开关选择
入光ON或遮光ON
Control
C
DC NPN output
output
控制输出
B DC PNP output
10
10cm
Detecting
80 80cm
distance
检测距离
3
3m
15 15m
D Diffuse reflective直接反射
Detecting method
Retro reflective反射板反射
R
传感方法
T Through-beam 对射
Serial number
side length 外壳边长
30
设计序号
EK Relay contact output触点输出型
ER 圆柱型
Cylindrical type
Photoelectric switch
光电开关
DC univesal type 通用型
ED
EU Groove shape type 槽型
型号选择

Model selectable

R
Detection 检测方式
Function 功能
NPN
PNP
14
10cm
30cm
80cm
3m
Red LED type 红色光型
Red LED type 红色光型
ED30-D10C4 ED30-D30C4
ED30-D10B4 ED30-D30B4
10cm 30cm
(White paper 白纸 10x10cm) (White paper 白纸 10x10cm)
Transparent, Translucent, Opaque material
透明体，半透明体，不透明体
Light ON or Dark ON switch selectable 通过开关选择入光ON或遮光ON
Max.1V (Load current less than 10mA) 负载电流小于10mA时
Max.2V (Load current less than 10-100mA) 负载电流10mA-100mA时
Short-ciruit protection, Reverse polarity protection短路保护，电源反连接保护
Sunlight太阳光：Max.10000lx, Incandescent lamp日光灯：Max.3000lx
NPN OUTPUT
Red LED(红色光)
ED30-D10C4
Red LED(红色光) ED30-D30C4
Infrared LED(红外光) ED30-D80C4
ED30-R3C4
Red LED(红色光)
发射：ED30-T15DL
15m Infrared LED(红外光)
接收：ED30-T15C4
type 红外光型 Red LED type 红色光型
Infrared LED
ED30-D80C4 ED30-R3C4
ED30-D80B4 ED30-R3B4
80cm
(White paper 白纸 30x30cm)
Opaque materials of Min. 30mm
直径30mm以上不透明体
Max.1ms
DC12-24V+10%以下
Max.15mA
Open collector output: Max.100mA 集电极开路输出
Min.20MΩ(500VDC)
1500VAC 50/60HZ for 1minute
-20 to 60 C(non-freezing condition 不结冰）
35 to 85%RH
IP 64
Case: ABS, Lens: PC
PNP OUTPUT
ED30-D10B4
ED30-D30B4
ED30-D80B4
ED30-R3B4
发射：ED30-T15DL
接收：ED30-T15B4
type 红外光型
Infrared LED
ED30-T15DL ED30-T15C4
ED30-T15DL ED30-T15B4
0-3m 0-15m
Opaque materials of Min. 10mm
直径10mm以上不透明体
