San Paulo Gas Firepit with Cast Alum Top

ITM./ART#: 1135399

MODEL#: FG-SNPFP17

ANSI Z21.97/CSA 2.41-2014

Outdoor Decorative Gas Appliances

Installer: Leave these instructions with consumer.

Consumer: Keep these instructions for futhre reference.

Questions,Problems,Missing Parts? Before

returning to your retailers, contact Foremost Groups

Customer Relations Department toll free number at

1-855-390-5474 (USA), or 001-855-286-4931 (Int)

between the hours of 8:30 am and 5:00 pm EST, Mon-

day thru Friday or fax your request to (973) 428-8026

or email us at customerservice@foremostgroups.com

Table of Contents

Need help?

Do you have a question about the VERANDA CLASSICS FG-SNPFP17 and is the answer not in the manual?

Questions and answers

Bruce W Van Kleeck

July 7, 2025

The igniter does not make a clicking sound when attempting to light. I checked the battery polarity. I was able to to get the firepit lit with a secondary flame source. Can you do something besides changing out the igniter box?

Khanh Bremer

July 6, 2025

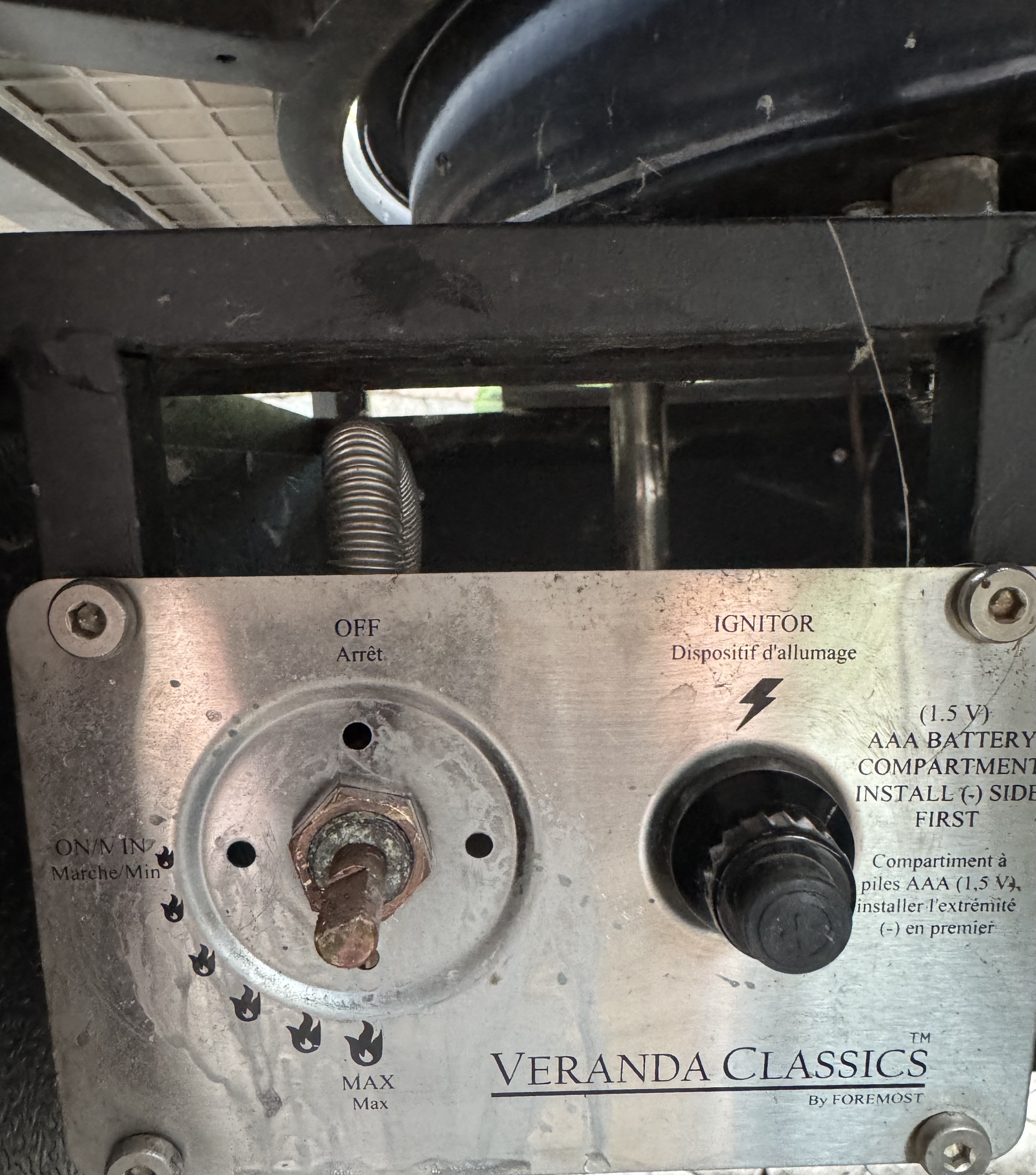

I have a veranda by foremost fire pit and the control panel where the knob fits rusted over and so we can’t get the gas on. How do I buy replacement parts? Thanks

Summary of Contents for Foremost VERANDA CLASSICS FG-SNPFP17

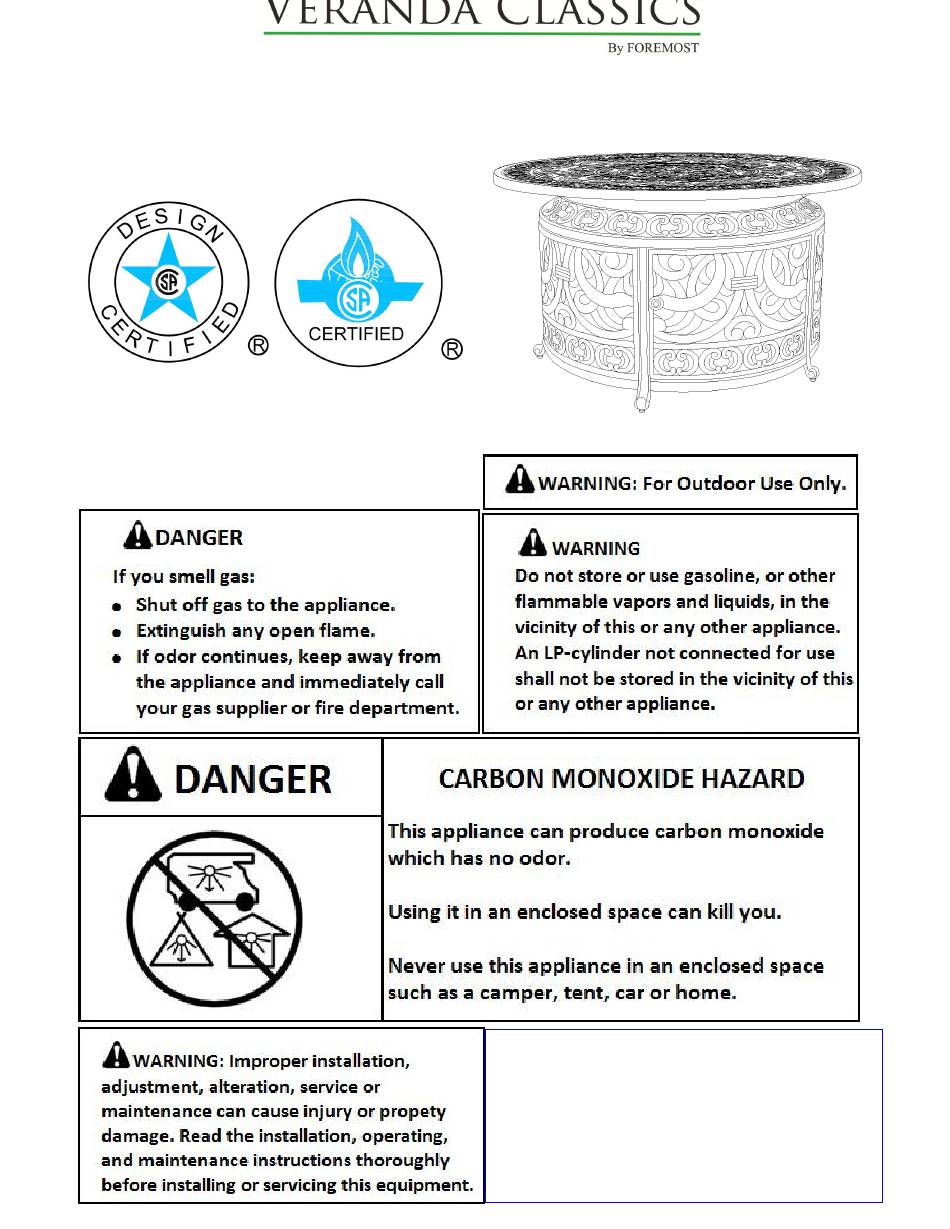

Page 1 Consumer: Keep these instructions for futhre reference. Questions,Problems,Missing Parts? Before Questions,Problems,Missing Parts? Before returning to your retailers, contact Foremost Groups returning to your retailers, contact Foremost Groups Customer Relations Department toll free number at Customer Relations Department toll free number at...
Page 2: Important Safety Information
1. Do not use this product during windy conditions. 2. This product should be used on a flat and stable surface to avoid overturning. 3. This product produces high temperatures that will create hot surfaces. Appropriate care should be used to avoid physical contact with these surfaces. 4.
Page 3: Specifications
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS 1. The LP-gas supply cylinder to be used must be constructed and marked in accordance with the U.S. Deparment of Transportation (D.O.T.) Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable.
Page 4: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Table Top Table Base Burner Cover Door Fire Glass Beads(33 lbs) 2 pkg PART DESCRIPTION PICTURE QUANTITY Stud (5/16”*30) Washer Spring washer Nut (5/16”) Wrench ASSEMBLY INSTRUCTIONS 1. Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before beginning assembly of product.
Page 5 3. Align The Door (D) insert the hole of the table base (B) by Stud (K) through lock washer (L) using hex screw driver (M). (see Figure 4). PART DESCRIPTION PICTURE QUANTITY Stud (1/4”*25) Washer Hex Screw Driver Figure 4 4.
Page 6: Natural Gas Conversion
6. Secure the cylinder by tightening clockwise the butterfly screw found on the cylinder holder (see Figure 7), so that the cylinder cannot move from side to side or fall down. Figure 7 STOP STOP NATURAL GAS CONVERSION Natural gas conversion must be performed only by natural gas provider or service company. 1.
Page 7 3. Replace the propane orifice with the natural gas orifice, screw the natural gas orifice with the bellows tightly, then connect and tighten the natural gas orifice with inlet tube (see Figure 10). Natural gas orifice (dia4.19mm size) is painted with black mark. inlet tube natural gas orifice Figure 10...
Page 8 BATTERY Make sure the control knob is in the “OFF” position. Unscrew the push button cap on the ignitor module located on the control panel to access the battery compartment. The ignitor module requires one AAA size battery (See Figure 14). WARNING: 1.
Page 9: Lighting Instructions
inlet tube-bellows connection (Figure 18) gas valve-hose connection (Figure 17) To perform a leak test: 1. Make 2~3 oz. of leak solution by mixing one part liquid dishwashing detergent and three parts water. Noted: make sure control knob is “OFF”. 2.
Page 10: Care And Maintenance
Observe Flame Height When Lit: Flame should be a blue / yellow color between 1~2 in. height (see Figure 20). Good Figure 20 CARE AND MAINTENANCE To enjoy the outstanding performance from your fire pit, make sure you perform the following activities on a regular basis: 1.
Page 11: Parts List
PARTS LIST PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Burner Gas control knob Pilot box Hose assembly Fire bowl Bakelite Orifice Heat shield Thermocouple Table top Electrode tip Base Bellows Door Pulse ignition system Burner cover Control panel Rating plate...
Page 12: Illustrated Parts List
ILLUSTRATED PARTS LIST Burner Fire bowl Pilot box Orifice Thermocouple Electrode tip Bellows Pulse ignition system Control panel Gas control knob Hose assembly Bakelite Heat shield Table top Base Door Rating plate Fire glass...
Page 13: Hardware Contents
HARDWARE CONTENTS PART DESCRIPTION IMAGE QUANTITY Stud (5/16”*30) Washer, 4 sets Spring washer Nut (5/16”) Wrench 1 sets REPLACEMENT PARTS LIST Part# Description H-GFP-001 Burner H-GFP-002 Pilot box H-GFP-003 Fire bowl H-GFP-004-LP Orifice (for Liquid Propane use) H-GFP-004-NG Orifice (for Natural Gas use) H-GFP-005 Thermocouple H-GFP-006...
Page 14 All warranty claims must be submitted with a dated register receipt within the warranty period. Should replacement of the warranted item be unavailable, Foremost Groups Inc. reserves the right to substitute items of our choice similar in style, color and qual- ity.
