Harmony Outdoor Gas Fire Pit with Porcelain Tiles
ITM./ART.#: FIGS545GFPB
ANSI Z21.97/CSA 2.41-2014
Outdoor Decorative Gas Appliances
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for further reference.
Questions,Problems,Missing Parts? Before
returning to your retailers, contact Foremost Groups
Customer Relations Department toll free number at
1-800-443-1410 (USA), between the hours of 8:30
am and 5:00 pm EST, Monday thru Friday or fax
your request to (973) 428-8026 or email us at
customerservice@foremostgroups.com
Advertisement
Table of Contents
Related Manuals for Foremost VERANDA CLASSICS Harmony
Summary of Contents for Foremost VERANDA CLASSICS Harmony

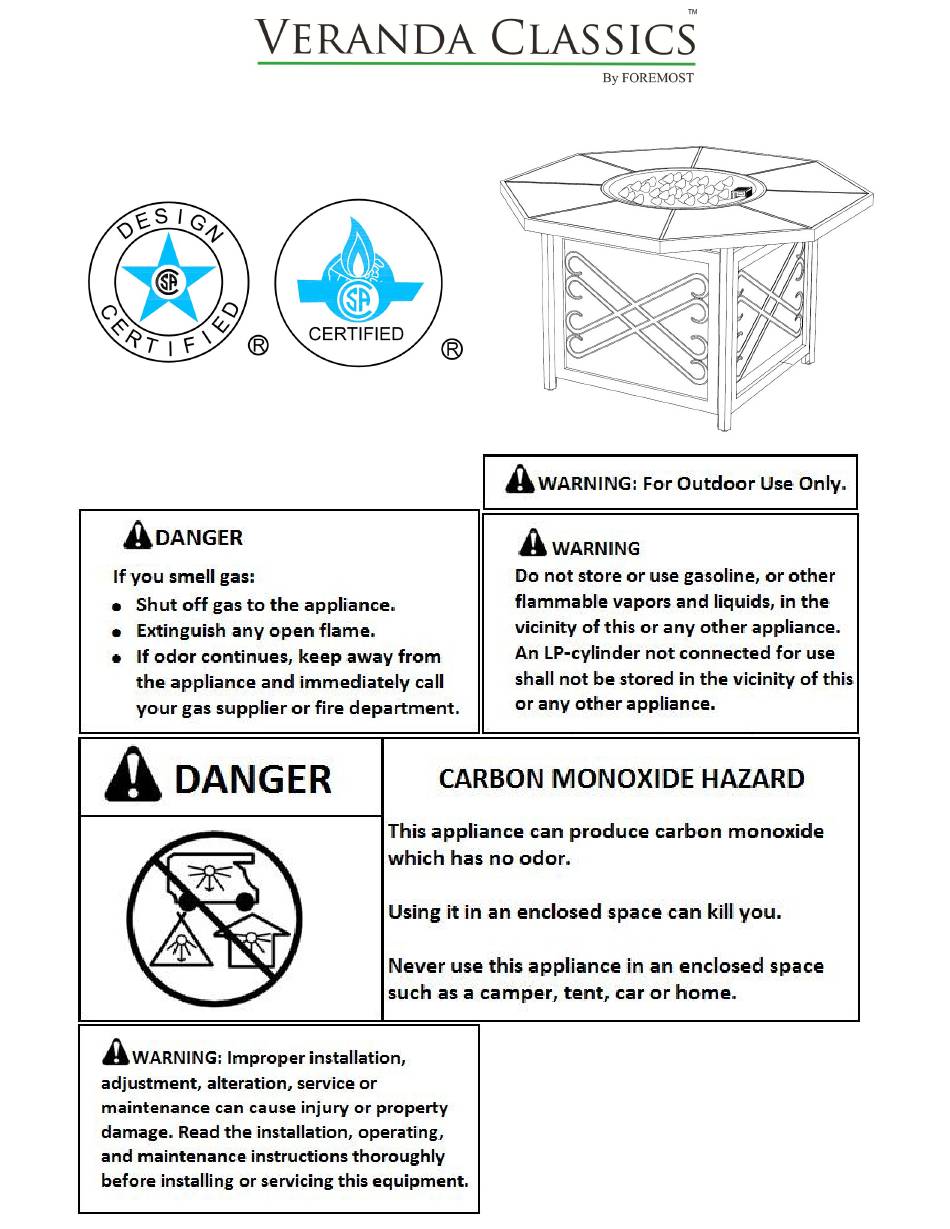

- Page 1 Installer: Leave these instructions with consumer. Consumer: Keep these instructions for further reference. Questions,Problems,Missing Parts? Before returning to your retailers, contact Foremost Groups Customer Relations Department toll free number at 1-800-443-1410 (USA), between the hours of 8:30 am and 5:00 pm EST, Monday thru Friday or fax your request to (973) 428-8026 or email us at customerservice@foremostgroups.com...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION 1. The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 NFPA 54; National Fuel Gas Code; Natrual Gas and Propane Installation Code, CSA ● B149.1;... -
Page 3: Specifications
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS 1. The LP-gas supply cylinder to be used must be constructed and marked in accordance with the U.S. Deparment of Transportation (D.O.T.) Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable. -
Page 4: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Table top frame Base assembly 10pcs Porcelain tile (8pcs for assembly, 2pcs for replacement) Lava rock (15.4 lbs) 1 pkg PART DESCRIPTION PICTURE QUANTITY Stud (5/16”*30) Washer Spring wahser Nut (5/16”) Wrench ASSEMBLY INSTRUCTIONS 1. Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before beginning assembly of product. - Page 5 3. Put the Porcelain Tile (C) into Table Top Frame (A), (See Figure 4). Figure 4 4. Put the Lava Rock (D) around the burner, then remove the label from the pilot box (see Figure 5). A gas fire pit requires 15.4 lbs lava rock. WARNING: Keep children away during assembly, as this item contains lava rock, which are small pieces and can be swallowed by children.
-
Page 6: Natural Gas Conversion
6. Secure the cylinder by tightening clockwise the butterfly screw found on the cylinder holder (see Figure 7), so that the cylinder cannot move from side to side or fall down. Figure 7 STOP STOP NATURAL GAS CONVERSION Natural gas conversion must be performed only by natural gas provider or service company. 1. - Page 7 3. Replace the propane orifice with the natural gas orifice, screw the natural gas orifice with the bellows tightly, then connect and tighten the natural gas orifice with inlet tube (see Figure 10). Natural gas orifice (dia4.30mm size) is painted with black mark. inlet tube natural gas orifice Figure 10...
- Page 8 BATTERY Make sure the control knob is in the “OFF” position. Unscrew the push button cap on the ignitor module located on the control panel to access the battery compartment. The ignitor module requires one AAA size battery (See Figure 14). WARNING: 1.
-
Page 9: Lighting Instructions
inlet tube-bellows connection (Figure 18) gas valve-hose connection (Figure 17) To perform a leak test: 1. Make 2~3 oz. of leak solution by mixing one part liquid dishwashing detergent and three parts water. Noted: make sure control knob is “OFF”. 2. -
Page 10: Care And Maintenance
Observe Flame Height When Lit: Flame should be a blue / yellow color between 1~2 in. height (see Figure 20). Good Figure 20 CARE AND MAINTENANCE To enjoy the outstanding performance from your fire pit, make sure you perform the following activities on a regular basis: 1. -
Page 11: Parts List
PARTS LIST PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Bakelite Burner Heat shield Pilot box Door Fire bowl Base Orifice Table top frame 10pcs (8pcs for Thermocouple Porcelain tile assembly, 2pcs for Electrode tip replacement) Bellows Gas cylinder protective ring Pulse ignition system Wheel assembly Control panel Foot glider (M8) -
Page 12: Illustrated Parts List
ILLUSTRATED PARTS LIST Fire bowl Pilot box Burner Orifice Thermocouple Electrode tip Bellows Pulse ignition system Control panel Bakelite Gas control knob Hose assembly Base Table top frame Door Heat shield Wheel assembly Foot glider (M8) Porcelain tile Gas cylinder protective ring Rating plate Lava rock... -
Page 13: Replacement Parts List
HARDWARE CONTENTS PART DESCRIPTION IMAGE QUANTITY PART DESCRIPTION IMAGE QUANTITY Bolt (1/4”x25), Stud (5/16”*30) 3 sets Washer, Spring Washer, 4 sets washer Spring washer Nut (5/16”) Wrench Bolt (1/4”x50), 1 set Washer, Spring Hex screw driver washer REPLACEMENT PARTS LIST Part# Description H-GFP-001... - Page 14 Also excluded: loss of use of time and or inconvenience, money, travel, packaging or any other consequential or incidental damages. In no event shall Foremost Groups Inc. responsibility exceed the value of the replacement product. Warranty is to the original purchaser when items are purchased from one of our authorized retailers and is not transferable.
