- Page 1 User’s Guide Dell S2318HN/S2318NX Model No.: S2318HN/S2318NX Regulatory model: S2318Nc...
- Page 2 Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft and Windows are either trademarks or registered trademarks of Microsoft. Corporation in the United States and/or other countries, Intel is a registered trademark of Intel Corporation in the U.S.
-
Page 3: Table Of Contents
Contents About Your Monitor ..............5 Package Contents ..................5 Product Features ..................6 Identifying Parts and Controls ..............8 Plug and Play Capability ................11 LCD Monitor Quality and Pixel Policy ..........11 Maintenance Guidelines ................. 11 Setting Up the Monitor ............12 Connecting the Stand ................ - Page 4 Using the Tilt .....................33 Troubleshooting ..............34 Self-Test .....................34 Built-in Diagnostics ..................35 Common Problems .................36 Product-Specific Problems ..............38 Appendix ....................39 FCC Notices (U.S. Only) and Other Regulatory Information ..39 Contact Dell ....................39 Setting Up Your Monitor ................ 40 Monitor Specifications ............42 Contents...
-
Page 5: About Your Monitor
Package Contents Your monitor ships with the components shown below. Ensure that you have received all the components and Contact Dell if something is missing. NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries. -
Page 6: Product Features
∞ Safety and Regulatory Information Product Features The Dell S2318HN_S2318NX flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), In-plane Switching panel and LED backlight. The monitor features include: S2318HN/S2318NX: 58.42 cm (23 inch) viewable area display (measured ∞... - Page 7 BFR/PVC-Reduced (Its circuit boards are made from BFR/PVC-free laminates). ∞ High Dynamic Contrast Ratio (8,000,000:1). ∞ 0.3 W standby power when in the sleep mode. ∞ Energy Gauge shows the energy level being consumed by the monitor in real ∞ time.
-
Page 8: Identifying Parts And Controls

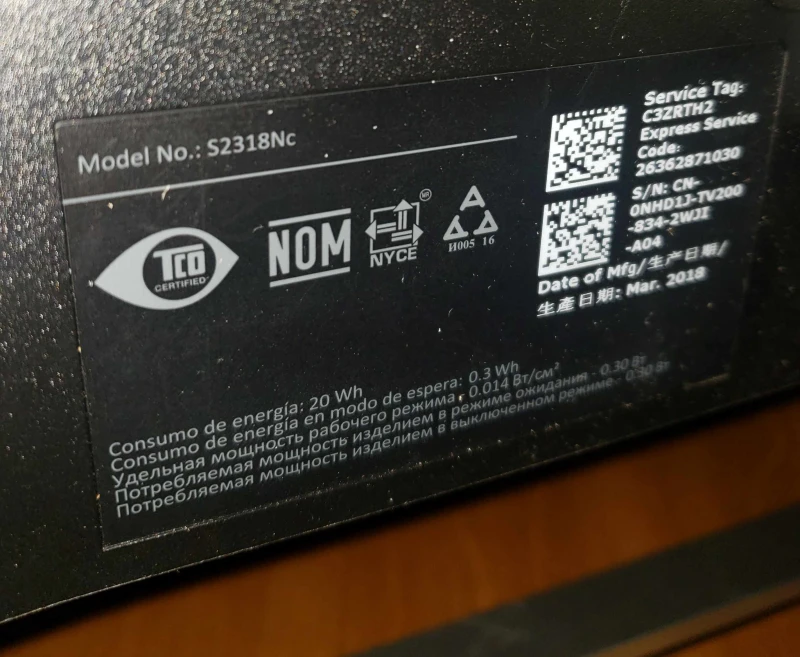

Identifying Parts and Controls Front View Front panel controls Label Description Function buttons (For more information, see Operating your Monitor) Power On/Off button (with LED indicator) NOTE: For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces. - Page 9 (security lock not included). Regulatory label (including Lists the regulatory approvals. Refer to Barcode serial number and this label if you need to contact Dell for Service Tag label) technical support. The Dell service tag is used for Dell warranty and customer service management purposes and for records of the base system.
- Page 10 Side View Bottom View Bottom view without monitor stand Label Description Power-adapter port To connect the monitor power cable using a 12V DC adapter for transition. Audio Line Out port Connect to external speakers (Optional Purchase)* Audio Line In port Connects the audio cable (Optional Purchase) from the source device to the monitor.
-
Page 11: Plug And Play Capability
During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: www.dell.com/support/monitors. -
Page 12: Setting Up The Monitor
Setting Up the Monitor Connecting the Stand NOTE: The stand is detached when the monitor is shipped from the factory. NOTE: The following steps is applicable for a monitor with a stand. To attach the monitor stand: 1. Fit the stand riser and stand base together, and then turn in the stand base. 2. -
Page 13: Connecting Your Monitor
Connecting Your Monitor WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions. NOTE: Do not connect all cables to the computer at the same time. To connect your monitor to the computer: 1. Turn Off your computer and disconnect the power cable. 2. -
Page 14: Organizing Cables
Connecting the audio cable(Optional Purchase) Organizing Cables Setting Up the Monitor... - Page 15 After you connect all necessary cables to your monitor and computer, organize all cables as shown above. NOTE: After the cables are connected, they will have to be disconnected again to route them through the hole. Setting Up the Monitor...
-
Page 16: Removing The Monitor Stand
Removing the Monitor Stand NOTE: To prevent scratches on the LCD screen while removing the stand, ensure that the monitor is placed on a soft and clean surface. NOTE: The following steps is applicable for a monitor with a stand. To remove the stand: 1. -
Page 17: Operating Your Monitor
Operating Your Monitor Power On the Monitor Press the button to turn On the monitor. Using the Front Panel Controls Use the control buttons on the front of the monitor to adjust the image being displayed. Control buttons The following table describes the front panel buttons: Front Panel Button Description Use this button to choose from a list of preset... - Page 18 Use the Power button to turn the monitor On 2&3 and Off. Power On/Off button (with Solid white light indicates the monitor is On and LED indicator) fully functional. Blinking white light indicates the power save mode. OSD controls Use the buttons on the front of the monitor to adjust the image settings. 1 2 3 4 Front Panel Button Description...
-
Page 19: Using The On-Screen Display (Osd) Menu
OSD menu to disappear. 1. Press the button to display the OSD main menu. Main Menu for analog (VGA) input Dell S2318HN/NX Energy Use Brightness / Contrast Auto Adjust Input Source... - Page 20 Icon Menu and Description Submenus Brightness/ Use this menu to activate Brightness/Contrast adjustment. Contrast Dell S2318HN/NX Energy Use Brightness / Contrast Auto Adjust Input Source Color Display Audio Energy Menu Personalize Others Resolution: 1920x1080, 60Hz Brightness Brightness adjusts the luminance of the backlight.
- Page 21 Auto Adjust Use this key to activate automatic setup and adjust menu. Dell S2318HN/NX Energy Use Brightness / Contrast Press to adjust the screen automatically. Auto Adjust Input Source Color Display Audio Energy Menu Personalize Others Resolution: 1920x1080, 60Hz The following dialog appears on a black screen as the monitor self-adjusts to the current input: Auto Adjustment in Progress...
- Page 22 Input Source Use the Input Source menu to select between the different video signals that may be connected to your monitor. Dell S2318HN/NX Energy Use Brightness / Contrast Auto Adjust HDMI Input Source Auto Select Color Reset Input Source Display...
- Page 23 ∞ Custom Color: Allows you to manually adjust the color settings. Press the buttons to adjust the three colors (R, G, B) values and create your own preset color mode. Dell S2318HN/NX Energy Use Brightness / Contrast Preset Modes Standard...
- Page 24 ∞ RGB: Select this option if your monitor is connected to a computer or DVD player using the HDMI cable. ∞ YPbPr: Select this option if your DVD player supports only YPbPr output. Dell S2318HN/NX Energy Use Brightness / Contrast Preset Modes...
- Page 25 Display Use the Display to adjust image. Dell S2318HN/NX Energy Use Brightness / Contrast Aspect Ratio Wide 16:9 Auto Adjust Horizontal Position Input Source Vertical Position Color Sharpness Display Pixel Clock Phase Audio Energy Dynamic Contrast Normal Menu Response Time...
- Page 26 Audio Dell S2318HN/NX Energy Use Brightness / Contrast Audio Source PC Audio Auto Adjust Reset Audio Input Source Color Display Audio Energy Menu Personalize Others Resolution: 1920x1080, 60Hz Audio Source Allows you to set the Audio Source mode to: ∞ PC Audio ∞...
- Page 27 Menu Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen and so on. Dell S2318HN/NX Energy Use Brightness / Contrast Language English Auto Adjust...
- Page 28 Personalize Users can choose a feature from Shortcut Key 1, Shortcut Key 2, Reset Personalization, Preset Modes or Brightness/ Contrast and set it as a shortcut key. Dell S2318HN/NX Energy Use Brightness / Contrast Shortcut Key 1 Preset Modes Auto Adjust...
- Page 29 You can disable this feature by selecting Disable. Enable this feature for best user experience and optimum performance of your monitor. Dell S2318HN/NX Energy Use Brightness / Contrast DDC/CI Enable...
- Page 30 OSD Warning Messages When the Dynamic Contrast feature is enabled (in these preset modes: Game or Movie), the manual brightness adjustment is disabled. Dell S2318HN/NX To allow manual adjustment of brightness, the Dynamic Contrast will be switched off. Do you want to continue?
- Page 31 When the monitor enters the Power Save Mode, the following message appears: Dell S2318HN/NX Entering Power Save Mode. If you press any button other than the power button, the following messages will appear depending on the selected input: Dell S2318HN/NX There is no signal coming from your computer.
-
Page 32: Setting The Maximum Resolution
If you do not see 1920 x 1080 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following procedures: If you have a Dell desktop or portable computer: Go to www.dell.com/support, enter your service tag, and download the latest ∞ driver for your graphics card. -
Page 33: Using The Tilt
Using the Tilt NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for set up instructions. Rotating the Monitor Before you rotate the monitor, your monitor should be fully vertically extended and fully tilted up to avoid hitting the bottom edge of the monitor. -
Page 34: Troubleshooting
If the monitor is working correctly, it detects that there is no signal and one of the following message appears. While in self-test mode, the power LED remains white. Dell S2318HN/NX No HDMI Cable The display will go into Power Save Mode in 4 minutes. -
Page 35: Built-In Diagnostics
Built-in Diagnostics Your monitor has a built-in diagnostic tool that helps you determine if any screen abnormality you experience is an inherent problem with your monitor, or with your computer and video card. NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode. -
Page 36: Common Problems
∞ Cycle power On-Off. bright spots ∞ Pixel that is permanently off is a natural defect that can occur in LCD technology. ∞ For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at:http://www.dell.com/ support/monitors. Brightness Picture too dim ∞... - Page 37 ∞ Restart the computer in the safe mode. Safety Related Visible signs of ∞ Do not perform any troubleshooting steps. Issues smoke or sparks ∞ Contact Dell immediately. Intermittent Monitor ∞ Ensure that the video cable connecting the monitor to Problems malfunctions on the computer is connected properly and is secure.
-
Page 38: Product-Specific Problems
Product-Specific Problems Specific What You Possible Solutions Symptoms Experience ∞ Check the Aspect Ratio setting in the Display Screen image is Image is centered too small on screen, but settings OSD. does not fill entire ∞ Reset the monitor to Factory Settings(Factory viewing area Reset) . -
Page 39: Appendix
For customers in the United States, call 800-WWW-DELL (800-999-3355). NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog. Dell provides several online and telephone-based support and service options. -
Page 40: Setting Up Your Monitor
Please choose the scenario below that best describes the computer system you are using, and follow the given steps. If you have a Dell™ desktop or a Dell™ portable computer with internet access 1. Go to www.dell.com/support, enter your init-caps, and download the latest driver for your graphics card. - Page 41 7. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 x 1080 again. NOTE: If you are unable to set the recommended resolution, contact the manufacturer of your computer or consider purchasing a graphics adapter that will support the video resolution.
-
Page 42: Monitor Specifications
Monitor Specifications Flat Panel Specifications Model S2318HN/S2318NX Screen type Active matrix - TFT LCD Panel type In-plane Switching Viewable image Diagonal 58.42 cm (23 in) Horizontal, Active Area 509.18 mm (20.05 in) Vertical, Active Area 286.41 mm (11.28 in) Area 1458.34 cm (226.04 inch Pixel pitch... - Page 43 Preset Display Modes Display Mode Horizontal Vertical Pixel Clock Sync Polarity Frequency Frequency (MHz) (Horizontal / (kHz) (Hz) Vertical) VESA, 720 x 400 31.5 70.1 28.3 VESA, 640 x 480 31.5 60.0 25.2 VESA, 640 x 480 37.5 75.0 31.5 VESA, 800 x 600 37.9 60.3...
- Page 44 Physical Characteristics Model S2318HN S2318NX Signal cable type ∞ Digital: detachable, HDMI, 19 pins. ∞ Analog: detachable, D-Sub, 15 pins Dimensions (with stand) Height 404.0 mm (15.90 in) Width 522.2 mm (20.56 in) Depth 147.9 mm (5.82 in) Dimensions (without stand) Height 312.3 mm (12.29 in) Width...
- Page 45 Environmental Characteristics Model S2318HN/S2318NX Temperature Operating 0°C to 40°C (32°F to 104°F) Non-operating Storage ∞ -20°C to 60°C (-4°F to 140°F) ∞ -20°C to 60°C (-4°F to 140°F) Shipping Humidity Operating 10% to 80% (non-condensing) Non-operating ∞ Storage: 5% to 90% (non-condensing) ∞...
- Page 46 Energy Star Power Consumption 50.81 NOTE: : Power consumption of on mode as defined in Energy Star 7.0 version. : Total energy consumption in KWh as defined in Energy Star 7.0 version. This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information.
- Page 47 The OSD functions only in the normal operation mode. When any button is pressed in the Active-off mode, the following message will be displayed: Dell S2318HN/NX There is no signal coming from your computer. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button now to select the correct input source on the On-Screen-Display menu.
- Page 48 Pin Assignments VGA Connector Pin Number 15-pin Side of the Connected Signal Cable Video-Red Video-Green Video-Blue Self-test GND-R GND-G GND-B Computer 5V/3.3V GND-sync DDC data H-sync V-sync DDC clock Monitor Specifications...
- Page 49 HDMI Connector Pin Number 19-pin Side of the Connected Signal Cable T.M.D.S. Data 2- T.M.D.S. Data 2 Shield T.M.D.S. Data 2+ T.M.D.S. Data 1+ T.M.D.S. Data 1 Shield T.M.D.S. Data 1 - T.M.D.S. Data 0+ T.M.D.S. Data 0 Shield T.M.D.S. Data 0- T.M.D.S.
