Service Manual
Auto Washer
Model : DWF-600M
DAEWOO ELECTRONICS CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWF-600M and is the answer not in the manual?

Questions and answers

Oscar N Bor
April 9, 2025

I AM LOOKING FOR MODEL DFW-I 600c

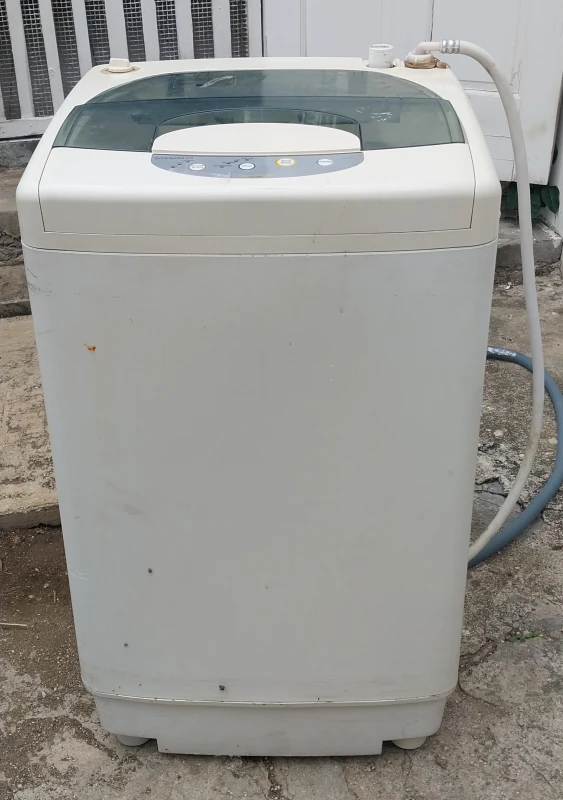

User image 67f5db32d3b08
1 comments:
Mr. Anderson
May 14, 2025

The Daewoo DWF-600M model is available in all local AC voltage power sources.

This answer is automatically generated

Summary of Contents for Daewoo DWF-600M

  • Page 1 Service Manual Auto Washer Model : DWF-600M DAEWOO ELECTRONICS CO., LTD.
  • Page 2: Specifications

    1. SPECIFICATIONS ITEM DWF-600M 1 POWER SOURCE AVAILABLE IN ALL LOCAL AC VOLTAGE POWER 50Hz 320W CONSUMPTION 60Hz 300W(110~127V) / 340W(220V) 28.5kg/29kg(pump) MACHINE 32kg/32.5kg(pump) WEIGHT GROSS 525X858X535 4 DIMENSION (WXHXD) 5 MATERIAL OF INTERNAL TUB STAINLESS STEEL FULL AUTOMATIC 6 PROGRAMS...
  • Page 3: Structure Of The Washing Machine

    2. STRUCTURE OF THE WASHING MACHINE The parts and features of your washer are illustrated on this page. Become familiar with all parts and features before using your washer. @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ @ @...
  • Page 4: Functions Of The Control Panel

    3. FUNCTIONS OF THE CONTROL PANEL Control panel has micom sensor. As the buttons are pressed, the lamps indicating the selection of your desired washing program will light up. HOURS RES. PROGRAM CONTROL • Press this switch to turn the power on or off. •...
  • Page 5: Washing Procedure And Program Selection

    4. WASHING PROCEDURE AND PROGRAM SELECTION è § § Full Automatic Program 1. FUZZY PROGRAM (SENSOR); • This selection is for general washing except extraordinary clothes. • Artificial brain sensor selects properly the various kind of washing condition such as washing time, rinse times, spin time and water level.
  • Page 6 4. SUIT(WOOL) PROGRAM; • This selection is effective for suit/wool clothes. (1.2kg’s limitation for 1-time wash) • Do not put leather clothes, or chamios clothes into the washing tub for washing. It may cause shrinkage or defor- mation to the clothes. •...
  • Page 7 è § § Reserved Washing • Reservation can be made from 2 hours to 48 hours. • To make reservation to complete washing in 8 hours. Select the program. RES. RES. Adjust to water level and water temperature. HOURS HOURS "--"...
  • Page 8: Directions For Installation And Use

    5. DIRECTIONS FOR INSTALLATION AND USE è § § Location Of Washer Check location where washer will be installed. Make sure you have everything necessary for correct installation. Proper installation is your responsibility. • Do not place or store your washer below 0˚C(32˚F) to avoid any damage from freezing. •...
  • Page 9: How To Connect The Inlet Hose

    è § § How to Connect the Inlet Hose Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water. In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet valve.
  • Page 10: How To Clean The Filter

    è § § How To Clean The Filter CLEANING THE LINT FILTER Pull the Filter frame Turn the lint filter Return the filter as it was, and upward. inside out, wash the insert the filter frame into the lint off with water. slot.
  • Page 11: Feature And Technical Explanation

    6. FEATURE AND TECHNICAL EXPLANATION Feature of the Washing Machine 1 The first air bubble washing system in the world. 2 Quiet washing through the innovational low-noise design. 3 The wash effectiveness is much more enhanced because of the air bubble washing system. 4 The laundry detergent dissolves well in water because of the air bubble washing system.
  • Page 12: Functional Principle

    Automatic Drainning time Adjustment This system adjusts the draining time automatically according to the draining condition. Good draining The washer begins spin process after drainage. Draining Bad draining Draininig time is prolonged. condition No draining Program is stopped and gives the alarm. FUNCTIONAL PRINCIPLE 1 The micom can remember the time from the begining of drain to reset point when the pressure switch reaches to “OFF”...
  • Page 13: Softener Dispenser

    Softener Dispenser This is the device to dispense the softener automatically by centrifugal force. This is installed inside the auto-balancer. FUNCTIONAL PRINCIPLE 1 Softener stays in room (A) when poured into softener inlet. 2 Softener moves from (A) to (B) by centrifugal force during intermittent spin process. 3 Softener flows from (B) to (C) during rinse process next to intermittent spin.
  • Page 14: Automatic Unbalance Adjustment

    Automatic Unbalance Adjustment This system is to prevent abnormal vibration during intermittent spin and spin process. FUNCTIONAL PRINCIPLE 1 When the lid is closed, the safety switch contact is “ON” position. 2 In case that wash loads get uneven during spin, the outer tub hits the safety switch due to the serious vibration, and the spin process is interrupted.
  • Page 15: Lint Filter

    Lint Filter Much lint may be obtained according to the kind of clothes to be washed and some of the lint may also sticks to the clothes. Filter Filter To minimize this possibility a lint filter is provided on the upper part of the tub to filter the wash water as it Bleach Bleach Inlet Inlet...
  • Page 16: Gear Mechanism Ass'y

    Gear Mechanism Ass’y The proper water currents is made by the rotation of pulsator at a low speed to prevent the damage to the small sized clothes. Pulsator shaft Spin shaft One way clutch bearing Gear unit as Sun gear Planetary gear Internal gear Clutch spring...
  • Page 17: Functional Principle Of Bubble Washing Machine

    PRINCIPLE OF INTAKE & OUTLET OF THE AIR INTAKE : ARMATURE moves up, and BELLOWS inhales the air. At the same time, protector B is open and A is close. OUTLET : ARMATURE moves down, and BELLOWS exhausts the air. At the same time, protector B is close and A is opend.
  • Page 18: Presentation Of The P.c.b Ass'y

    10. PRESENTATION OF THE P.C.B ASS’Y Concerning Error Message MESSAGE CAUSE SOLUTION Install drain hose properly. Improper installation of drain hose. Remove foreign matter from drain hose. The drain hose is blocked up by foreign matter. Change drain motor. Drain motor is inferior. Open the water tap.
  • Page 19: Wiring Diagram [Non-Pump]

    APPENDIX è § § Wiring Diagram [non-pump] WIRING DIAGRAM...
  • Page 20 è § § [Non-Pump, Single Valve] WIRING DIAGRAM...
  • Page 21 è § § [Pump] WIRING DIAGRAM...
  • Page 22 è § § [pump, single valve] WIRING DIAGRAM...
  • Page 23: Parts Diagram

    è § § Parts Diagram PARTS DIAGRAM...
  • Page 24: Parts List

    è § § Parts List PART NAME PART CODE SPECIFICATION REMARK PLATE T 3614521500 DOOR B AS 3611797600 OPTION : DOOR F AS 3611797700 TRANSPARENT DOOR B 3611797300 OPTION : DOOR F 3611797400 NOT TRANSPARENT SPRING PLATE LEVER 3615111800 PLATE LEVER 3614521400 SPRING DOOR 3615112100...
  • Page 25 PART NAME PART CODE SPECIFICATION REMARK 3611337000 F H05VV 3X0.75 1.9M WH CHILE 3611337100 RVCTFK 2X0.75 1.9M GY JAPAN 3611337200 N LFC-3R 3X0.75 1.9M GY AUSTRALIA 3611337300 F H05VV 3X0.75 1.9M WH ITALY 3611337400 RW-300/500 3X0.75 1.9M PR. CHINA 3611337500 VCTF 3X0.75 1.9M INDIA 3611337600...
  • Page 26 PARTS DIAGRAM...
  • Page 27 PART CODE SPECIFICATION REMARK CABINET 3610809600 PAINTED STEEL SHEET 0.6T HANDLE CABINET 3612603300 PLATE UPPER 3614521600 3610389100 PP LOW H=45 DWF-600M BASE U LEG ADJUST AS 3617702100 DWF-1089W2 LEG FIX 3612100310 HOLDER SUPPORT F 3613044600 FRPP FRONT HOLDER SUPPORT B...
  • Page 28 PARTS DIAGRAM...
  • Page 29 è § § Parts List PART NAME PART CODE SPECIFICATION REMARK BALANCER AS 3616104700 DWF-6010 TUB I 3618808500 SUS 0.5T TUB U 3618808601 STAINLESS STEEL GUIDE FILTER 3612507000 DWF-6010NP SPECIAL SCREW 3616003700 SUS 5.5X16 PULSATOR AS 3719706700 DWF-800WNP BALANCER AS 3616104500 DWF-5510PN TUB I...
  • Page 30 PARTS DIAGRAM...
  • Page 31 è § § Parts List PART NAME PART CODE SPECIFICATION REMARK COVER TUB O 3611414600 TUB O 3618817600 SUSPENSION AS F 3619804200 FRONT SUSPENSION AS B 3619804300 REAR VALVE DRAIN AS 3615408500 DWF-750M NON-PUMP HOSE DRAIN I AS 3613227000 LDPE+EVA DWF-752MN HOSE DRAIN I AS 3613226900 LDPE+EVA DWF-800WNP...
  • Page 32: Circuit Diagram

    è § § Circuit Diagram CIRCUIT DIAGRAM...
