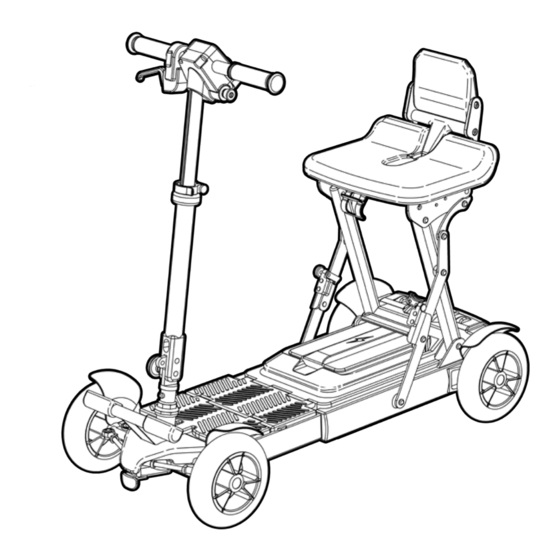

- Page 1 AUSTRALIAN OWNED / OPERATED M O B I L I T Y REDGUM Brand FOLDING MOBILIT Y SCOOTER IK4QPG (GREEN) IK4QPR (RED) Edition 1 USER MANUAL Please read and keep these instructions ikonmobility.com.au ASK FOR THE BRAND...
- Page 2 M O B I L I T Y REDGUM Brand IKON Mobility owns the copyright to the eTRAVEL Folding Mobility Scooter user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of IKON Mobility.
-
Page 3: Table Of Contents
(CONTINUED) WARRANTY UNPACK and INSPECT SUPPLIED PARTS WARRANTY (CONTINUED) GLOSSARY OF SCOOTER ACCESSORIES SCOOTER SET UP PRIOR TO USE REDGUM BRAND RANGE UNFOLD TILLER EXTEND BASE RAISE SEAT UNFOLD BACKREST UNFOLD BACKREST (CONTINUED) PREPARING THE SCOOTER FOR USE REMOVE BATTERY... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing this IKON Mobility product. If you have any issues or questions about the eTRAVEL Mobility Scooter please contact your supplier or IKON Mobility direct: T: +61 8 9248 4180 E: orders@for-de.com.au A: 1 Business Way, Malaga, Western Australia 6090 INTENDED USE This product has limitations and should be used in accordance to these guidelines. -
Page 5: Features
FEATURES AIRLINE - Folds up for transport and storage TRAVEL - Height adjustable pull handle READY - Safe to take on an aeroplane - Comfortable contoured seat - Fold down backrest - Adjustable height T handlebar - Finger operated controls - Battery power indicator - Forward / Reverse drive settings - Variable speed setting... -
Page 6: Specifications
SPECIFICATIONS Note: All dimensions shown are nominal - Overall: 910mm (L) x 420mm (W) x 870mm (H) - Overall Folded: 710mm (L) x 420mm (W) x 280mm (H) - Seat: 330mm (W) x 250mm (D) x 390mm (H - from footrest) - Pull Handle Height: 690 - 1000mm - Tiller Height: 700 - 870mm - Turning Circle: 1420mm... -
Page 7: Safety Advice
SAFETY ADVICE For your own safety, please read the user manual before using the eTRAVEL Folding Mobility Scooter. Failure to follow these guidelines may result in damage to the product and put the user at risk. If in any doubt, contact your supplier directly for advice. - The eTRAVEL Folding Mobility Scooter is supplied with a rechargeable maintenance free Lithium-Ion battery which MUST BE charged using the supplied battery charger. -
Page 8: Safety Advice
SAFETY ADVICE (CONTINUED) - Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will ensure the POWER is off and the scooter can not move under its own power. As a general precaution, always remove the key from the ignition while the scooter is not in use. -
Page 9: Emi Warning
EMI WARNING Scooters may be susceptible to electromagnetic interference (EMI), which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radio and mobile phones. The interference (from radio wave sources) can cause the scooter to release its brakes, move by itself, or move in unintended directions. -
Page 10: Emi Warning
EMI WARNING (CONTINUED) WARNINGS 1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens band (CB) radios, or turn ON personal communication devices, such as mobile phones, while the scooter is turned ON. 2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming close to them. -
Page 11: Unpack And Inspect Supplied Parts
UNPACK and INSPECT SUPPLIED PARTS We recommend that you thoroughly inspect all the supplied parts prior to assembling and using the eTRAVEL Mobility Scooter. FOLDED SCOOTER with battery fitted BATTERY CHARGER (not to scale) KEY (x2) (not to scale) ALLEN KEY (not to scale) BATTERY CHARGER POWER CABLE... -
Page 12: Glossary Of Scooter
GLOSSARY OF SCOOTER Please become familiar with the eTRAVEL Folding Mobility Scooter and the terms used when describing certain parts of the product. BACKREST SEAT TILLER SPEED LEVER FOOT PLATE FOOT PEGS BATTERY FLAT FREE TYRES IMPORTANT NOTE If you are ever unsure about any aspect of the eTRAVEL Folding Mobility Scooter please do not issue or use and contact your supplier for support. -
Page 13: Scooter Set Up Prior To Use
SCOOTER SET UP PRIOR TO USE Please read through the entire user manual prior to setting up and using the scooter. The user manual has been layed out in a logical order for instruction on how to set up, use, pack away and care for the eTRAVEL Folding Mobility Scooter. However you may need to revert back to the contents page to locate information on a specific aspect of the scooter. -
Page 14: Unfold Tiller
UNFOLD TILLER Please follow these instructions to unfold the tiller: Tiller Step 1: Pull the yellow knob out and rotate the tiller up. Yellow knob Step 2: Continue to rotate the tiller up until it ‘clicks’ into place. Important Note: Check to ensure that the tiller is locked in place prior to use. -
Page 15: Extend Base
EXTEND BASE Please follow these instructions to extend base: Tiller Step 1: Holding the tiller pull the front of the scooter away from the rear of scooter. Step 2: Push down on the footplate to ensure that Footplate the base is fully extended. ikonmobility.com.au ASK FOR THE BRAND... -
Page 16: Raise Seat
RAISE SEAT Please follow these instructions to raise seat: Step 1: Pull the seat up from rear. Seat Step 2: Continue to lift the seat until it ‘clicks’ into place. Important Note: Check to ensure that the seat is locked in place prior to use. ikonmobility.com.au ASK FOR THE BRAND... -
Page 17: Unfold Backrest
UNFOLD BACKREST Please follow these instructions to unfold backrest: Backrest retainer clip Step 1: Pull up on the backrest retainer clip. The backrest will automatically swing down. Step 2: Step 3: Rotate the backrest pad down Rotate the backrest up. until it ‘clicks’... -
Page 18: Unfold Backrest
UNFOLD BACKREST (CONTINUED) Locking Step 4: Step 5: Rotate the backrest up Drop the locking arm down until it touches the backrest. and over the hook in seat recess. Cross section through seat and backrest Locking Hook Important Note: Check to ensure that the backrest is securely in place prior to use. -
Page 19: Preparing The Scooter For Use
PREPARING THE SCOOTER FOR USE Before using the eTRAVEL Folding Mobility Scooter please perform the following tasks: INSPECT THE SCOOTER Visually and physically look over the scooter for signs of damage or wear prior to use. Pay particular attention to the following areas: - Tyres - Seat - Backrest... -
Page 20: Remove Battery
REMOVE BATTERY Please follow these instructions to remove battery from scooter: Step 1: Pull handle Step 2: Lift and pull battery up. Step 3: Remove battery from scooter. Important Note: Check to see if the battery terminal shields have been removed. The supplier of the scooter may have already removed the shields but if it has not been done please... -
Page 21: Charging Battery
CHARGING BATTERY The eTRAVEL Folding Mobility Scooter is supplied with a rechargeable maintenance free Lithium-Ion battery which MUST BE charged using the supplied battery charger. WARNING! FAILURE TO USE CORRECT AND SPECIFIED CHARGER MAY RESULT IN DEATH, DAMAGE OR CANCELLATION OF WARRANTY AND STATUTORY PROTECTIONS. -
Page 22: Charging Battery
CHARGING BATTERY (CONTINUED) Step 3: Plug the battery charger cable into the charger socket. Charger Socket Step 4: Plug the power cable into a power outlet and turn the power on. RED light: Charging GREEN Light: Charged Step 5: Battery charging should take approx. -
Page 23: Prepare To Ride Scooter
PREPARE TO RIDE SCOOTER Sit on the scooter and rest your feet either on the footplate or the footpegs. Important note: DO NOT rest your feet on the front wheel covers! (They will break) Foot pegs Adjust the tiller to a height that is comfortable and allows you to have full control of the scooter when steering. -
Page 24: Adjust Tiller Height
ADJUST TILLER HEIGHT Tiller Please follow these instructions to adjust the tiller to the required height: Step 2: Raise and hold the tiller at the required height. Lever Step 1: Rotate the lever out. Step 3: Rotate the lever back in to hold the tiller in place. -
Page 25: Turn Scooter On
TURN SCOOTER ON Please follow these instructions to fit the key and turn the scooter on: 2 keys supplied. Keep one in a safe place as a spare. Jack Key FULLY inserted Step 1: POWER ON Slide the pin on the key (Dash lights turn on) into the jack on the left hand side of the display. -
Page 26: Scooter Controls
SCOOTER CONTROLS Please follow these instructions to control the scooter as required: Hand grips Speed Lever Battery Power Indicator Forward / Reverse Switch Speed Dial Speed Lever: Pull the lever in to make the scooter move. Speed varies depending on how far the lever is pulled in. Scooter will stop if lever is not pulled in. -
Page 27: Operating Scooter
OPERATING THE SCOOTER Getting Started - Select a level area with plenty of space. - Ensure you are comfortable on the scooter prior to driving. Adjust setting as required. Scooter Movement - Push in the key to turn on the power. - Turn the speed dial all the way to the left (Tortoise) to allow slow movement. -
Page 28: Disengage Motor
DISENGAGE MOTOR Please follow these instructions to disengage the motor so the scooter can be pushed around without power when required (Freewheeling): IMPORTANT NOTE - NEVER disengage the motor on an incline. - Never ride the scooter when the motor is disengaged as the braking system is also disengaged. -
Page 29: Folding Up The Scooter
FOLDING UP THE SCOOTER Please follow these instructions to fold up the scooter in the correct order for transport or storage. IMPORTANT NOTE If you are ever unsure about any aspect of the eTRAVEL Folding Mobility Scooter please do not issue or use and contact your supplier for support. ikonmobility.com.au ASK FOR THE BRAND... -
Page 30: Fold Down Backrest
FOLD DOWN BACKREST Please follow these instructions to fold down the backrest: Step 1: Step 2: Push the backrest forward and Rotate the backrest down. unhook the locking arm. Step 3: Step 4: Rotate the backrest pad up Rotate the backrest up until it ‘clicks’... -
Page 31: Fold Down Seat
FOLD DOWN SEAT Please follow these instructions to fold down the seat: Step 2: Push DOWN on yellow lever and at the same time pull up seat from rear. Lever Step 1: Push IN yellow button. Step 3: Gently push seat down until it ‘clicks’... -
Page 32: Fold Up Base
FOLD UP BASE Please follow these instructions to fold up the base: Step 1: Pull UP on the small tab on the side of the footplate. As you pull up the front of scooter will start to move in. Step 2: Slowly push the front of the scooter towards the rear of the scooter until they... - Page 33 FOLD DOWN TILLER Please follow these instructions to fold down the tiller: Step 1: Pull the Note: yellow knob The tiller can be folded out and at the down at any height setting. same time (Shown at the lowest setting) rotate the tiller down.
- Page 34 LIFTING THE SCOOTER Once the eTRAVEL Folding Mobility Scooter is folded up it can be moved around by picking up the unit or wheeling it around on its front wheels. IMPORTANT NOTE Only pick up the scooter from the footpegs and the pull handle. DO NOT lift holding the tiller! (Damage could be caused if you lift the scooter from any other part.)
- Page 35 MOVING THE SCOOTER If required the eTRAVEL Folding Mobility Scooter can be wheeled around once folded. Please follow these instructions to move the scooter as required: Step 1: Using the pull handle Lift and rotate up the REAR of the scooter until the footpegs are touching the ground.
- Page 36 MOVING THE SCOOTER (CONTINUED) Step 4: Approach the scooter from its underside, firmly grab the pull handle, pull it towards you until the front wheels engaging with the ground. IMPORTANT NOTE Avoid leaving the scooter sitting upright if not being pulled around. Scooter could fall over and damage the scooter and cause injury to any bystanders.
- Page 37 TROUBLESHOOTING If the eTRAVEL Folding Mobile Scooter fails to operate please check the following: - Unit is switched on. - Battery has been fitted. - All plugs and cable connections are firmly fitted. - Battery level shows full charge. - Motor has been engaged. (not freewheeling) If the motor has been disengaged and the scooter power has been switched on - the scooter will not operate until it is turned off and then turned on again.
- Page 38 INSPECT / MAINTAIN / SERVICE INSPECTIONS Visually and physically look over the scooter for signs of damage or wear prior and during use. Inspect the entire scooter and particular attention to the following areas: Tyres / Seat / Backrest / Tiller / Display / Handgrips / Fixings Check to ensure that all parts work and scooter can be controlled as required.
- Page 39 CLEANING THE SCOOTER Clean the eTRAVEL Folding Mobility Scooter on a regular basis. You must take extreme care when cleaning any electrical aspect of the scooter as water or fluid of any kind can cause severe damage. - Remove the battery from the scooter prior to cleaning. - Only use a soft damp cloth and a non-abrasive cleaning solution or mild detergent.
- Page 40 WARRANTY The IKON Mobility eTRAVEL folding mobility scooter (IK4QP) is covered by the following warranty from the date of purchase: The Warranty Terms and Conditions noted below provide your IKON Mobility scooter with excellent coverage against possible defective parts or possible faulty workmanship.
- Page 41 WARRANTY (CONTINUED) Exclusions - Normal wear items are not covered under warranty. These items include such items as brushes, tyres, tubes, brake pads, upholstery, seating and armrests. - Damage caused by excessive, abusive, misuse, negligence, accident or water exposure. - Improper maintenance, maintenance carried out by a non approved “Warranty Dealer”.
- Page 42 ACCESSORIES The IKON MOBILITY eTRAVEL folding mobility scooter (IK4QP) can be fitted with the following Scooter Xtras range of accessories: DRINK BOTTLE HOLDER SE 020 - Easy to attach drink bottle holder. - Adjusts to hold Ø55 -70mm bottle / cup. MOBILE PHONE HOLDER...
- Page 43 REDGUM BRAND RANGE REDGUM Brand offer a comprehensive range of products including: Seat Walkers Side Folding Seat Walkers Walking Frames Wheelchairs Walking Sticks + Quad Sticks Crutches Reachers Shower / Bathroom products Toilet products Cushions: Air / Foam Electric Lift Chairs...
- Page 44 DISTRIBUTOR: AUSTRALIAN OWNED / OPERATED M O B I L I T Y REDGUM Brand ikonmobility.com.au ASK FOR THE BRAND...
