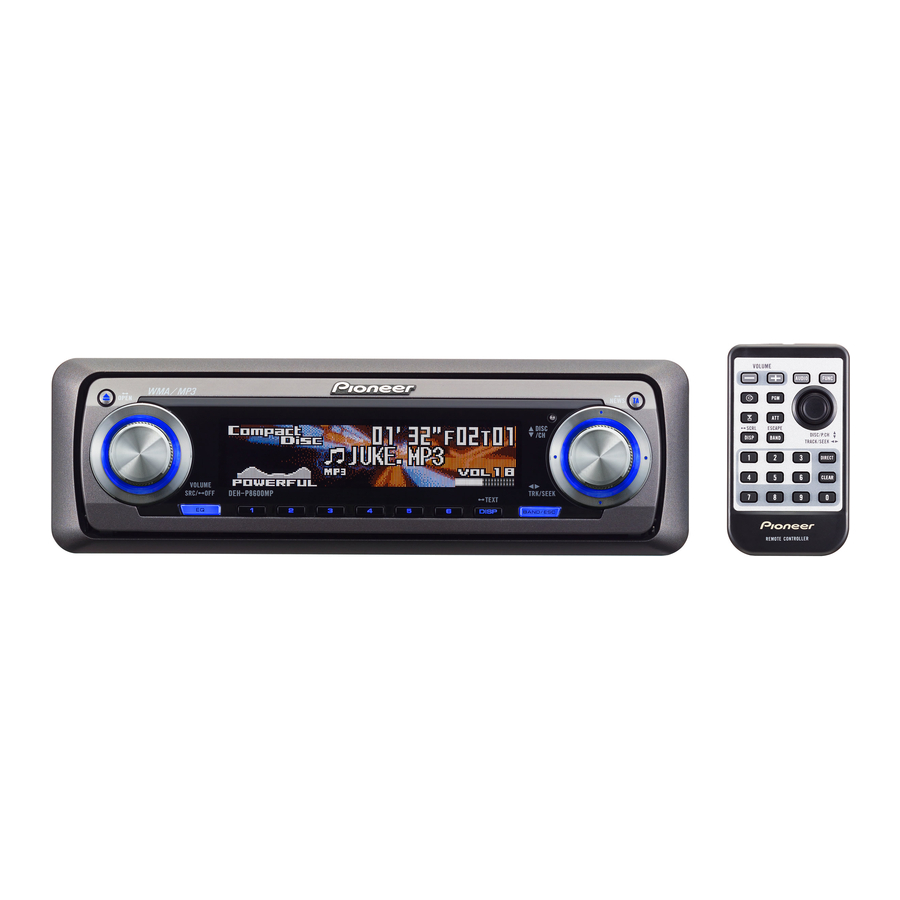

Multi-cd control dsp high power cd/mp/wma player with fm/am tuner
Hide thumbs Also See for DEH-P8600MP:
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
Mode demploi
Multi-CD control DSP High power CD/MP3/WMA
player with FM/AM tuner
Syntoniseur FM/AM et lecteur de CD/MP3/WMA avec
DSP, Puissance élevée, avec contrôleur pour lecteur
de CD à chargeur
DEH-P8600MP

Advertisement

Table of Contents
loading

Related Manuals for Pioneer DEH-P8600MP

Summary of Contents for Pioneer DEH-P8600MP

  • Page 1 Operation Manual Mode demploi Multi-CD control DSP High power CD/MP3/WMA player with FM/AM tuner Syntoniseur FM/AM et lecteur de CD/MP3/WMA avec DSP, Puissance élevée, avec contrôleur pour lecteur de CD à chargeur DEH-P8600MP...

  • Page 2: Table Of Contents

    Contents Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this man- ual in a safe place for future reference.
  • Page 3 Contents  Selecting tracks from the track title Selecting the search method 27 Searching every 10 tracks in the current list 37 folder 28 Using compression and bass emphasis 38 Switching the tag display 28 Using compression and BMX 28 XM tuner Displaying text information on MP3/WMA/ Listening to the XM 39...
  • Page 4 Contents Audio Adjustments Correcting distorted sound 59 Adjusting the audio easily 47 Switching the sound muting/attenuation 59 Adjusting the audio finely 47 Switching the warning tone 60 Extra functions 47 Using the feature demo 60 Introduction of audio adjustments 47 Using reverse mode 60 Using the position selector 48 Switching the font 60...
  • Page 5 Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.

  • Page 6: Before You Start

    800-421-1404 cated for use in North America. Use in other CANADA areas may result in poor reception. Pioneer Electronics of Canada, Inc. CUSTOMER SATISFACTION DEPARTMENT Important (Serial number) 300 Allstate Parkway The serial number is located on the bottom of Markham, Ontario L3R OP2 this unit.

  • Page 7: Precautions

    Section Before You Start MP3 file playback 2 Receive updates on the latest products and technologies. You can play back MP3 files recorded on CD- 3 Download owners manuals, order product ROM/CD-R/CD-RW (ISO9660 Level 1/Level 2 standard recordings). catalogues, research new products, and much more.

  • Page 8: Resetting The Microprocessor

    Section Before You Start About the demo mode WMA is short for Windows Media Audio and refers to an audio compression technology This unit features two demonstration modes. that is developed by Microsoft Corporation. One is the reverse mode, the other is the fea- WMA data can be encoded by using Windows ture demo mode.

  • Page 9: Use And Care Of The Remote Control

    Section Before You Start Use and care of the remote ! The remote control may not function prop- erly in direct sunlight. control Installing the battery Important Slide the tray out on the back of the remote ! Do not store the remote control in high tem- control and insert the battery with the plus (+) peratures or direct sunlight.

  • Page 10: About The Xm Ready Mark

    47. About the XM READY mark The XM READY mark printed on the front panel indicates that the Pioneer XM tuner (sold separately) can be controlled by this unit. Please inquire to your dealer or nearest authorized Pioneer service station regarding the XM tuner that can be connected to this unit.

  • Page 11: WhatS What

    Section Whats What Head unit 6 BAND/ESC button Press to select among three FM bands and 1 EJECT button one AM band and to cancel the control Press to eject a CD from your built-in CD mode of functions. player. Press and hold to open or close the front 7 DISPLAY button panel.
  • Page 12 Section Whats What i ATT button Press to quickly lower the volume level, by about 90%. Press once more to return to the original volume level. j CD button Press to select the built-in or multi-CD player as the source. k PGM button Press to operate the preprogrammed func- tions for each source.

  • Page 13: Basic Operations

     When the AUX (auxiliary input) is set to off (refer to page 58). % Press SOURCE to turn the unit on. ! External unit refers to a Pioneer product (such When you select a source the unit is turned as one available in the future) that, although incompatible as a source, enables control of basic functions by this unit.

  • Page 14: Adjusting The Volume

    Section Basic Operations ! You can turn off the warning tone. See ! If you cannot insert a disc completely or if after you insert a disc the disc does not play, Switching the warning tone on page 60. check that the label side of the disc is up. ! You can turn off the flap auto open.

  • Page 15: Attaching The Front Panel

    Section Basic Operations Release button Put the front panel into the protective case provided for safe keeping. Attaching the front panel Make sure the inner cover is closed. Replace the front panel by clipping it into place.

  • Page 16: Tuner

    Section Tuner Listening to the radio To perform seek tuning, push and hold MULTI-CONTROL left or right for about one second and release. The tuner will scan the frequencies until a broadcast strong enough for good reception is found. # You can cancel seek tuning by pushing MULTI-CONTROL left or right.

  • Page 17: Introduction Of Advanced Tuner Operation

    Section Tuner Introduction of advanced Note tuner operation If you do not operate the function within about 30 seconds, the display is automatically returned to the frequency display. Storing and recalling broadcast frequencies If you press any of the preset tuning buttons 16 you can easily store up to six broadcast 1 Function name tag frequencies for later recall with the touch of a...

  • Page 18: Tuning In Strong Signals

    Section Tuner Tuning in strong signals 16 in the order of their signal strength. When finished, the preset channel list appears. Local seek tuning lets you tune in only those # To cancel the storage process, press radio stations with sufficiently strong signals MULTI-CONTROL.

  • Page 19: Built-In Cd Player

    Section Built-in CD Player Playing a CD To skip back or forward to another track, push MULTI-CONTROL left or right. Pushing MULTI-CONTROL right skips to the start of the next track. Pushing MULTI-CONTROL left once skips to the start of the current track. Pushing again will skip to the previous track.

  • Page 20: Introduction Of Advanced Built-In Cd Player Operation

    Section Built-in CD Player Introduction of advanced # To return to the playback display, press BAND/ESC. built-in CD player operation Notes ! When playing audio data (CD-DA), tag display is not effective even if you turn TAG READ (tag display) on. (Refer to page 28.) ! When playing a CD TEXT disc, you cannot switch to DISC TITLE.

  • Page 21: Playing Tracks In A Random Order

    Section Built-in CD Player Playing tracks in a random Use MULTI-CONTROL to select PAUSE. The function name tag PAUSE is highlighted. order Press MULTI-CONTROL to turn pause Random play lets you play back tracks on the CD in a random order. Pause :ON appears in the display.

  • Page 22: Disc

    Section Built-in CD Player Push and hold MULTI-CONTROL left or have entered a title, the title of that CD will be right to search every 10 tracks on a disc. displayed. Use the disc title input feature to store up to # If a disc contains less than 10 tracks, pushing 48 CD titles in the unit.

  • Page 23: Using Cd Text Functions

    Section Built-in CD Player Scrolling titles in the display Move the cursor to the last position by pushing MULTI-CONTROL right after enter- This unit can display the first 14 (22) letters of ing the title. disc title, disc artist name, track title and track When you push MULTI-CONTROL right one artist name.

  • Page 24: Mp3/Wma/Wav Player

    Section MP3/WMA/WAV Player Playing MP3/WMA/WAV # To return to folder 01 (ROOT), press and hold BAND/ESC. However, if folder 01 (ROOT) contains no files, playback commences with folder 02. To perform fast forward or reverse, push and hold MULTI-CONTROL left or right.

  • Page 25: Selecting A Track Directly In The Current Folder

    Section MP3/WMA/WAV Player ! When playing back files recorded as VBR Note (variable bit rate) files, the play time will not be After entering the number input mode, if you do correctly displayed if fast forward or reverse not perform an operation within about eight sec- operations are used.

  • Page 26: Introduction Of Advanced Built-In Cd Player (Mp3/Wma/Wav) Operation

    Section MP3/WMA/WAV Player Introduction of advanced # To return to the playback display, press BAND/ESC. built-in CD player (MP3/ WMA/WAV) operation Note If you do not operate the function within about 30 seconds, the display is automatically returned to the playback display. Repeating play For MP3/WMA/WAV playback, there are three repeat play ranges: Folder (folder repeat),...

  • Page 27: Playing Tracks In A Random Order

    Section MP3/WMA/WAV Player Playing tracks in a random When you find the desired track (or folder) press MULTI-CONTROL to turn scan order play off. Random play lets you play back tracks in a Scan mode :OFF appears in the display. The random order within the repeat range, Folder track (or folder) will continue to play.

  • Page 28: Searching Every 10 Tracks In The Current

    Section MP3/WMA/WAV Player Switching the tag display Press MULTI-CONTROL to select the search method. It is possible to turn the tag display on or off, if Press MULTI-CONTROL until the desired MP3/WMA disc contains text information search method appears in the display. such as track title and artist name.

  • Page 29: Displaying Text Information On Mp3/Wma/Wav Disc

    Section MP3/WMA/WAV Player When playing back a WAV disc Press MULTI-CONTROL to select your fa- vorite setting. % Press DISPLAY. Press MULTI-CONTROL repeatedly to switch Press DISPLAY repeatedly to switch between between the following settings: the following settings: OFFCOMP 1COMP 2OFFBMX 1 : file name : folder name and : file BMX 2...

  • Page 30: Selecting Tracks From The File Name List

    Section MP3/WMA/WAV Player Selecting tracks from the file name list File name list lets you see the list of file names (or folder names) and select one of them to playback. Turn MULTI-CONTROL to switch to the file name list mode. Names of files and folders appear in the dis- play.

  • Page 31: Multi-Cd Player

    Section Multi-CD Player Playing a CD such as 1 for disc 7, until the disc number ap- pears in the display. # You can also sequentially select a disc by pushing MULTI-CONTROL up or down. To perform fast forward or reverse, push and hold MULTI-CONTROL left or right.

  • Page 32: 50-Disc Multi-Cd Player

    Section Multi-CD Player Introduction of advanced Press 09 buttons to enter the desired track number. multi-CD player operation # You can cancel the input number by pressing CLEAR. Press DIRECT. The track of entered number will play. Note After entering the number input mode, if you do not perform an operation within about eight sec- onds, the mode is automatically canceled.

  • Page 33: Repeating Play

    Section Multi-CD Player Playing tracks in a random Notes order ! When playing a CD TEXT disc on a CD TEXT compatible multi-CD player, you cannot Random play lets you play back tracks in a switch to D.TITLE INPUT. The disc title will random order within the repeat range, MCD have already been recorded on a CD TEXT and Disc.

  • Page 34: Pausing Cd Playback

    Section Multi-CD Player Creating a playlist with ITS When you find the desired track (or disc) press MULTI-CONTROL to turn scan programming play off. You can use ITS to enter and play back up to Scan mode :OFF appears in the display. The 99 tracks per disc, up to 100 discs (with the track (or disc) will continue to play.

  • Page 35: Erasing A Track From Your Its

    Section Multi-CD Player Select the repeat range. Push MULTI-CONTROL down to erase Refer to Repeating play on page 33. the track from your ITS playlist. The currently playing selection is erased from Use MULTI-CONTROL to select ITS PLAY. your ITS playlist and playback of the next track The function name tag ITS PLAY is high- from your ITS playlist begins.

  • Page 36: Entering Disc Titles

    Section Multi-CD Player Entering disc titles Push MULTI-CONTROL right to move the cursor to the next character position. Use the disc title input feature to store up to When the letter you want is displayed, push 100 CD titles (with ITS playlist) into the multi- MULTI-CONTROL right to move the cursor to CD player.

  • Page 37: Using Cd Text Functions

    Section Multi-CD Player # No disc is displayed next to the disc number Note when there is no disc in the magazine. When Ever Scroll is set to ON at the initial setting, # To return to the playback display, press CD text information scrolls continuously in the BAND/ESC.

  • Page 38: Using Compression And Bass Emphasis

    Section Multi-CD Player Using compression and bass emphasis You can use these functions only with a multi- CD player that supports them. Using COMP (compression) and DBE (dy- namic bass emphasis) functions lets you ad- just the sound playback quality of the multi- CD player.

  • Page 39: Xm Tuner

    Section XM tuner Listening to the XM 5 XM channel number indicator Shows to which XM channel number the tuner is tuned. Press SOURCE to select the XM. Press SOURCE until you see XM displayed. Press BAND/ESC to select a XM band. Press BAND/ESC repeatedly until the desired XM band is displayed, XM1, XM2 or XM3.

  • Page 40: Introduction Of Advanced Xm Tuner Operation

    Section XM tuner Introduction of advanced Storing and recalling XM tuner operation broadcast stations If you press any of the preset tuning buttons 16 you can easily store up to six broadcast stations for later recall with the touch of a button.

  • Page 41: Selecting The Channel In The Channel Category

    Section XM tuner Selecting the channel in the Display the ID code channel category Channel number select setting Press CLOCK and hold to select If you select CH000, the ID code is displayed. Category. Press CLOCK and hold repeatedly to switch % Push MULTI-CONTROL left or right to between the following channel select settings: select CH000.

  • Page 42: Tv Tuner

    Section TV tuner Watching the TV tuner To perform seek tuning, push and hold MULTI-CONTROL left or right for about one second and release. The tuner will scan the channels until a broad- cast strong enough for good reception is found.

  • Page 43: Storing The Strongest Broadcast Stations Sequentially

    Section TV tuner Storing the strongest # You can also change the station by pushing MULTI-CONTROL up or down. broadcast stations # To return to the channel display, press sequentially BAND/ESC. Notes ! Storing broadcast stations with BSSM may re- place broadcast stations you have saved using P01P12.

  • Page 44: Dvd Player

    Section DVD Player Playing a disc To skip back or forward to another chapter/track, push MULTI-CONTROL left or right. Selecting a disc ! You can operate this function only when a multi-DVD player is connected to this unit. % Press any of 16 to select the desired You can use this unit to control a DVD player or disc.

  • Page 45: Introduction Of Advanced Dvd Player Operation

    Section DVD Player Introduction of advanced # You can also switch between the functions in the reverse order by turning MULTI-CONTROL DVD player operation counterclockwise. # To return to the playback display, press BAND/ESC. Note If you do not operate the function within about 30 seconds, the display is automatically returned to the playback display.

  • Page 46: Pausing Disc Playback

    Section DVD Player Pausing disc playback Press MULTI-CONTROL to turn scan play Use MULTI-CONTROL to select PAUSE. Scan mode :ON appears in the display. The The function name tag PAUSE is highlighted. first 10 seconds of each track is played. Press MULTI-CONTROL to turn pause When you find the desired track press MULTI-CONTROL to turn scan play off.

  • Page 47: Audio Adjustments

    Section Audio Adjustments Adjusting the audio easily Introduction of audio adjustments The following functions let you easily adjust your audio system to match the car interior acoustic characteristics, which vary depend- ing on the type of car. ! Recalling equalizer curves ! Using the position selector (POSI) ! Adjusting equalizer curves (G.EQ 1) Adjusting the audio finely...

  • Page 48: Using The Position Selector

    Section Audio Adjustments FAD/BAL (balance adjustment)POSI (posi- Use MULTI-CONTROL to select POSI. tion selector)TA 1 (time alignment setting) The function name tag POSI is highlighted. TA 2 (time alignment adjusting)LOUD (loudness)G.EQ 1 (graphic equalizer) Push MULTI-CONTROL left, right, up or G.EQ 2 (13-band graphic equalizer)SW 1 down to select a listening position.

  • Page 49: Using The Time Alignment

    Section Audio Adjustments Using the time alignment Balance L25  Balance R25 is displayed as the left/right speaker balance moves from left The time alignment lets you adjust the dis- to right. tance between each speaker and the listening position. Use MULTI-CONTROL to select TA 1.

  • Page 50: Using Subwoofer Output

    Section Audio Adjustments Press MULTI-CONTROL to turn subwoo- # Can't adjust TA. Set position FL/FR appears when neither Front Left nor Front Right is se- fer output on. lected in the position selector mode (POSI). Sub. W Normal appears in the display. Sub- woofer output is now on.

  • Page 51: Adjusting Low Pass Filter Attenuation Slope

    Section Audio Adjustments Adjusting low pass filter Muting the speaker units (filters) attenuation slope You can mute front and rear speaker units (fil- ters) separately. When speaker units (filters) When the subwoofer output is on, you can ad- are muted, no sound is outputted from those just the continuity of sound between speaker speakers.

  • Page 52: Setting The High Pass Filter For Rear Speakers

    Section Audio Adjustments Push MULTI-CONTROL left or right to Only frequencies higher than those in the se- select cut-off frequency. lected range are output from the rear speak- Each pushing MULTI-CONTROL left or right ers. selects cut-off frequencies in the following order: Push MULTI-CONTROL up or down to 506380100125160200 (Hz)

  • Page 53: Adjusting Equalizer Curves

    Section Audio Adjustments There are seven stored equalizer curves which Push MULTI-CONTROL up or down to you can easily recall at any time. Here is a list adjust the equalizer curve. of the equalizer curves: Each pushing MULTI-CONTROL up or down increases or decreases the equalizer curve re- Display Equalizer curve...

  • Page 54: Using Bbe Sound

    Section Audio Adjustments Push MULTI-CONTROL left or right to Push MULTI-CONTROL up or down to select the equalizer band to adjust. adjust the level of BBE. Each pushing MULTI-CONTROL left or right Each pushing MULTI-CONTROL up or down selects equalizer bands in the following order: increases or decreases the level of BBE.

  • Page 55: Adjusting Source Levels

    Section Audio Adjustments Press MULTI-CONTROL to turn ASL on. Notes ASL level (e.g., Mid-Low) appears in the dis- ! The AM tuner volume level can also be ad- play. justed with source level adjustments. # To turn ASL off, press MULTI-CONTROL ! The built-in CD player and the multi-CD player again.

  • Page 56: Before Operating The Auto Ta And Eq

    Section Audio Adjustments built-in LPF of an active subwoofer should  When a speaker is connected to a power amp delivering output higher than the be set to the highest frequency. speakers maximum input power capabil- ! The time alignment value calculated by auto TA and EQ may differ from the actual ity.
  • Page 57 Section Audio Adjustments place the microphone on the front passenger Press MULTI-CONTROL to start the auto seat to carry out auto TA and EQ. TA and EQ. Get out of the car and close the door within 10 seconds when the 10-second count-down starts.

  • Page 58: Initial Settings

    Section Initial Settings Adjusting initial settings Setting the clock Use these instructions to set the clock. Use MULTI-CONTROL to select CLOCK. The function name tag CLOCK is highlighted. Push MULTI-CONTROL left or right to select the segment of the clock display you wish to set.

  • Page 59: Switching The Dimmer Setting

    Section Initial Settings Correcting distorted sound Use MULTI-CONTROL to select AUX. The function name tag AUX is highlighted. When listening to a CD or other source on which the recording level is high, setting the Press MULTI-CONTROL to turn AUX on. equalizer curve level to high may result in dis- AUX :ON appears in the display.

  • Page 60: Switching The Warning Tone

    Section Initial Settings Using reverse mode ! 20dB ATT  Attenuation (20dB ATT has a stronger effect than 10dB ATT) If you do not perform an operation within ! TEL mute  Muting about 30 seconds, screen indications start to reverse, and then continue reversing every 10 seconds.

  • Page 61: Switching The Flap Auto Open

    Section Initial Settings Press MULTI-CONTROL to turn the Ever Scroll on. Ever-scroll :ON appears in the display. # To turn the Ever Scroll off, press MULTI-CONTROL again. Switching the flap auto open For theft protection, the front panel opens automatically and easily detaches. Flap auto open is on as a default.

  • Page 62: Other Functions

    Section Other Functions Turning the clock display After you have selected AUX as the source, use MULTI-CONTROL and select on or off FUNCTION to display TITLE INPUT. You can turn the clock display on or off. Press button 1 to select the desired % Press CLOCK to turn the clock display character type.

  • Page 63: Using Different Entertainment Displays

    You can rewrite the entertainment display. press BAND/ESC. Please create or download the data using your Computer, and record it on CD-R. For details, Press MULTI-CONTROL to select the cur- please visit rent display. http://www.pioneer.co.jp/car/pclink3a/. The selected entertainment display is dis- played.
  • Page 64 Section Other Functions ! To cancel download mode, press EJECT. Important ! If the rewriting process does not operate prop- Once the rewriting process has started, do not re- erly, an error message such as CD ERROR move the front panel or turn the ignition off, until may be displayed.

  • Page 65: Additional Information

    ! Cancel muting the error cannot be corrected, contact your SP, Error check the front speaker dealer or your nearest Pioneer Service Center. RL SP , Error units. check RR SP , ! Correct the input...

  • Page 66: Cd Player And Care

    Appendix Additional Information ! To clean a CD, wipe the disc with a soft Message Cause Action cloth outward from the center. CD ERROR A0 Electrical error Turn the ignition ON and OFF. Disc ERROR The disc does not Press EJECT and contain the ne- replace the disc.

  • Page 67: Mp3, Wma And Wav Files

    Appendix Additional Information ! This unit conforms to the track skip func- the extension (.mp3, .wma or .wav), is 64, tion of the CD-R/CD-RW disc. The tracks from the first character. containing the track skip information are ! The maximum number of characters which skipped automatically (in case of audio can be displayed for a folder name is 64.

  • Page 68: Wma Additional Information

    Appendix Additional Information ! The emphasis function is valid only when ! You can only play back WAV files in the fre- MP3 files of 32, 44.1 and 48 kHz frequen- quencies 16, 22.05, 24, 32, 44.1 and 48 kHz cies are played back.
  • Page 69 Appendix Additional Information ! It is possible to play back up to 99 folders on one disc. 1 First level 2 Second level 3 Third level Notes ! This unit assigns folder numbers. The user can not assign folder numbers. ! It is not possible to check folders that do not include MP3/WMA/WAV files.

  • Page 70: Terms

    Appendix Additional Information Terms Linear PCM (LPCM)/Pulse code modulation Bit rate This stands for linear pulse code modulation, This expresses data volume per second, or bps which is the signal recording system used for units (bits per second). The higher the rate, music CDs and DVDs.
  • Page 71 Appendix Additional Information just as is done with files on floppy or hard discs. VBR is short for variable bit rate. Generally speaking CBR (constant bit rate) is more widely used. But by flexibly adjusting the bit rate according to the needs of audio compres- sion, it is possible to achieve compression- priority sound quality.

  • Page 72: Specifications

    Appendix Additional Information Specifications Phase ........Normal/Reverse General CD player Power source ......14.4 V DC (10.8  15.1 V al- System .......... Compact disc audio system lowable) Usable discs ......Compact disc Grounding system ....Negative type Signal format: Max.
  • Page 73 TEL: (03) 9586-6300 PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: (905) 479-4411 PIONEER ELECTRONICS DE MEXICO, S.A. de C.V. Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270 HÒ¡ýÉPlø...
  • Page 74 • Route and secure all wiring so it cannot touch any • To avoid short-circuiting, cover the disconnected DEH-P8600MP moving parts, such as the gear shift, handbrake lead with insulating tape. Especially, insulate the and seat rails. Do not route wiring in places that unused speaker leads without fail.
  • Page 75 <ENGLISH> Connecting cords with RCA pin 23 cm (9 in.) plugs (sold separately) Subwoofer output (SUBWOOFER OUTPUT) Power amp (sold separately) 15 cm (5-7/8 in.) Rear output This product (REAR OUTPUT) Power amp Antenna jack (sold separately) Front output IP-BUS input (FRONT OUTPUT) (Blue) Power amp...
  • Page 76 Installation Note: DIN Front/Rear-mount • Before finally installing the unit, connect the • If installation angle exceeds 60° from horizontal, wiring temporarily, making sure it is all connected the unit might not give its optimum performance. This unit can be properly installed either from “Front” (conventional DIN Front-mount) or up properly, and the unit and the system work (Fig.
  • Page 77 <ENGLISH> Removing the Unit (Fig. 7) (Fig. 8) 2. Fastening the unit to the factory radio mounting bracket. (Fig. 10) (Fig. 11) Frame Select a position where the screw holes of the bracket and the screw holes of the head unit become aligned (are fitted), and tighten the screws at 2 places on each side.
