8 in 1 Pro Edition
Model #: LQ48010
Product Manual

Package Contents

USB-C Pro Multiport Hub x1,
User Manual x1
www.LINQbyELEMENTS.dk
Thank you for purchasing our
8 in 1 Pro Multiport Hub.
Please read this user manual
carefully and keep it in a safe place
for future reference. If you need
any assistance, please contact our
support team with your product
model number and order number of
relevant sales channel.

Product Specifications

HDMI 4K @ 60Hz
Up to 4k UHD (3840 x 2160@
60Hz), supports 1440p / 1080p
/ 720p / 480p / 360p
USB-A Super Speed+
Super Speed USB-A 3.2 Gen 2,
Max data transfer speed 10Gbps
Power Supply up to 4.5W Max.
USB-C Super Speed+
Super Speed USB-C 3.2 Gen 2,
Max data transfer speed 10Gbps
Power Supply up to 4.5W Max
(Only for Data Transfer)
USB-C PD Port
Charging up to 100W of Power
Delivery 3.0 (Only for laptop
charging)
RJ45 Gigabit Ethernet
Max Ethernet Speeds up to
1000Mbps
SD & TF Card Slot
Supported memory card
capacity up to 512GB.
USB-C Connector
Compatible with Thunderbolt 3,
Make sure that the host USB-C
port on your device complies
with the USB3.0/3.1/3.2
Specification

System Requirements:

Laptop with an available USB-C
Port Windows 7/8/10, MacOSX
v10.0 or above operating systems,
USB 3.0/3.1/3.2

Plug and play:

Yes

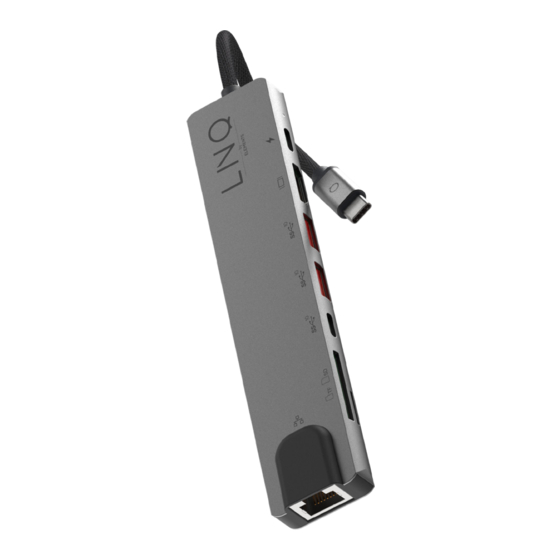

Overview

Hub Power LED
USB-C Power Delivery
port up to 100W
(Only for Charging)
HDMI Output Port
up to 4K @ 60Hz
USB-A Super Speed+
up to 10Gbps
USB-C Super Speed+
up to 10Gbps
SD & TF Card Slot
High Speed
RJ45 Gigabit
Ethernet Port

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINO Pro Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Elements LINO Pro Series

  • Page 1 Thank you for purchasing our System Requirements: 8 in 1 Pro Multiport Hub. Laptop with an available USB-C Port Windows 7/8/10, MacOSX Please read this user manual v10.0 or above operating systems, carefully and keep it in a safe place USB 3.0/3.1/3.2 for future reference.
  • Page 2 Notes 9. 4K 60Hz Compatibility requires a 6. SD/TF Card Reader: Insert your 1. Only one hub is included, power DP 1.4 compatible type-C port on memory card into the SD/TF Card adapters, SD/TF memory cards, your device. Slot to directly access files stored cables or other accessories are in the SD/TF card on your USB-C not included.
