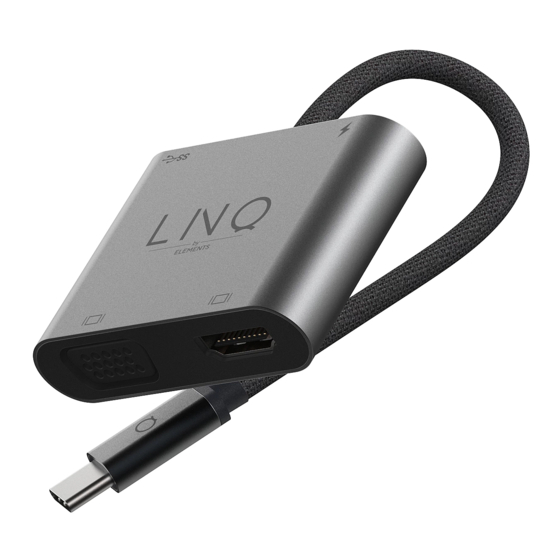

4 in 1 USB-C Multiport Hub
Model #: LQ48001
Product Manual
Package Contents
USB-C Multiport Hub x1,
User Manual x1
www.LINQbyELEMENTS.dk
Thank you for purchasing our 4 in 1
USB-C Multiport Hub.
Please read this user manual
carefully and keep it in a safe place
for future reference. If you need
any assistance, please contact our
support team with your product
model number and order number of
relevant sales channel.
Product Specifications
HDMI Output Port
Up to 4k UHD (3840 x 2160@
60Hz), supports 1440p / 1080p
/ 720p / 480p / 360p
VGA Output Port
Full HD Supports 1080p / 720p
/ 480p / 360p
USB-A Port
Super Speed USB-A 3.1 Gen 1,
Max data transfer speed 5Gbps
Power Supply up to 4.5W Max.
USB-C Female Port
Charging up to 100W of Power
Delivery 3.0 (Only for laptop
charging)
USB-C Male
Compatible with Thunderbolt
3, Make sure that the host
USB-C port on your device
complies with the USB3.0/3.1
Specification
System Requirements:
Laptop with an available USB-C
Port Windows 7/8/10, MacOSX
v10.0 or above operating systems,
USB 3.0/3.1
Plug and play:
Yes
Overview
HDMI Output Port
up to 4K @ 60Hz
VGA Output Port
up to 1080p @ 60Hz
USB-C Female PD port
up to 100W
(Only for Charging)
USB-A Data Port
Super Speed
Advertisement
Table of Contents
Related Manuals for Elements LINQ LQ48001
Summary of Contents for Elements LINQ LQ48001
- Page 1 Thank you for purchasing our 4 in 1 System Requirements: USB-C Multiport Hub. Laptop with an available USB-C Port Windows 7/8/10, MacOSX Please read this user manual v10.0 or above operating systems, carefully and keep it in a safe place USB 3.0/3.1 for future reference.
- Page 2 Notes How to Use Troubleshooting 1. The up to 100W charging speed Plug the USB-C male connector if you experience any issues or have can only be achieved when used of the Hub into the USB-C port on any question regarding the hub, with a 100W rated USB-C PD your USB-C laptop.
