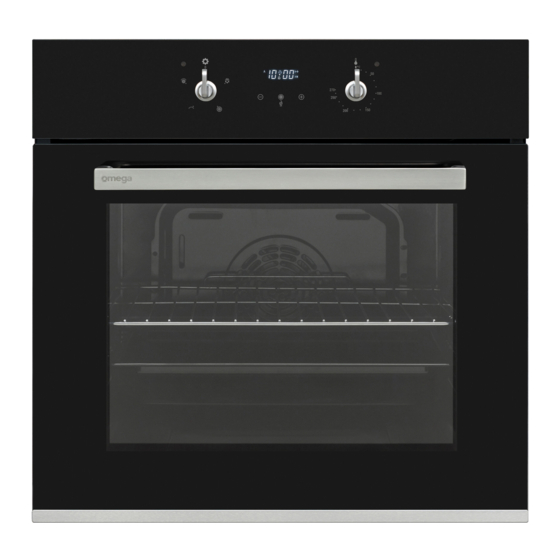

- Page 1 Instruction Manual OMEGA OVEN OBO660X2...
- Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.
-
Page 3: Table Of Contents
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice. -
Page 4: Important Safety Warnings
Important Safety Warnings IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 5: Appliance Details
Appliance Details Electrical Details Model OBO660X2 Voltage Rating 220-240V ~50Hz Power Rating 1800-2200W This information can be found on the rating plate (data label) affixed to the inside of the door jamb. Electical Connection LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by a licensed electrician and carried out according to instructions provided by the manufacturer. -
Page 6: Installation Instructions
Installation Instructions The adjacent furniture must be able to withstand a minimum temperature rise of 50°C above the ambient temperature of the room it is located in, during periods of use. The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it. Preparation for Installation and Use WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations. - Page 7 Installation Instructions • Check that the power rating of the mains supply and of the sockets are suitable for the maximum power of the appliance as indicated on the specification plate. Plug should be accessible after installation. Fit the plug into a socket fitted with a third contact which •...
- Page 8 Installation Instructions • After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.
-
Page 9: Operating Instructions
Operating Instructions Internal View Control Panel Oven Lamp Handle Wire Grill Oven door Shallow Tray Grill Element Wire Grid for trays When you first run your oven, a certain smell will be emanated arising from the insulation materials and the heater elements. - Page 10 Operating Instructions Controls OVEN FUNCTION/WARNING LIGHT CONTROL The oven function/warning light control button is used to select the different functions. Each is explained in detail. To select a function, turn the control knob to the desired oven function and then set the temperature with the thermostat control.
- Page 11 Operating Instructions Oven Functions Defrost Function You can start the defrost operation by putting the frozen food into oven and bringing the function control knob to the indicated mark. This function will not cook/bake the food; it only helps to defrost it within a short time. Put the food to be defrosted on the wire rack that you will place on the middle rack support from the bottom (Figure 13).
- Page 12 Operating Instructions Oven Functions Full Grill with Fan Assist Function This function will ensure complete, fast and all over grilling by working, the fan, the grill and the upper heating element at the same time. Adjust the function control knob so it indicates the Grill with Fan function symbol and adjust the oven timer to the recommended time for cooking.
- Page 13 Operating Instructions Time Adjustment The time must be set before you start using the oven. When the oven is first connected to the power supply, the symbol “A” and “00:00” or “12:00” will flash on the display. Press the “MODE” button for 2 seconds to deactivate keylock. The dot in the middle of the screen will start to flash.
- Page 14 Operating Instructions Audible Warning Time Adjustment The audible warning time can be set to any time between “00:00” and “23:59” hours. The audible warning time is for warning purposes only. The oven will not be activated with this function. Press “MODE”. The “ ” symbol will begin to flash and “00:00” will be displayed. Select the desired time period using the “+”...
- Page 15 Operating Instructions Semi-automatic Time Adjustment (Cooking Period) This function helps you to cook for a fixed period of time. A time range between 0 and 10 hours can be set. Prepare the food for cooking and put it in the oven. Select the desired cooking function and the temperature using the control knobs.
- Page 16 Operating Instructions Semi-automatic Time Adjustment (Finishing Time) This function automatically starts the oven so that cooking will finish at a set time. You can set an end time of up to 10 hours after the current time of day. Prepare the food for cooking and put it in the oven. Select the desired cooking function and the temperature using the control knobs.
- Page 17 Operating Instructions Full-automatic Programming This function is used to start cooking after a certain period of time and for a certain duration. A time of up to 23 hours and 59 minutes after the current time of day can be set. Prepare the food for cooking and put it in the oven.
- Page 18 Operating Instructions Select the desired finishing time using the “+” and “-” keys. “ ” symbol will disappear. Add the cooking period to the current time of day. You can set a time of up to 23 hours and 59 minutes after this. The current time will reappear on the screen, and the symbols “A”, and will remain illuminated.
-
Page 19: Accessories
Accessories Easy Fix Wire Rack Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use. • Insert the accessory to the correct position inside the oven. • Allow at least a 1 cm space between the fan cover and accessories. •... - Page 20 Accessories The Wire Grid for Trays Make sure the wire grid is correctly placed within a deep tray. It is recommended to use this accessory for grilling steaks, meatballs and similar food. The Shallow Tray The shallow tray is best used for baking pastries. Put the tray into any rack and push it to the end to make sure it is correctly placed.
-
Page 21: Cooking Table
Cooking Table *If available cook with roast chicken skewer. -
Page 22: Replacing The Oven Lamp
Replacing the Oven Lamp • The appliance must first be disconnected from the power outlet or turned off at your isolation switch. • Remove the glass lens, then remove the bulb. • Replace it with another high-temperature lamp with the following characteristics: Type Voltage Rating 220-240V... -
Page 23: Cleaning And Maintenance
Cleaning and Maintenance WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out. General Instructions • Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance. •... - Page 24 Cleaning and Maintenance Cleaning Painted Surfaces (if available) Spots of tomato, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be cleaned with a cloth dipped in warm water immediately. If these stains are not cleaned and allowed to dry on the surfaces they are on, they should NOT be rubbed with hard objects (pointed objects, steel and plastic scouring wires, surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals.
- Page 25 Cleaning and Maintenance If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second glass layer. Removal of the Oven Door Before cleaning the oven door glass, you must remove the oven door, as shown below: 1.
-
Page 26: Troubleshooting
Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check whether there is power Oven does not switch Power is switched off. supplied. -
Page 27: Australian & New Zealand Product Warranty Statements Of Standard Warranty Conditions
The Damage which occurs during delivery or installation. product will be repaired or replaced at the option of Omega, and 10. Claims to product surface coating due to liquid or solid all costs of installation, removal, cartage, freight travelling spill-overs, accidental damage or damage caused from expenses and insurance are to be paid by the customer. - Page 28 52362376...
