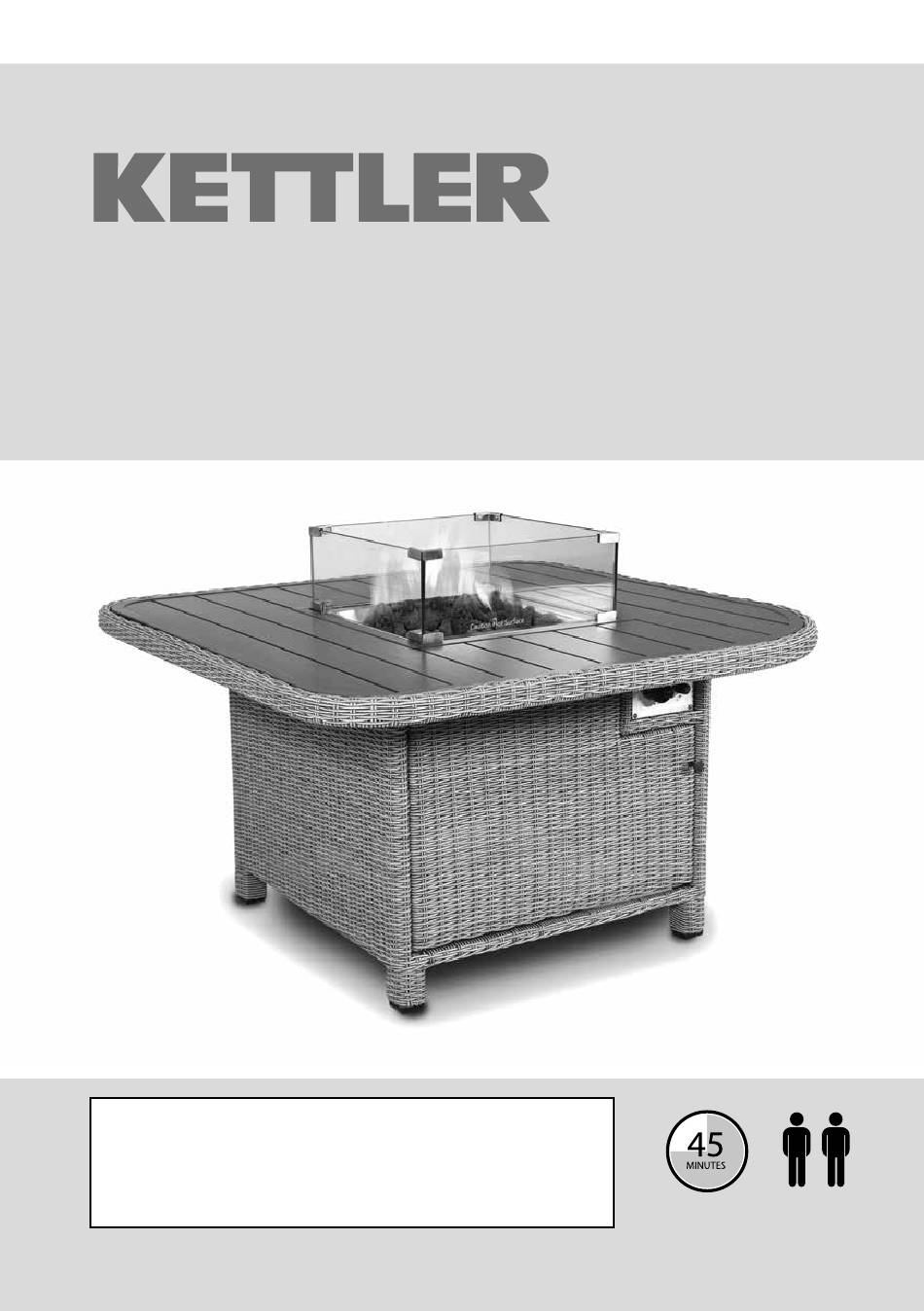

- Page 1 Assembly Instructions Palma Grande Fire Pit Table 0193387-2100/3310/5510 IMPORTANT PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE. THIS IS IMPORTANT INFORMATION REGARDING THE USE AND CARE OF YOUR GARDEN FURNITURE. ASSEMBLY PERSONS TIME REQUIRED Feb 2022...
-
Page 2: Important Safety Information
Important Safety Information Danger Warning If you smell gas: Improper installation, adjustment Shut off gas to the alteration, service or maintenance appliance. can cause injury or property damage. Extinguish any open flame. Read the installation, operating and If odor continues, contact maintenance instructions thoroughly your gas canister supplier before installing or servicing this... - Page 3 Important Safety Information Before you assemble or operate this unit, please carefully read this entire manual. Failure to do to may result in a fire, explosion, injury or death. • DO NOT fill tank over 80 percent full. • THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, •...
- Page 4 Important Safety Information • Keep all electrical cords and fuel supply hose • Children should never operate this unit. away from heated surfaces. Children must be supervised while near this unit. • Combustible material should not be within 72 inches of the top of the unit, or within 48 •...
- Page 5 Important Safety Information removed for servicing the appliance IF APPLICABLE: shall be replaced prior to operating the • Allow heating item to cool completely appliance. before placing on lid. • Installation and repair should be done by • DO NOT use heating item while lid is a qualified service person.
-
Page 6: Parts List
8. Please do not use substitute parts. Use only additional or replacement parts supplied by Kettler. 9. In the unlikely event that this product has missing or damaged parts, please visit our website... - Page 7 Parts List Item Description Item Description Burner Lid Fire Bowl (Pre-assembled) Electronic Ignitor Table Top (Pre-assembled) Right Side Panel Control Knob (Pre- Rear Side Panel assembled) Lava Rocks Left Side Panel Battery (AA) Metal Stand Glass Fixing Brackets Door Panel Side Glass Metal Stand End Glass...
- Page 8 Assembly Check that the control knob (M) for the gas supply system is tumed to the OFF position before starting any assembly. Attach the Rear side panel (D) and door panel (G) to the table top (B), using four M6x20 screws (2), four eight washers (5), four screw caps (1).
- Page 9 Assembly Attach the left side panel (E) to the door panel (G) and rear side panel (D), using four M6x40 screws (4), four eight washers (5), four screw caps (1). Attach the metal stand (F) to the metal stand (H), using two M6x35 screws (3), two washers (5), and two screw caps (1).
- Page 10 Assembly Please note that Assemble the Glass Screen the assembly Attach the glass (R) and glass (Q) position of glass to the eight fixture parts (P), using must be same as sixteen screws (6). Do not over the right pucture tighten.
- Page 11 Assembly Unscrew the rubber cap on the electronic igniter (L) by unscrewing and slide battery (O) into the battery slot. Make sure the positive side of the battery faces outwards. Screw the electronic igniter cap (L) over the battery tightly. Caution To ensure proper function, the guard (H) on this Hand place...
- Page 12 Assembly Leak Check Leak Testing: This must be done before initial use, annually, and whenever any gas Components are replaced or serviced. Do not smoke while performing this test, and remove all sources of ignition. See Leak Testing Diagram for areas to check. Turn all burner controls to the off position.
- Page 13 Assembly Warning If the leak cannot be stopped, immediately shut off the gas supply, disconnect it,and have the patio heater inspected by a certified gas installer or dealer. Do not use the patio heater until the leak has been corrected. •...
-
Page 14: Operation
Operation WARNING: Hand place the lava rock into the fire bowl to avoid blocking the gas outlets with dust, and cover the whole burner before operation. To Light To Extinguish 1. Before use please open the top cover. 1. To extinguish burner depress control knob 2. - Page 15 Attention Please be aware that painted/varnished surfaces can be damaged by sunscreens and oil based products. If the surface of your Kettler leisure furniture comes into contact with sunscreens, the surface is to be cleaned without delay as described above.
-
Page 16: Maintenance And Care Instructions
• Kettler cushions are not suitable for dry cleaning and are not machine washable. Sponge clean only. We recommend the use of the Kettler fabric care kit to clean and protect your cushions. This is available to purchase form the Kettler website. -
Page 17: Troubleshooting
Troubleshooting Problem Cause Solution Pressure is low Tank near empty, Refill LPG tank. Opening blocked Remove and clean Control not ON Turn valve to ON Burner will not light Thermocouple bad Replace thermocouple Pilot light assembly bent Place pilot properly Pilot light assembly bent Position properly and retry If the appliance is in case of any defaults or problems of assembly or use, please don't try to... -
Page 18: For Your Safety
• Damaged components may endanger your safety or shorten the life of the product. Replace all damaged parts immediately. Use only spare parts manufactured by Kettler. Should you wish to purchase spare parts, they can be ordered directly from: www.kettler.co.uk/shop •...
