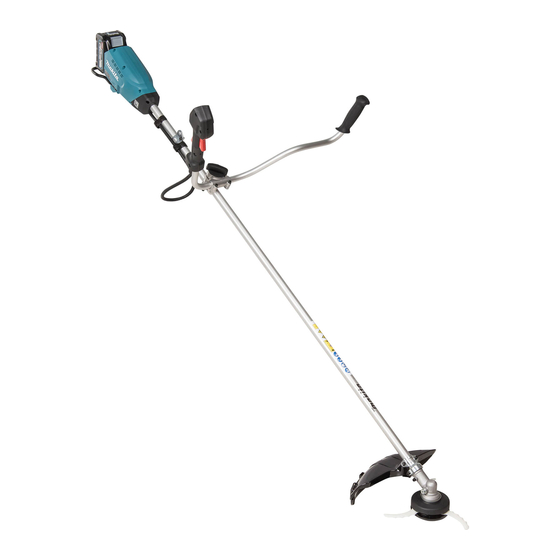

Makita UR016G Instruction Manual

Cordless grass trimmer
Hide thumbs Also See for UR016G:
Table of Contents

Advertisement

Quick Links

Download this manual
Cordless Grass Trimmer
EN
Coupe Herbe Sans Fil
FR
Akku-Rasentrimmer
DE
Tagliabordi a batteria
IT
Accugrastrimmer
NL
Cortador Inalámbrico de
ES
Pasto
TESOURA PARA GRAMA A
PT
BATERIA
DA
Akku græstrimmer
EL
Φορητό κουρευτικό γκαζόν
TR
Akülü Yan Tırpan
UR016G
UR017G
INSTRUCTION MANUAL
MANUEL D'INSTRUCTIONS
BETRIEBSANLEITUNG
ISTRUZIONI PER L'USO
GEBRUIKSAANWIJZING
MANUAL DE
INSTRUCCIONES
MANUAL DE INSTRUÇÕES
BRUGSANVISNING
ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ
KULLANMA KILAVUZU
12
26
42
59
75
91
107
123
138
155

Advertisement

Table of Contents
loading

Related Manuals for Makita UR016G

Summary of Contents for Makita UR016G

  • Page 1 Akku-Rasentrimmer BETRIEBSANLEITUNG Tagliabordi a batteria ISTRUZIONI PER L’USO Accugrastrimmer GEBRUIKSAANWIJZING Cortador Inalámbrico de MANUAL DE Pasto INSTRUCCIONES TESOURA PARA GRAMA A MANUAL DE INSTRUÇÕES BATERIA Akku græstrimmer BRUGSANVISNING Φορητό κουρευτικό γκαζόν ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ Akülü Yan Tırpan KULLANMA KILAVUZU UR016G UR017G...
  • Page 2 Fig.1 Fig.2 Fig.3...
  • Page 3 UR016G UR017G Fig.4...
  • Page 4 Fig.8 Fig.5 Fig.9 Fig.6 Fig.10 Fig.7 Fig.11...
  • Page 5 Fig.16 Fig.12 Fig.17 Fig.13 Fig.14 Fig.18 Fig.15...
  • Page 6 Fig.19 Fig.23 Fig.20 Fig.24 Fig.21 Fig.25 Fig.22 Fig.26...
  • Page 7 Fig.27 Fig.31 Fig.32 Fig.28 Fig.33 Fig.29 Fig.34 Fig.30...
  • Page 8 750 mm 100-300 mm 750 mm Fig.35 Fig.39 Fig.36 Fig.40 Fig.37 Fig.41 Fig.38 Fig.42...
  • Page 9 3 m (9 ft) 100 mm (3-15/16″) 80 mm (3-1/8″) Fig.43...
  • Page 10 3 m (9 ft) 100 mm (3-15/16″) Fig.44...
  • Page 11 Fig.45 Fig.46...

  • Page 12: Specifications

    ENGLISH (Original instructions) SPECIFICATIONS Model: UR016G UR017G Handle type Bike handle Loop handle No load speed 3: 6,500 min (at each rotation speed level) 2: 5,300 min 1: 3,500 min Overall length 1,792 mm (without cutting tool and battery) Nylon cord diameter 2.0 mm...
  • Page 13 Noise Model UR016G Cutting tool Sound pressure level Sound power level Applicable ) dB(A) ) dB(A) standard dB(A) Uncer- dB(A) Uncer- tainty (K) tainty (K) dB(A) dB(A) 2-tooth blade 81.3 94.1 ISO22868 (ISO11806-1) Nylon cutting head 82.2 92.3 ISO22868 (ISO11806-1)/...

  • Page 14: Declarations Of Conformity

    Model UR017G Cutting tool Left hand Right hand (m/s Uncertainty K (m/s Uncertainty K (m/s (m/s 2-tooth blade Nylon cutting head Plastic blade NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.

  • Page 15: Save All Warnings And Instruc- Tions For Future Reference

    Save all warnings and instruc- Work area safety tions for future reference. Operate the tool under good visibility and day- light conditions only. Do not operate the tool in The term "power tool" in the warnings refers to your darkness or fog. mains-operated (corded) power tool or battery-operated Do not operate the tool in explosive atmo- (cordless) power tool.

  • Page 16: Putting Into Operation

    10. Do not replace the battery with wet hands. During operation, use the shoulder harness. Keep the tool on your right side firmly. Do not replace the battery in the rain. Do not overreach. Keep proper footing and 12. Do not wet the terminal of battery with liquid balance at all times.

  • Page 17: Cutting Tools

    22. Before starting the tool, be sure that the cut- To avoid kickback: ting tool is not touching the ground and other Apply the segment between 8 and 11 o'clock. obstacles such as a tree. Never apply the segment between 12 and 23.

  • Page 18: First Aid

    Follow your local regulations relating to disposal of battery. SAVE THESE INSTRUCTIONS. 12. Use the batteries only with the products specified by Makita. Installing the batteries to WARNING: DO NOT let comfort or familiarity non-compliant products may result in a fire, exces- with product (gained from repeated use) replace sive heat, explosion, or leak of electrolyte.

  • Page 19: Parts Description

    When not using the battery cartridge, remove also void the Makita warranty for the Makita tool and it from the tool or the charger. charger. Charge the battery cartridge if you do not use it for a long period (more than six months).

  • Page 20: Overload Protection

    To start the tool, grasp the handle (the lock-off lever is released by the grasp) and then pull the switch trigger. Lighted Blinking To stop the tool, release the switch trigger. 75% to 100% UR016G ► Fig.8: 1. Lock-off lever 2. Switch trigger 50% to 75% UR017G 25% to 50% ► Fig.9: 1. Lock-off lever 2. Switch trigger...

  • Page 21: Electronic Function

    Installing the handle Reverse button for debris removal For UR016G Insert the shaft of the handle into the grip. Align the screw hole in the grip with the one in the shaft. Tighten the screw securely. WARNING: Switch off the tool and remove the ► Fig.13: 1.
  • Page 22 When not in use, store the hex wrench as illustrated to Attach the protector to the clamp using bolts. After keep it from being lost. that, install the protector extension. Insert the protector UR016G extension to the protector and then snap the clips on. ► Fig.17: 1. Hex wrench Make sure that the tabs on the protector extension fit into the slots on the protector.

  • Page 23: Nylon Cutting Head

    Makita Authorized Service Centers. Nylon cutting head For UR016G NOTICE: Be sure to use genuine Makita nylon Put on the shoulder harness and fasten the buckle. cutting head. ► Fig.30 ► Fig.28: 1. Nylon cutting head 2. Spindle 3. Hex wrench 4. Loosen 5. Tighten Clasp the hook on the shoulder harness to tool's hanger.

  • Page 24: Maintenance

    To maintain product SAFETY and RELIABILITY, for maximum control and will reduce the risk of seri- repairs, any other maintenance or adjustment should ous personal injury caused by kickback. be performed by Makita Authorized or Factory Service WARNING: Be extremely careful to maintain Centers, always using Makita replacement parts. control of the tool at all times. Do not allow the...

  • Page 25: Troubleshooting

    Replace the plastic blade if it is worn out or broken. blade ► Fig.45 TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run.

This manual is also suitable for:

Ur017g

Table of Contents
