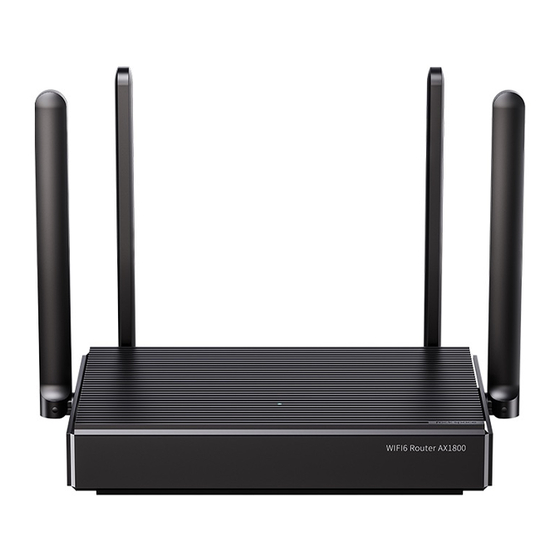

- Page 1 Quick Installation Guide AX1800 Dual-Band Wi-Fi 6 Router Model No. RSD0619...
- Page 2 I. Get Started WPS/RST Button Power Port Indicator For the best Wi-Fi performance, position the antennas as shown. LAN Ports (orange) WAN Port (yellow) RST/WPS button: Press the button for about 2 seconds to connect to WPS-enabled devices. Press the button for more than 5 seconds to reset the router. II.
- Page 3 III. Configure the Router Method 1: Via RS Home APP . Download the RS Home App. Download on the App Store Get it on RS Home Google Play . Connect your smart phone to the router. The default SSID is printed on the label at the bottom of the router. .
- Page 4 . Set your Wi-Fi Name and Wi-Fi Password. Note: All pictures shown here are for illustration purpose only and actual pages may vary due to software update. Method 2: Via a Web Browser 1. Connect to your router (wireless or wired). Wireless Find the SSID (network name) printed on the bottom label of the router and select the SSID from your network list to connect your device to the network.
- Page 5 2. Connect the router to the Internet. . Launch a web browser and enter 192.168.0.1 in the address bar to log into the router’s web interface. . Select the correct time zone for your location from the drop-down list. . The webpage detects your connection type automatically. If detection fails, choose your connection type manually.
- Page 6 Connect your device to the router’s network. If you are using a computer, unplug the Ethernet cable if any. Launch a web browser and enter 192.168.0.1 in the address bar to log in. Manage the router as needed. To check the full list of rock space Wi-Fi network devices, scan the QR code or visit https://rockspaceworld.com...
- Page 7 Q1: What connection type should I choose if the router fails to detect automatically? Dynamic IP (recommended) -- Obtain IP address from ISP automatically, choose this option if your ISP does not provide username and password. Static IP -- Choose this option if your ISP provided an IP address and other information. PPPoE -- Choose this option if your Internet Service Provider (ISP) provided PPPoE username and password.
- Page 8 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
