Quick Installation Guide
AC2100 Dual Band Wi-Fi Range Extender
Model No. RSD0623
1

Power On

Plug the extender into a power outlet next to your router.
Wait until its Power LED turns blue.
2

Set Up

Method 1:Via a Web Browser

Method 1: Via a Web Browser

1
. Connect your computer or smartphone to the extender's
1
. Connect your computer or smart phone to the extender's
network "rockspace_EXT ". When you are using a computer,
network "rockspace_EXT " . When you are using a computer,
unplug the Ethernet cable if any. When you are using a
unplug the ethernet cable if any. When you are using a
mobile phone, ensure the mobile data is disabled.
smart phone, ensure the mobile data is disabled.
WLAN
rockspace_EXT
2
. The login window pops up automatically. If it doesn't, launch a web
browser and enter 192.168.0.254 or www.rockspacewifi.com
manually to get started. Create your admin password and record
it down for later use.
*Note: If the login window does not appear, refer to FAQ > Q1.
www.rockspacewifi.com
Admin password
Confirm admin password
Next
Not Now
Ethernet Port
3
. Select the Wi-Fi network you want to extend.
Please select a Wi-Fi network you
want to extend
Connect
4
. Enter the password of the Wi-Fi network you want to extend.
Your existing Wi
-Fi network
WiFi password
The extended WiFi network
Extended SSID
The password is the same as your exsiting
WiFi network
Cancel
Completed
Note: By default, the extended network uses the same wireless network name (SSID)
as your router. Change the extended SSID if you need.
Wait until the page shows you "Wireless network extended successfully"!

Method 2: Via the WPS Button

1
. Press the WPS button on the router.
2. Within 2 minutes, press the WPS button on the extender.
Press
3
. Wait until the Signal LED on the extender turns blue ,
indicating successful connection. If the Signal LED does not
turn blue, try again or use Method 1.

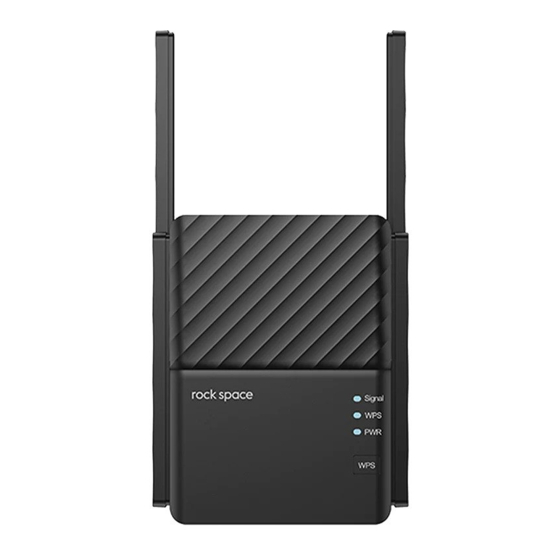

Meet Your Extender

This LED indicates the connection
Signal LED
between the extender and the router.
Blue
Best connection.
Red
Poor connection.
No connection.
WPS LED
Signal LED
Blinking
WPS connection is in progress.
WPS LED
Signal
Off
Wi-Fi security is not enabled.
WPS
Power LED
PWR
WPS Button
WPS
Power LED
On
The extender is powered on.
The extender is powered off.
Reset Pinhole
Relocate the
3
Wi-Fi Range Extender
1.
Plug in the extender about halfway between your router
and the Wi-Fi dead zone. The location you choose must be
within the range of your router.
2.
Wait for about 2 minutes until the Signal LED turns blue.
If it doesn't, relocate the extender closer to the router to
achieve better signal quality.
Suitable location, at a halfway
point between your router
and the dead zone.
Signal
WPS
PWR
WPS
Signal
WPS
PWR
WPS
Too close to the router,
extended Wi-Fi signal can
not cover the dead zone.
Signal
WPS
PWR
WPS
Signal
WPS
PWR
WPS
Too far away from the router,
the extender will lose
connection with your router.
