Summary of Contents for Hotpoint HDM67G0CCW

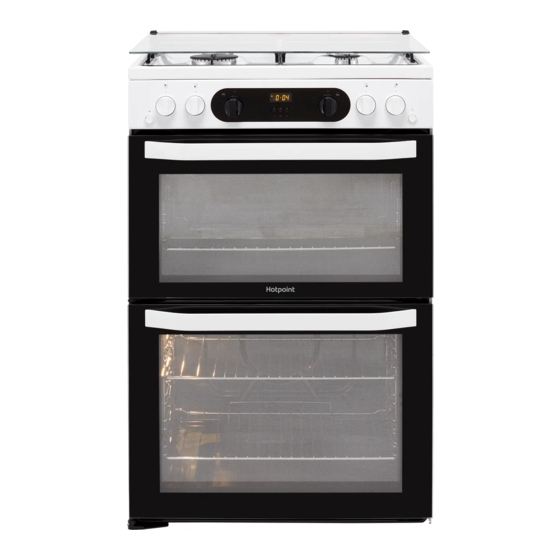

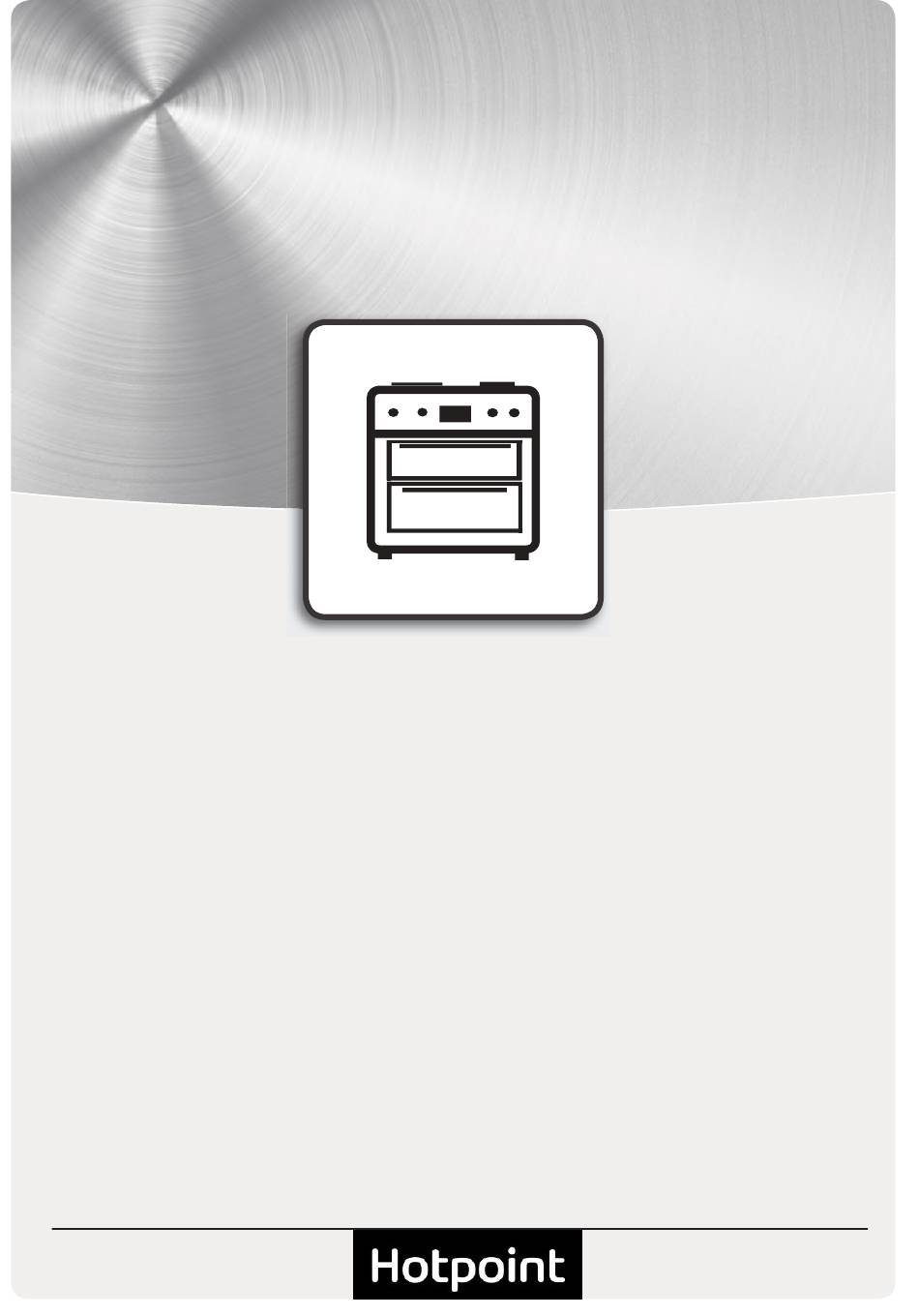

- Page 1 HDM67G0CCW/UK HDM67G0CCW/UK HDM67G0CCW/UK...
- Page 2 ENGLISH Health and Safety guide Quick guide Installation guide...
-
Page 3: Safety Instructions
CAUTION : In case of hotplate glass breakage:- SAFETY INSTRUCTIONS shut immediately off all burners and any electrical heating element and isolate the appliance from IMPORTANT TO BE READ AND OBSERVED the power supply; - do not touch the appliance surface;... -
Page 4: Installation
specific table). Make sure pots on the grates do Liquid petroleum gas sinks to the floor as it not protrude beyond the edge of the hob. is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents Improper use of the grids can result in damage to allow gas to escape in the event of a leak. - Page 5 ADAPTING TO DIFFERENT TYPES OF GAS CLEANING AND MAINTENANCE (This operation needs to be carried out by a WARNING: Ensure that the appliance is switched off and disconnected from the power qualified technician.) supply before performing any maintenance In order to adapt the appliance to a type of gas operation;...
-
Page 7: Product Description
PRODUCT DESCRIPTION Glass cover Gas burners Control panel 4. Runners for accessories (the level is indicated on the wall of the cooking compartment) Removable Inner Door Glass Main oven door CONTROL PANEL Main oven Oven light Top oven Electronic ignition Thermostat Thermostat Timer... -
Page 8: Installation Tips
INSTALLATION TIPS Installation of the cooker Installation of the cooker WARNING : This operation must be perfomed by a qualified technician For a correct installation of the cooker the following For a correct installation of the cooker the following precautions must be followed: precautions must be followed: The height of the cooker can be adjusted by means The height of the cooker can be adjusted by means... - Page 9 INSTALLATION TIPS WARNING : This operation must be perfomed •remove the grids and slide the burners from their by a qualified technician housings; • unscrew the nozzles Gas connection using a 7 mm socket spanner, and replace The cooker should be connected to the gas-supply by a gas safe registered installer.
- Page 10 INSTALLATION TIPS INSTALLATION TIPS If the appliance is connected to a liquid gas supply, the If the appliance is connected to a liquid gas supply, the WARNING : This operation must be perfomed bypass screw must be set to a minimum. bypass screw must be set to a minimum.
-
Page 11: Electrical Connection
ELECTRICAL CONNECTION For appliances with a rating greater than 13 amp WARNING : This operation must be perfomed (eg: electric hob, double ovens and freestanding by a qualified technician electric cookers etc.) the mains cable must be wired into a cooker output point with a rating of 45 amp. In this case the cable is not supplied. -
Page 12: Cooking Tips
ACCESSORIES KIT GRILL PAN GRID The number and type of accessories may vary depending on which model is purchased. Other accessories that are not supplied can be purchased separately from the After-sales Service. FIRST TIME USE DAILY USE Using the hob Lighting the burners For each BURNER knob there is a complete ring for approximately 3-7 seconds to keep the flame... - Page 13 FIRST TIME USE DAILY USE grilling, but should be replaced when using the oven MAIN OVEN for best cooking results. It has a safety stop to prevent it from being pulled out too far when attending to food. TO USE THE MAIN OVEN The shelf is removed from the oven by pulling it out to 1.
- Page 14 GAS NOZZLE TABLE GAS NOZZLE TABLE GAS NOZZLE TABLE GAS NOZZLE TABLE GAS NOZZLE TABLE haracteristics of the gas section C C C Model Gas section Gas category Rated power kW (1) 14,30 (G20) II2H3+ HD67G0CCX/UK 14,10 (1025 g/h-G30) (100 g/h-G31) (1) The values in g/h refer to the capacities with liquid gas (Butane, Propane).
- Page 15 GRILL to allow time for the safety device to operate. If The grill is fitted with a safety device that will cut off the the burner extinguishes when the control knob is gas supply to the burner if the flame is extinguished released, repeat the procedure ensuring the control for any reason.
-
Page 16: Clock Minute Minder Operation
CLOCK MINUTE MINDER OPERATION / / / / 2. Use the “+” and “-” buttons to adjust the time; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and DISPLAY easier to set the desired value. -
Page 17: Cooking Table
COOKING TABLE MAIN OVEN MAIN OVEN MAIN OVEN MAIN OVEN PREHEAT DURATION LEVEL (L-number) AND RECIPE FUNCTION Time (minutes) MARK (Minutes) ACCESSORIES Leavened cakes / Sponge cakes CONVENTIONAL 3 - 4 20 - 50 Filled cake (cheese cake, strudel, fruit pie) CONVENTIONAL 3 - 4... - Page 18 COOKING TABLE TOP OVEN TOP OVEN TOP OVEN TOP OVEN TOP OVEN TOP OVEN PREHEAT DURATION LEVEL (L-number) AND RECIPE FUNCTION Time (Minutes) MARK (Minutes) ACCESSORIES Leavened cakes / Sponge cakes CONVENTIONAL 3 - 4 30 - 70 Filled cake (cheese cake, strudel, fruit pie) CONVENTIONAL...
-
Page 19: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning the glass door with 2 panels TOP OVEN DOORS ..1 1 1 1 Open the door to ° Removing the retaining Removing the retaining bar depress carefully the clips on both sides of the bar. Pull the trim up gently until the retainer is released. -
Page 20: Replacing The Light
CLEANING AND MAINTENANCE TURN OFF THE MAIN SWITCH AND ENSURE THE COOKER IS COLD BEFORE CLEANING. BEFORE SWITCHING ON AGAIN, ENSURE THAT ALL CONTROLS ARE IN THE OFF POSITION. Do not use steam cleaning Carry out the required Do not use wire wool, abrasive equipment. -
Page 21: Troubleshooting
Please refer to the enclosed warranty leaflet for more information on the warranty. A complete product specification, including the energy efficiency ratings for this oven, can be read and www.hotpoint.co.uk downloaded from our website... - Page 22 Min. 750 mm Min. 420 mm max. 15 mm...
- Page 23 Connecting to gas supply Hot parts Installation area Position the gas connection point such that it is located within the shaded area, and the hose also hangs naturally within the shaded area. There are 2 spacers on the rear panel of the appliance (see Fig 1) intended to prevent the appliance trapping the flexible hose.
- Page 24 Via Carlo Pisacane n.1 XEROX FABRIANO 20016 Pero (MI), Italy VAT number: IT00693740425 www.hotpoint.co.uk Fitting - Step 2 Your new cooker comes with 4 chrome shelf supports packed in the main oven along with the shelves. Once engaged at the top, then push the bottom rods into There are 2 shelf supports for the top oven and 2 the lower slots in the oven side walls.
