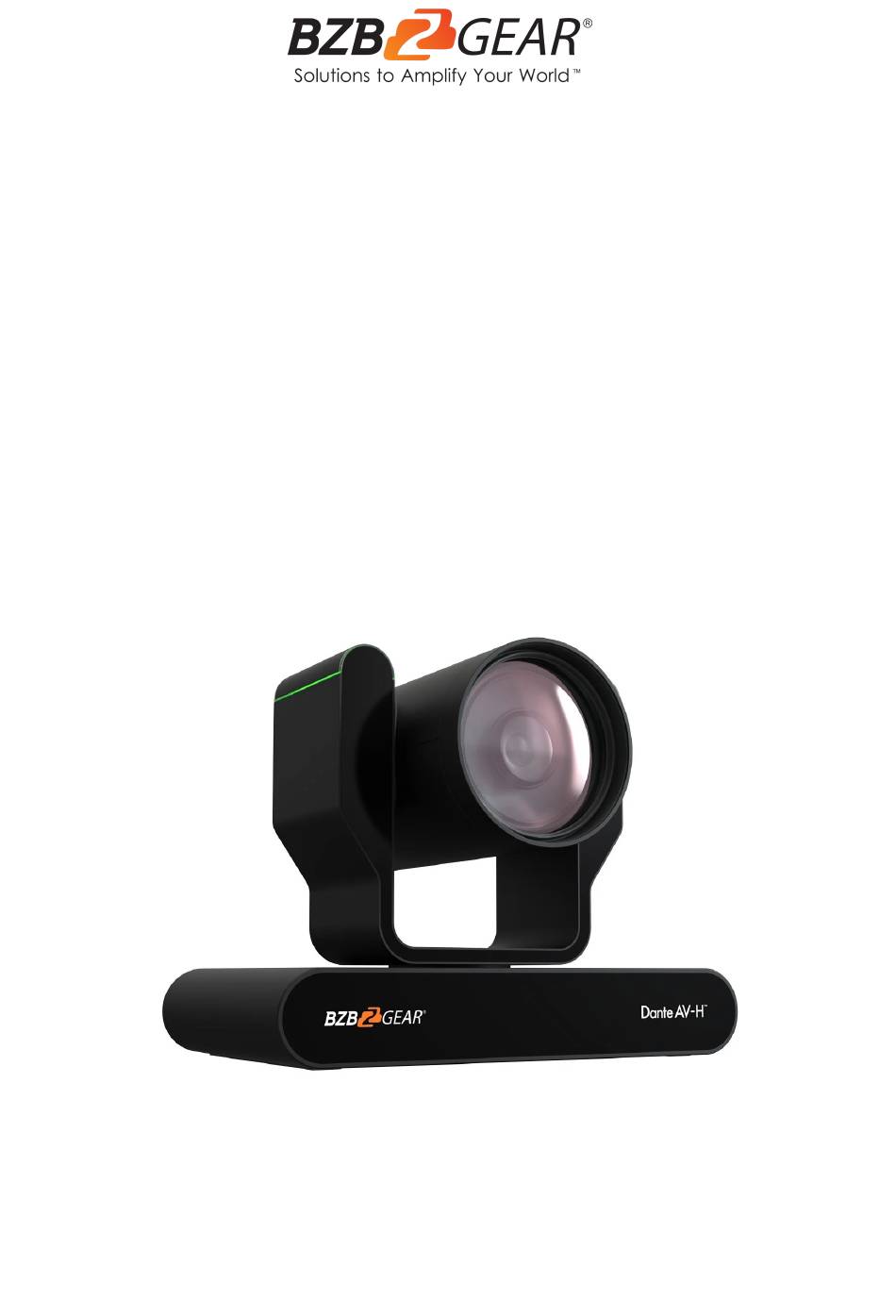

BG-ADAMO-4KDA
4K UHD AUTO TRACKING HDMI 2.0/12G-SDI/USB 2.0/USB 3.0/Dante AV-H
Live Streaming PTZ Camera with Tally Lights
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-ADAMO-4KDA12X-W and is the answer not in the manual?

Questions and answers

Related Manuals for BZBGEAR BG-ADAMO-4KDA12X-W

Summary of Contents for BZBGEAR BG-ADAMO-4KDA12X-W

  • Page 1 BG-ADAMO-4KDA 4K UHD AUTO TRACKING HDMI 2.0/12G-SDI/USB 2.0/USB 3.0/Dante AV-H Live Streaming PTZ Camera with Tally Lights User Manual...
  • Page 2 BZBGEAR BG-ADAMO-4KDA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-ADAMO-4KDA PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Packing List Specifications Installation and Handling Caution Camera Interface RS-232 Interface VISCA Networking Mounting Wall Mounting Ceiling Mounting Operating Instructions Power on and Self-check Remote Remote Buttons Introduction...

  • Page 4: Statement

    ● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards.

  • Page 5: Introduction

    PRODUCT MANUAL Introduction The BZBGEAR BG-ADAMO-4KDA is an ultra-high-definition PTZ camera that delivers 4K resolution video at 60fps Available with either the 12x optical zoom lens with an 80.4° wide-angle, or the 25x optical zoom lens with a 59° wide-angle. Featuring USB 2.0, USB 3.0, LAN/Dante AV-H, HDMI, and 12G-SDI, video connections.

  • Page 6: Packing List

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Packing List • • 1 x BG-ADAMO-4KDA 1 x RS232 Control Cable • • 1 x IR Remote Control 1 x User Manual • 1 x 12V/1.5A Power Supply Specifications Camera Parameters Optical Zoom f=3.85 mm～ 43.06 mm ±5% f=6.91 mm～...
  • Page 7 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Interface Product Interfaces HDMI, 12G-SDI, LAN/Dante AV-H (supports PoE), USB 2.0, A-IN, USB 3.0, SD (FAT32), RS232-IN, RS232-OUT, RS422 (compatible with RS485), DC12V, Power Switch LAN Interface: H.264, H.265 Video Compression Format USB 2.0 Interface: MJPG, H264, YUY2, NV12 USB3.0 Interface: YUY2...

  • Page 8: Installation And Handling Caution

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Installation and Handling Caution ● Do not manually rotate the camera head as it could cause mechanical failure. ● Place the camera on a stable table or horizontal surface. Installing on a slanted surface will result in a slanted image.

  • Page 9: Rs-232 Interface

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL RS-232 I NTERFACE MD8M DB9F PC / Camera Controller Camera RS232 RS232 In Interface · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 10: Visca Networking

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR OUT IR Commander Signal No Connection RS-232 (BD9) Port Connections Port Definition Definition Data Carrier Detect...

  • Page 11: Mounting

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Mounting Note: Ceiling or wall mounting brackets should be mounted to a wooden or concrete wall. Mounting to plasterboard is not recommended for safety reasons. Wall Mounting 1/4-20UNC Bolt Limited Post Anti-vibrate Cushion M6 Swelling Bolts...

  • Page 12: Ceiling Mounting

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Ceiling Mounting Operating Instructions OWER ON AND CHECK 1. Power-on: Connect the DC12V power adaptor to the power supply socket on the back of the camera. or connect to a PoE enabled network switch using a category cable.

  • Page 13: Remote

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL EMOTE One-to-One Code Matching: Out of the box the remote is automatically paired with the camera. Should the camera need to be re-pair with the remote, perform the steps below. 1. Press the "set" and " * " keys combined for 3 seconds. The LED indicator will start flashing.
  • Page 14 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 2. Camera Selection Select the camera’s address to control it. 3. Pan/Tilt Control Up: press Down: press Left: press Right: press Return to middle position: press 【HOME】 Press and hold the up, down, left, or right button to pan/tilt the camera.
  • Page 15 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 6. Auto Tracking Buttons F1: Turn off auto tracking F2: Turn on auto tracking F3: Switch auto tracking modes F4: Switch auto tracking to follow a different person 7. Key Combinations 【#】+【#】+【#】: Cancel all preset positions 【*】+【#】+ Manual: IP, username, password restore to...
  • Page 16 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 8. Main Menu · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 17: Network Connection

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Network Connection Connection Mode ● Direct Connection: Connect the camera directly to the computer using an ethernet cable. ● Internet Connection: Connect the camera and computer to a router or switch and access via the local area network (LAN).
  • Page 18 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL ● Right-click on your adapter again (Wi-Fi or Ethernet) and select “Properties”. ● Select “Internet protocol version 4 (TCP/IPv4” as shown below and click “Properties”. For the following steps refer to the diagram below. ● Click on the bubble for “Use the following IP address”...

  • Page 19: Initial Web Client Login

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Initial Web Client Login ● Enter 192.168.5.163 in the address bar of your internet browser and click “Enter”. Login as the administrator (Default Username/Password: admin). Users can preview and configure in the Web Client. ● When logged in as a normal user (Default Username/Password: user1 or user2), users can only preview with no options for configuration.
  • Page 20 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL ● Navigate to Configuration in the top left corner of the screen. Click “Ethernet” on the left-hand side. ● Enter an unused IP address on your network. Note: You should have your specific network information from the “Status” and “Details”...

  • Page 21: Preview

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Preview After successfully logging into the management interface, the web portal will enter the “Preview” tab. In Preview, users can control pan/tilt, zoom, focus, video capture, sound, focus, full screen preview, as well as set the preset position, run, delete, and other operations.

  • Page 22: Auto-Tracking Configuration

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Auto-Tracking Configuration To set up or enable auto-tracking, select “Track Configuration” on the top right corner. Select “On” under the option for Monocular Tracking. You have 2 modes for tracking: Presenter: The camera will continuously follow the subject until either the subject moves beyond the camera’s physical range of motion,...

  • Page 23: Zone Tracking Setup

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL RACKING ETUP ● Zone tracking must be set up using the web interface. However, it can be activated using the remote once the setup process has been completed. ● Using either the remote or web interface, adjust the camera to the desired shot.

  • Page 24: General Configuration

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL General Configuration To access system settings select “Configuration” in the top left corner of the web interface. Menu Explanation Includes audio compression formats, Audio sampling frequency, sampling Configure precision, compressing code rate settings etc. Video Includes video encoding, video Configure...

  • Page 25: Streaming

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Streaming IDEO TREAM APTURE Navigate to Configuration -> Video Encode Configure the parameters according to the network environment. Note: stream name - live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. To obtain the RTSP video stream, see below: rtsp://192.168.5.163:554/live/av0（av0 main stream)

  • Page 26: Live Stream Publish

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL TREAM UBLISH Navigate to Configuration -> Audio Configure Ensure the check box next to “Enable” is toggled. ● Select AAC as the “Encode Type.” ● Change “Bitrate” to 128 Kbps. Click Save and Reboot the ●...

  • Page 27: Dante

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Dante Dante stands for digital audio network through ethernet. Dante AV-H by Audinate is one of the leading network based production standards in the AV over IP space. Dante AV-H technology will enable users to stream their camera footage over a local area network with a single ethernet cable.
  • Page 28 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 3) Open the Dante Controller software and click the “Choose a Dante Interface” button. a) Ensure your correct PC network interface is selected and that the listed IP is in the same subnet as the camera. (Note: Your computer cannot have multiple subnets enabled unless your camera is on the lowest numerical subnet as that is what the Dante Control software will see.)
  • Page 29 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 5) Click the “Routing” tab to return to the main screen. The vertical axis displays transmitters in this case cameras. The Horizontal axis displays Dante receivers such as the computer running Dante Studio. a) To enable a Dante stream, select to expand a transmitter by clicking the + icon and then expand the desired receiver (typically your computer).

  • Page 30: Serial Port Communication And Control

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Serial Port Communication and Control The camera can be controlled through an RS232/RS485 interface. RS232C serial parameters are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None...
  • Page 31 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Command Function Command packet Note Stop 8x 01 04 07 00 FF Far(Standard) 8x 01 04 08 00 FF Near(Standard) 8x 01 04 08 02 FF Far(Variable) 8x 01 04 08 03 FF p = 0(low) - F(high)
  • Page 32 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Function Command packet Note Command Bright 8x 01 04 39 0D FF Bright mode Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF...
  • Page 33 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Function Command packet Note Command Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain Reset 8x 01 04 3F 00 pq FF pq: Memory Number(=0 to 254) 8x 01 04 3F 01 pq FF...

  • Page 34: Visca Protocol Inquiry Commands

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Function Command packet Note Command Upleft 8x 01 06 01 VV WW 01 01 FF Upright 8x 01 06 01 VV WW 02 01 FF DownLeft 8x 01 06 01 VV WW 01 02 FF DownRight...
  • Page 35 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 00 FF 6500K y0 50 06 FF 6500K y0 50 07 FF 3500K y0 50 08 FF 4500K y0 50 09 FF 5500K y0 50 0A FF 6000K...

  • Page 36: Pelco-D Protocol Command List

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 03 FF Off p: Color Gain setting 0h (60%) to Eh CAM_ColorSaturationInq 8x 09 04 49 FF y0 50 00 00 00 0p FF (130%) CAM_IDInq 8x 09 04 22 FF...

  • Page 37: Pelco-P Protocol Command List

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Upleft 0xFF Address 0x00 0x0C Pan Speed Tilt Speed Upright 0xFF Address 0x00 0x0A Pan Speed Tilt Speed DownLeft 0xFF Address 0x00 0x14 Pan Speed Tilt Speed DownRight...
  • Page 38 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Focus Far 0xA0 Address 0x01 0x00 0x00 0x00 0xAF Focus Near 0xA0 Address 0x02 0x00 0x00 0x00 0xAF Set Preset 0xA0 Address 0x00 0x03 0x00 Preset ID 0xAF...

  • Page 39: Maintenance And Troubleshooting

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Maintenance and Troubleshooting Maintenance ● Turn the camera off and disconnect the power adapter when not in use for an extended period. ● Use a soft cloth or tissue to clean the camera cover. ● Wipe the camera lens with a soft, dry cloth when cleaning. Gently wipe the lens with a mild detergent if needed.

  • Page 40: Tech Support

    BZBGEAR delivers quality products designed with users in mind. Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form.
